Hybrid System and Shift Control System: Notes

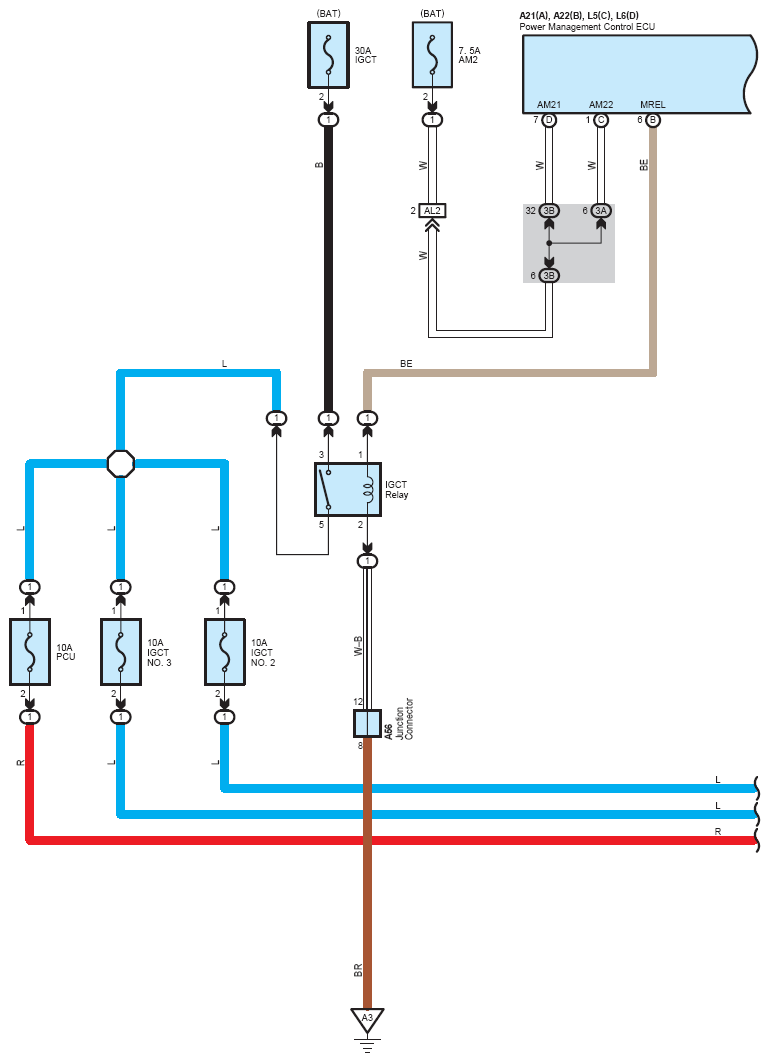

Fig 1: Hybrid System And Shift Control System Wiring Diagram (1 Of 27)

G07116726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

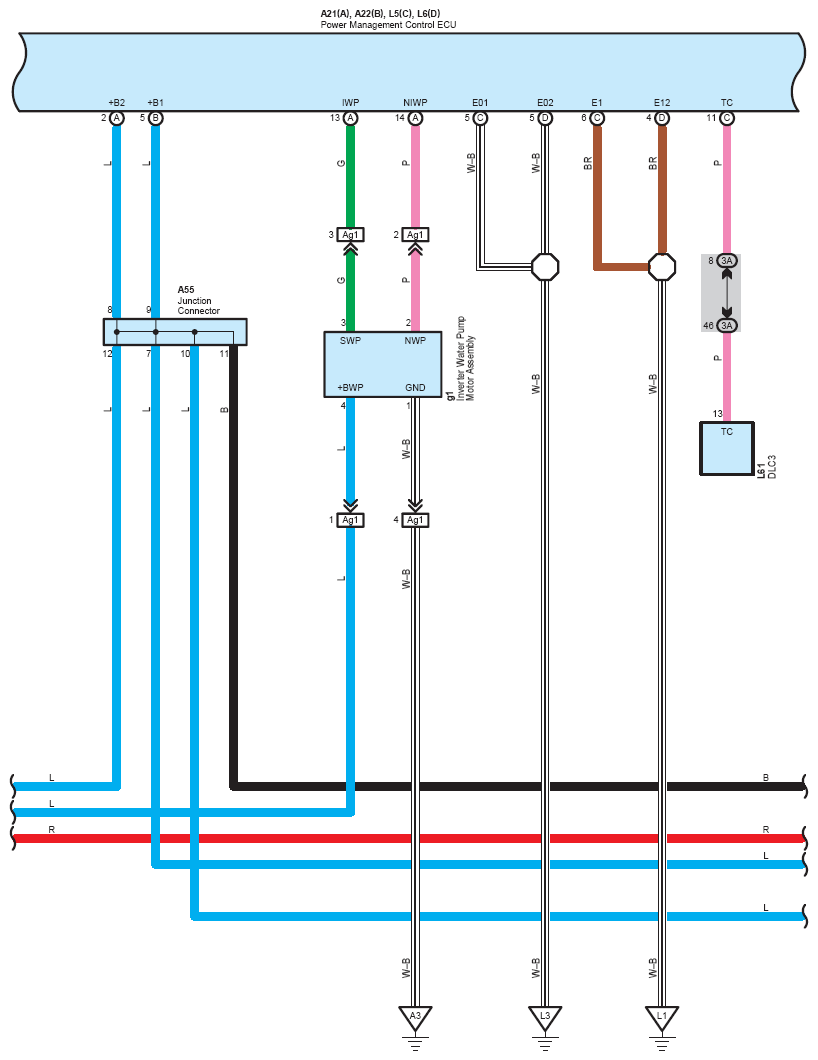

Fig 2: Hybrid System And Shift Control System Wiring Diagram (2 Of 27)

G07116727

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

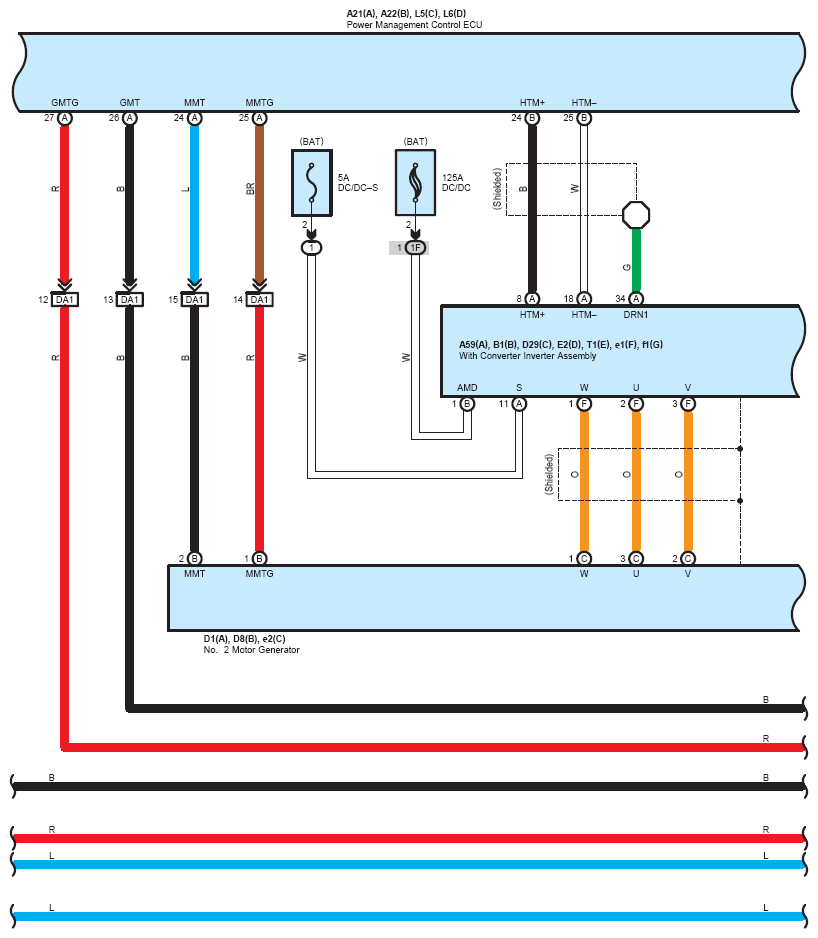

Fig 3: Hybrid System And Shift Control System Wiring Diagram (3 Of 27)

G07116728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

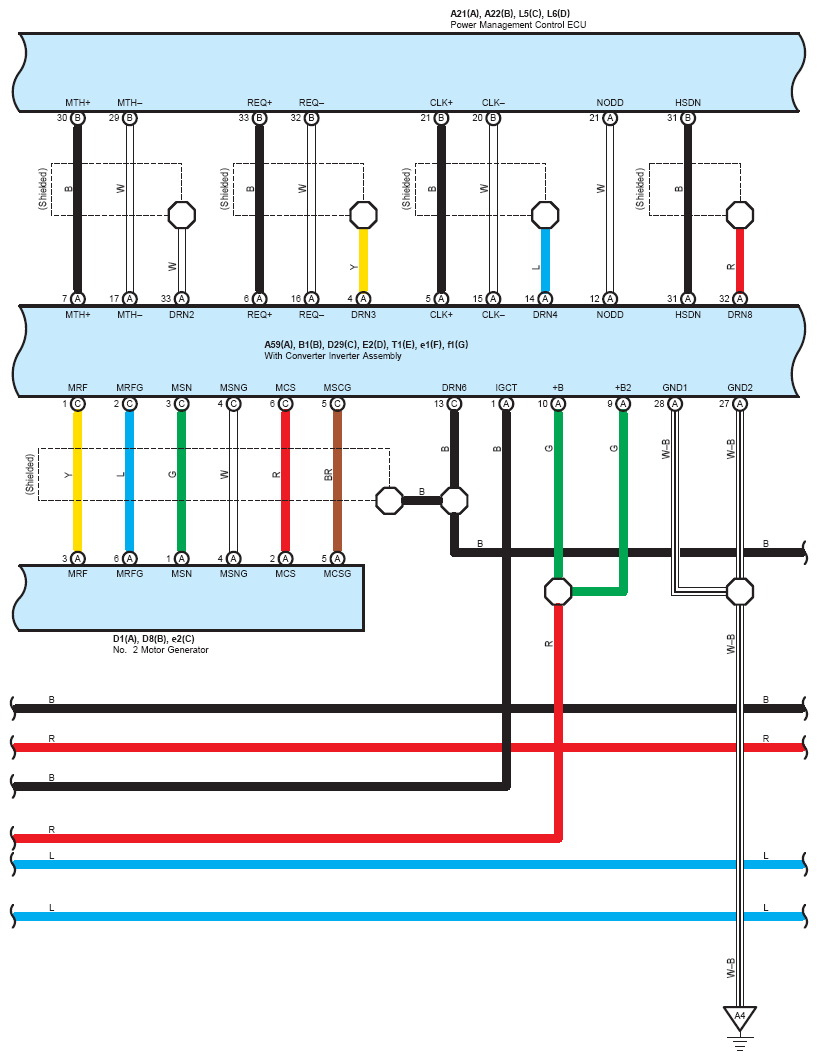

Fig 4: Hybrid System And Shift Control System Wiring Diagram (4 Of 27)

G07116729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

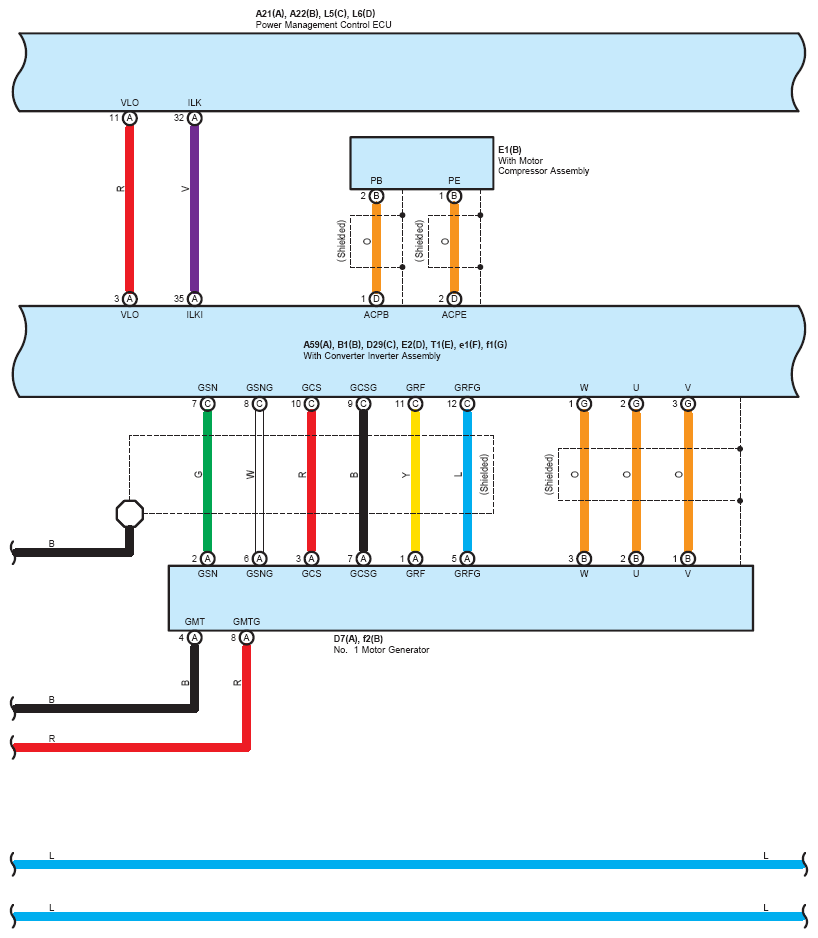

Fig 5: Hybrid System And Shift Control System Wiring Diagram (5 Of 27)

G07116730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

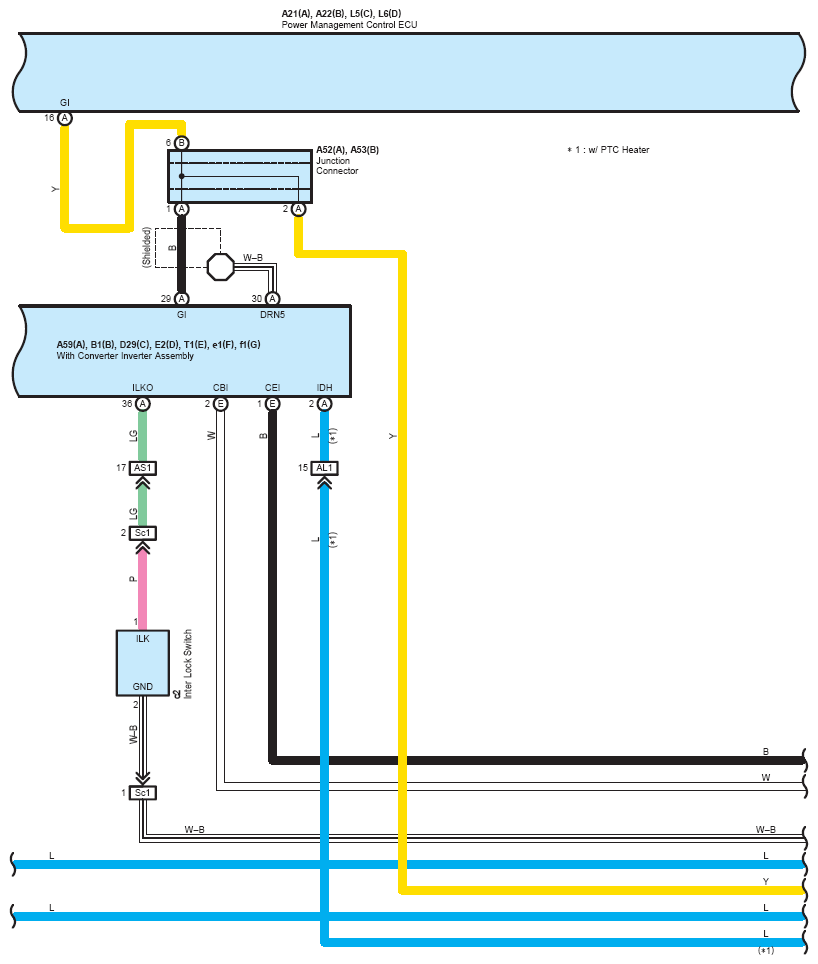

Fig 6: Hybrid System And Shift Control System Wiring Diagram (6 Of 27)

G07116731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

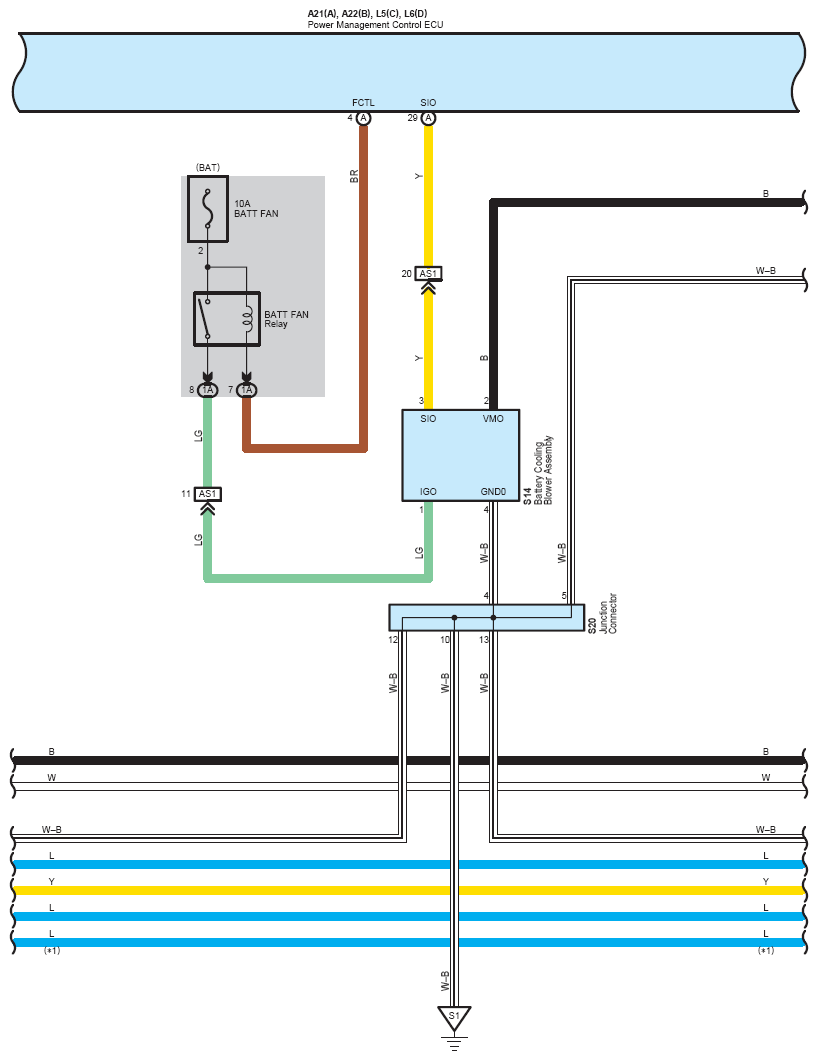

Fig 7: Hybrid System And Shift Control System Wiring Diagram (7 Of 27)

G07116732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

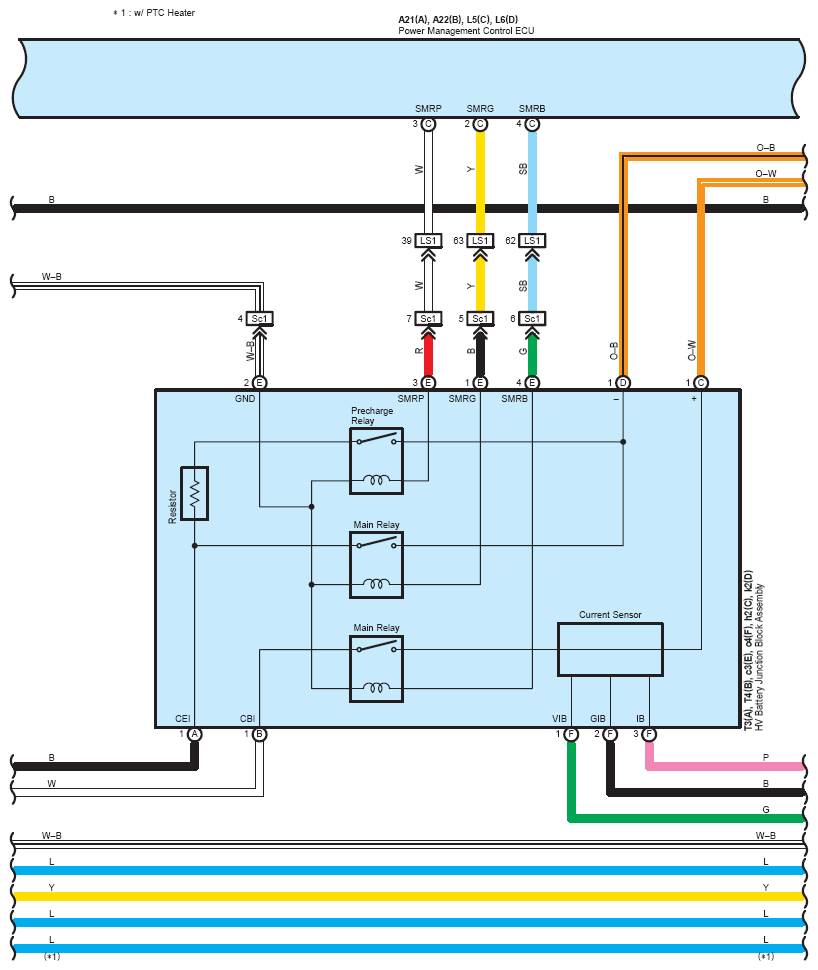

Fig 8: Hybrid System And Shift Control System Wiring Diagram (8 Of 27)

G07116733

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

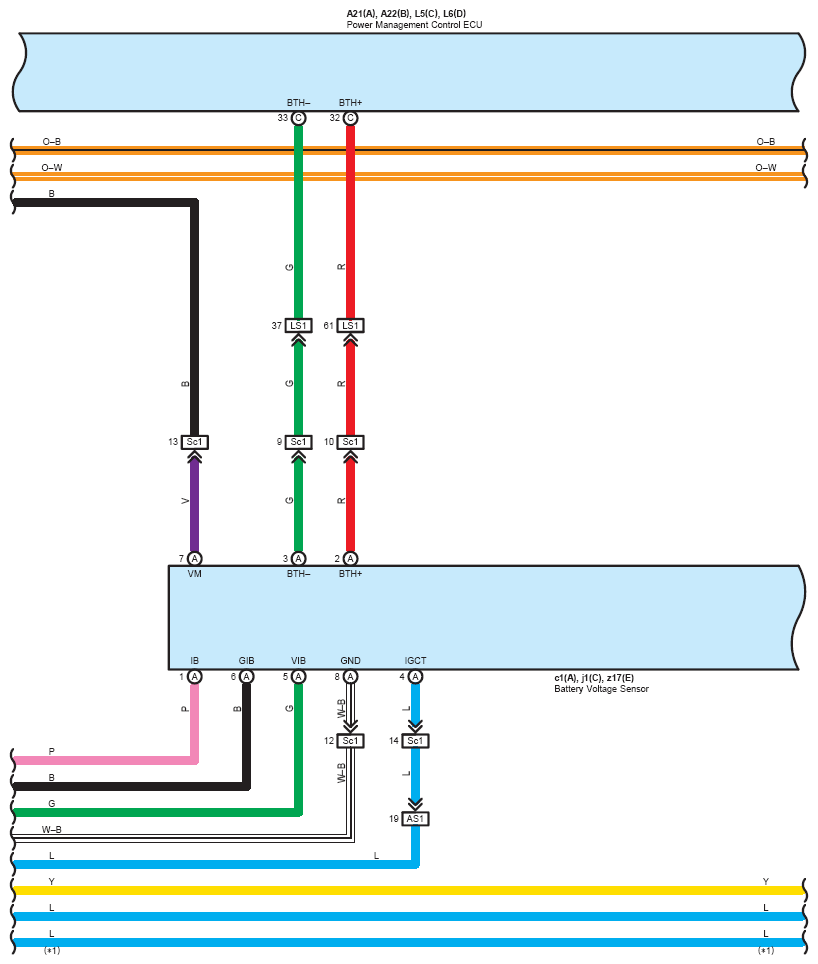

Fig 9: Hybrid System And Shift Control System Wiring Diagram (9 Of 27)

G07116734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

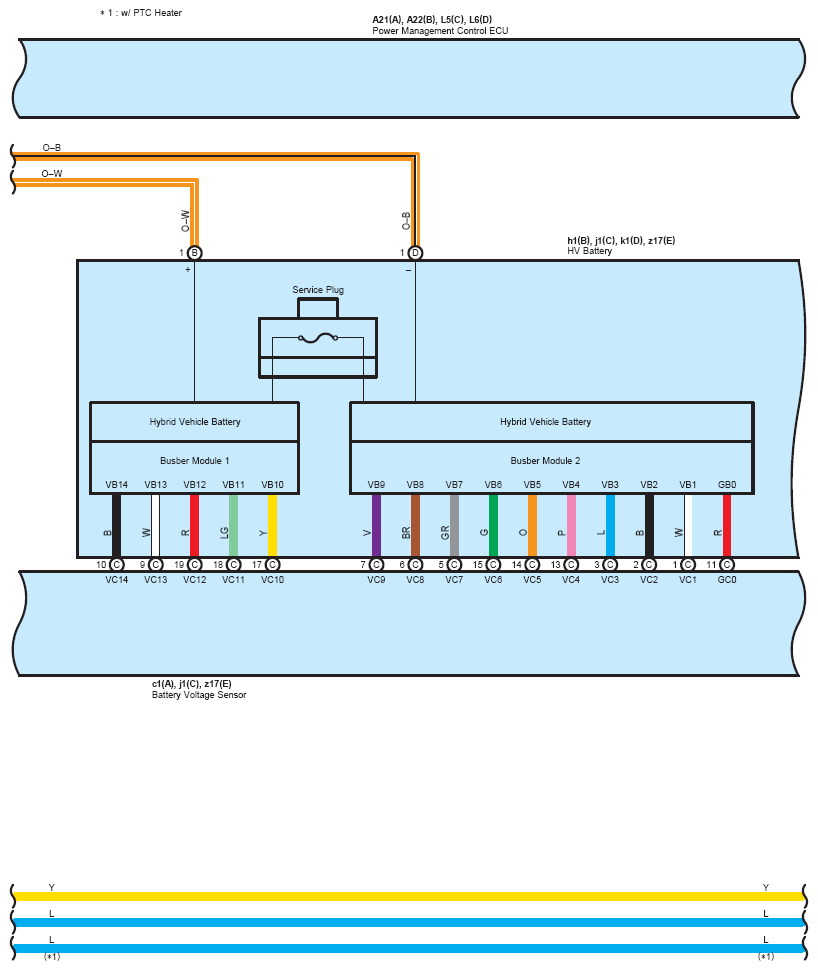

Fig 10: Hybrid System And Shift Control System Wiring Diagram (10 Of 27)

G07116735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

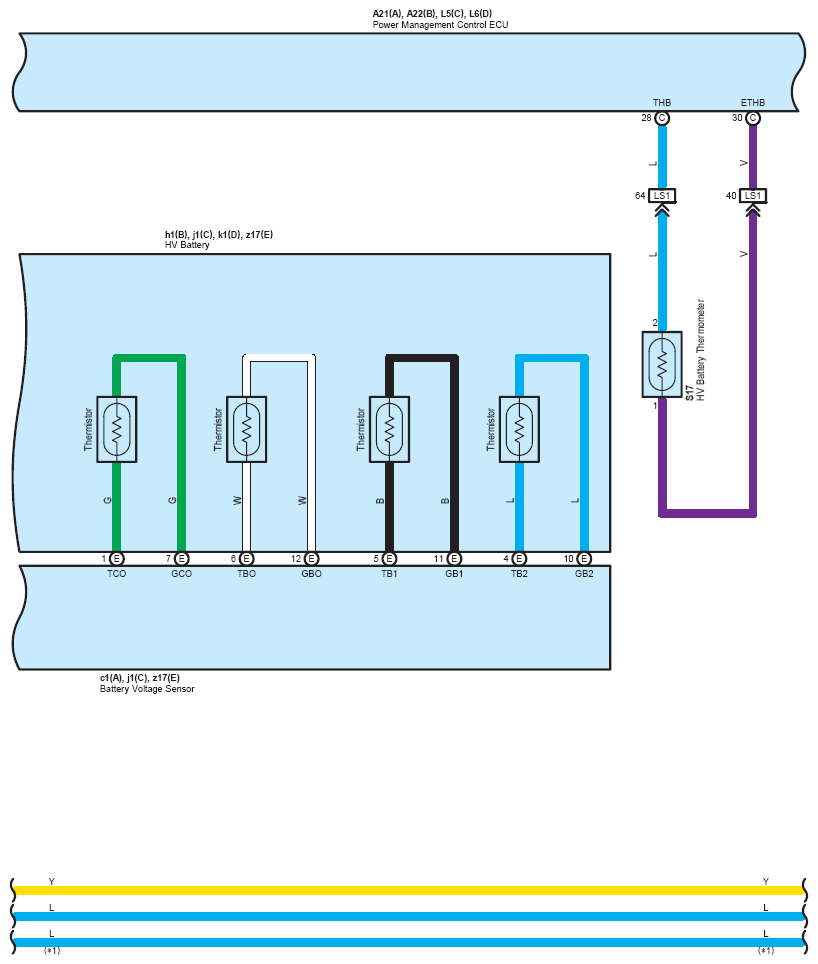

Fig 11: Hybrid System And Shift Control System Wiring Diagram (11 Of 27)

G07116736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

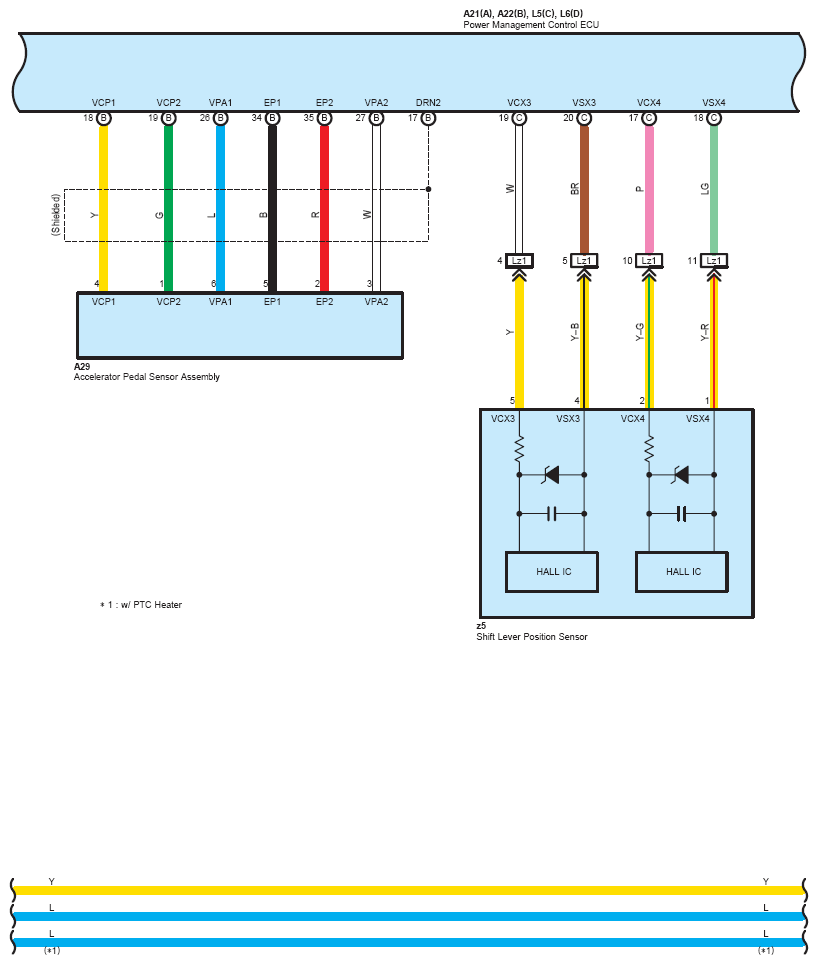

Fig 12: Hybrid System And Shift Control System Wiring Diagram (12 Of 27)

G07116737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

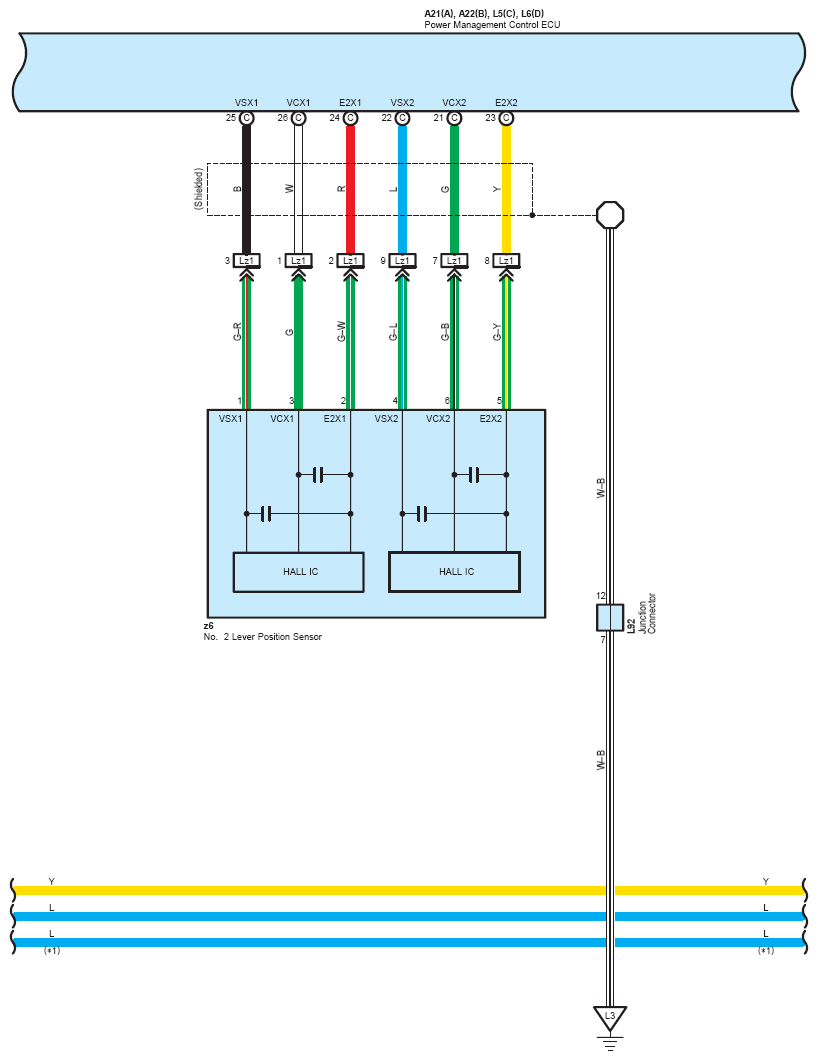

Fig 13: Hybrid System And Shift Control System Wiring Diagram (13 Of 27)

G07116738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

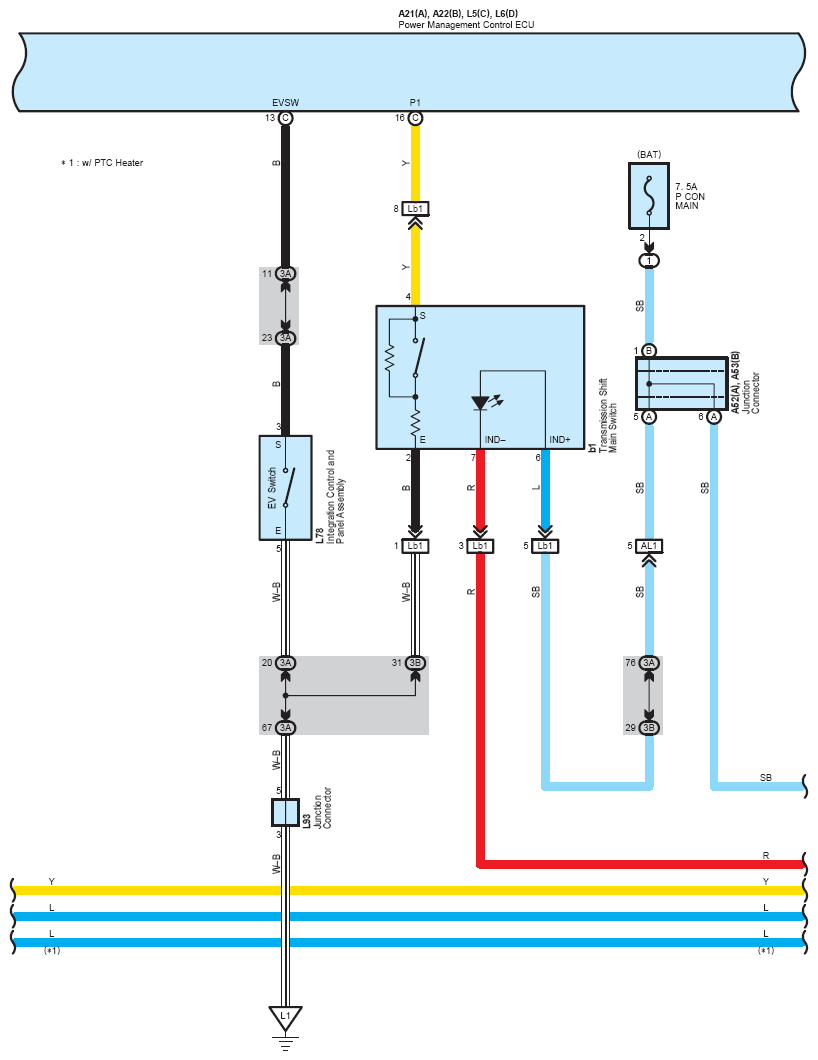

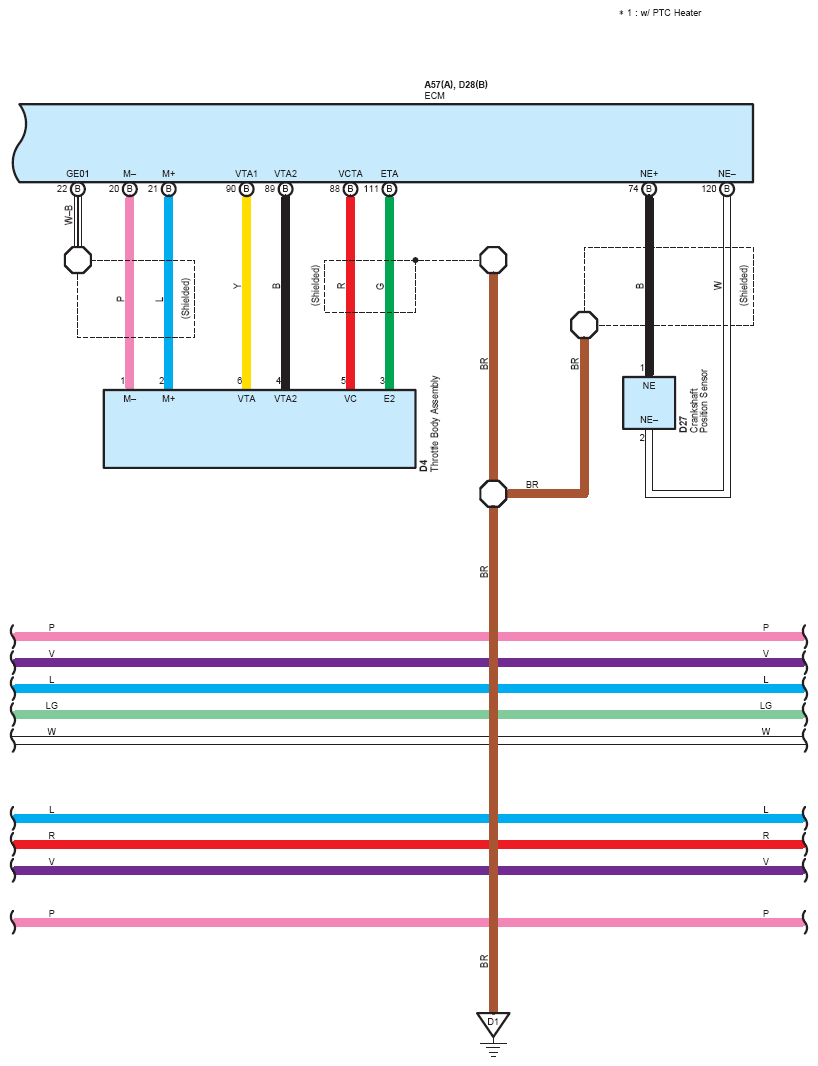

Fig 14: Hybrid System And Shift Control System Wiring Diagram (14 Of 27)

G07116739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

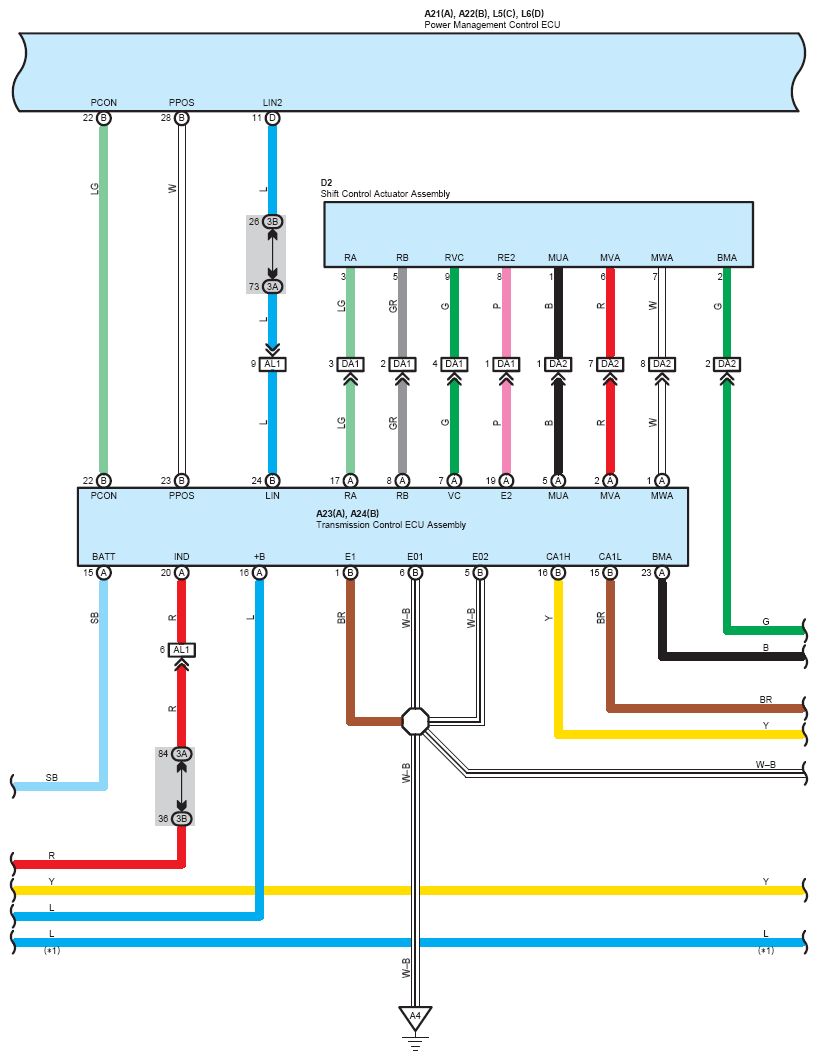

Fig 15: Hybrid System And Shift Control System Wiring Diagram (15 Of 27)

G07116740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

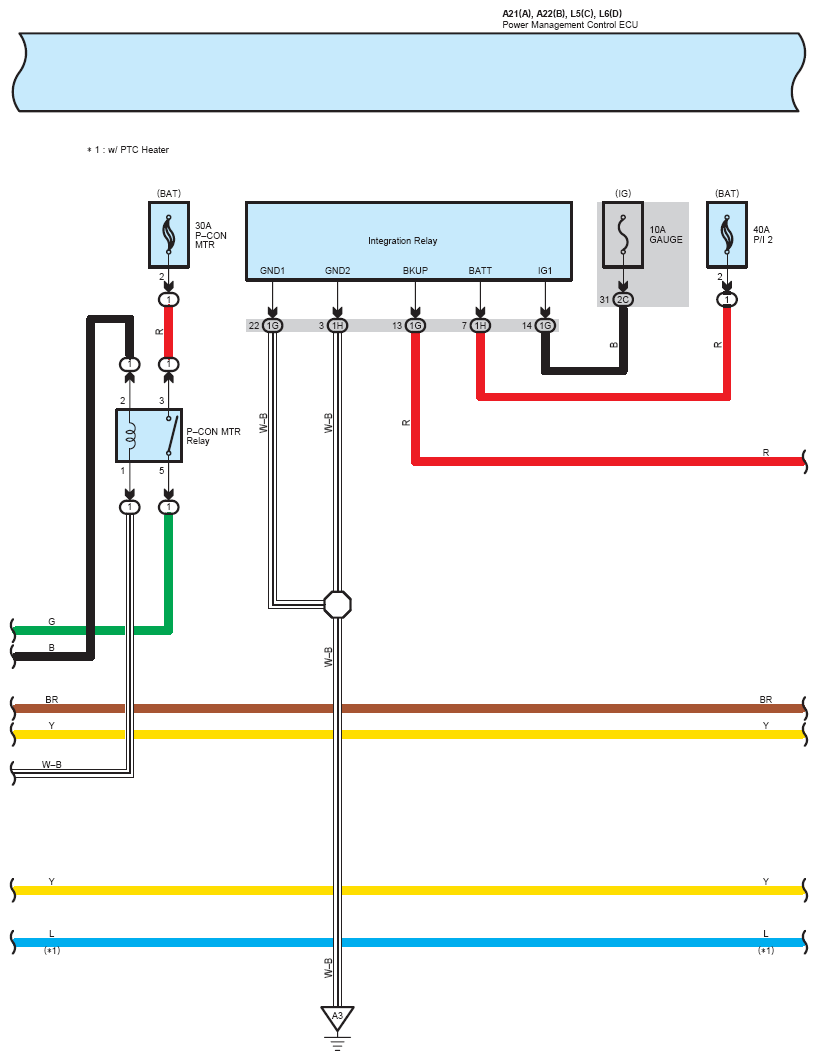

Fig 16: Hybrid System And Shift Control System Wiring Diagram (16 Of 27)

G07116741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

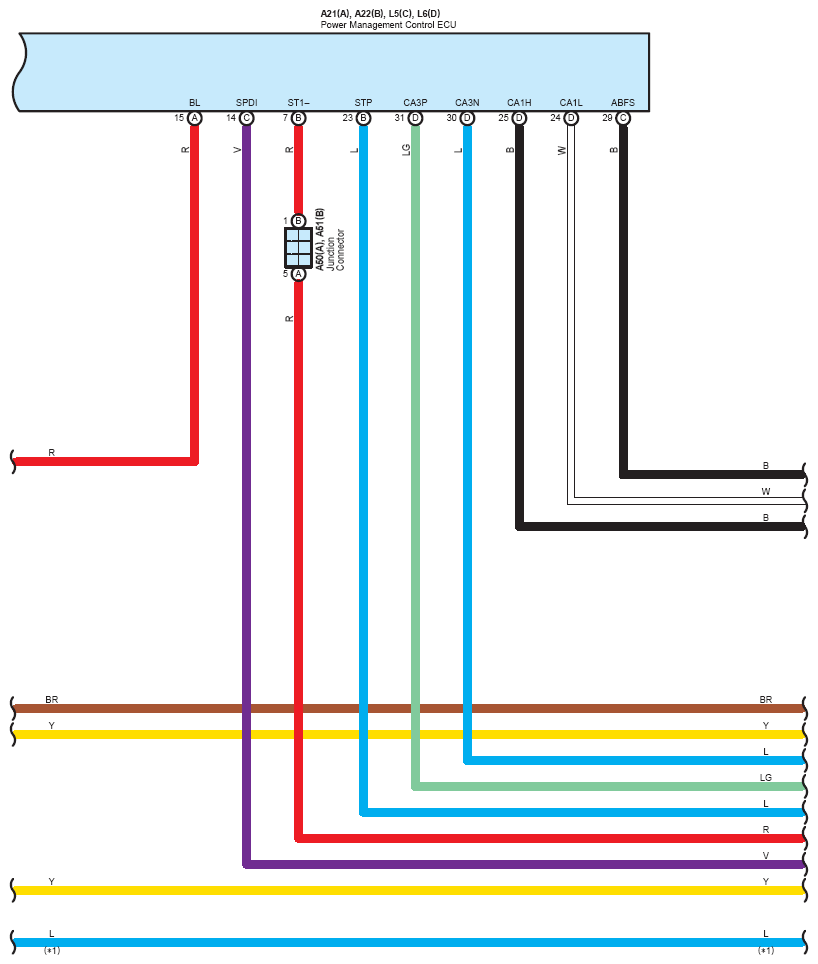

Fig 17: Hybrid System And Shift Control System Wiring Diagram (17 Of 27)

G07116742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

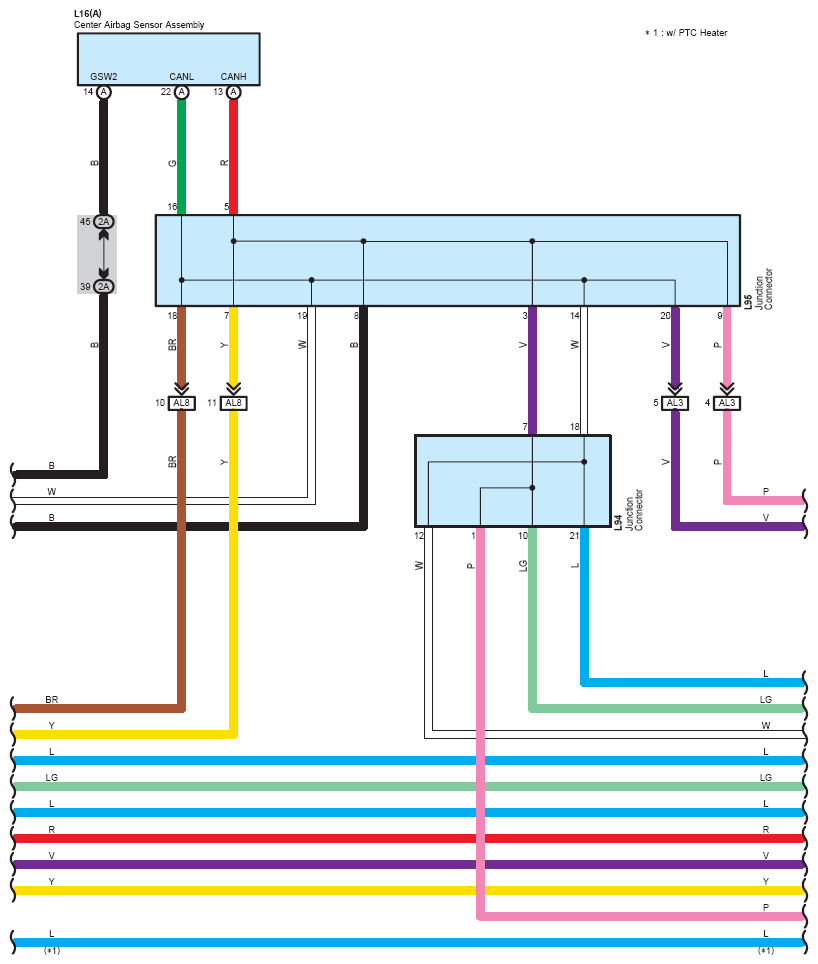

Fig 18: Hybrid System And Shift Control System Wiring Diagram (18 Of 27)

G07116743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

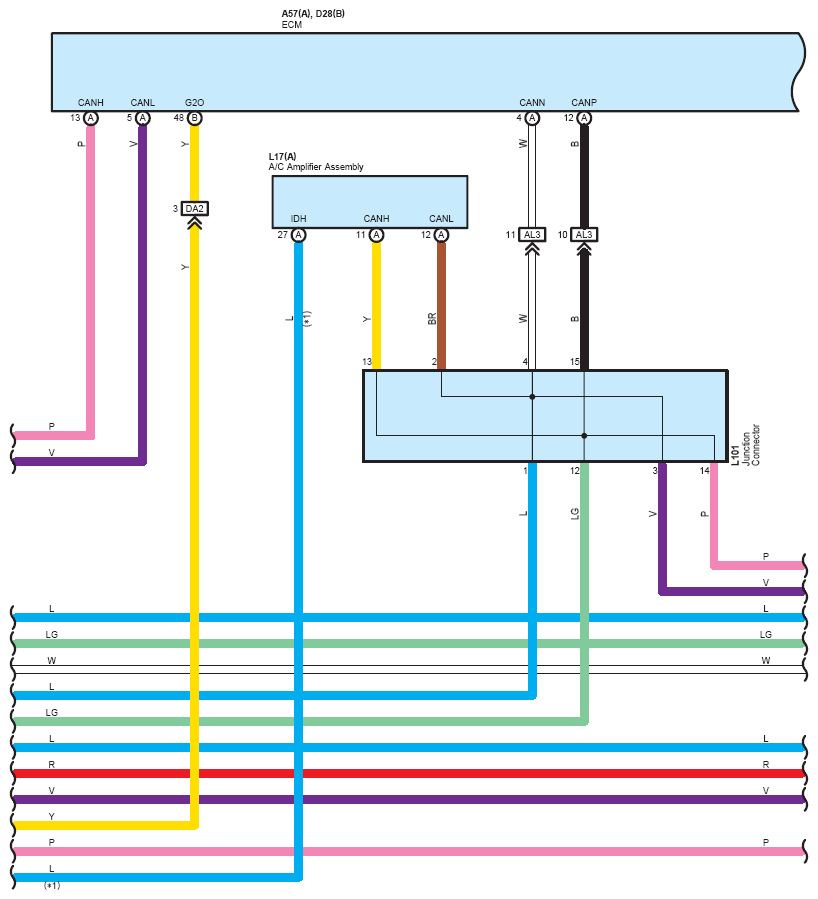

Fig 19: Hybrid System And Shift Control System Wiring Diagram (19 Of 27)

G07116744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Hybrid System And Shift Control System Wiring Diagram (20 Of 27)

G07116745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

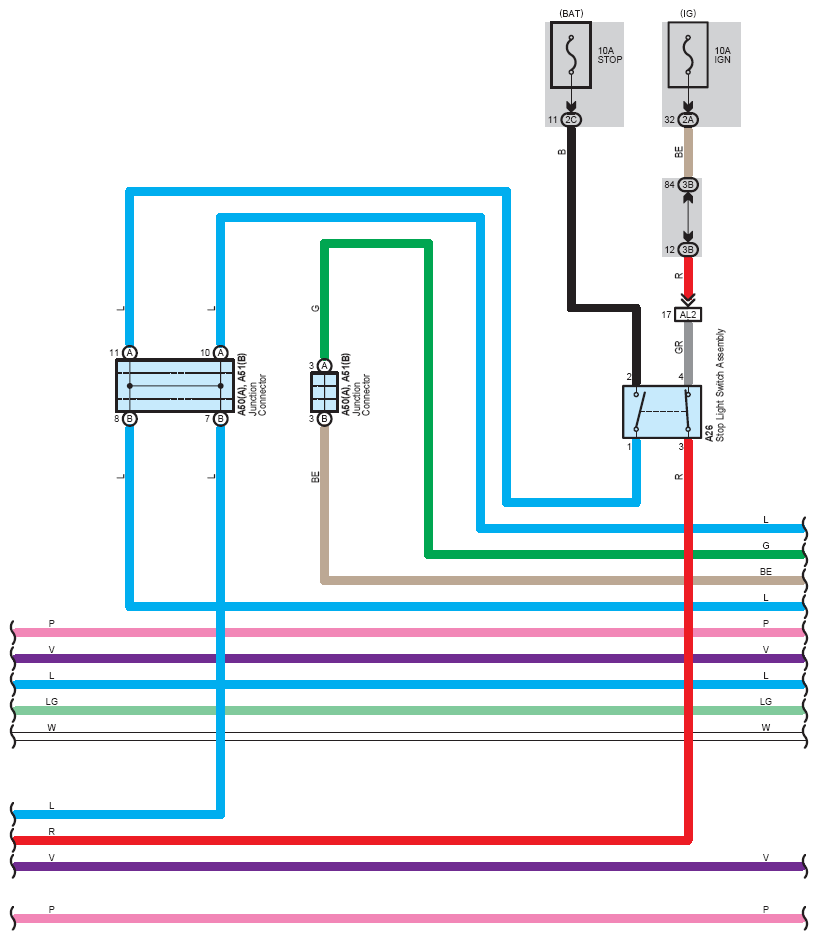

Fig 21: Hybrid System And Shift Control System Wiring Diagram (21 Of 27)

G07116746

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

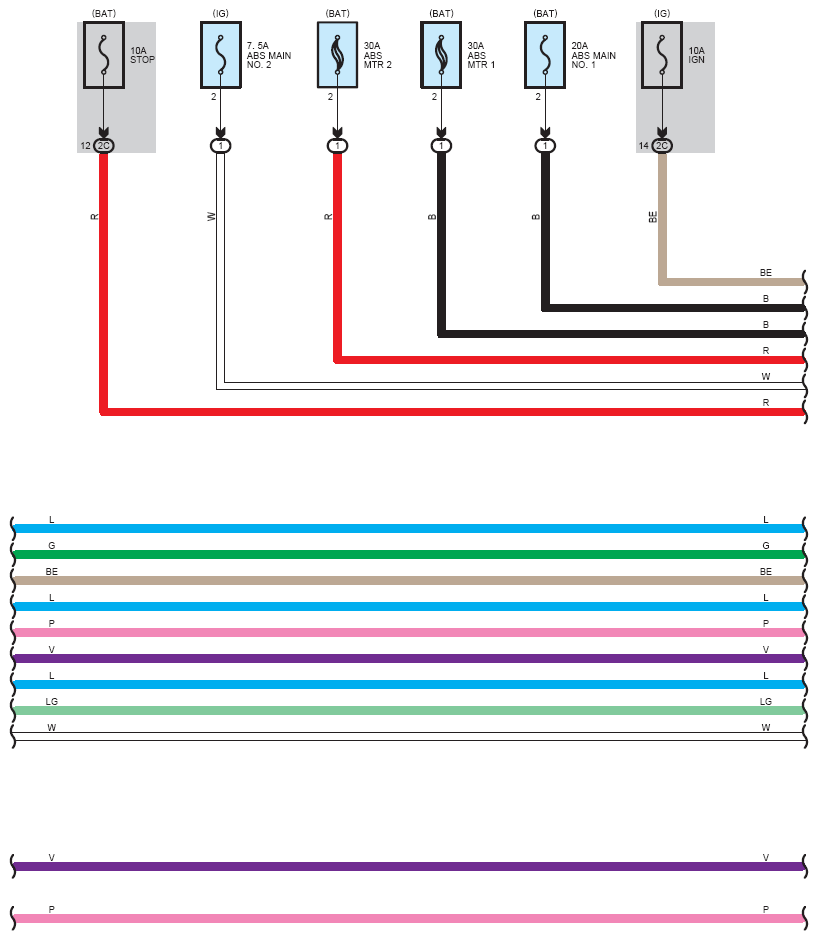

Fig 22: Hybrid System And Shift Control System Wiring Diagram (22 Of 27)

G07116747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

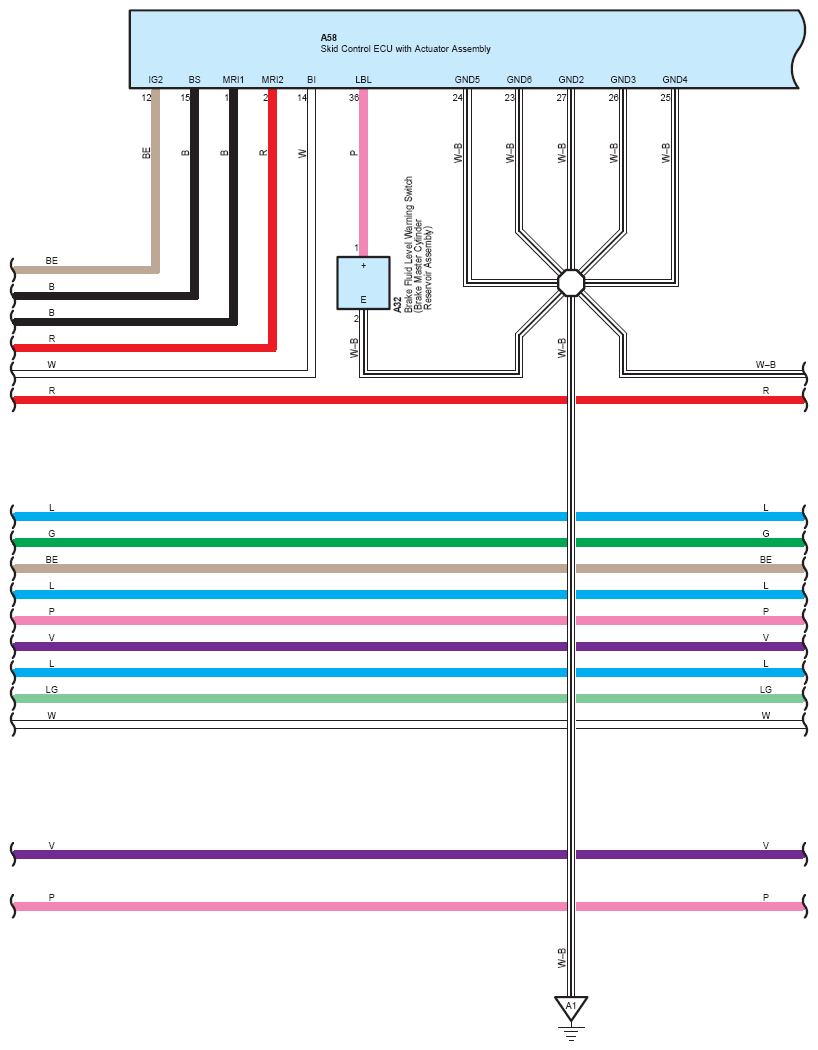

Fig 23: Hybrid System And Shift Control System Wiring Diagram (23 Of 27)

G07116748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

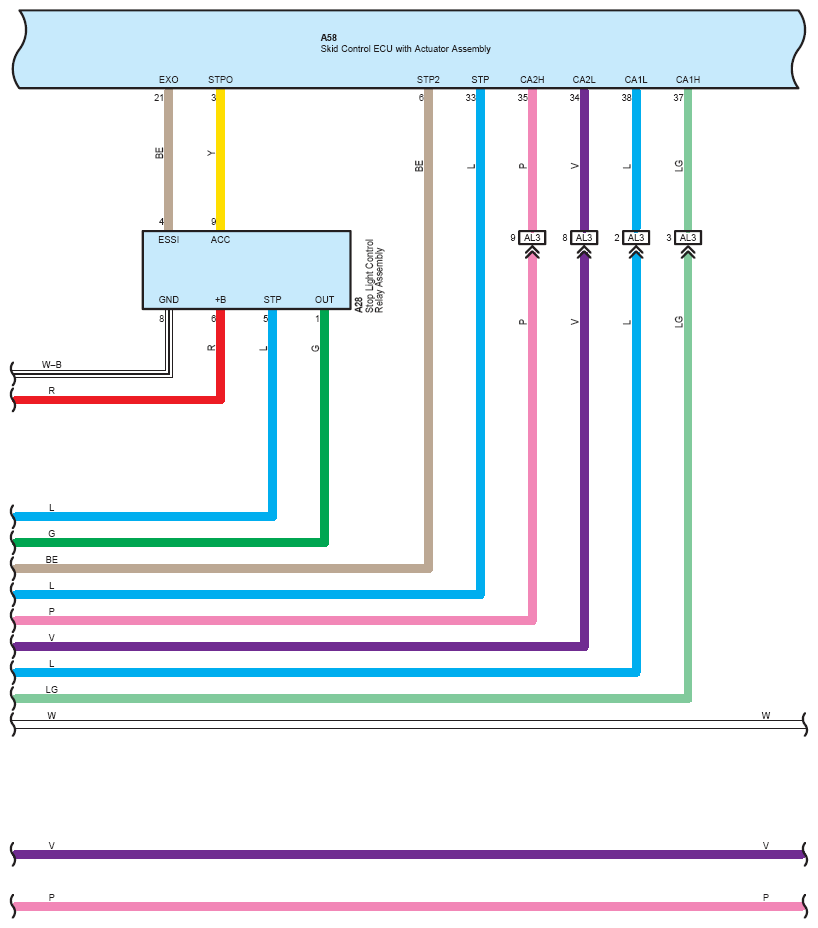

Fig 24: Hybrid System And Shift Control System Wiring Diagram (24 Of 27)

G07116749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

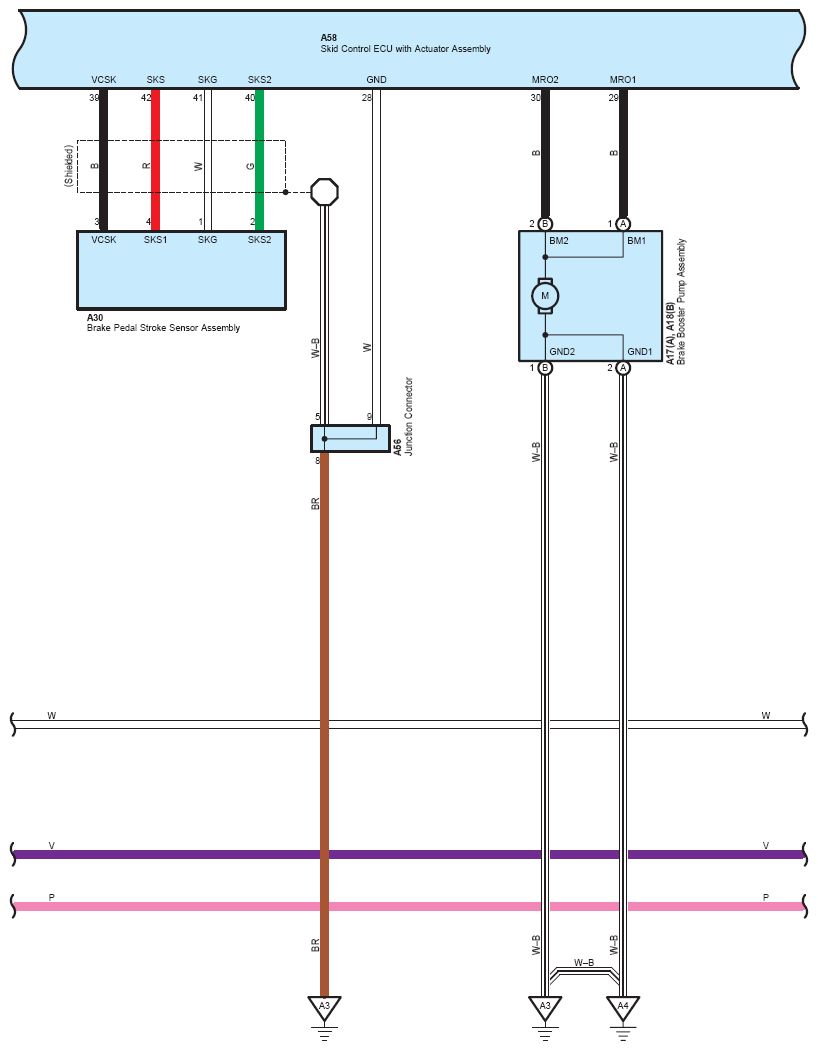

Fig 25: Hybrid System And Shift Control System Wiring Diagram (25 Of 27)

G07116750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

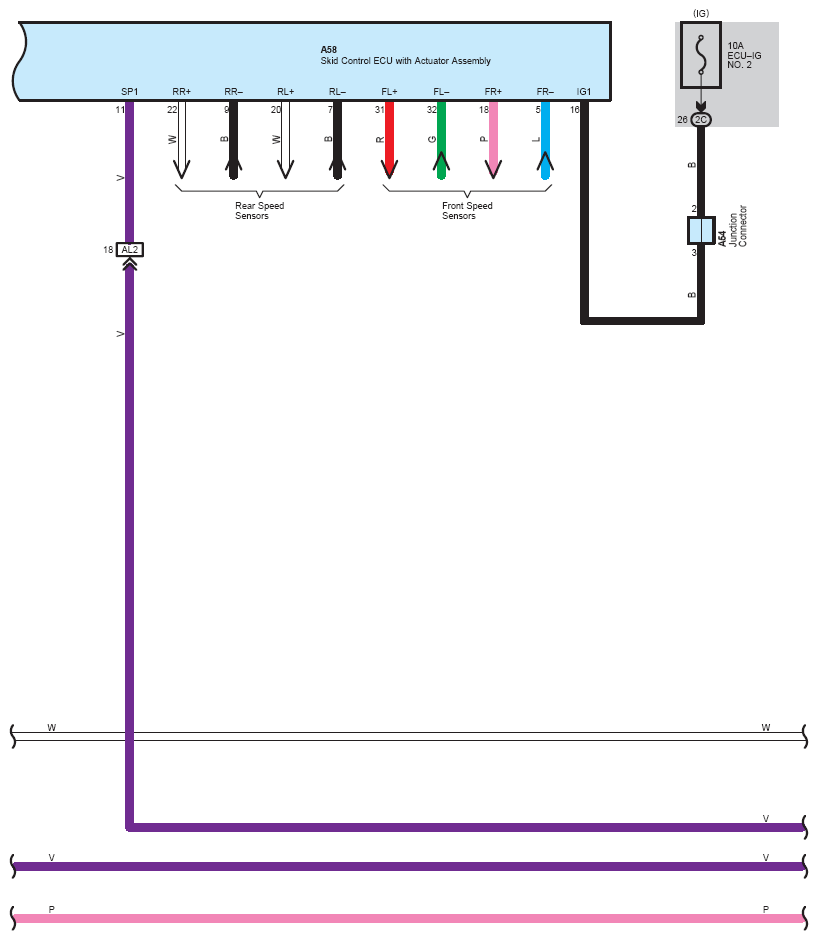

Fig 26: Hybrid System And Shift Control System Wiring Diagram (26 Of 27)

G07116751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

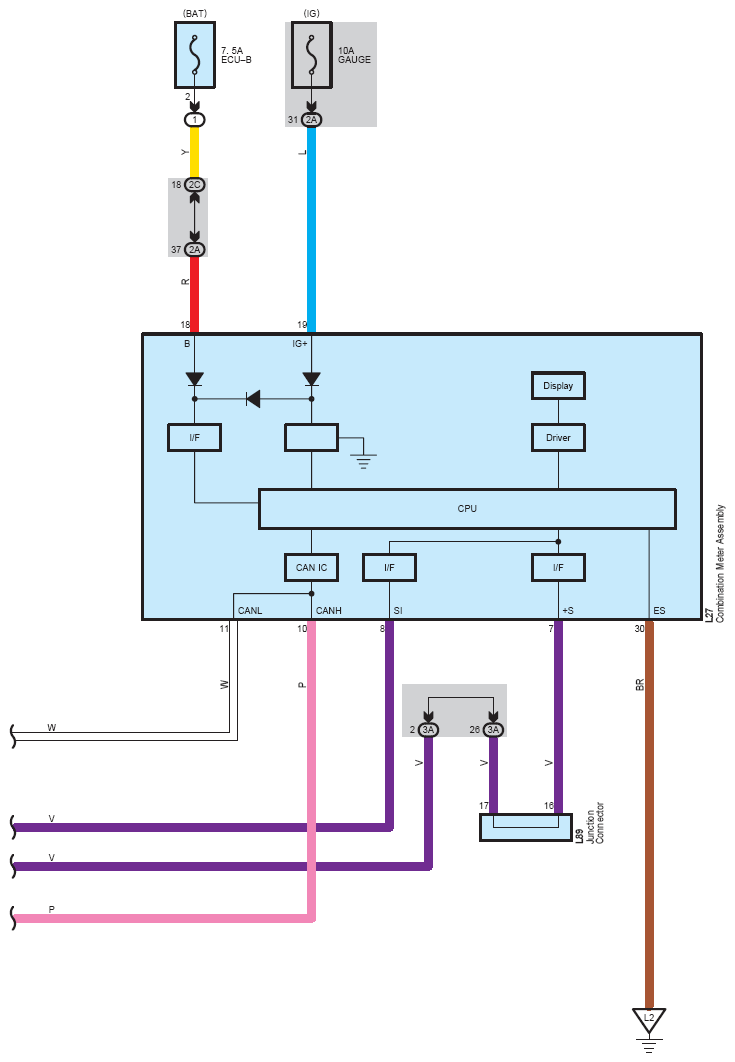

Fig 27: Hybrid System And Shift Control System Wiring Diagram (27 Of 27)

G07116752
