Lane Keeping Assist: Notes

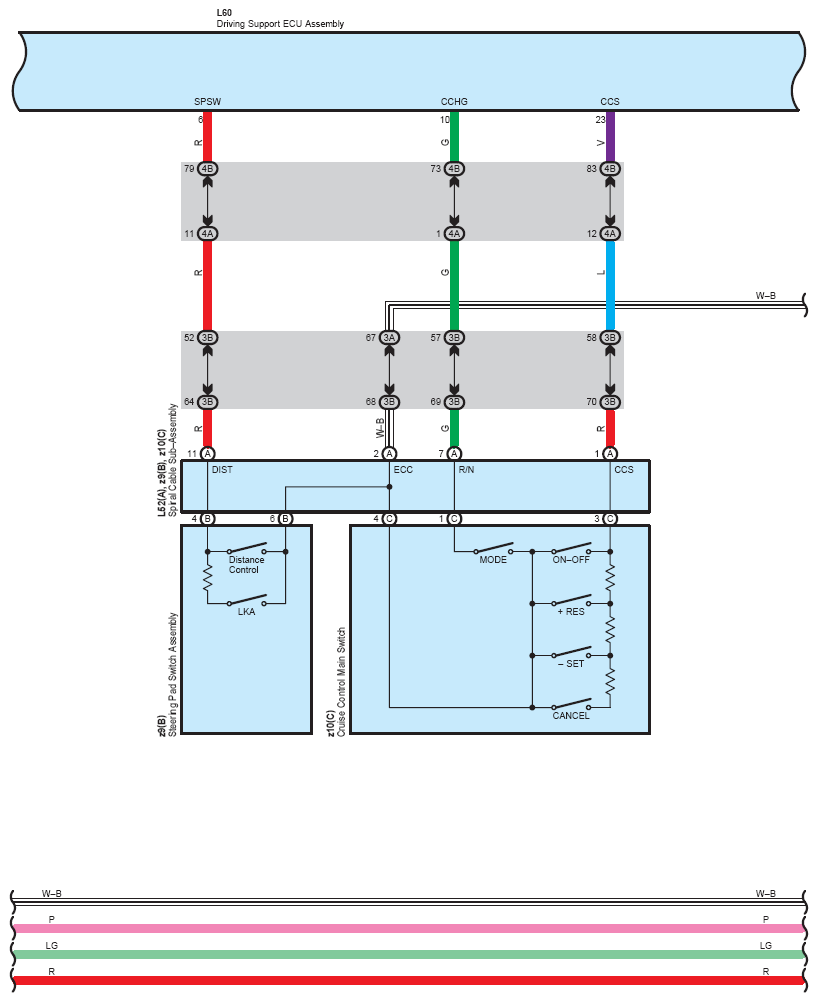

Fig 1: Lane Keeping Assist System Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

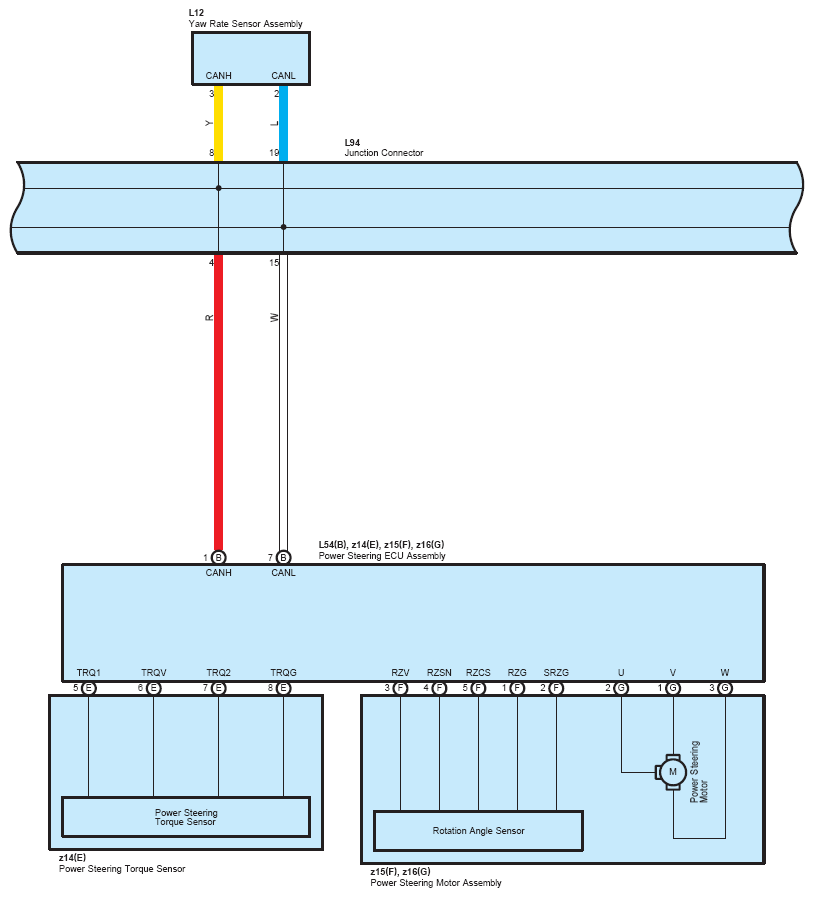

Fig 2: Lane Keeping Assist System Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

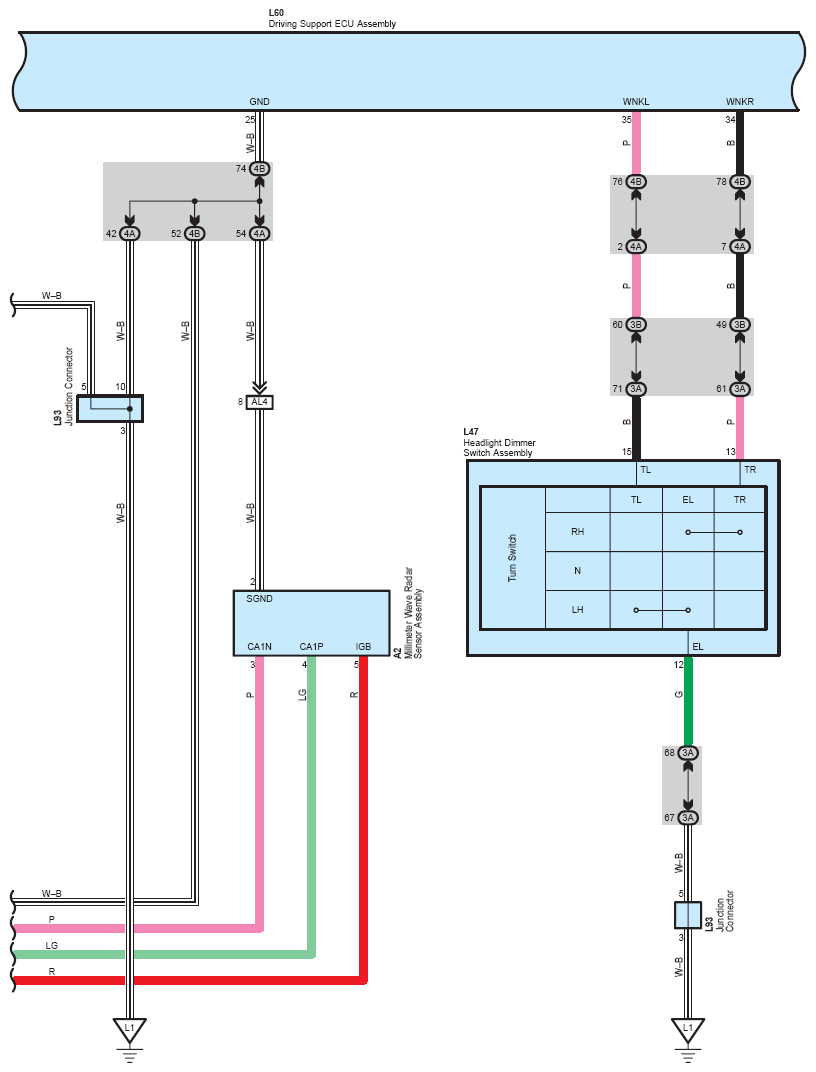

Fig 3: Lane Keeping Assist System Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

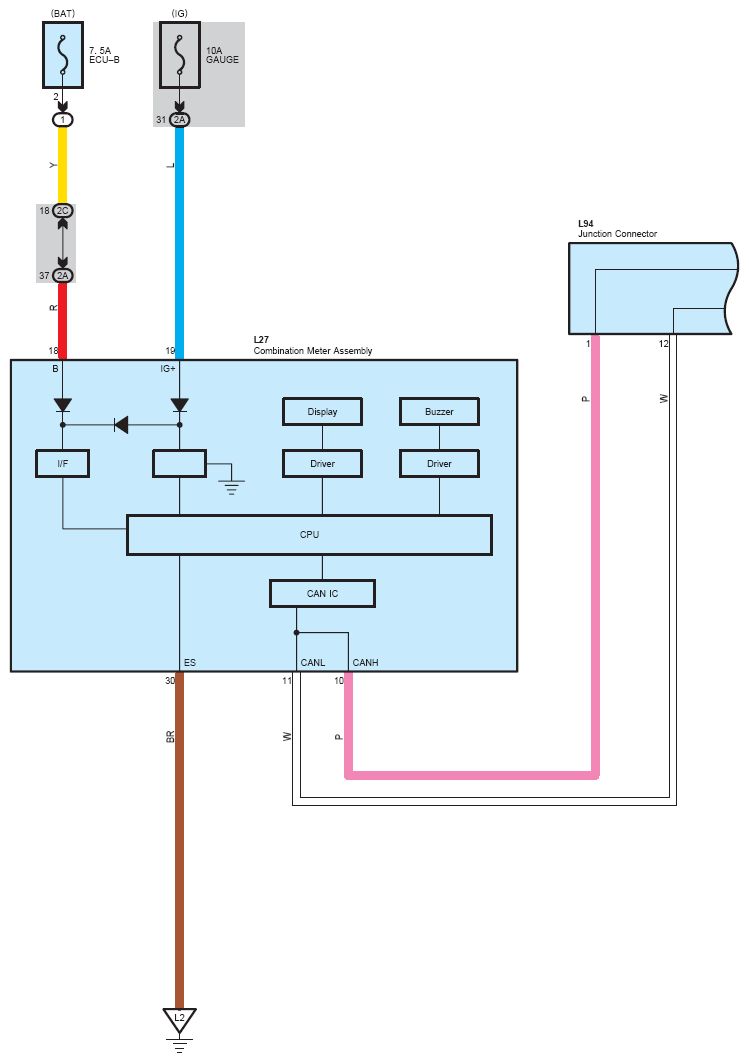

Fig 4: Lane Keeping Assist System Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

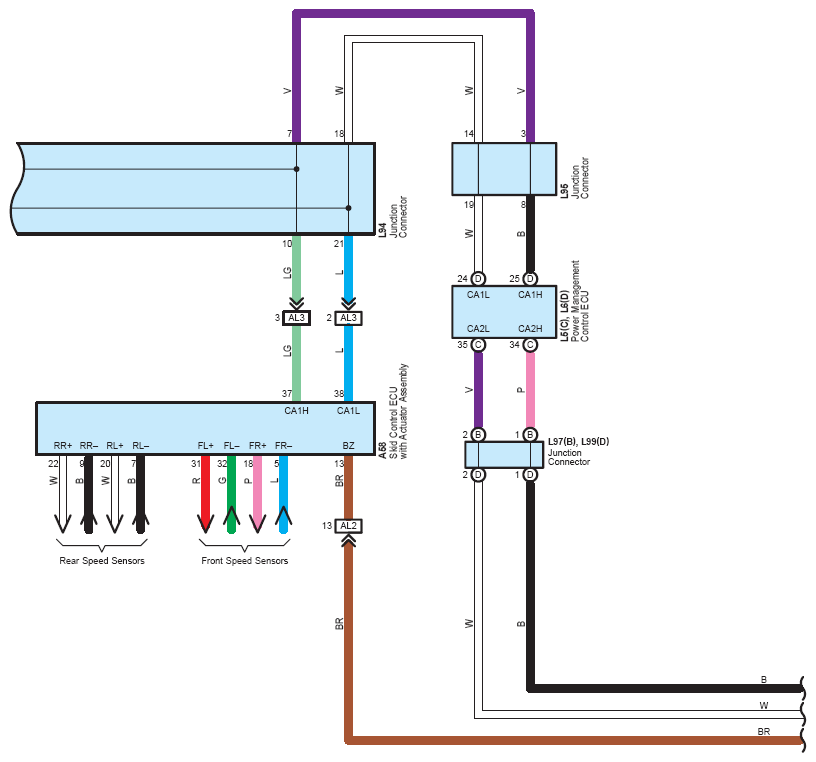

Fig 5: Lane Keeping Assist System Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

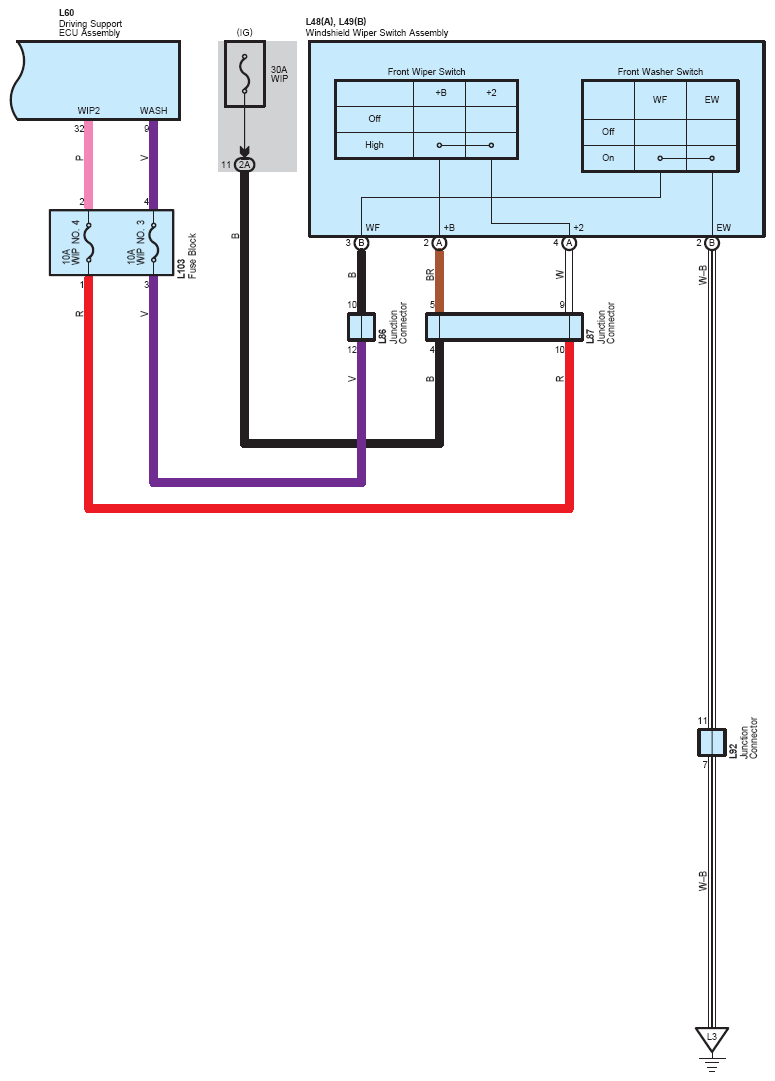

Fig 6: Lane Keeping Assist System Wiring Diagram (6 Of 8)

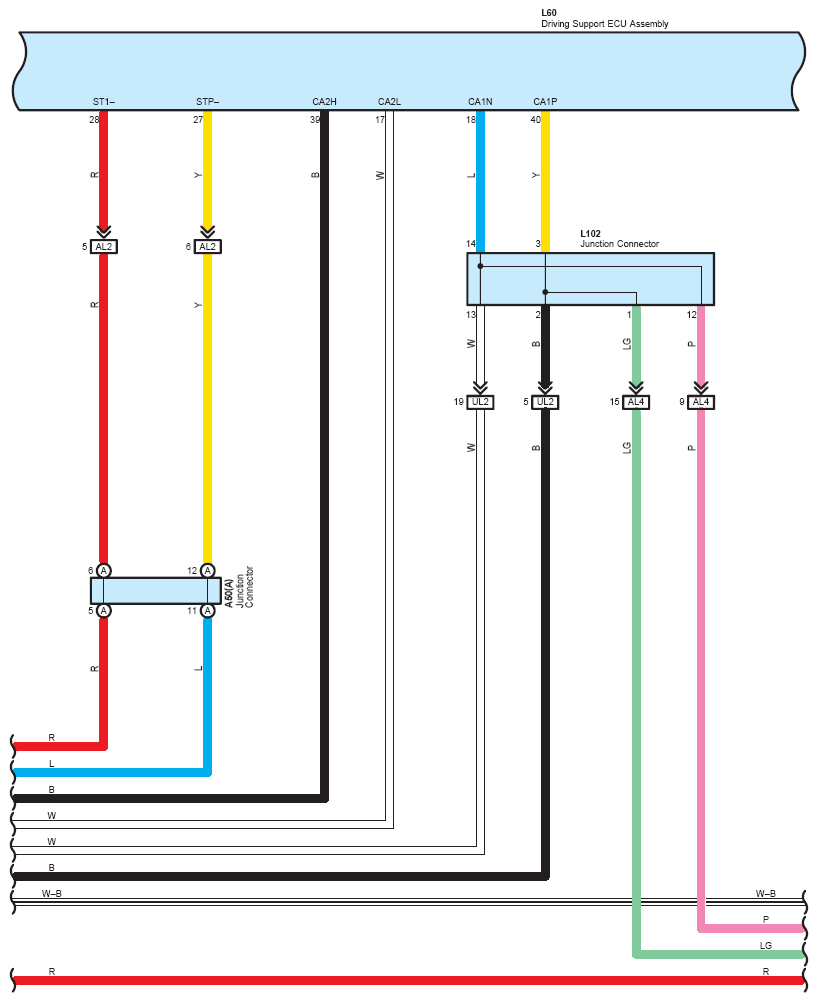

Fig 7: Lane Keeping Assist System Wiring Diagram (7 Of 8)

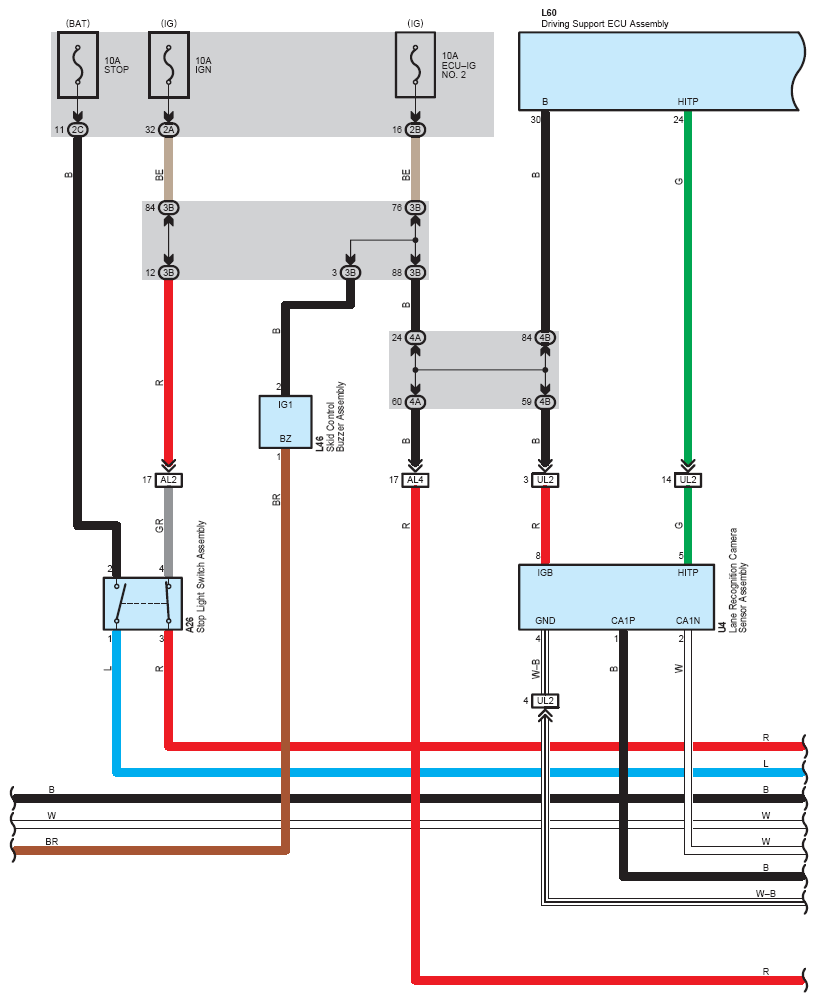

Fig 8: Lane Keeping Assist System Wiring Diagram (8 Of 8)
