Power Window: Notes

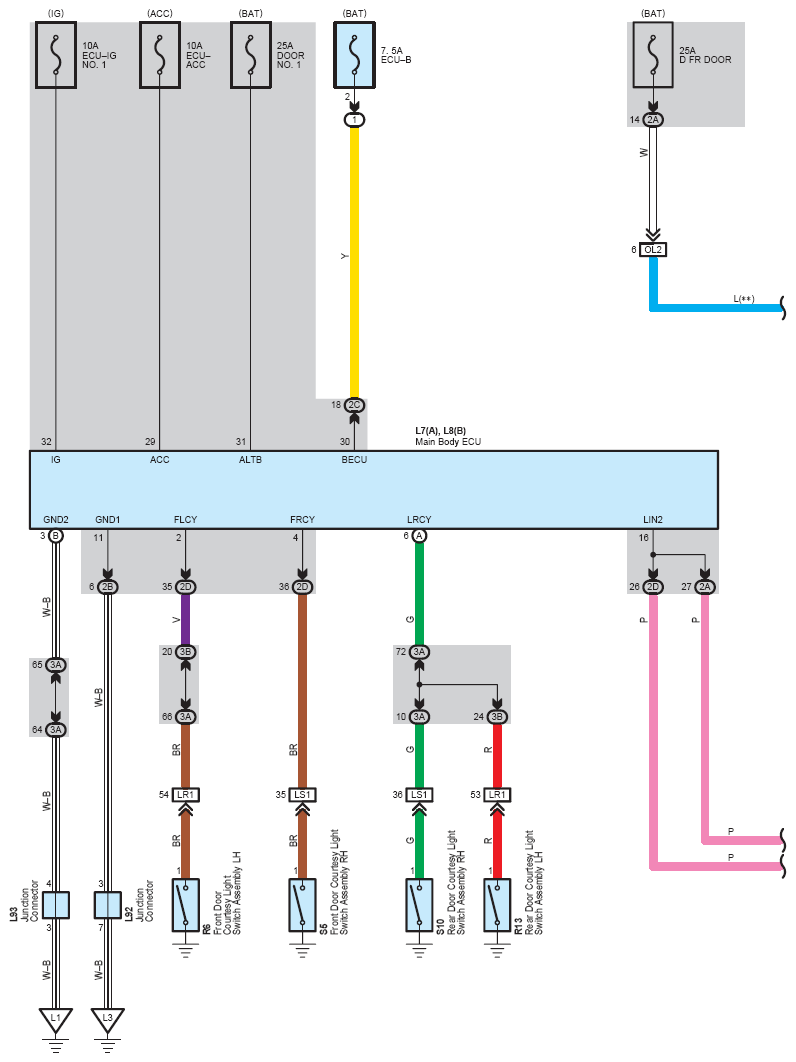

Fig 1: Power Window System Wiring Diagram (1 Of 5)
G07116900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Window System Wiring Diagram (2 Of 5)
G07116901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

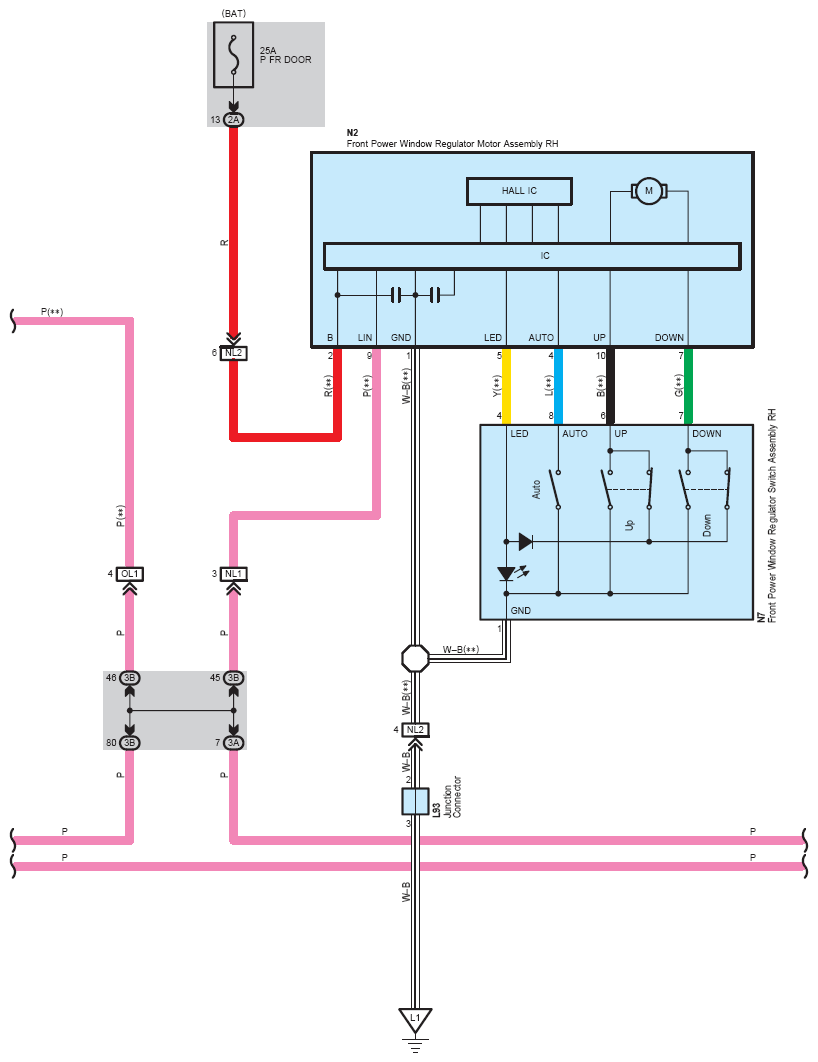

Fig 3: Power Window System Wiring Diagram (3 Of 5)
G07116902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

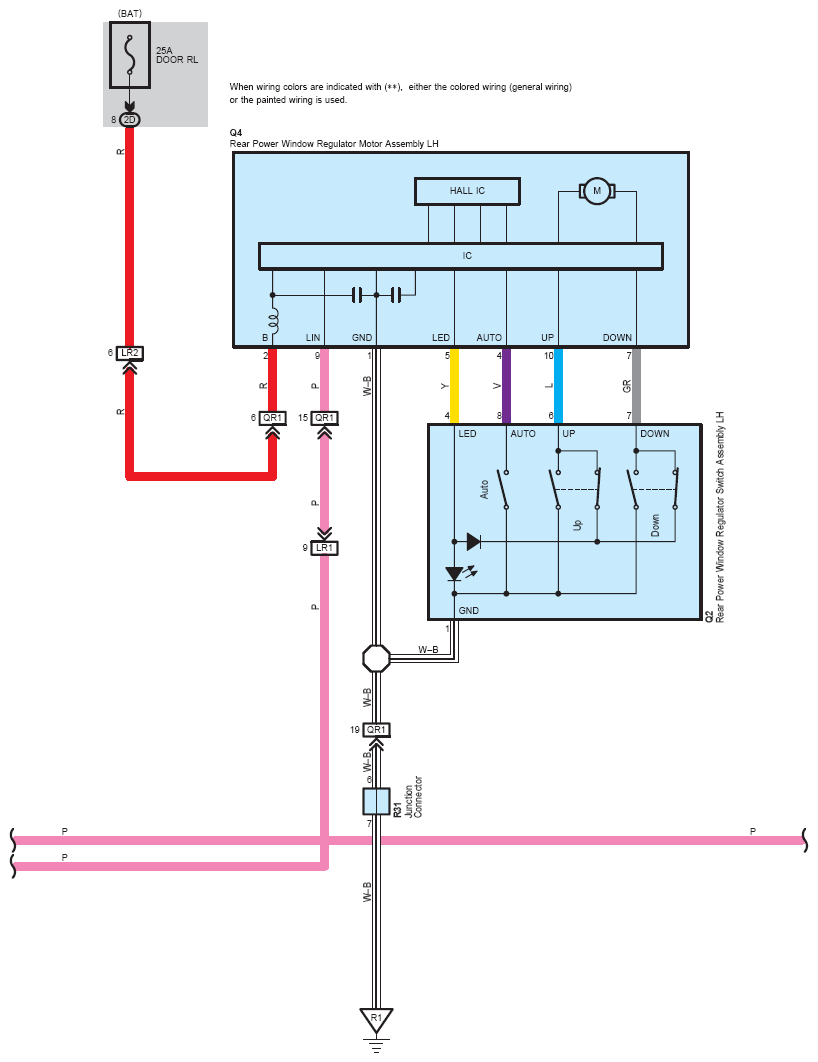

Fig 4: Power Window System Wiring Diagram (4 Of 5)
G07116903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

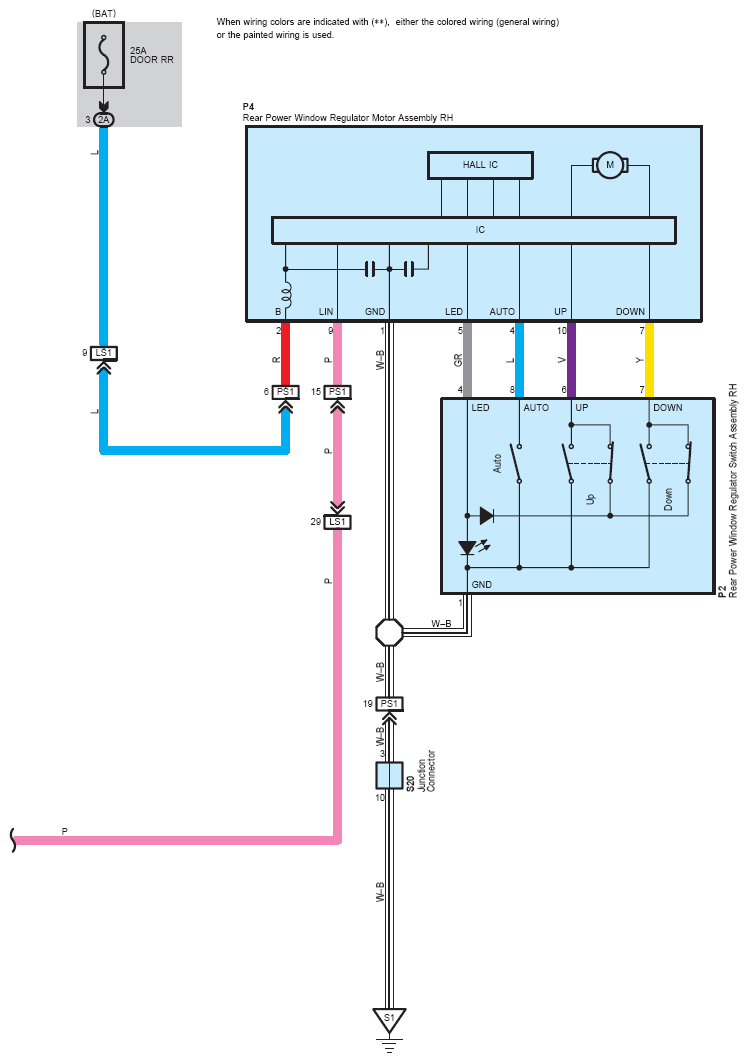

Fig 5: Power Window System Wiring Diagram (5 Of 5)
G07116904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
