Smart Key System and Back Door Opener: Notes

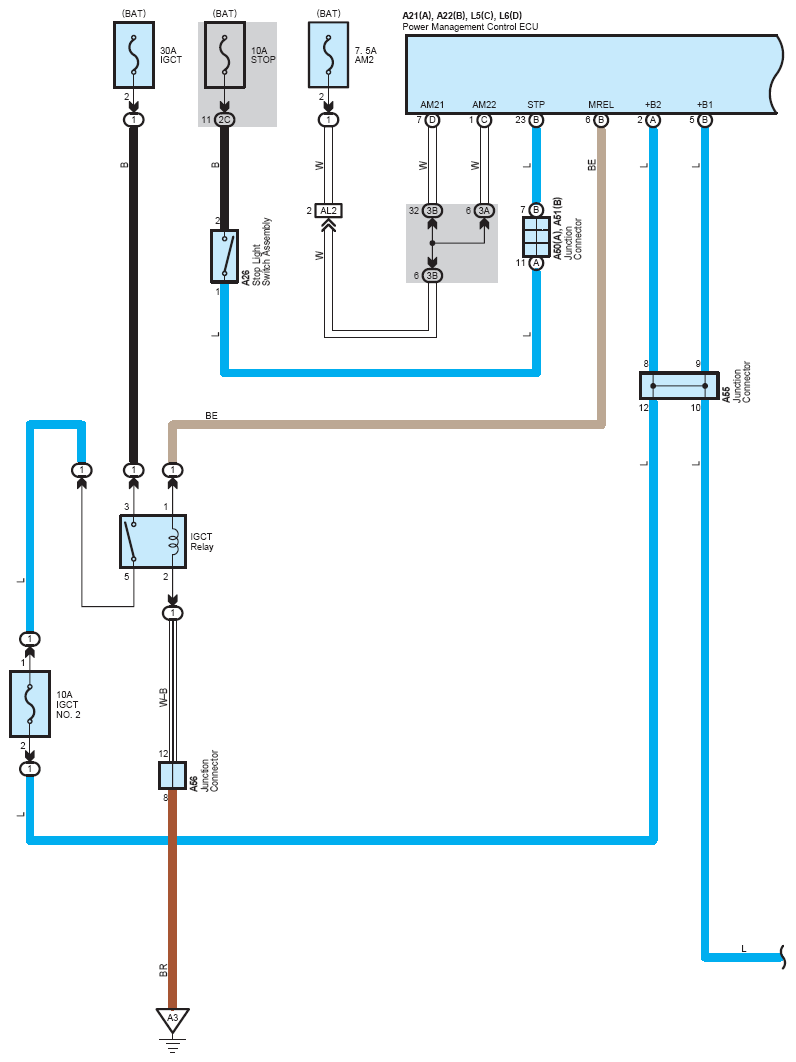

Fig 1: Smart Key System And Back Door Opener System Wiring Diagram (1 Of 21)

G07116753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

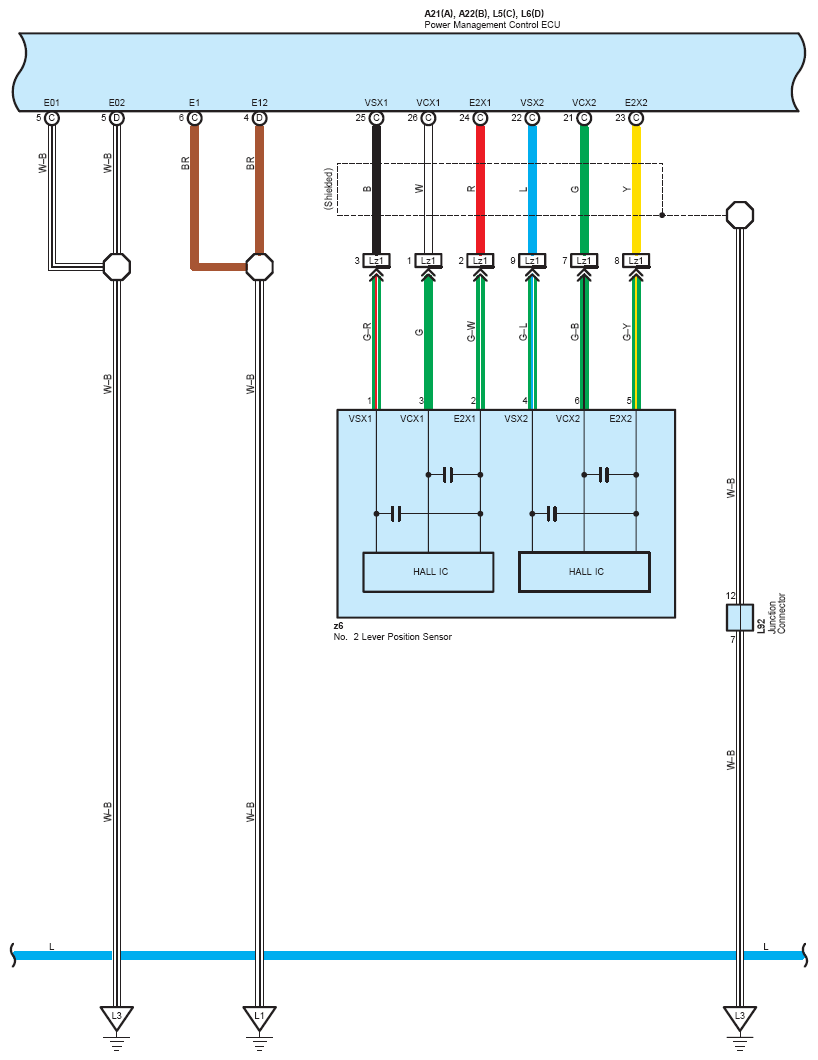

Fig 2: Smart Key System And Back Door Opener System Wiring Diagram (2 Of 21)

G07116754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

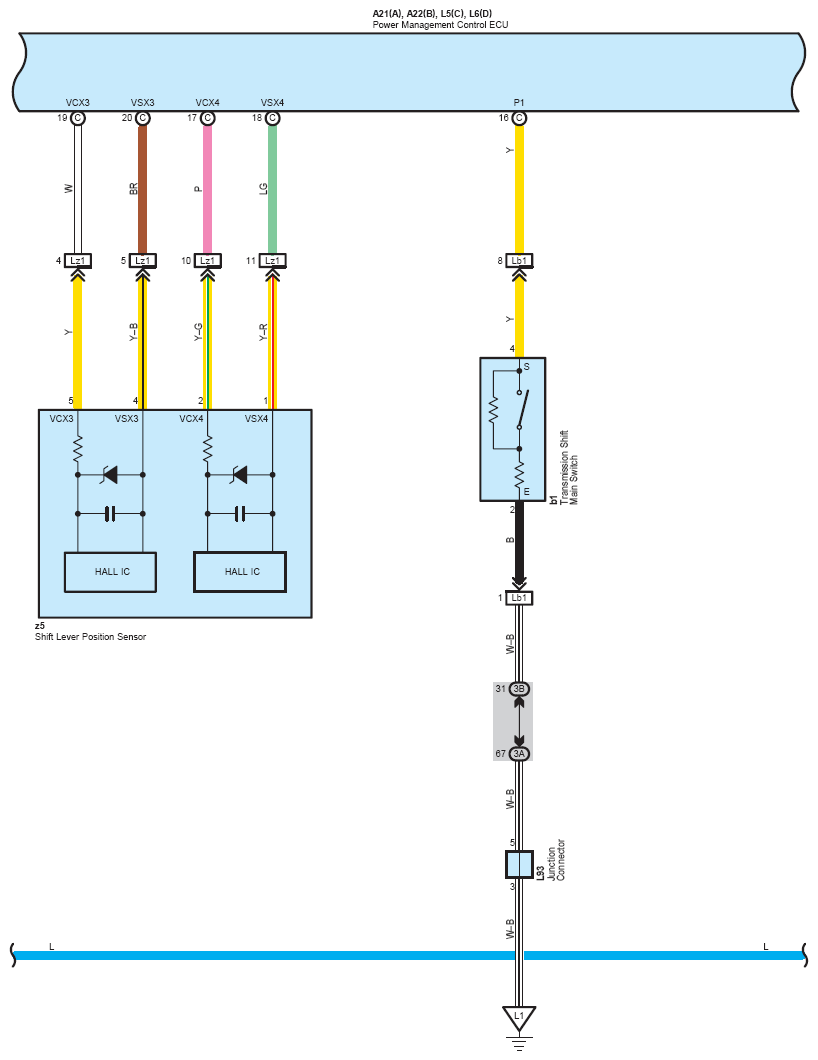

Fig 3: Smart Key System And Back Door Opener System Wiring Diagram (3 Of 21)

G07116755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

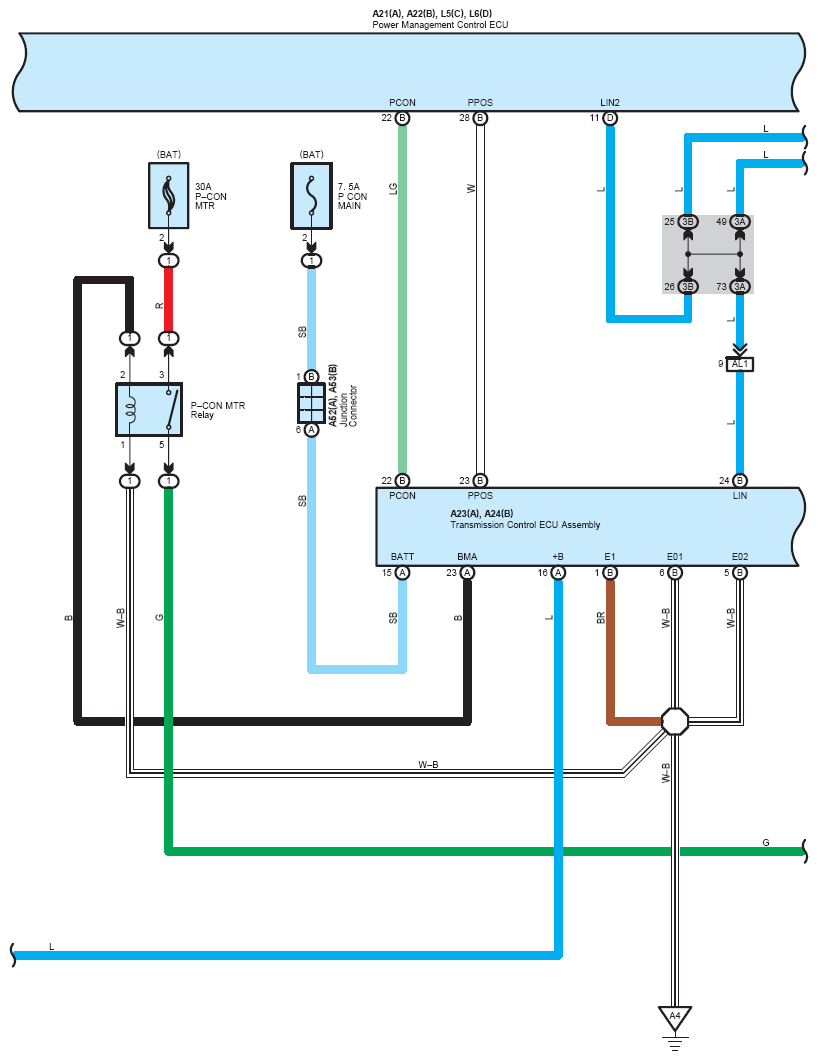

Fig 4: Smart Key System And Back Door Opener System Wiring Diagram (4 Of 21)

G07116756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

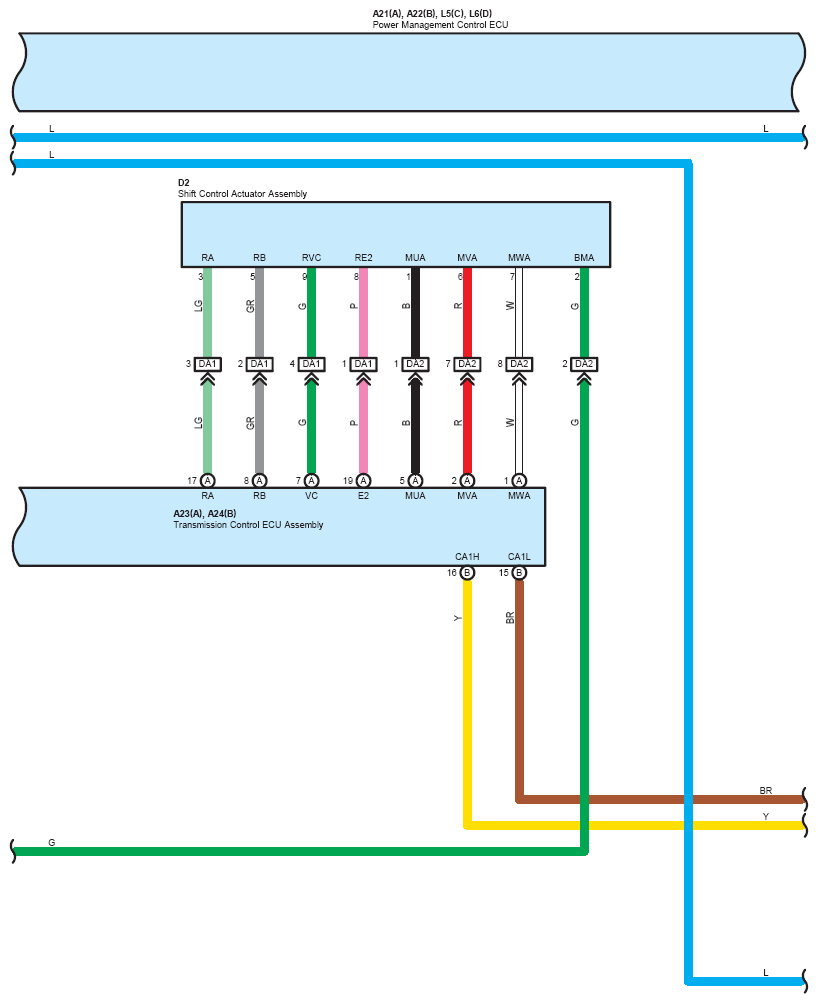

Fig 5: Smart Key System And Back Door Opener System Wiring Diagram (5 Of 21)

G07116757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

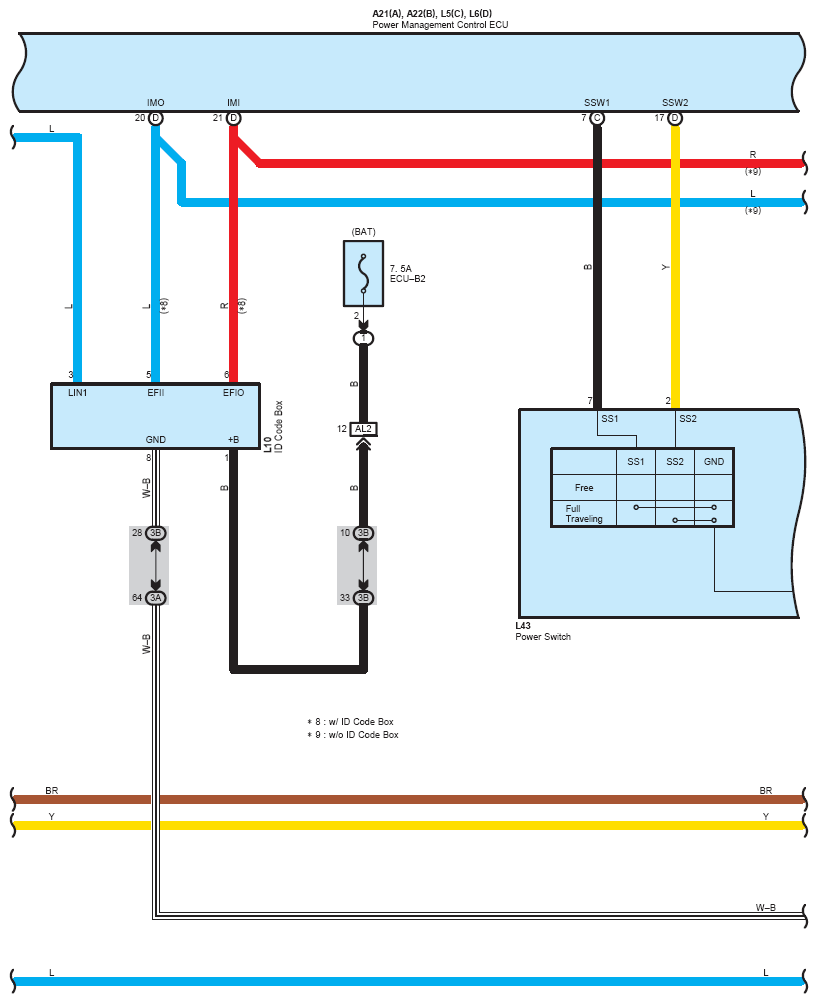

Fig 6: Smart Key System And Back Door Opener System Wiring Diagram (6 Of 21)

G07116758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

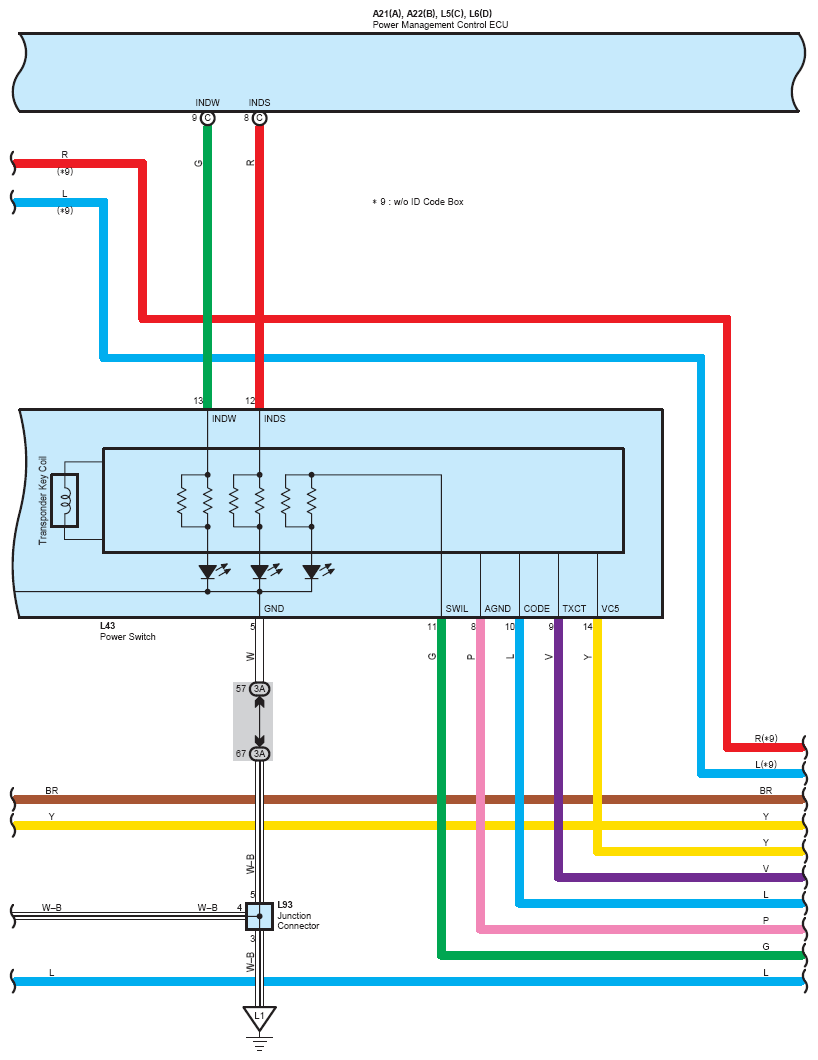

Fig 7: Smart Key System And Back Door Opener System Wiring Diagram (7 Of 21)

G07116759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

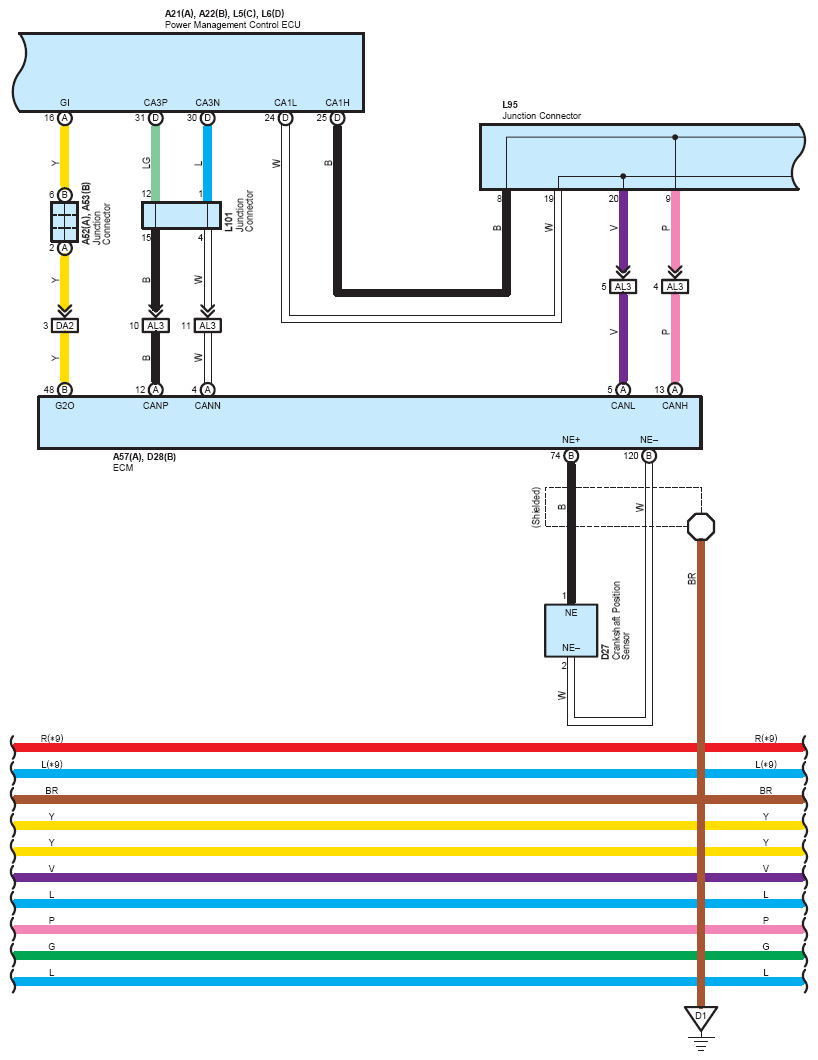

Fig 8: Smart Key System And Back Door Opener System Wiring Diagram (8 Of 21)

G07116760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

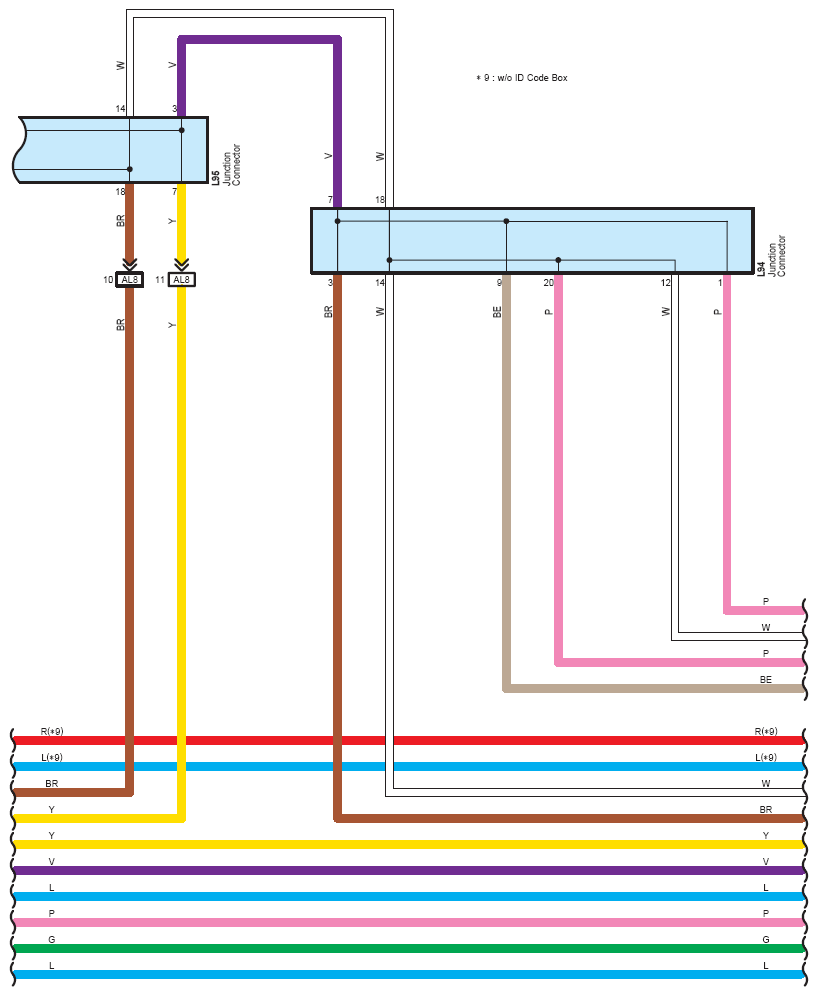

Fig 9: Smart Key System And Back Door Opener System Wiring Diagram (9 Of 21)

G07116761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

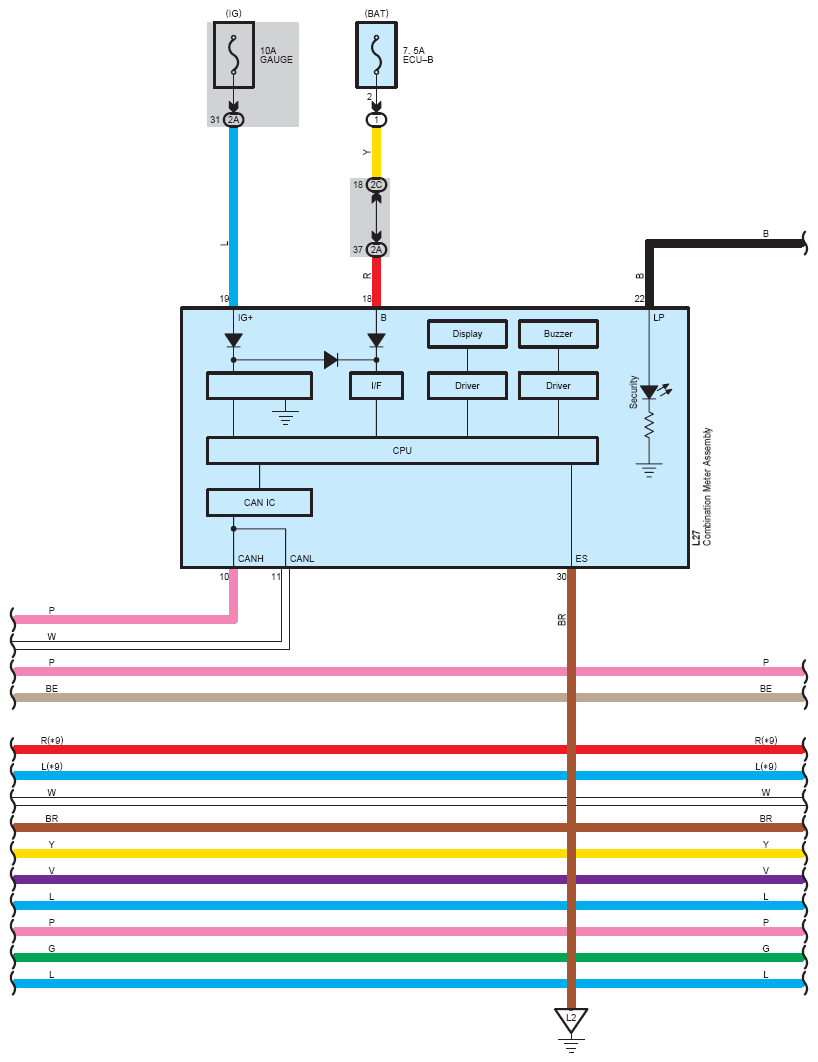

Fig 10: Smart Key System And Back Door Opener System Wiring Diagram (10 Of 21)

G07116762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

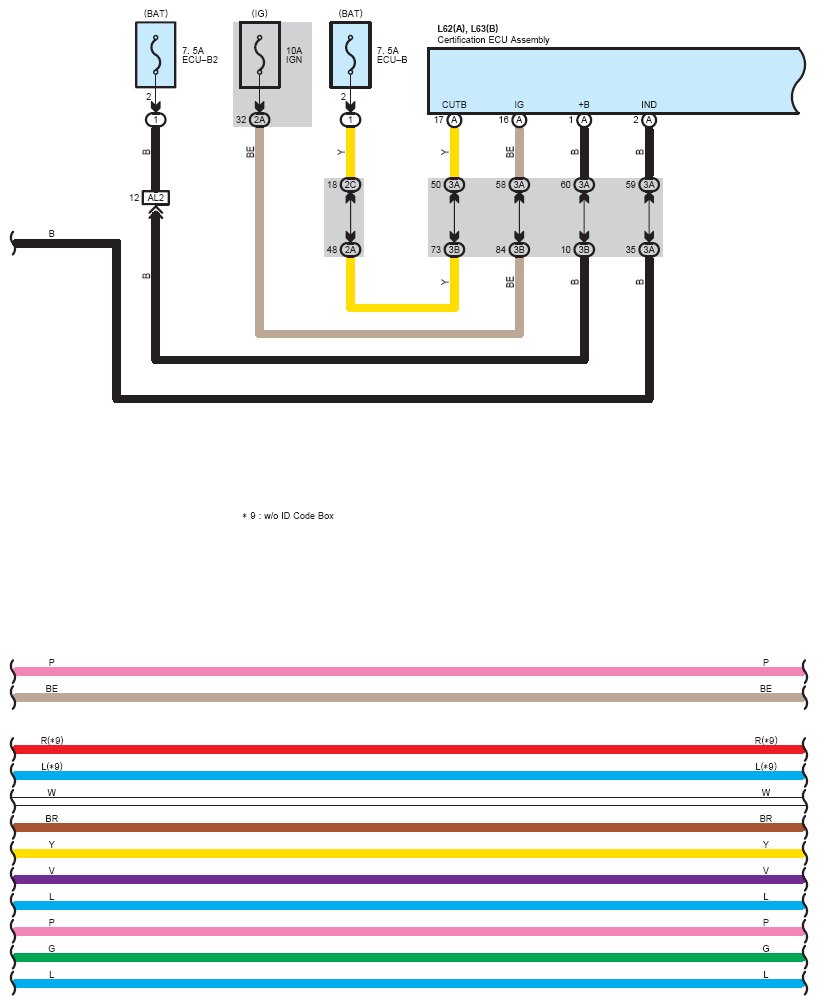

Fig 11: Smart Key System And Back Door Opener System Wiring Diagram (11 Of 21)

G07116763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

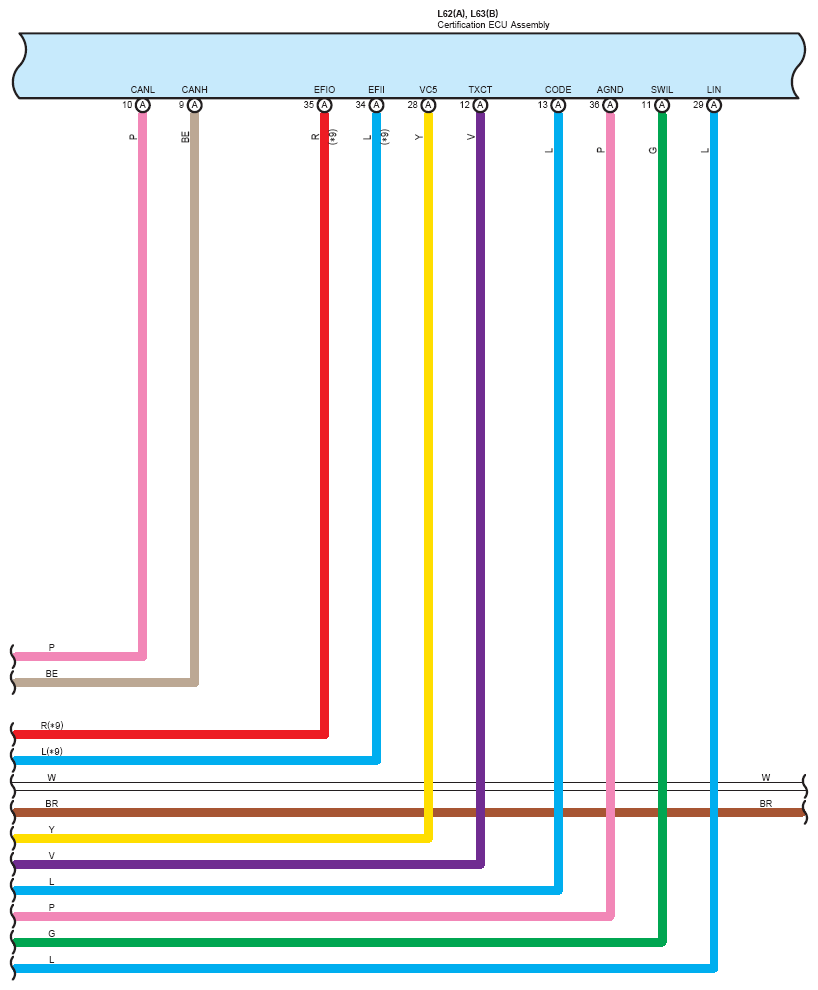

Fig 12: Smart Key System And Back Door Opener System Wiring Diagram (12 Of 21)

G07116764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

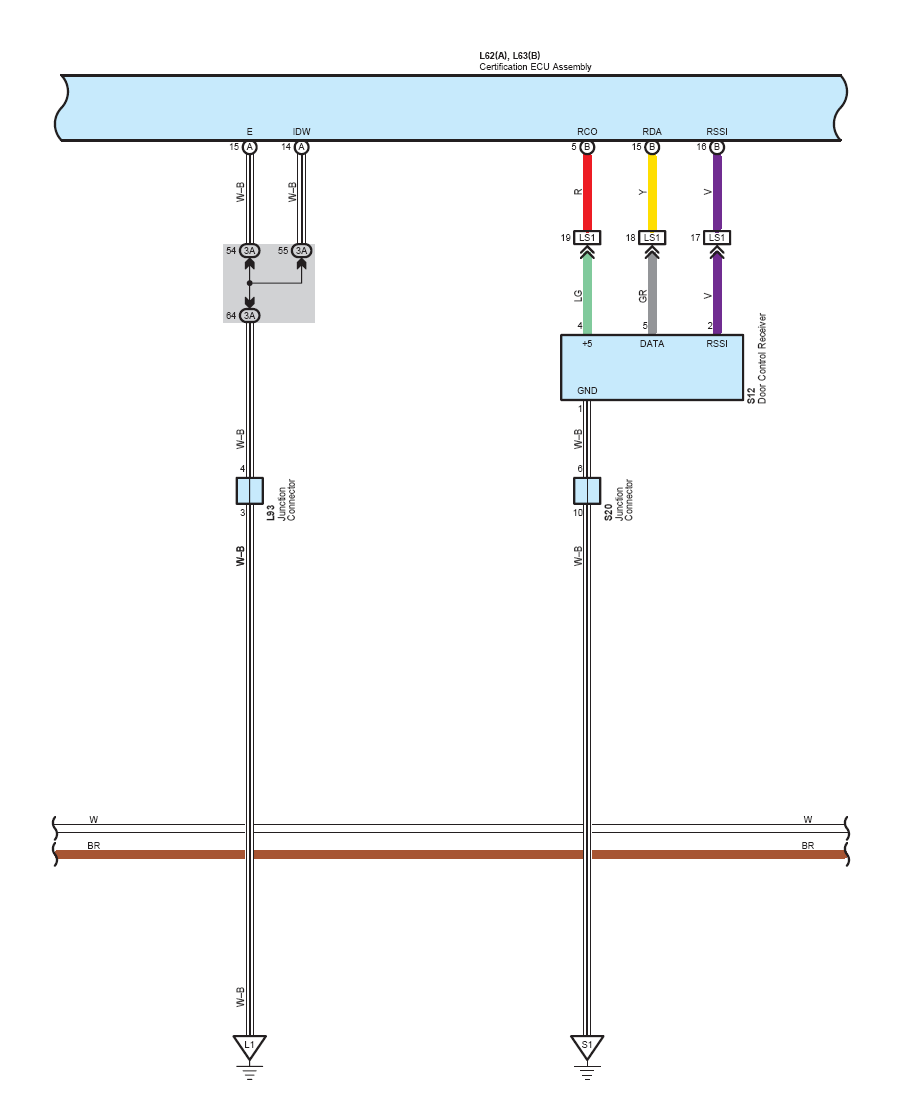

Fig 13: Smart Key System And Back Door Opener System Wiring Diagram (13 Of 21)

G07116765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

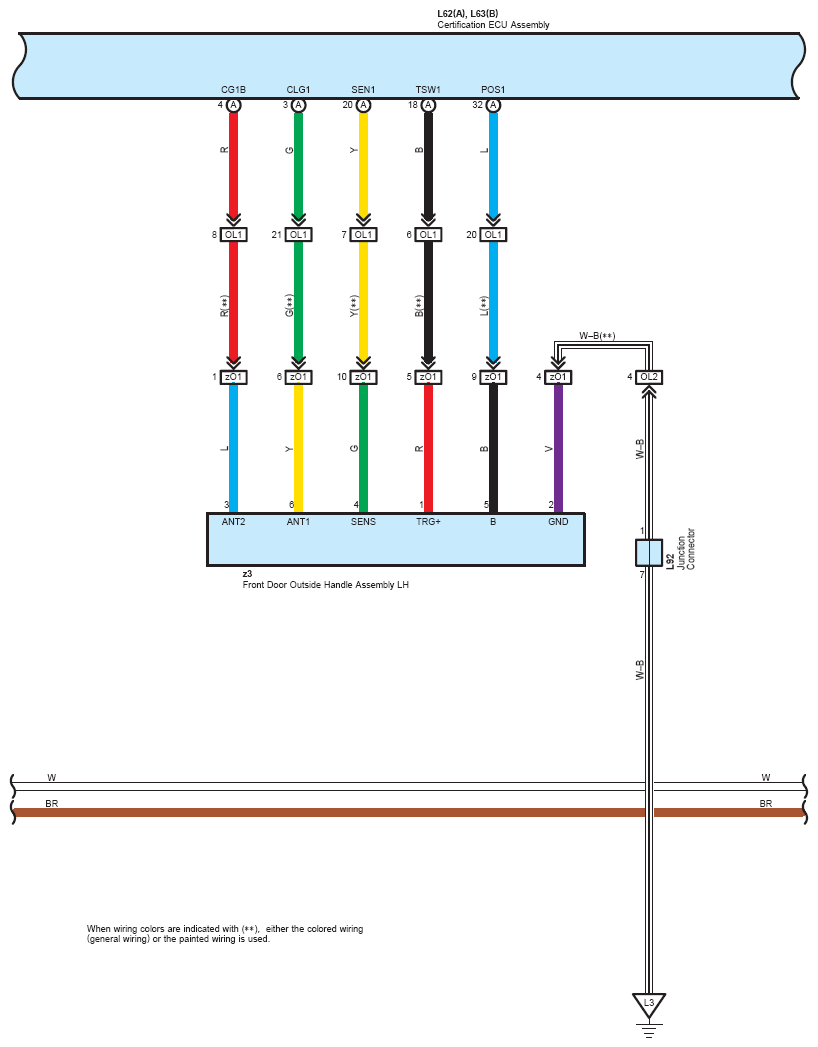

Fig 14: Smart Key System And Back Door Opener System Wiring Diagram (14 Of 21)

G07116766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

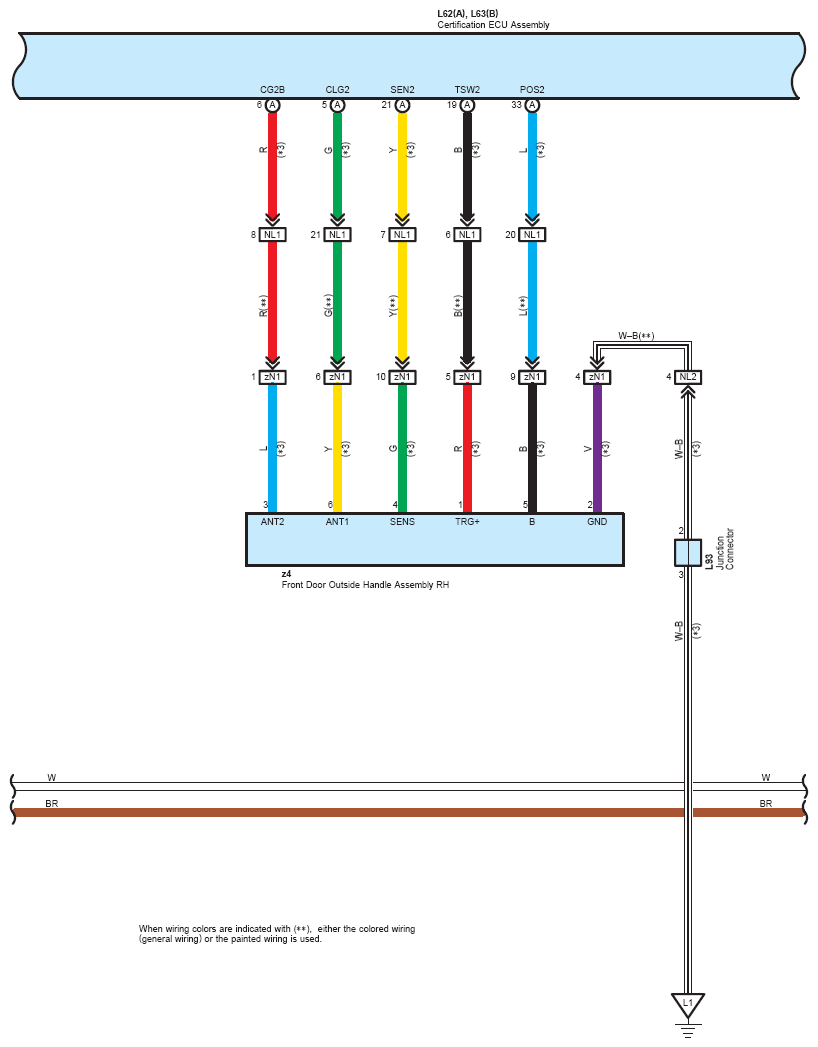

Fig 15: Smart Key System And Back Door Opener System Wiring Diagram (15 Of 21)

G07116767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

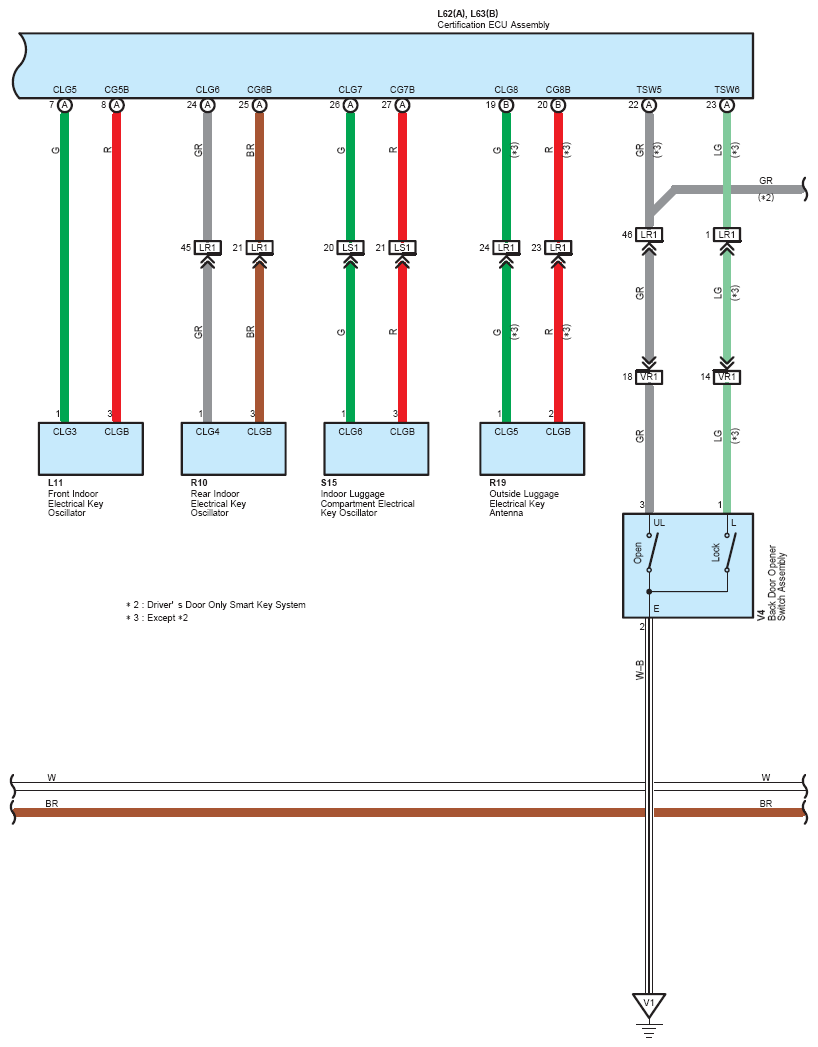

Fig 16: Smart Key System And Back Door Opener System Wiring Diagram (16 Of 21)

G07116768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

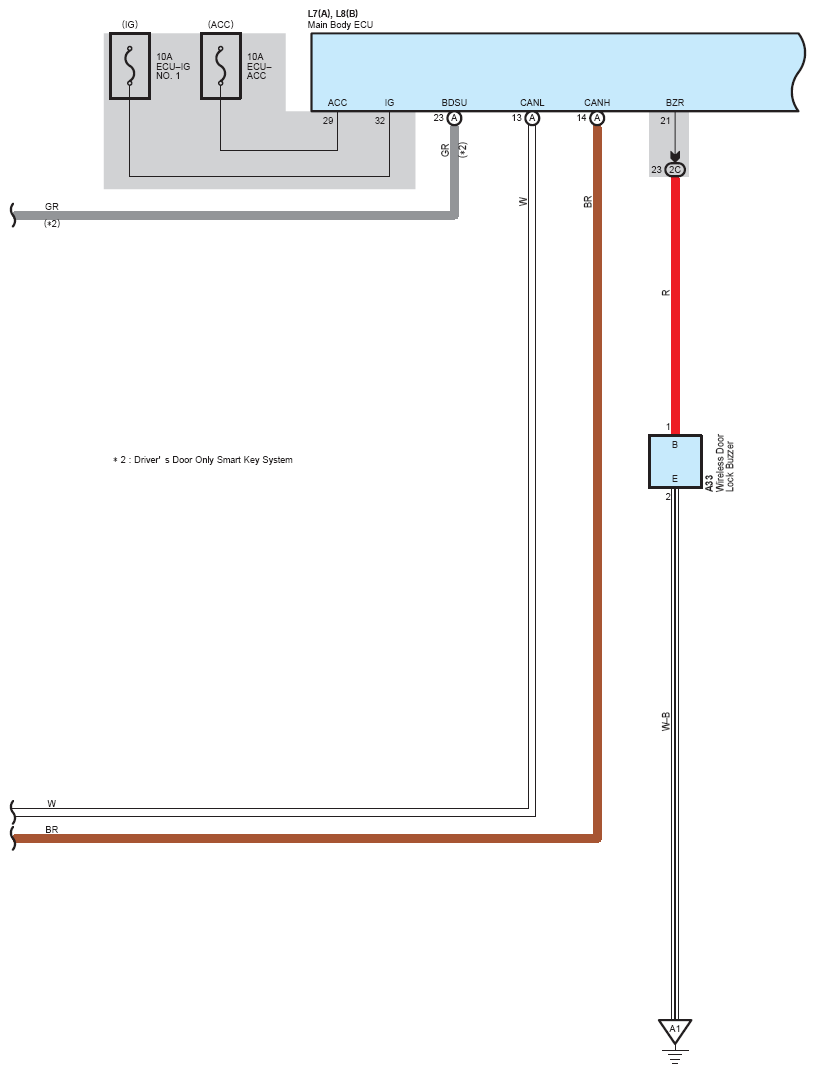

Fig 17: Smart Key System And Back Door Opener System Wiring Diagram (17 Of 21)

G07116769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

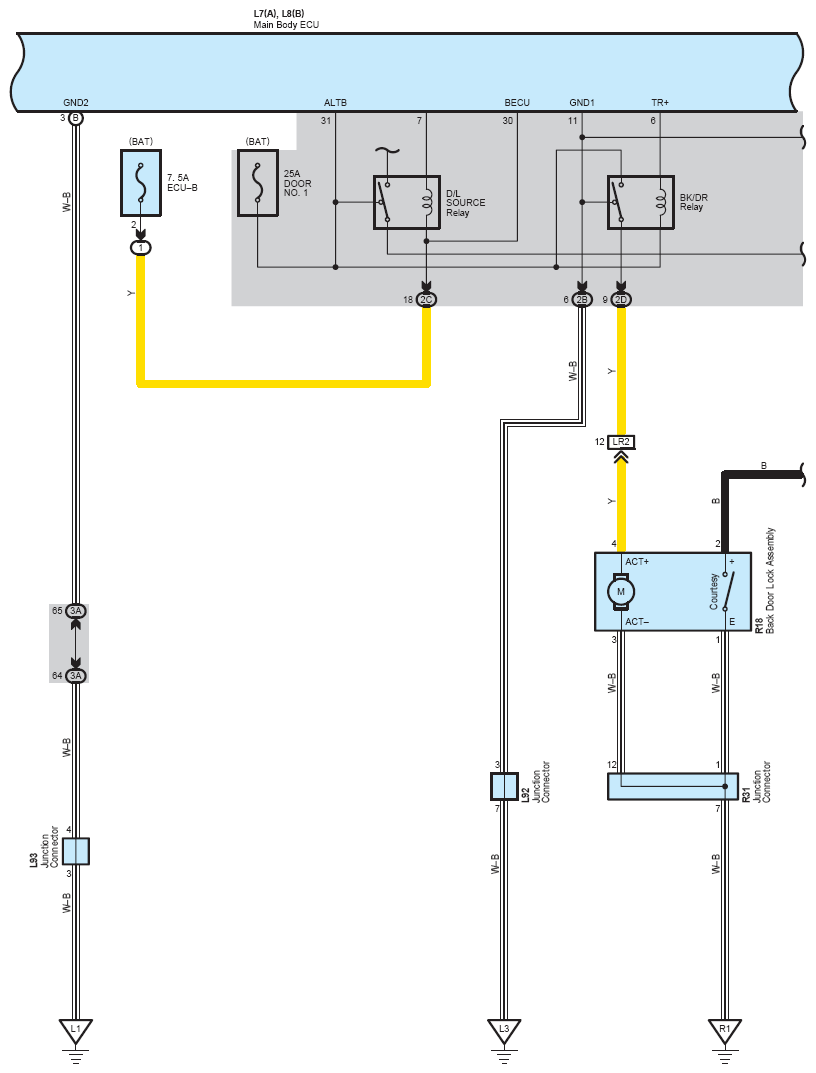

Fig 18: Smart Key System And Back Door Opener System Wiring Diagram (18 Of 21)

G07116770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

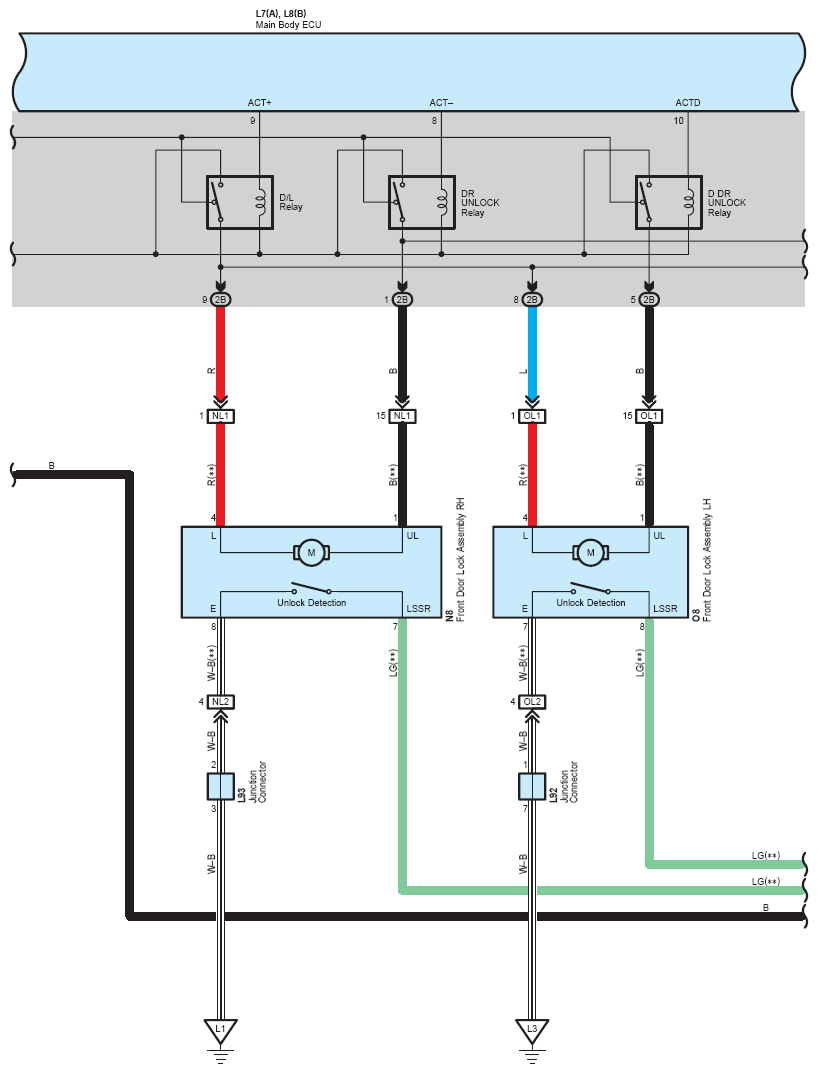

Fig 19: Smart Key System And Back Door Opener System Wiring Diagram (19 Of 21)

G07116771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

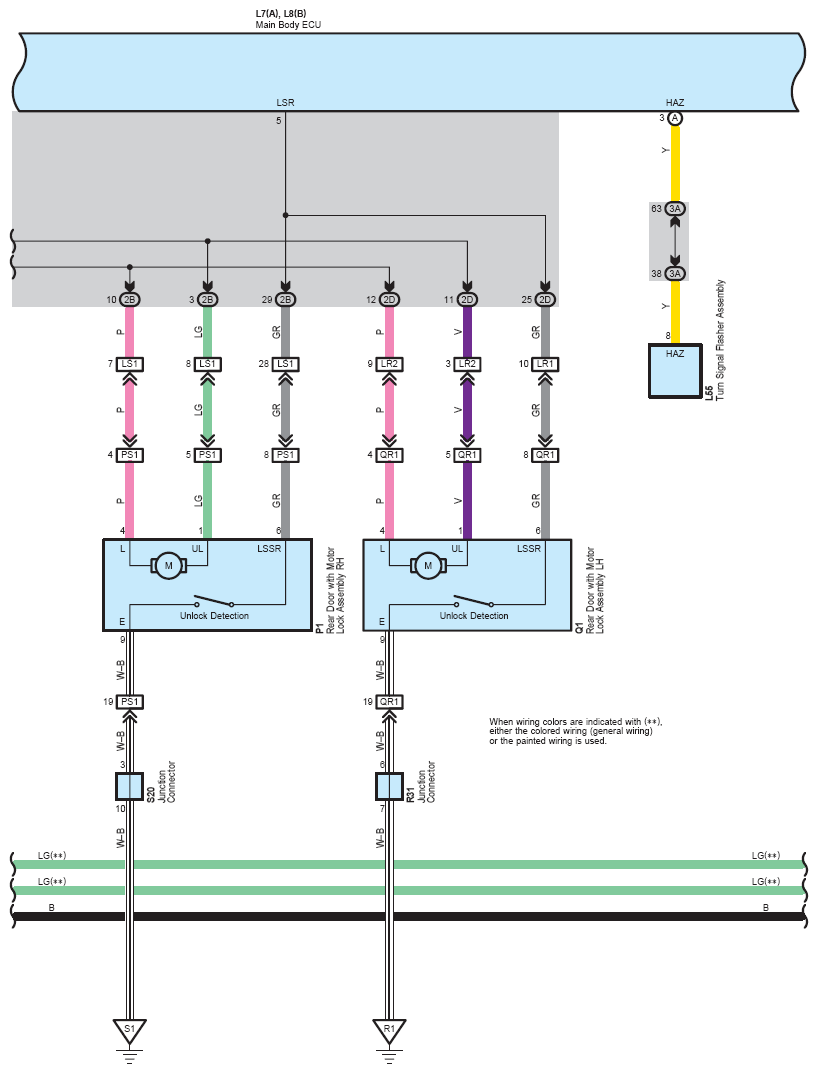

Fig 20: Smart Key System And Back Door Opener System Wiring Diagram (20 Of 21)

G07116772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

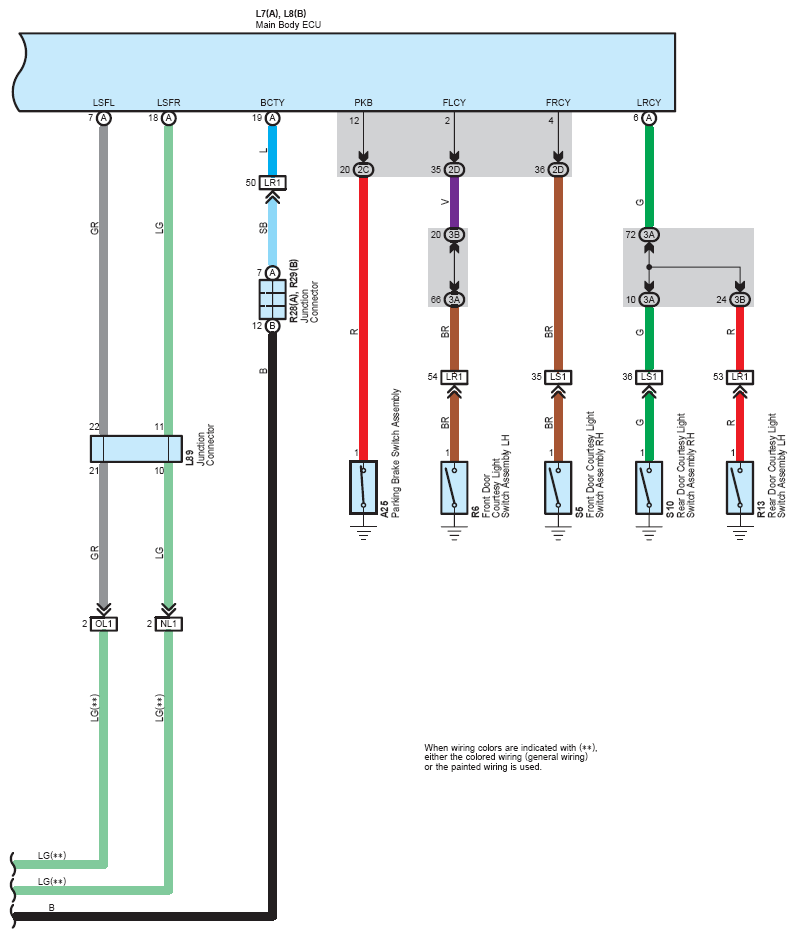

Fig 21: Smart Key System And Back Door Opener System Wiring Diagram (21 Of 21)

G07116773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
