Emission Control System (Service Information): Canister: Components: Illustration

Fig 1: Identifying Canister Replacement Components (1 Of 2)
GTY231161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

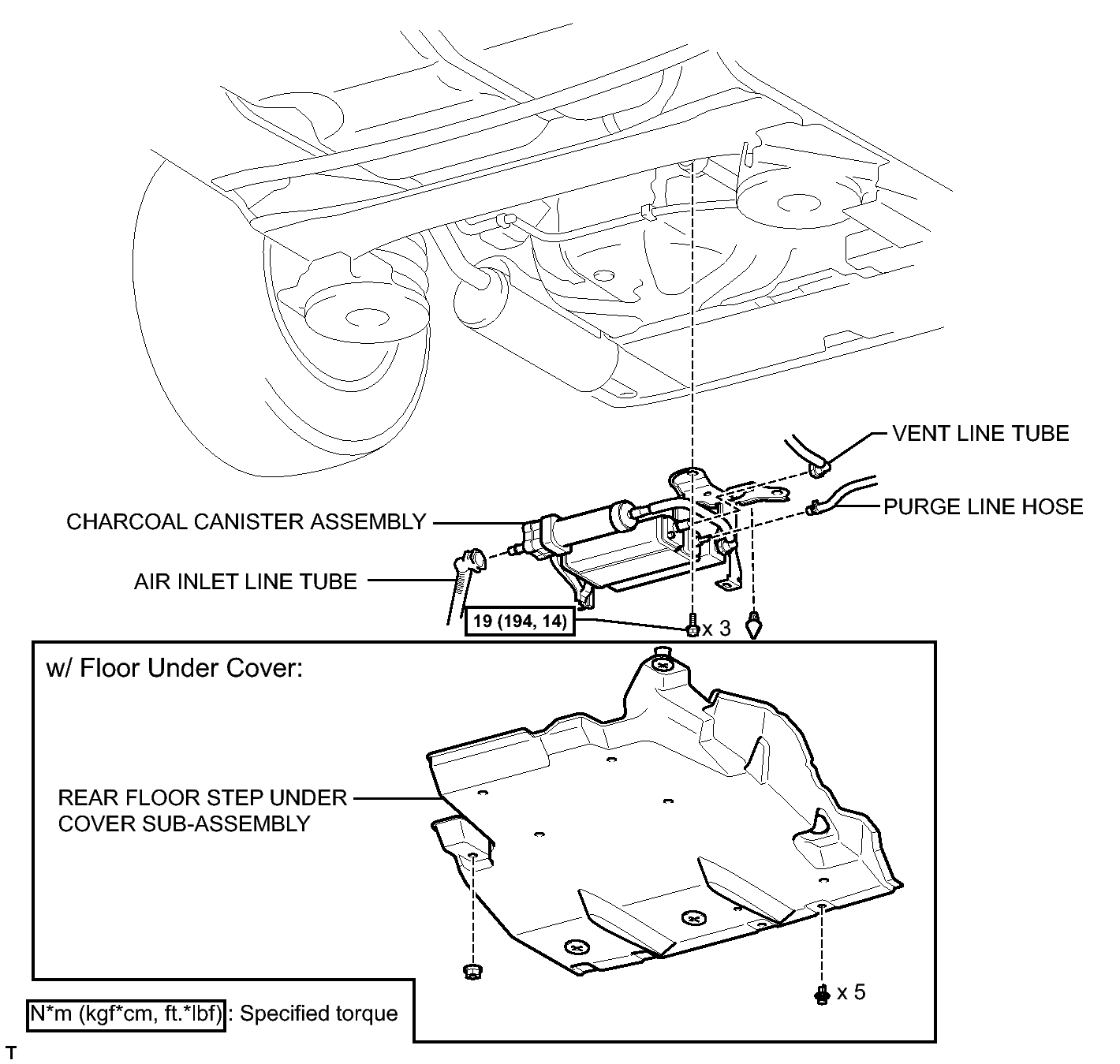

Fig 1: Identifying Canister Replacement Components With Torque Specifications (2 Of 2)
GTY235573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
