Vacuum Sensor: Components: Illustration

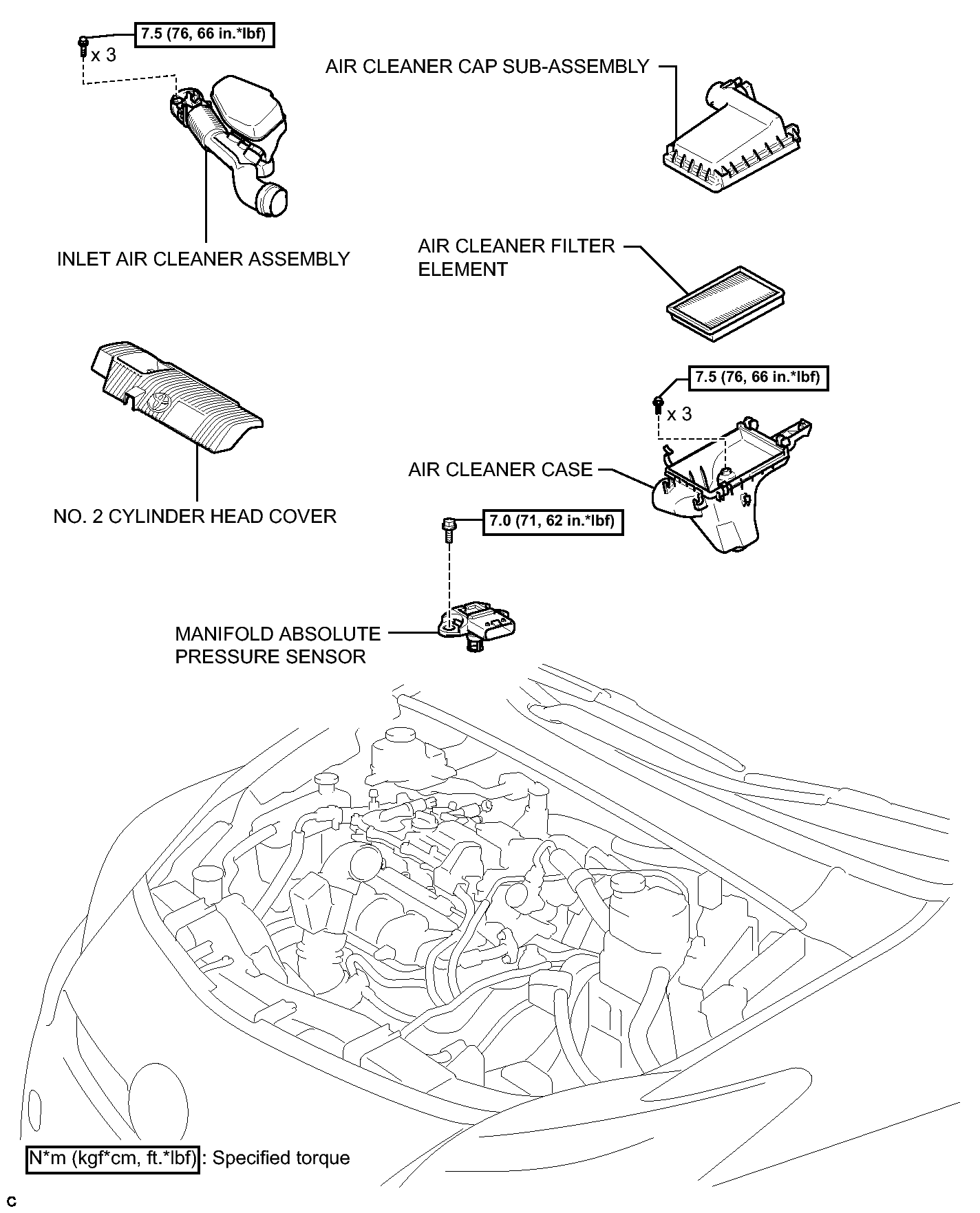

Fig 1: Identifying Vacuum Sensor Replacement Components With Torque Specifications
GTY228108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
