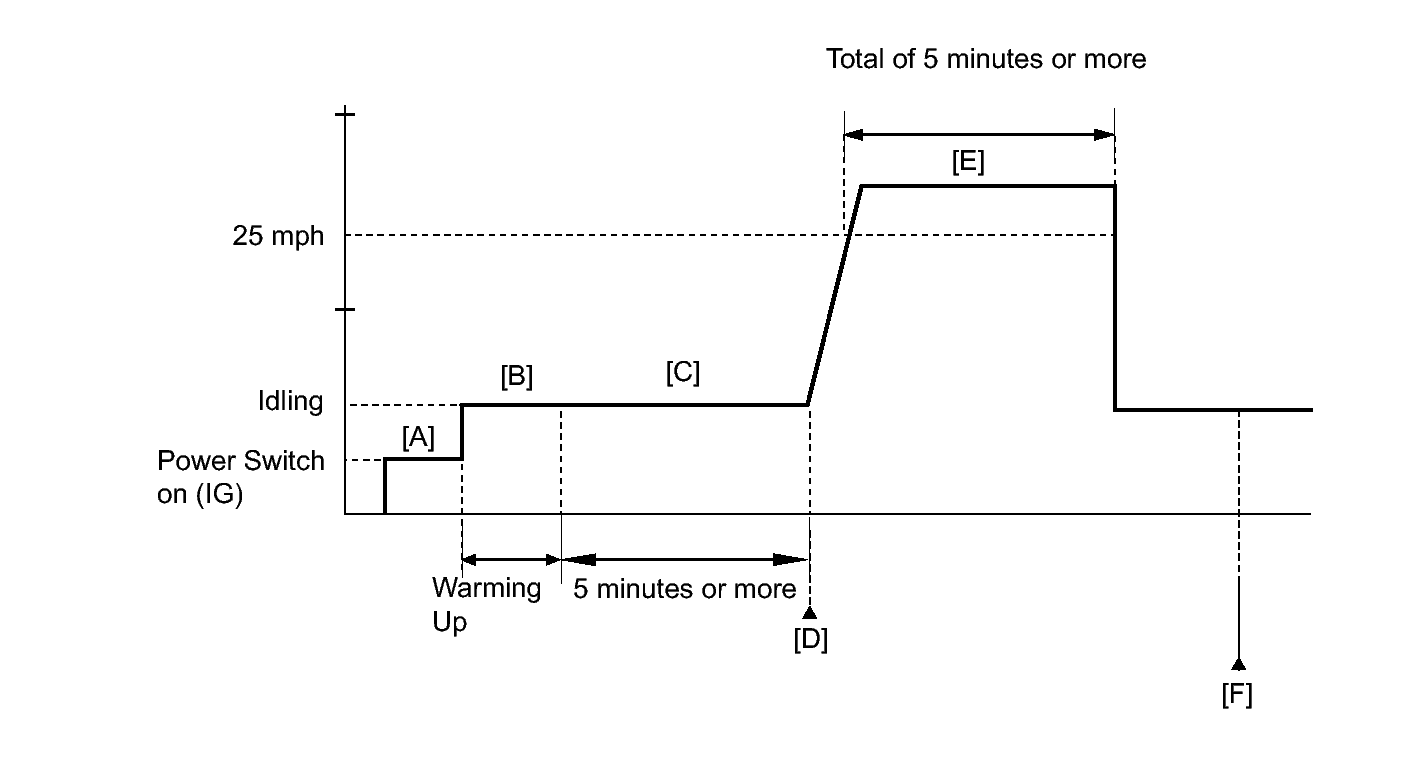

Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
- Turn the power switch off and wait for 30 seconds.
- Turn the power switch on (IG) and turn the Techstream on [A].
- Put the engine in inspection mode. Refer to INSPECTION MODE PROCEDURE .
- Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
- Idle the engine for 5 minutes or more [C].
HINT:
During steps [A] through [C], if the change in the intake air temperature is below 1°C (2°F), the intake air temperature sensor (mass air flow meter sub-assembly) is malfunctioning. It is not necessary to continue this procedure.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
- Read the pending DTC [D].
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
- Input the DTC: P0111.
- Check the DTC judgment result.
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
UNKNOWN - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
WARNING:When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [E] and [F].
- Drive the vehicle at 25 mph (40 km/h) or more for a total of 5 minutes or more [E].
- Check the DTC judgment result again [F].
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
- Check the judgment result.
HINT:
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to DTC CHECK / CLEAR
.
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
