Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustrations.

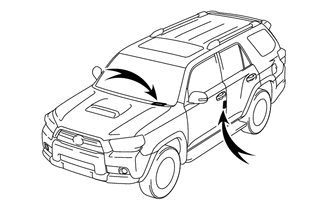

  1. Vehicle Identification Number Plate and Name Label

    Fig 1: Identifying Vehicle Identification Number Plate & Name Label
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustrations.

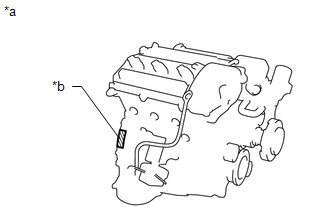

Engine Serial Number

Fig 2: Identifying Engine Serial Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	1GR-FE
*b	Engine Serial Number

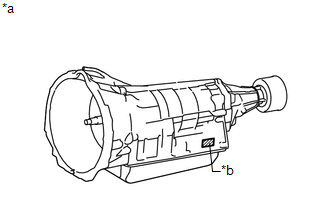

Transmission Serial Number

Fig 3: Identifying Transmission Serial Number

TEXT IN ILLUSTRATION

*a	A750F, A750E
*b	Transmission Serial Number
