Parts Location: Illustration

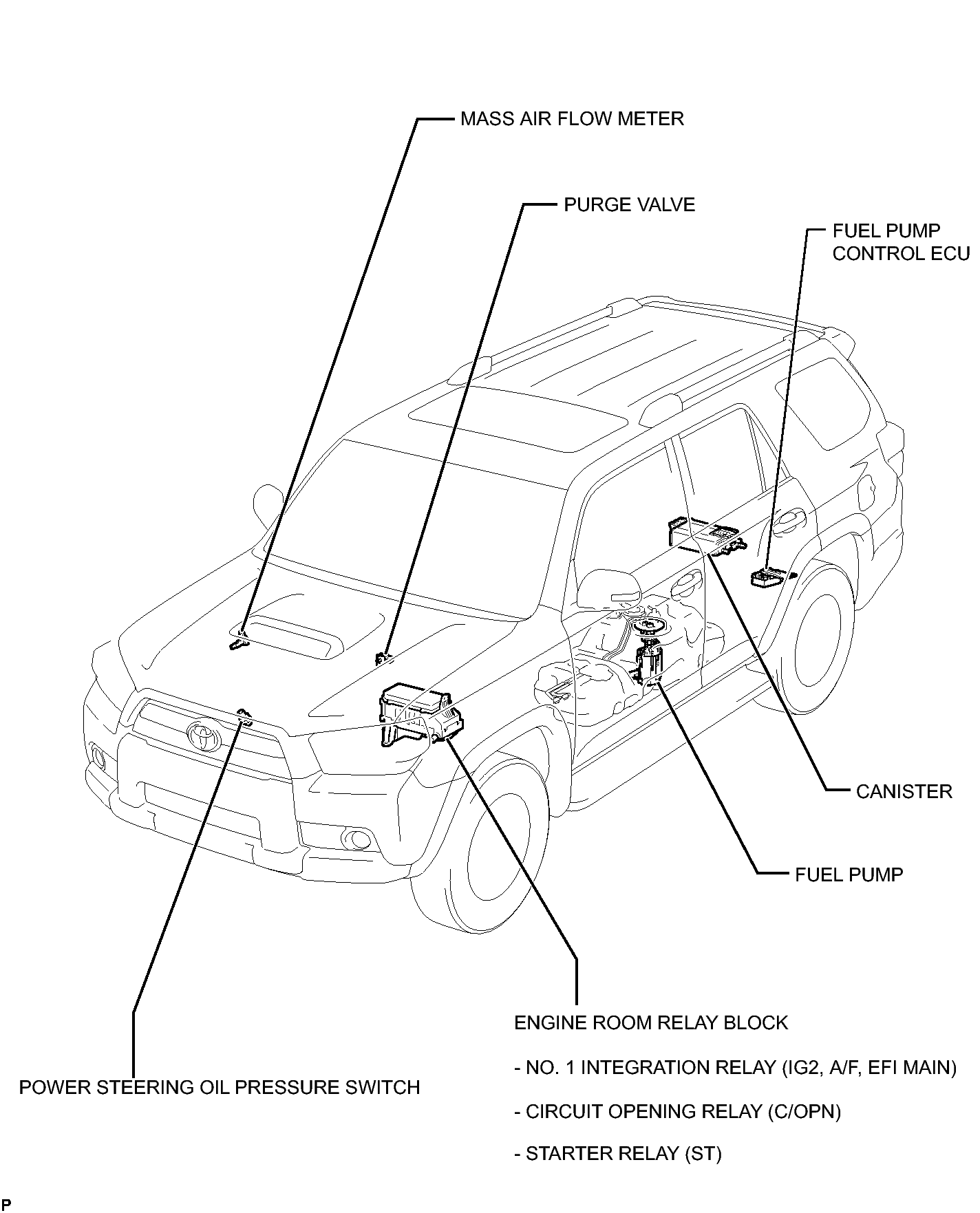

Fig 1: Identifying SFI System Components Location (1 Of 5)
GTY211718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

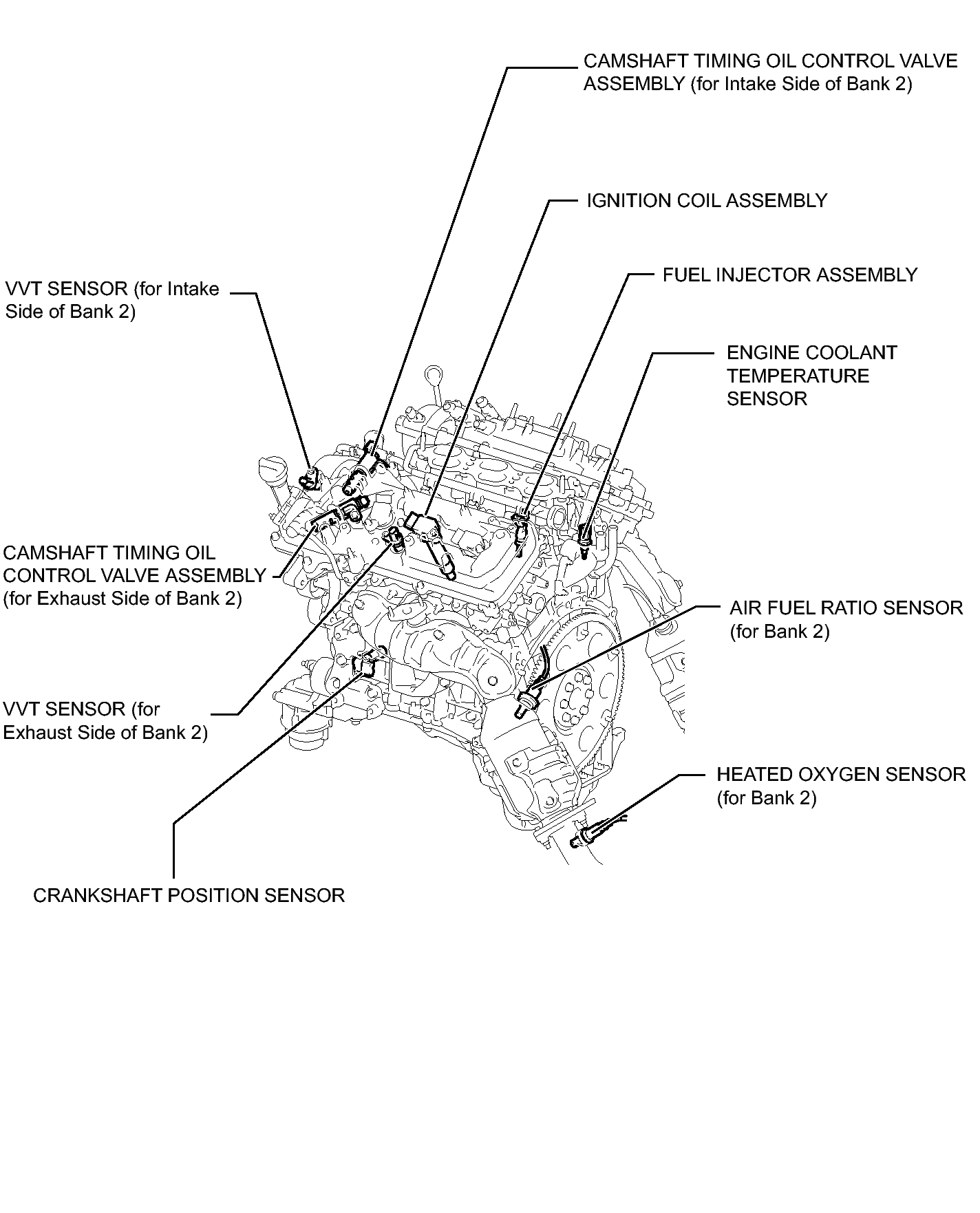

Fig 1: Identifying SFI System Components Location (2 Of 5)
GTY225512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

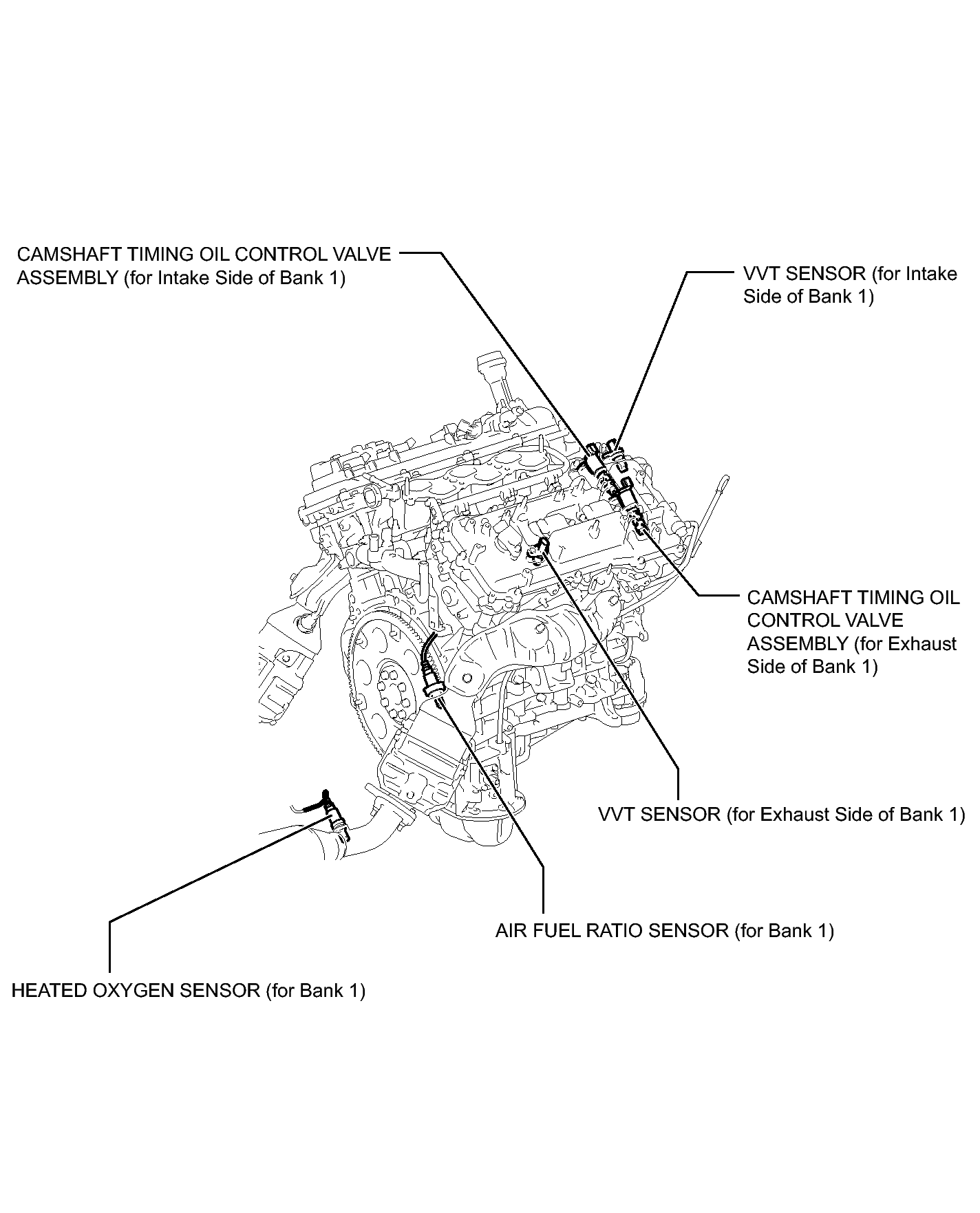

Fig 1: Identifying SFI System Components Location (3 Of 5)
GTY220760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

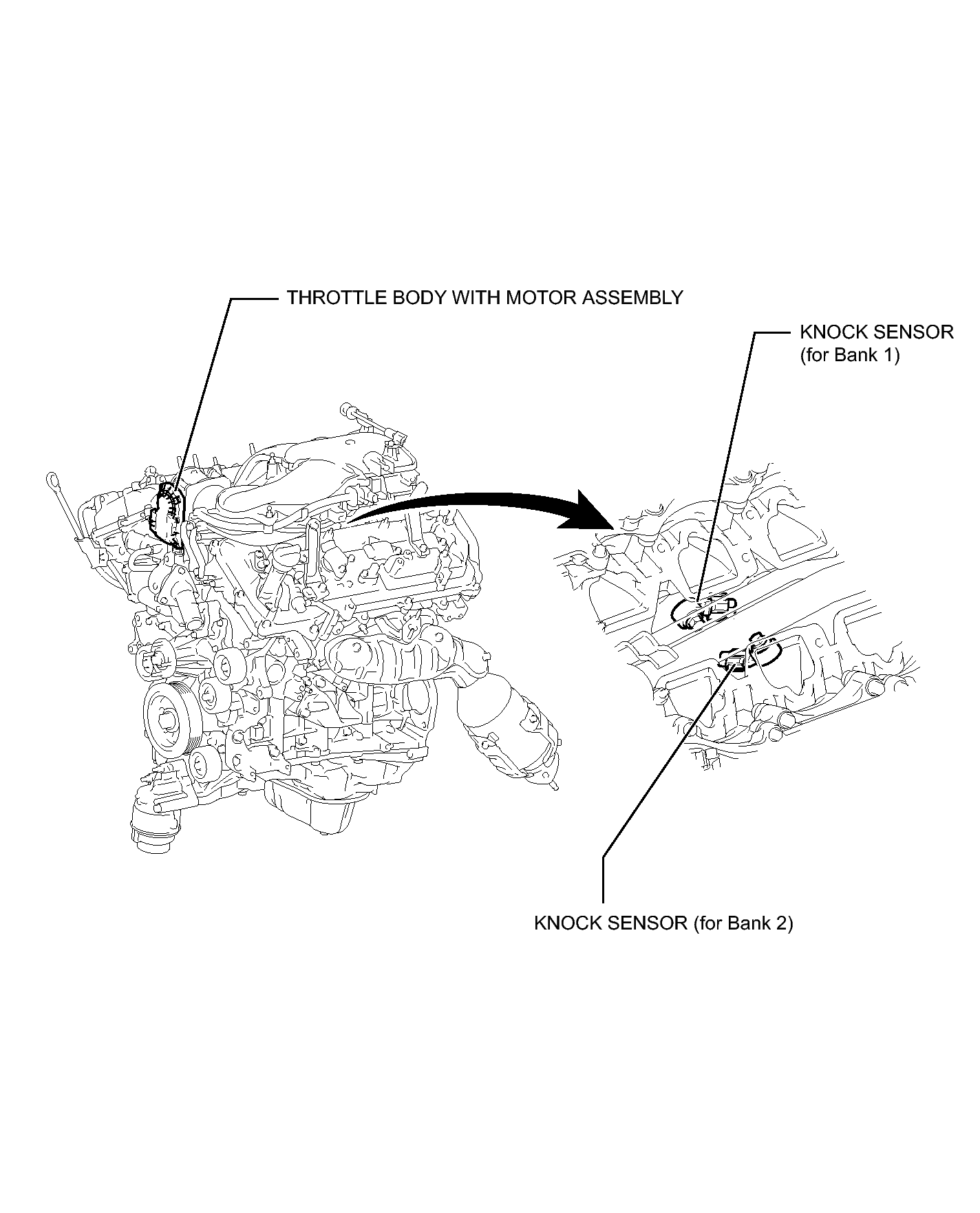

Fig 1: Identifying SFI System Components Location (4 Of 5)
GTY213881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

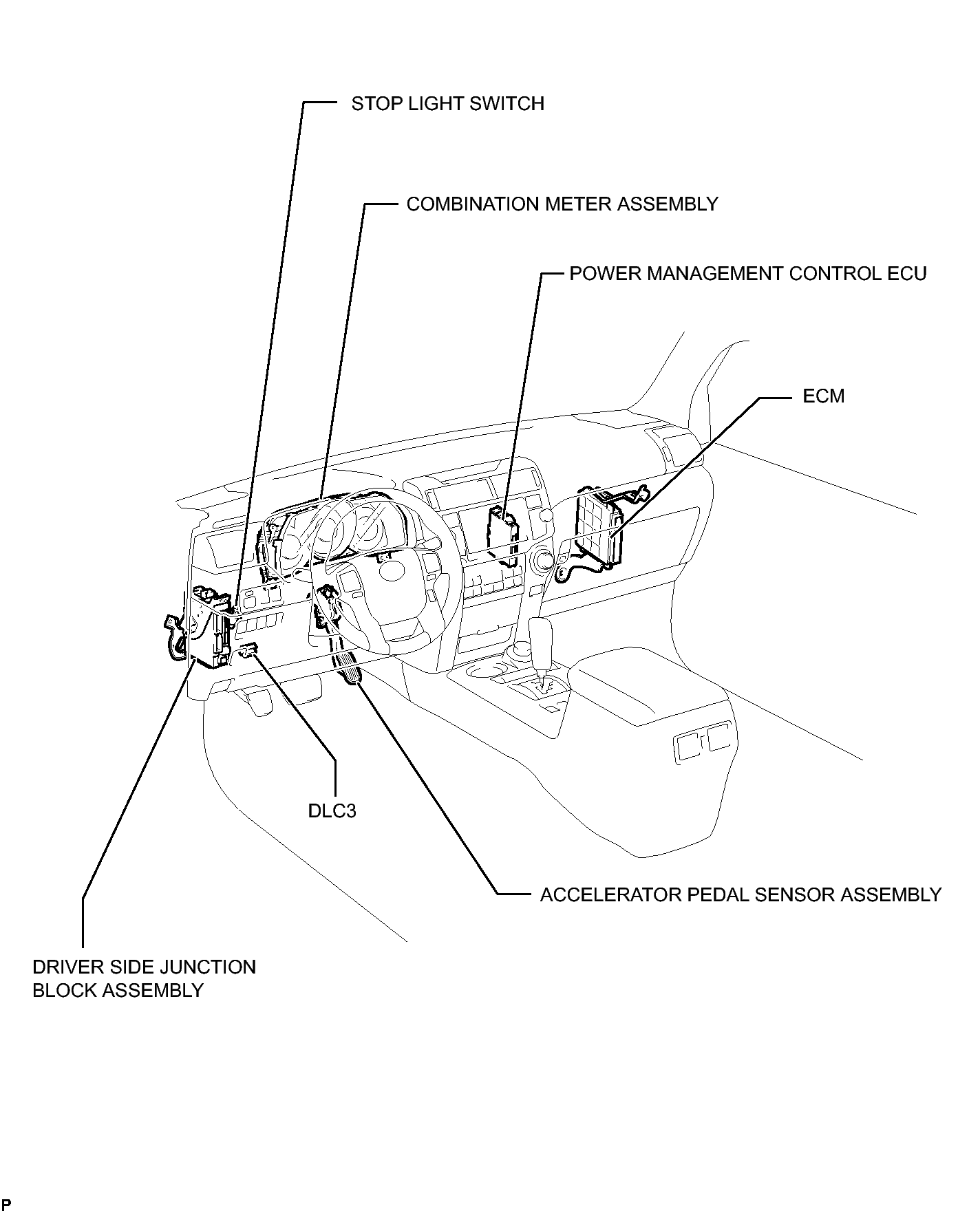

Fig 1: Identifying SFI System Components Location (5 Of 5)
GTY226515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
