Throttle Body: Inspection: Inspection

INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY

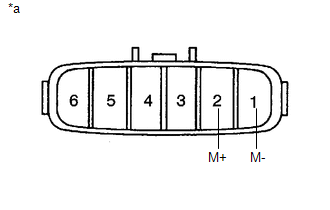

Fig 1: Identifying Throttle Body Assembly Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
2 (M+) - 1 (M-)	20°C (68°F)	0.3 to 100 Ω

TEXT IN ILLUSTRATION

*a	Component without harness connected (Throttle Body with Motor)

If the result is not as specified, replace the throttle body with motor assembly.
