Crankshaft Position Sensor: Removal: Removal

  1. REMOVE GENERATOR ASSEMBLY
    1. Remove the generator. Refer to REMOVAL .
  2. REMOVE COOLER COMPRESSOR ASSEMBLY
    1. Remove the cooler compressor. Refer to REMOVAL .
  3. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 7
  4. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.

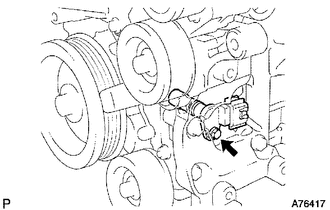

      Fig 1: Identifying Crankshaft Position Sensor Bolt
      GTY144955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
