Cruise Control: Notes

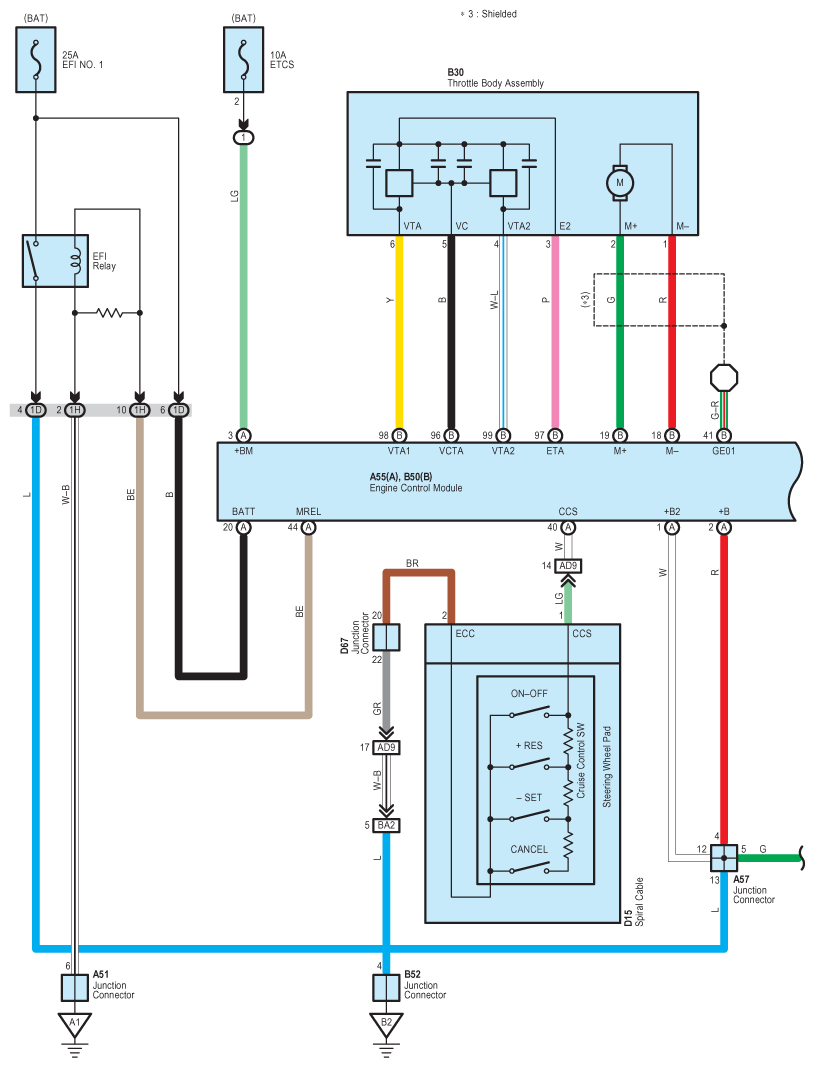

Fig 1: Cruise Control System Wiring Diagram (1 Of 10)
G08797449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

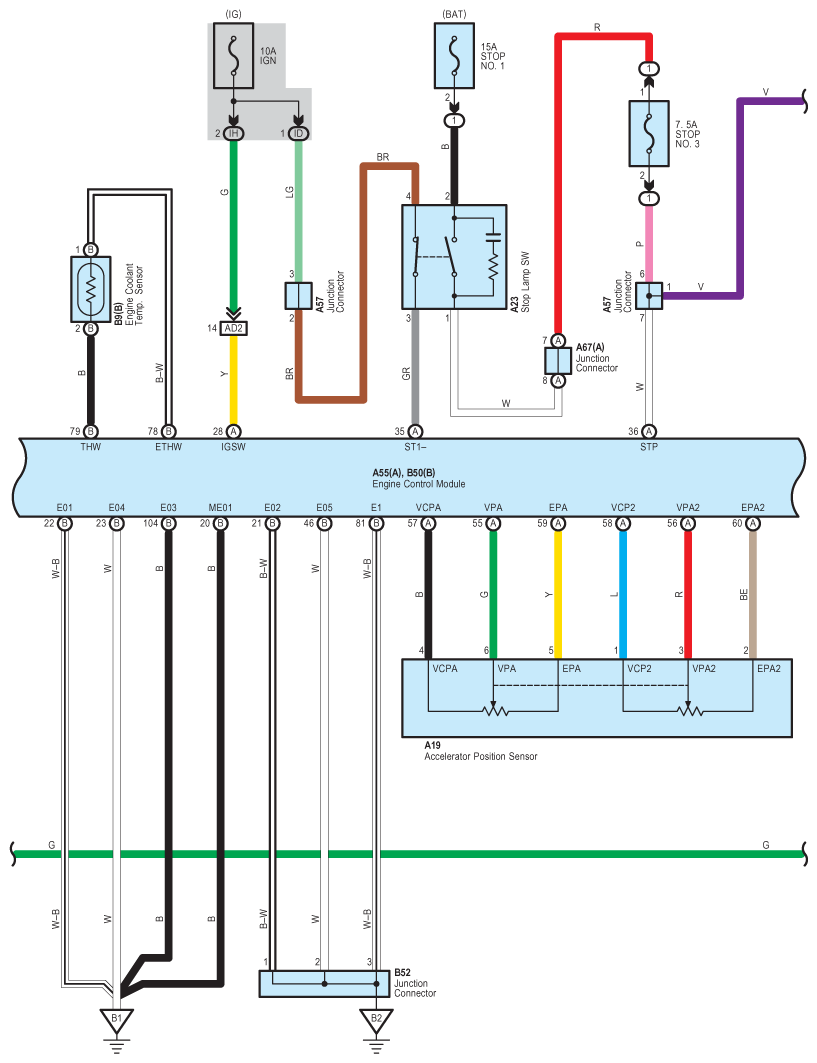

Fig 2: Cruise Control System Wiring Diagram (2 Of 10)
G08797450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

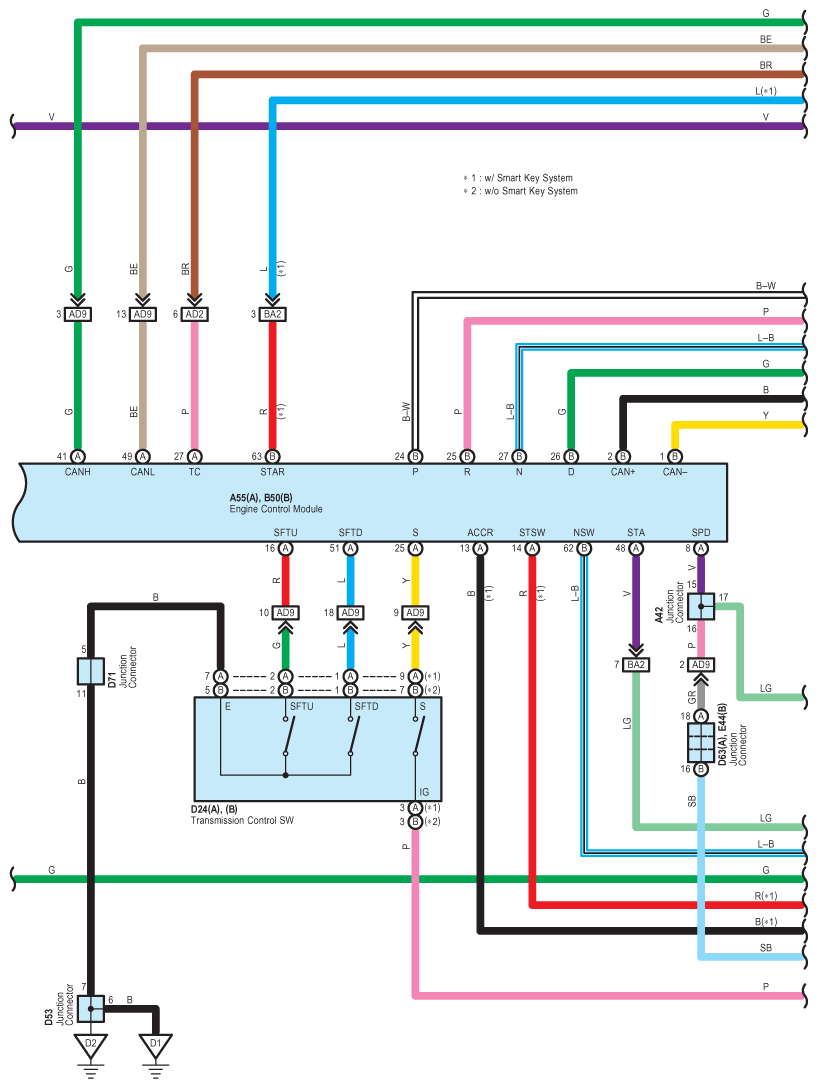

Fig 3: Cruise Control System Wiring Diagram (3 Of 10)
G08797451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

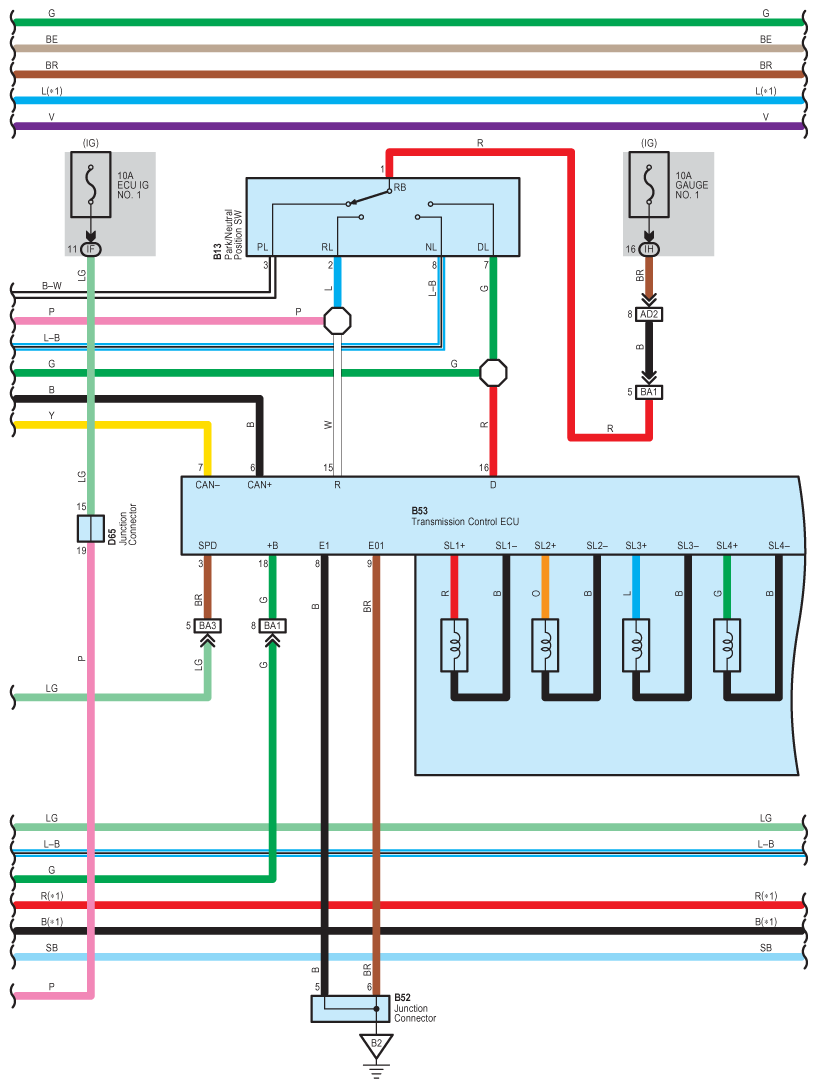

Fig 4: Cruise Control System Wiring Diagram (4 Of 10)
G08797452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

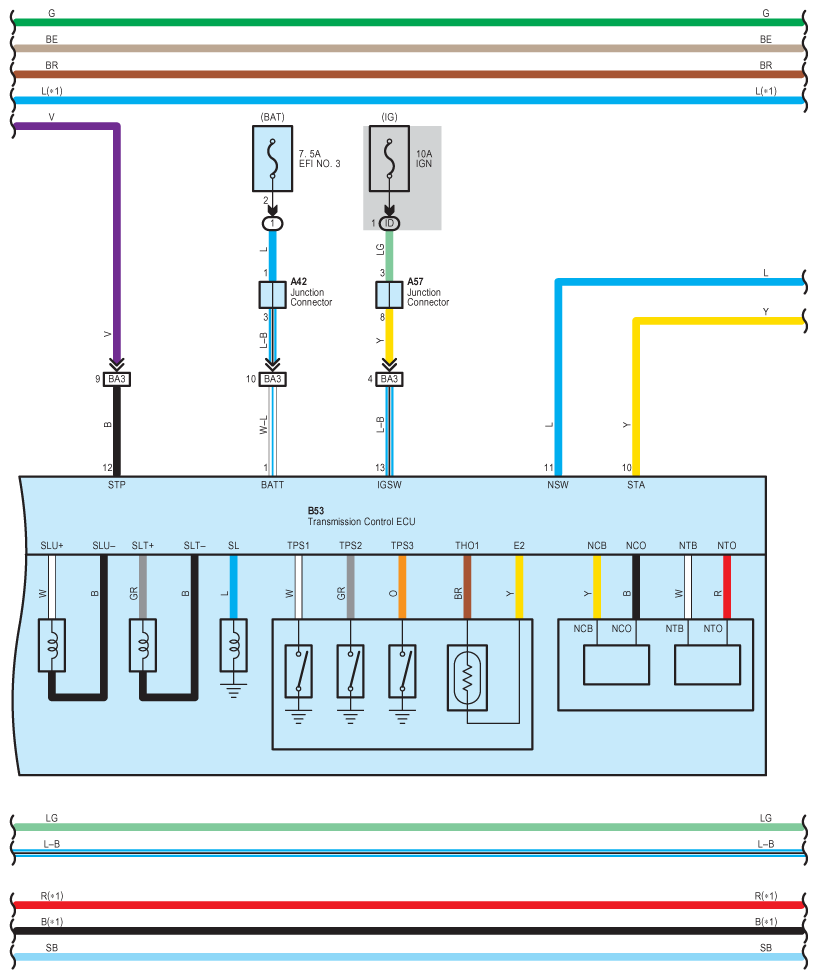

Fig 5: Cruise Control System Wiring Diagram (5 Of 10)
G08797453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

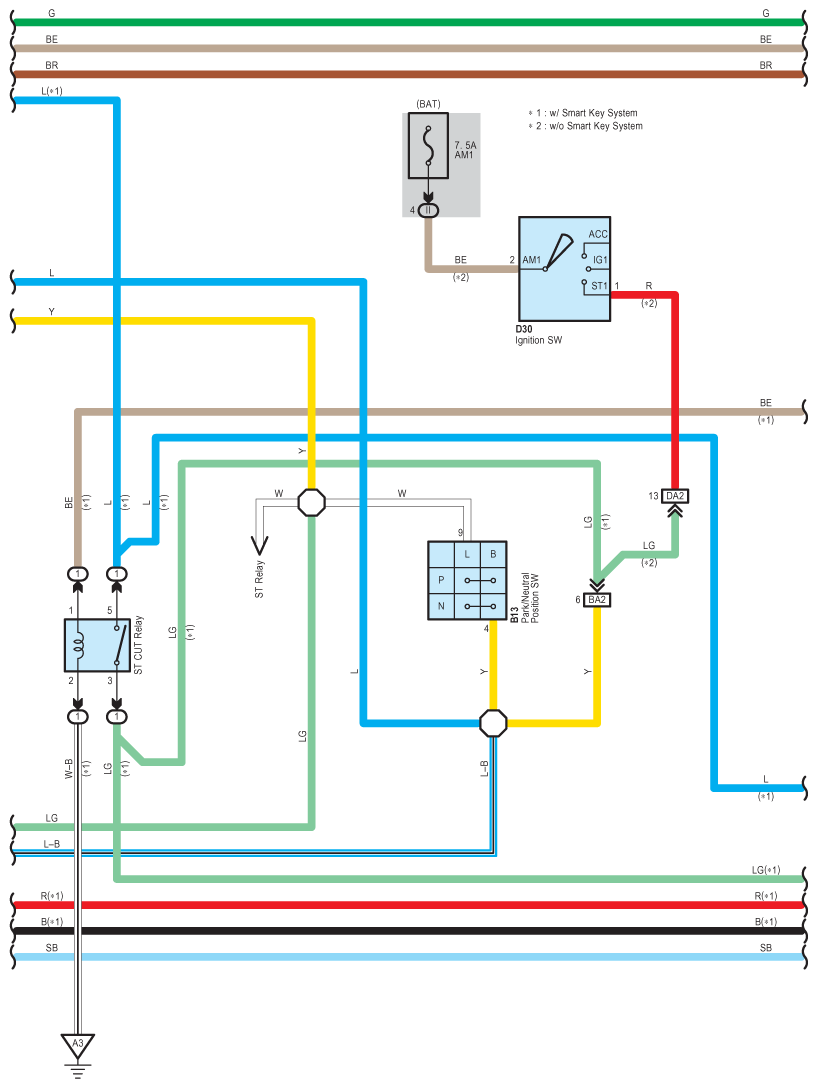

Fig 6: Cruise Control System Wiring Diagram (6 Of 10)
G08797454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

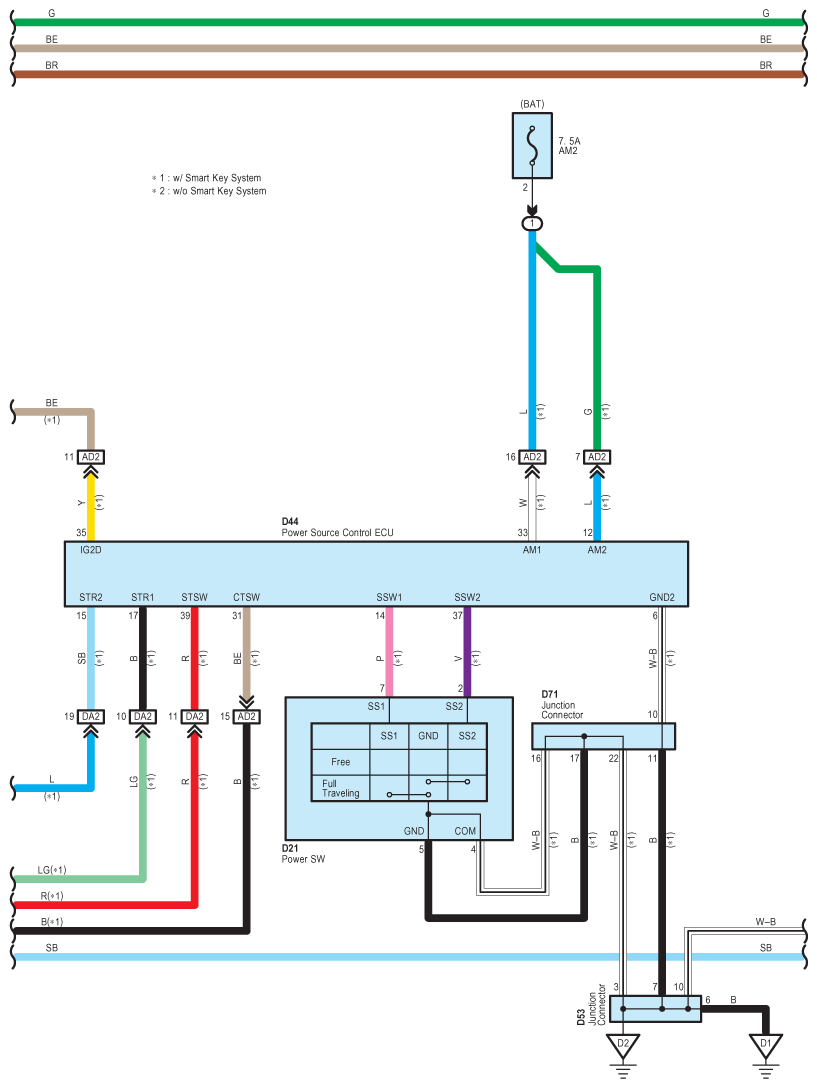

Fig 7: Cruise Control System Wiring Diagram (7 Of 10)
G08797455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

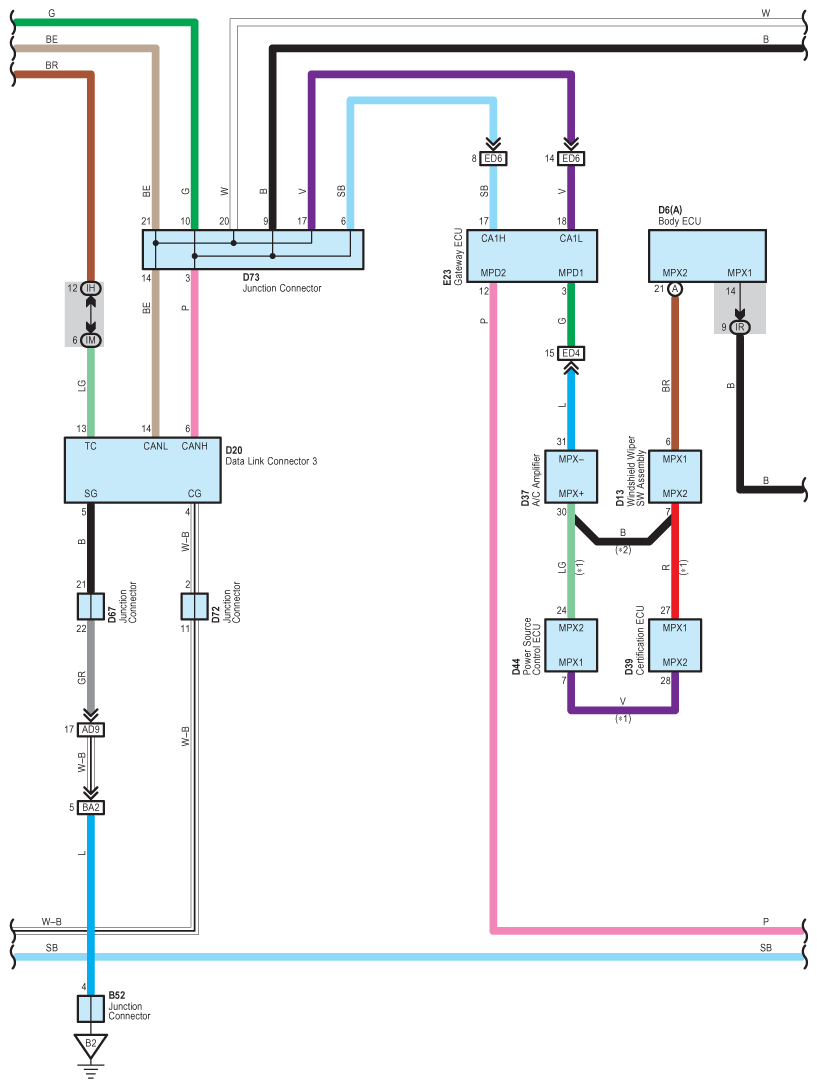

Fig 8: Cruise Control System Wiring Diagram (8 Of 10)
G08797456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

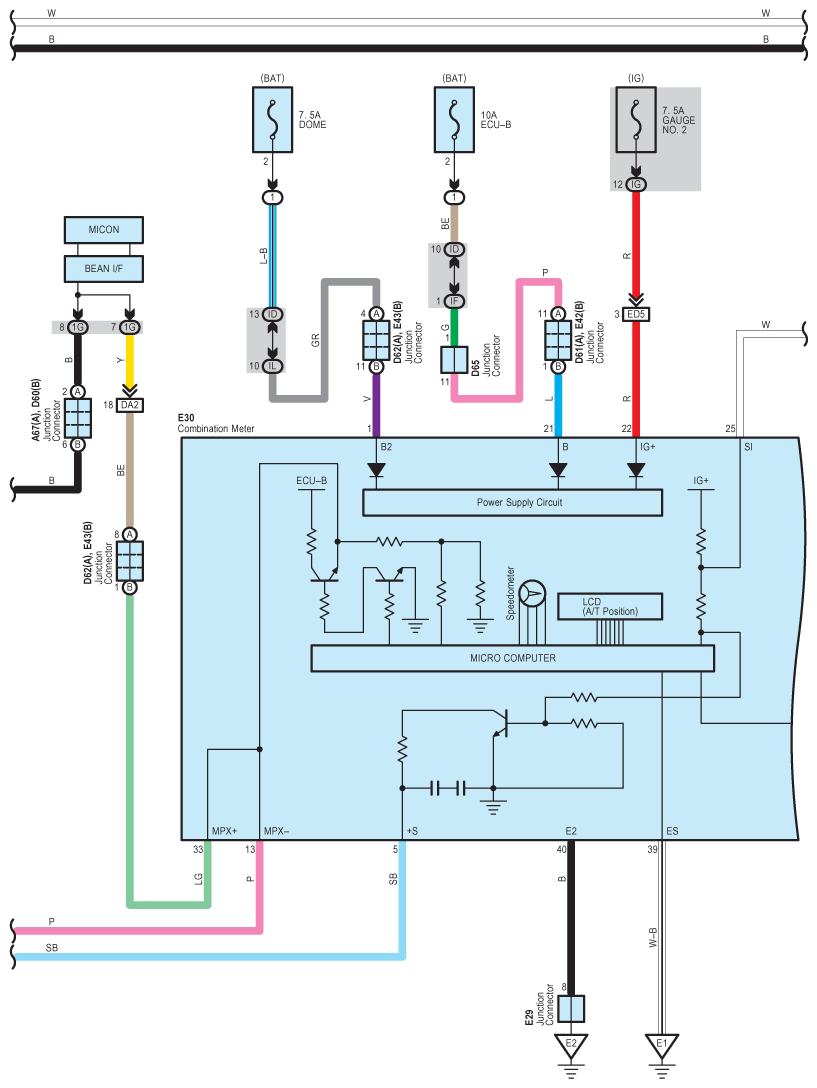

Fig 9: Cruise Control System Wiring Diagram (9 Of 10)
G08797457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

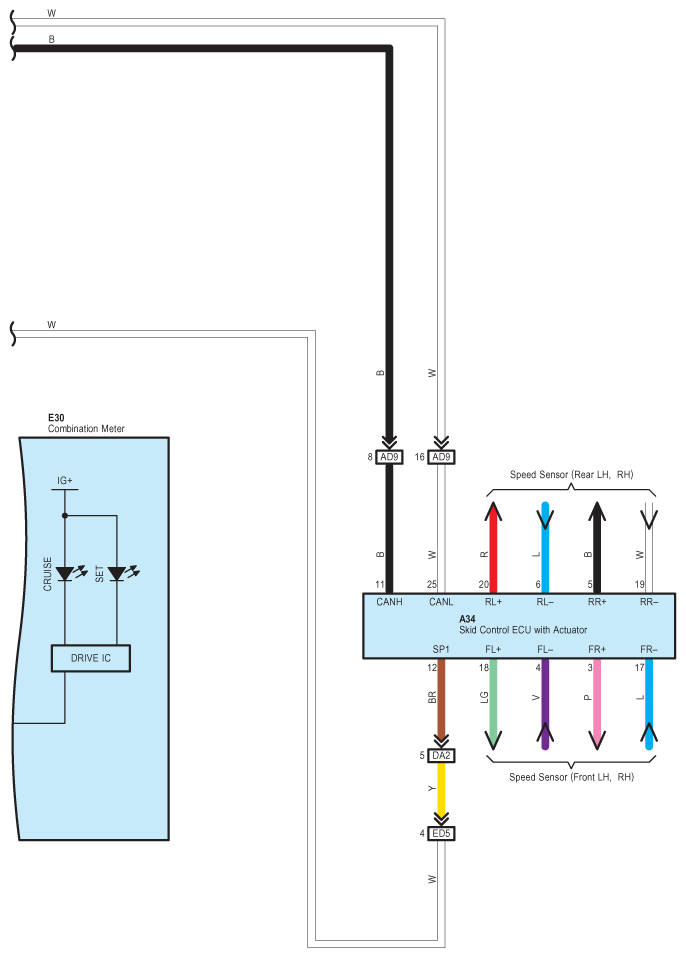

Fig 10: Cruise Control System Wiring Diagram (10 Of 10)
G08797458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
