Knock Sensor: Components: Illustration

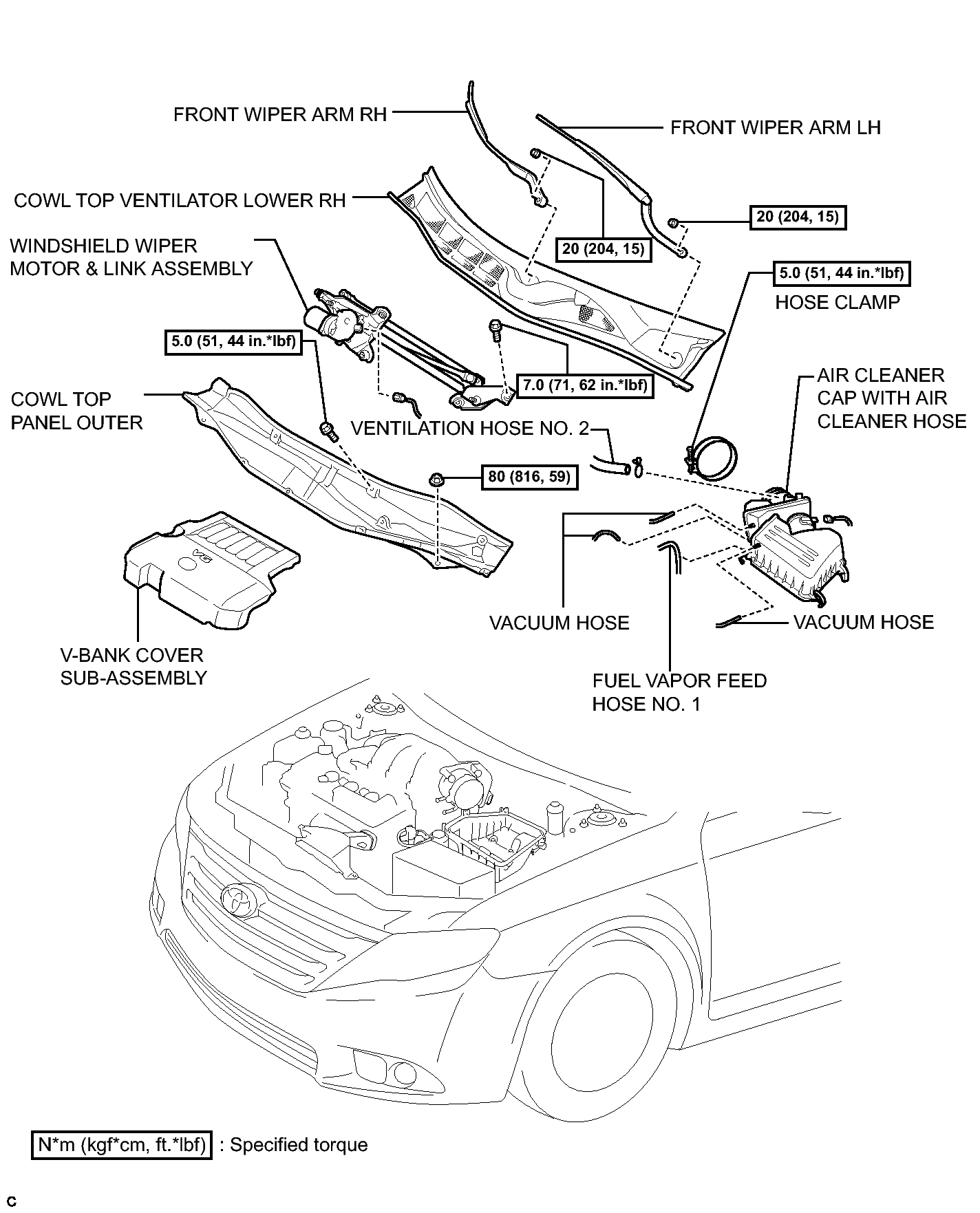

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 of 2)
GTY299171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

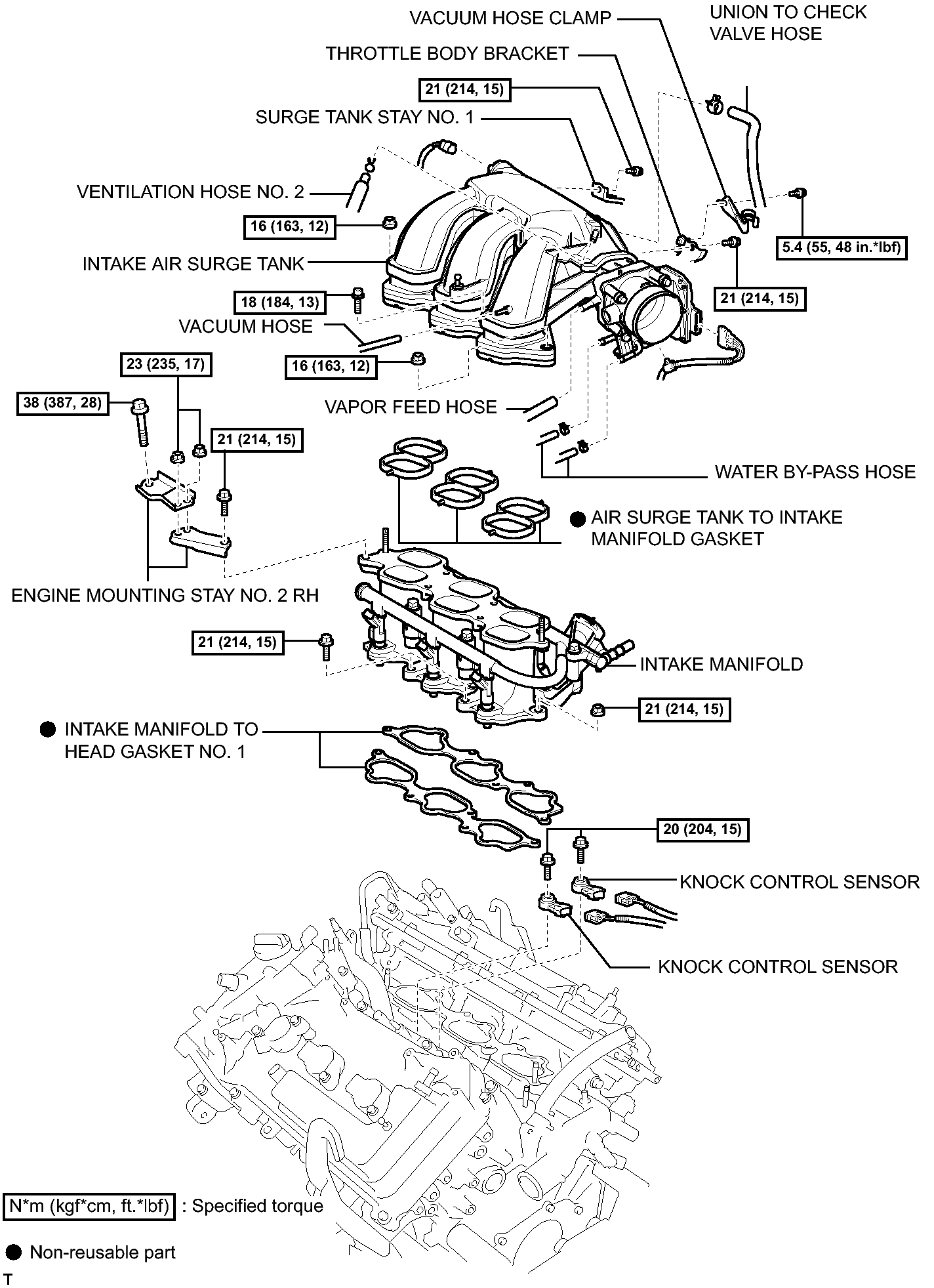

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY192127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
