Throttle Body: Components: Illustration

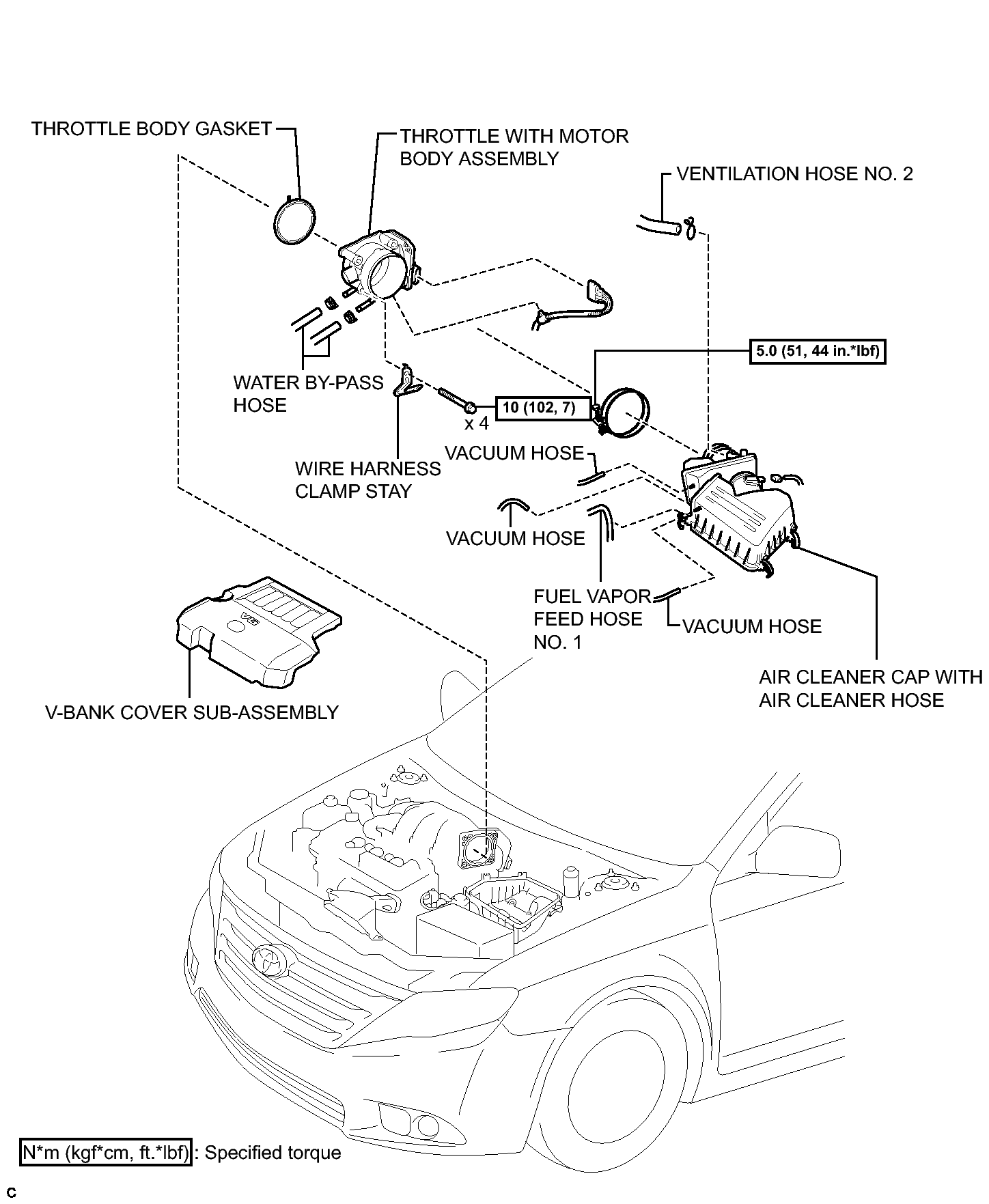

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications
GTY303969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
