VVT Sensor: Components: Illustration

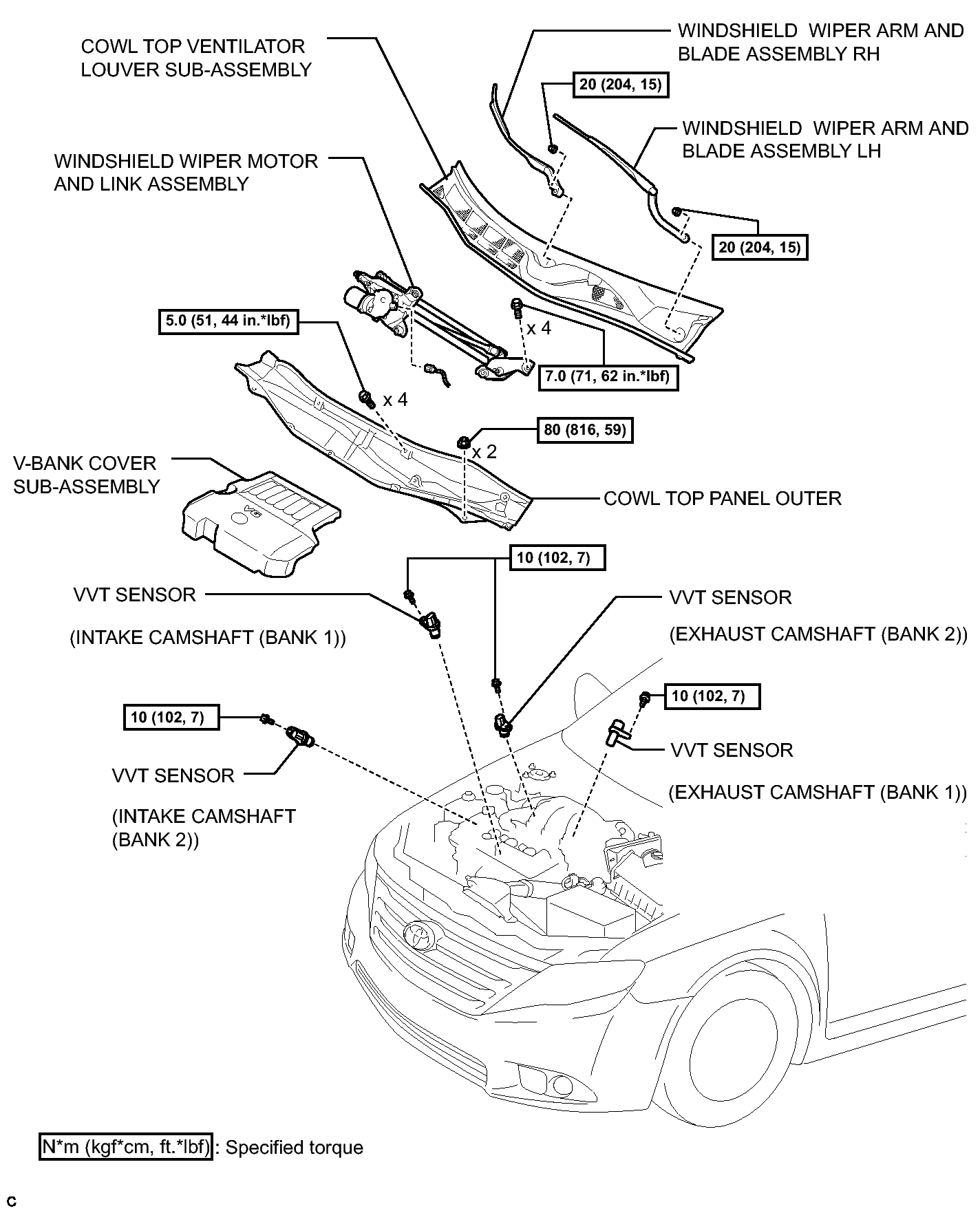

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications
GTY294821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
