Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.

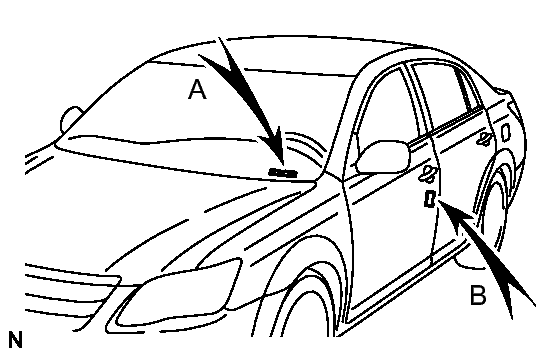

  Fig 1: Identifying Vehicle Identification Number Plate And Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Vehicle Identification Number Plate

  B

  Certification Label
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine.

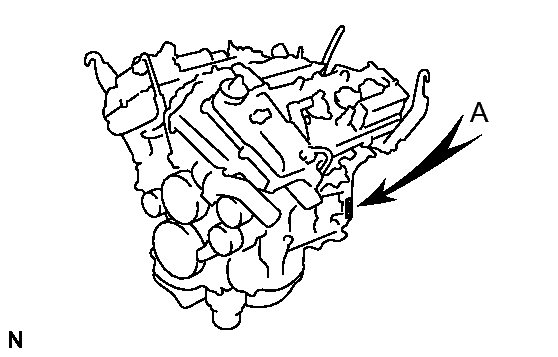

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Engine Serial Number
2. The transaxle serial number is stamped on the housing as shown in the illustration.

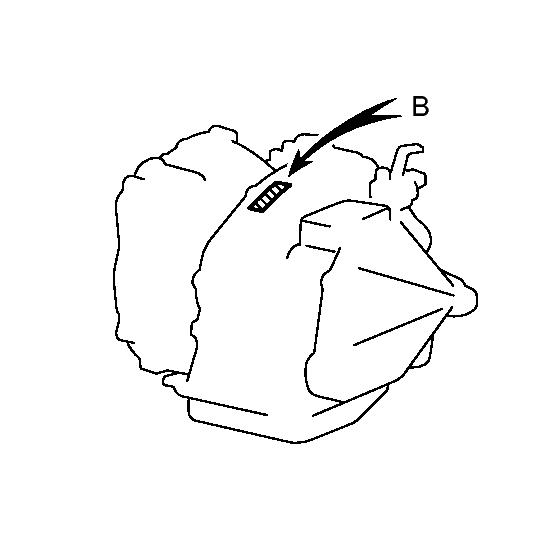

  Fig 3: Identifying Transmission Serial Number Stamped On Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  B

  Transaxle Serial Number
