Integration Relay: Removal: Removal

  1. REMOVE NO. 1 RELAY BLOCK COVER
  2. REMOVE NO. 1 INTEGRATION RELAY
    1. Disconnect the connector.

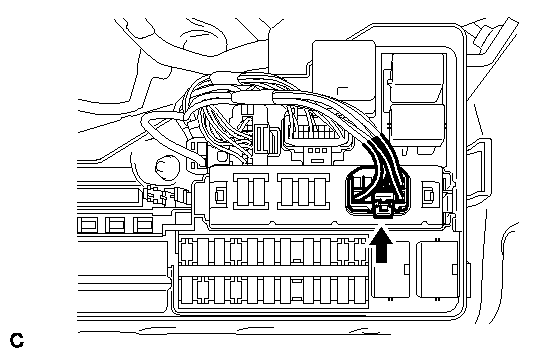

      Fig 1: Identifying No. 1 Integration Relay Connector
      GTY319756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the No. 1 integration relay.

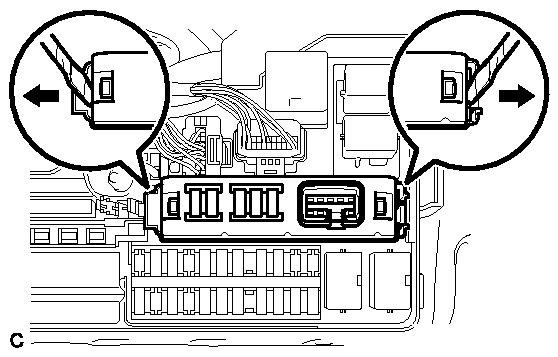

      Fig 2: Identifying No. 1 Integration Relay Claws
      GTY320937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 4 connectors and remove the No. 1 integration relay.

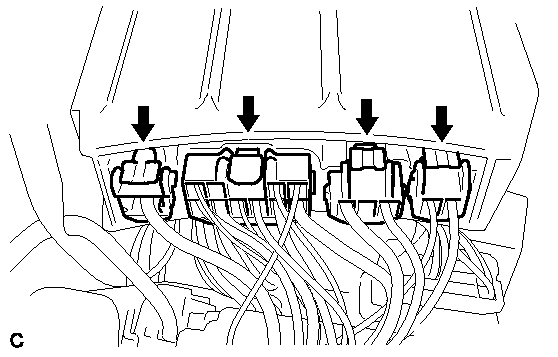

      Fig 3: Identifying No. 1 Integration Relay Connectors
      GTY320851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
