Knock Sensor: Removal: Removal

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL

  2. REMOVE KNOCK CONTROL SENSOR
    1. Disconnect the sensor connector.

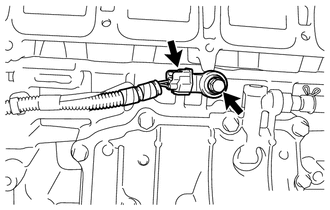

      Fig 1: Locating Bolt And Sensor
      GTY248846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and knock control sensor.
