Throttle Body: Components: Illustration

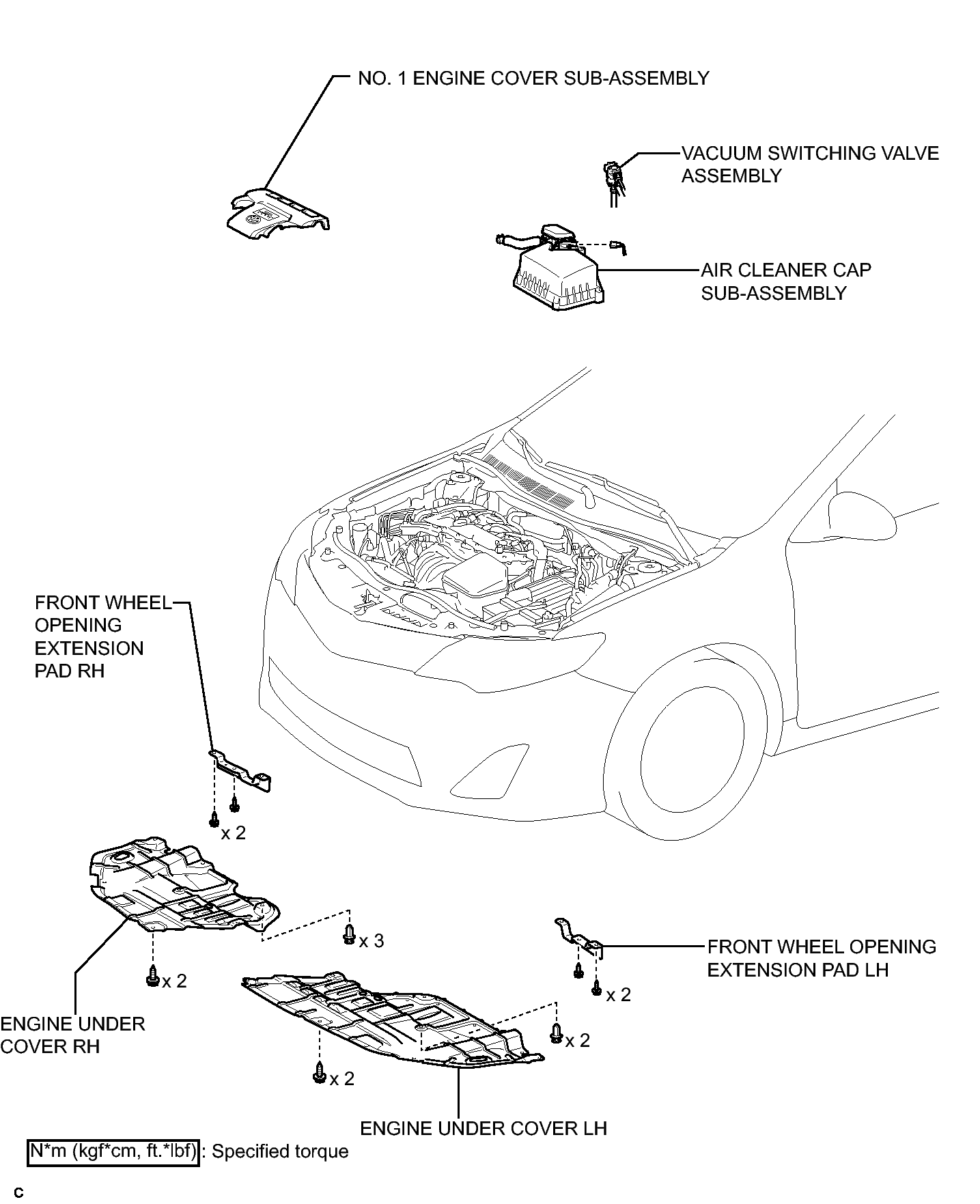

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 of 2)
GTY321986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

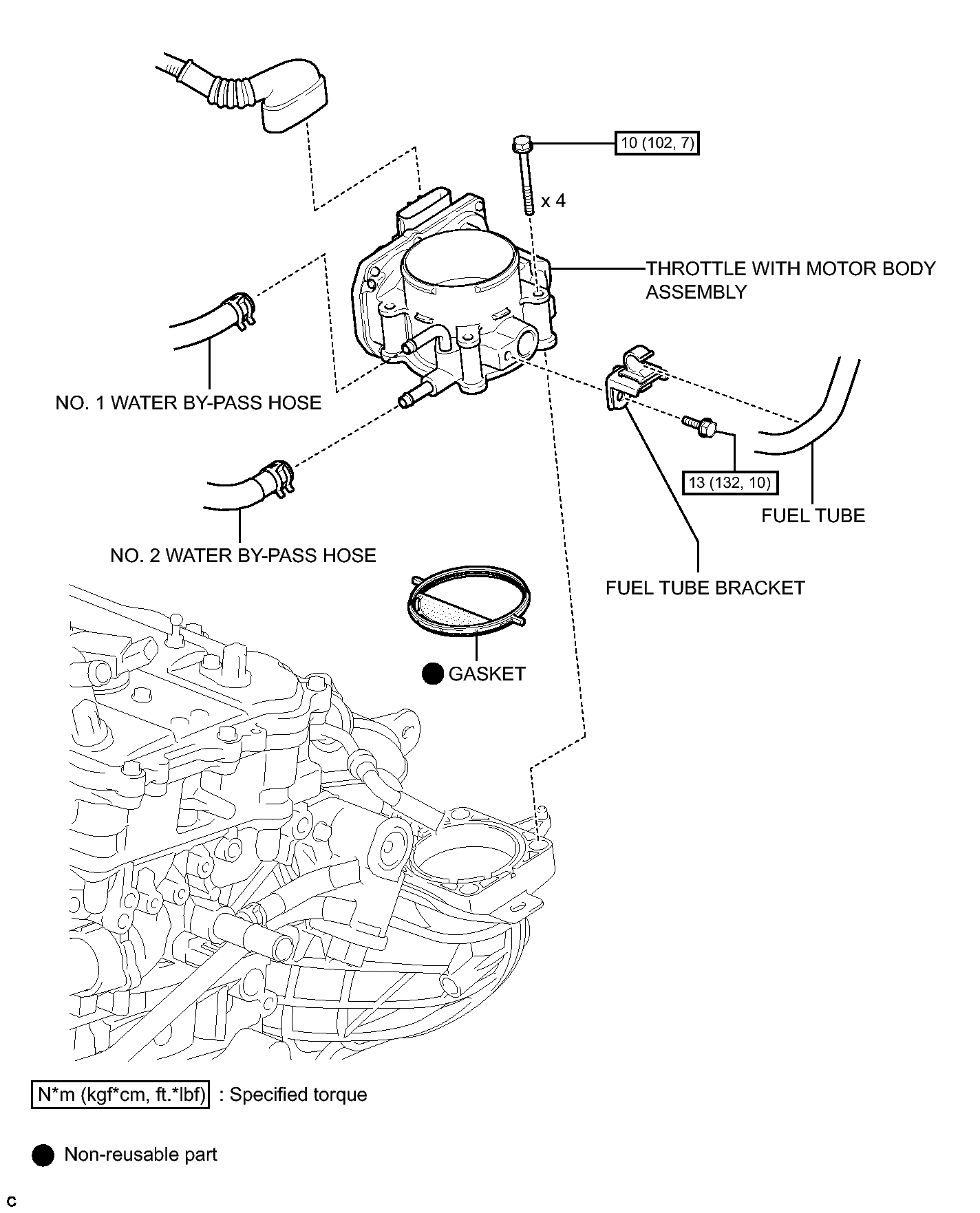

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (1 Of 11)
GTY319204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
