Audio System and Navigation System (TMC Made): Notes

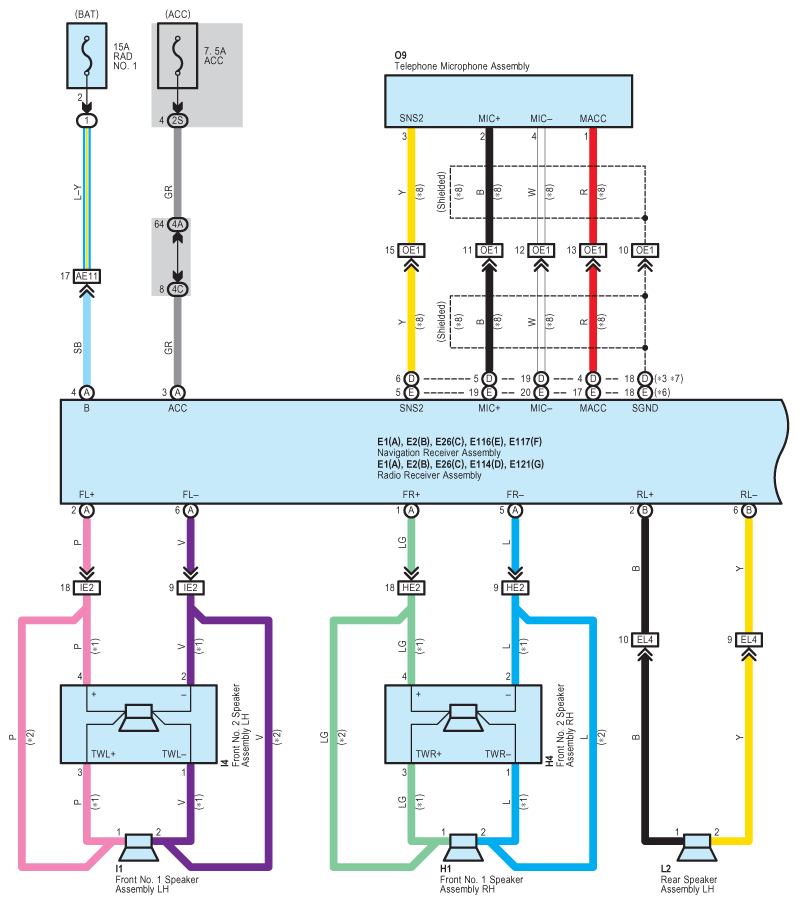

Fig 1: Audio System And Navigation System Wiring Diagram (TMC Made; 1 Of 4)
G08842817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

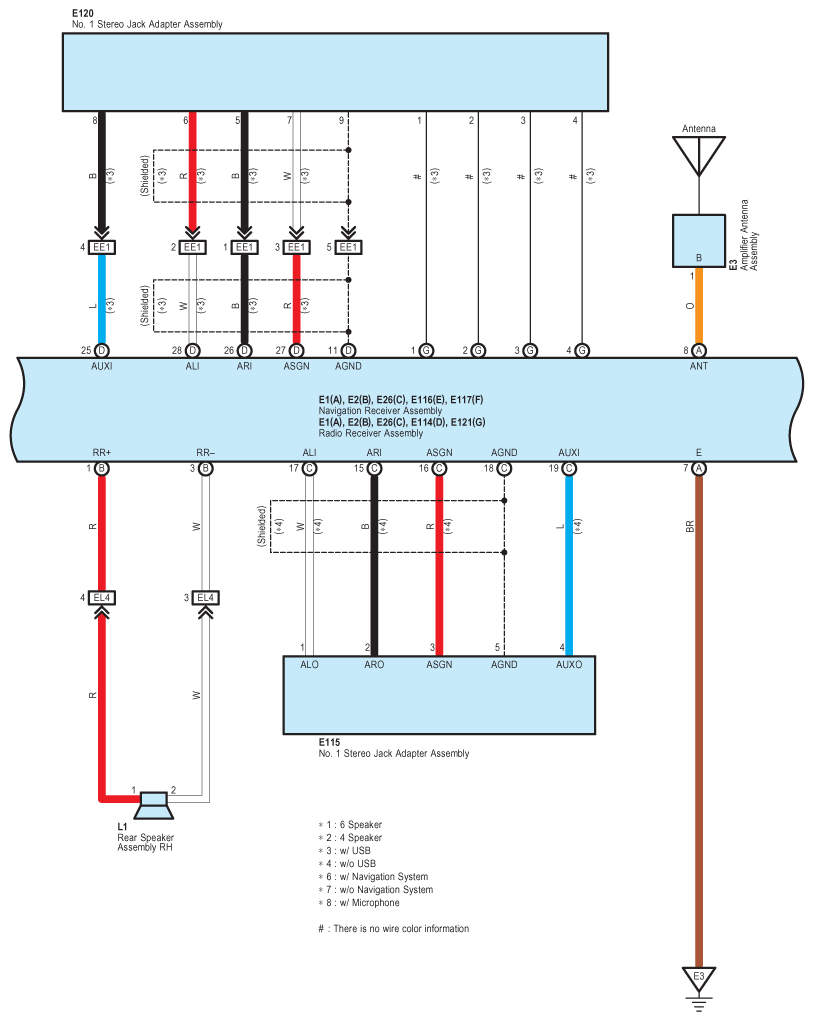

Fig 2: Audio System And Navigation System Wiring Diagram (TMC Made; 2 Of 4)
G08842818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

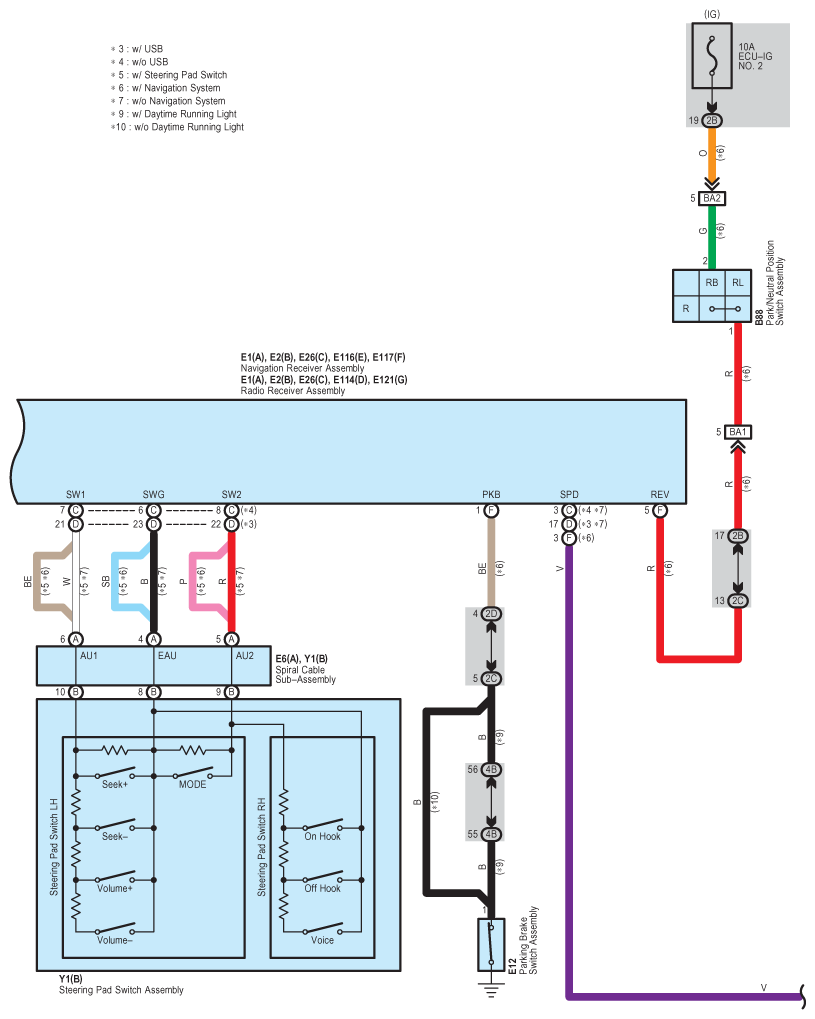

Fig 3: Audio System And Navigation System Wiring Diagram (TMC Made; 3 Of 4)
G08842819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

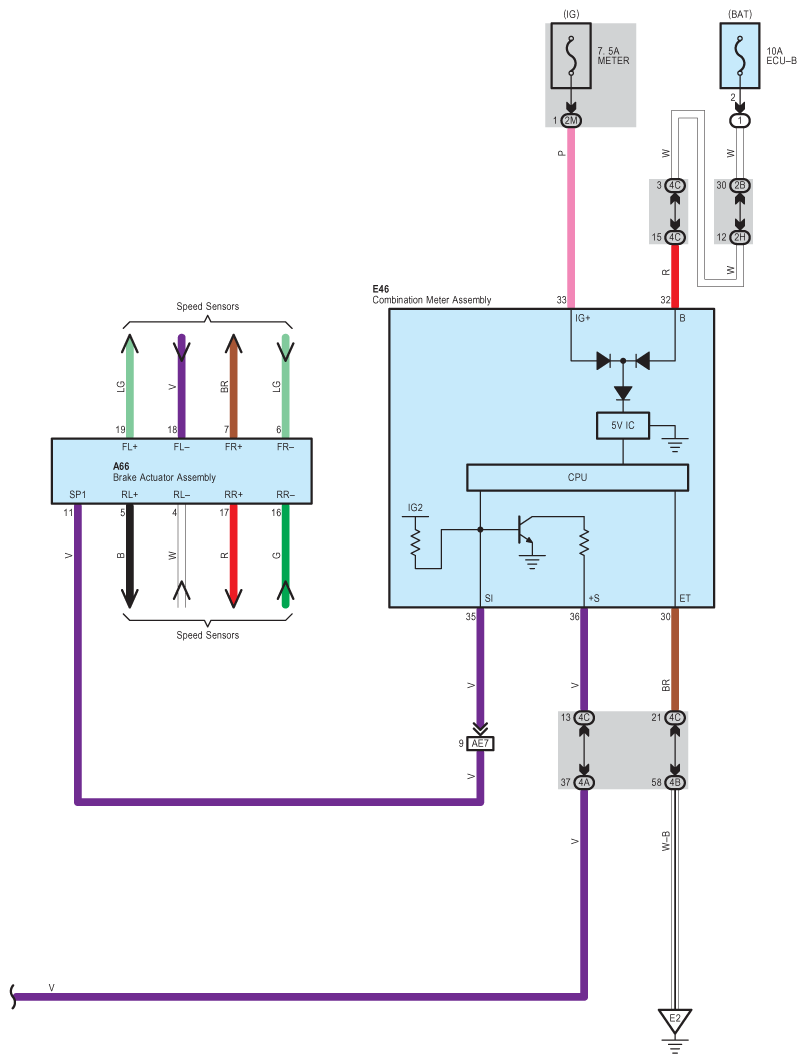

Fig 4: Audio System And Navigation System Wiring Diagram (TMC Made; 4 Of 4)
G08842820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
