Power Source (Except TMC Made): Notes

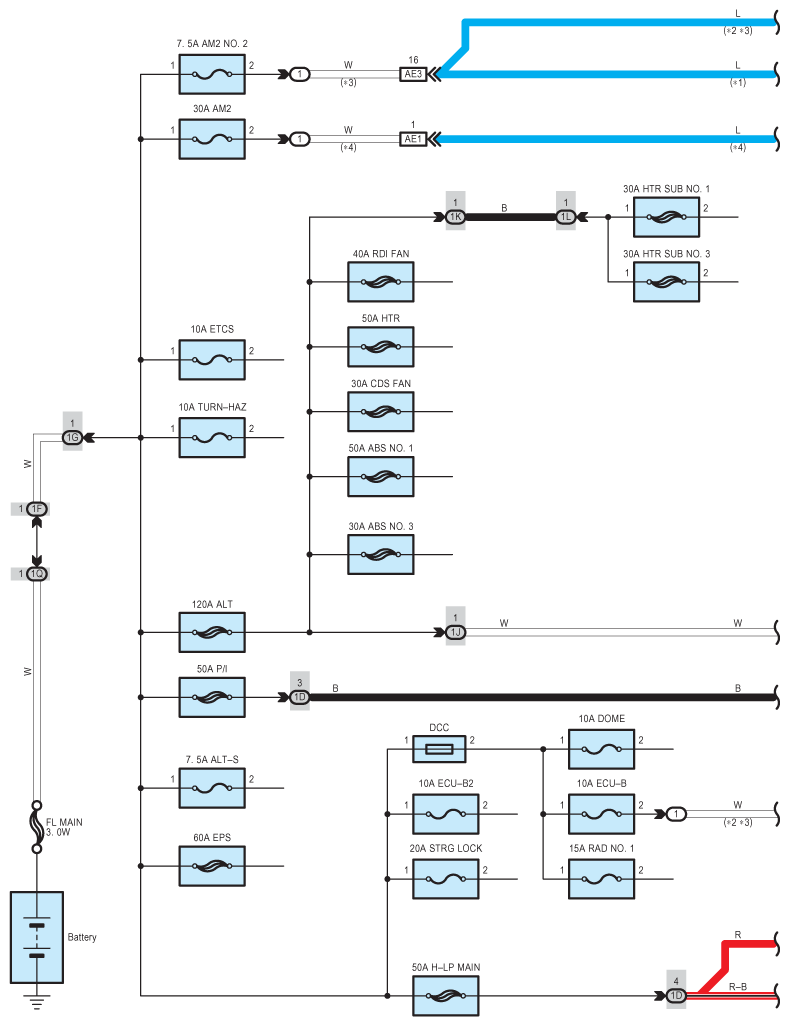

Fig 1: Power Source System Wiring Diagram (Except TMC Made; 1 Of 5)
G08842839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

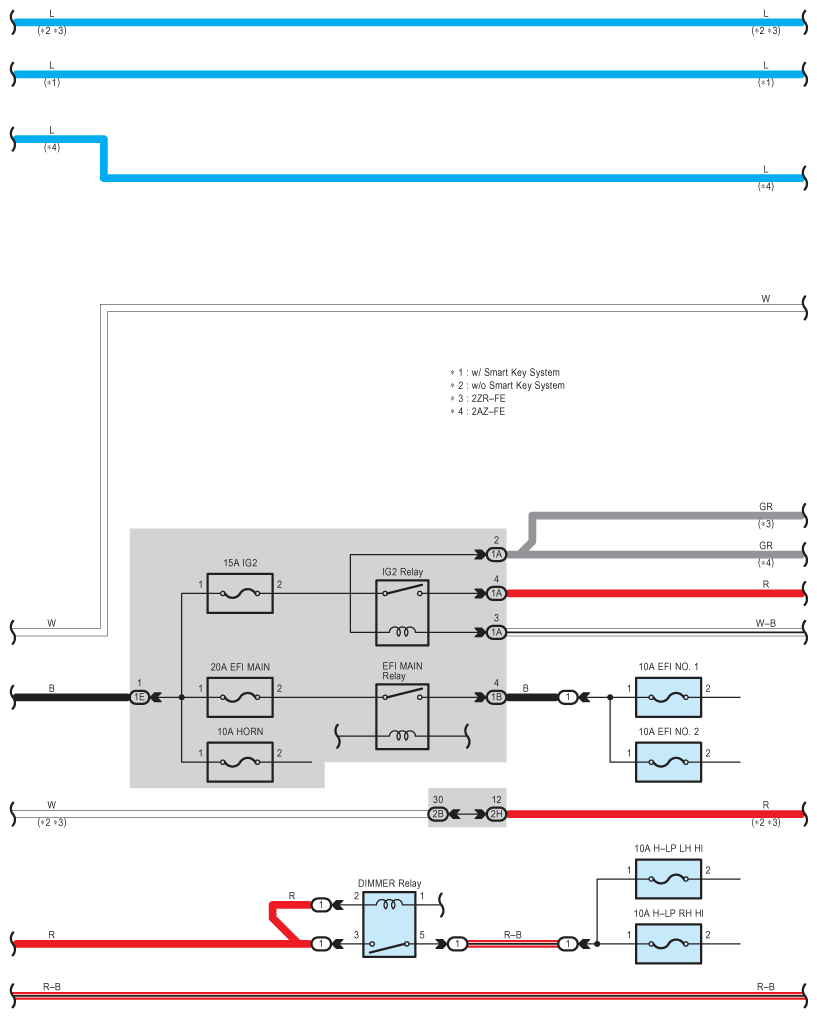

Fig 2: Power Source System Wiring Diagram (Except TMC Made; 2 Of 5)
G08842840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

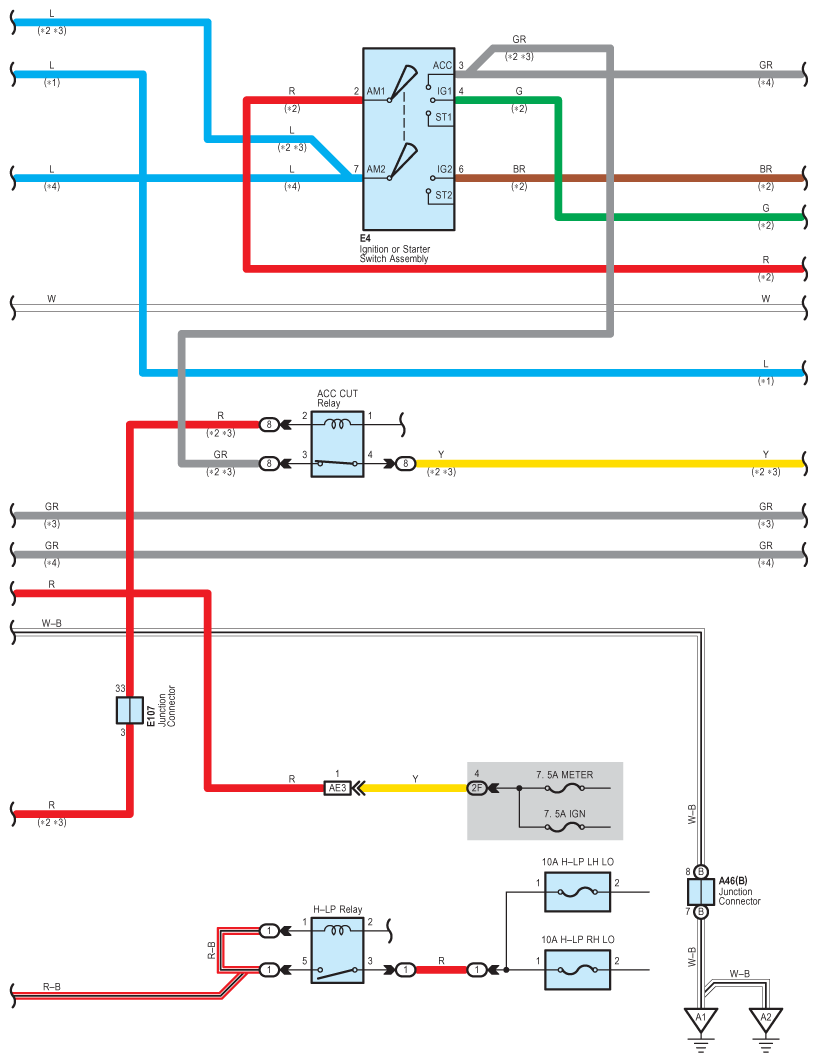

Fig 3: Power Source System Wiring Diagram (Except TMC Made; 3 Of 5)
G08842841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

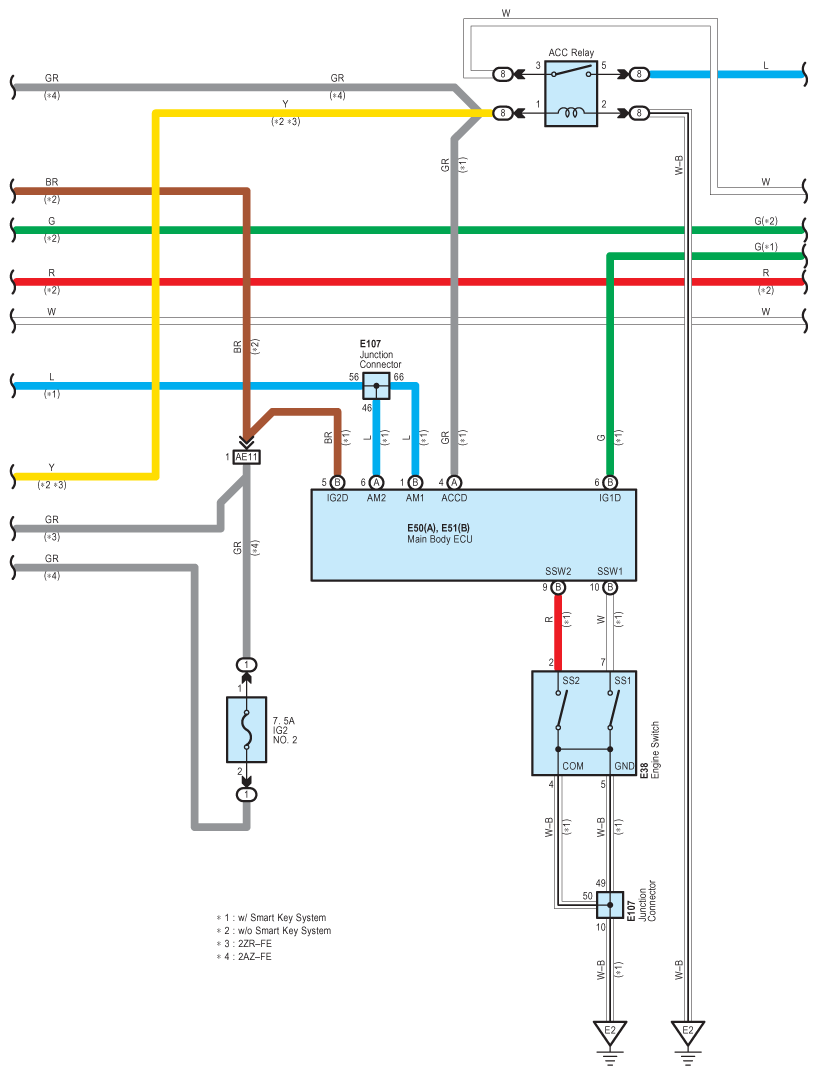

Fig 4: Power Source System Wiring Diagram (Except TMC Made; 4 Of 5)
G08842842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

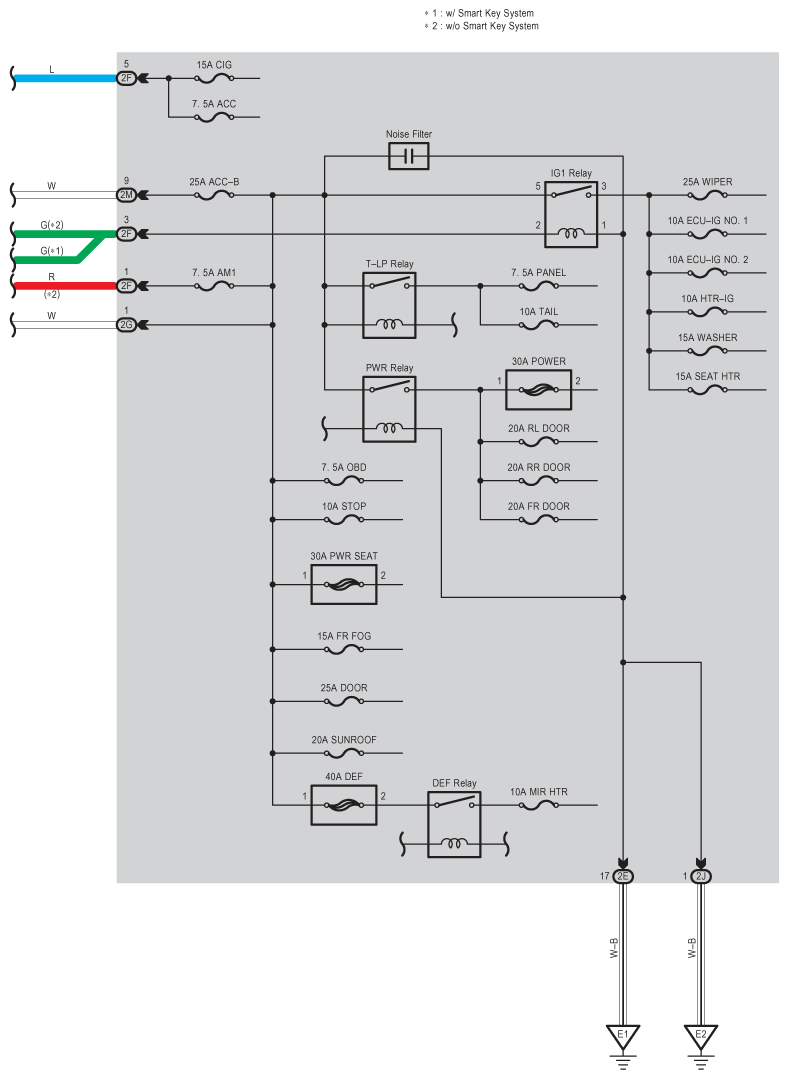

Fig 5: Power Source System Wiring Diagram (Except TMC Made; 5 Of 5)
G08842843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
