Remote Control Mirror (TMC Made): Notes

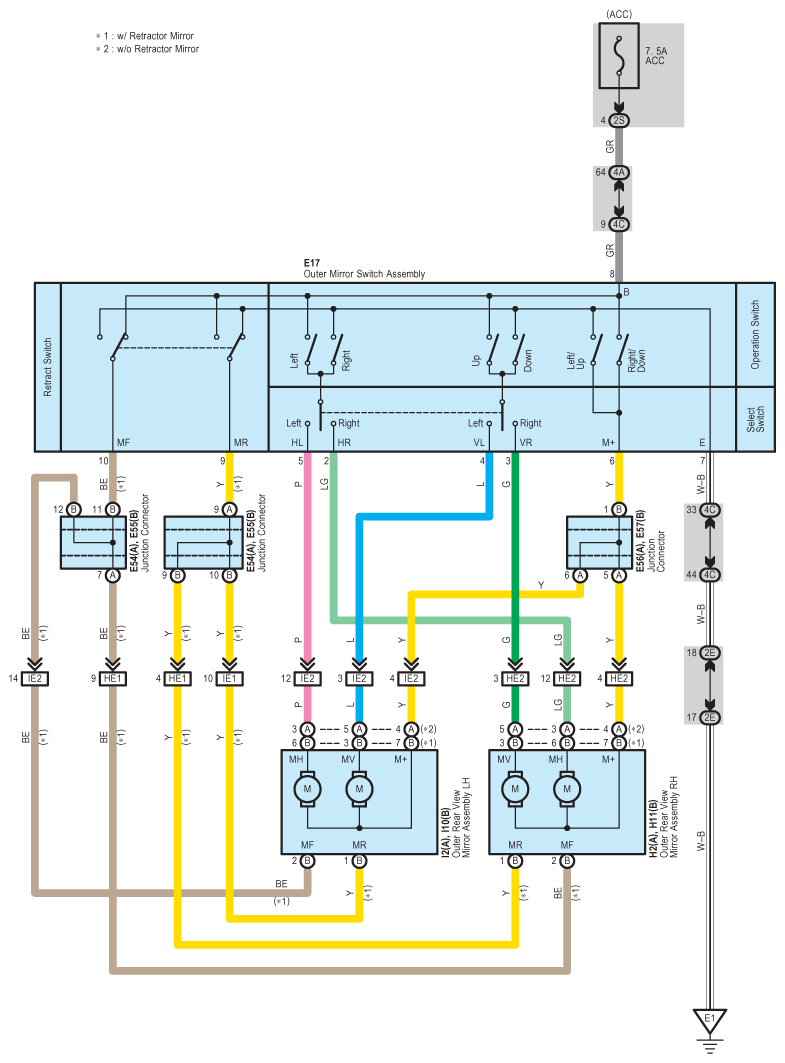

Fig 1: Remote Control Mirror System Wiring Diagram (TMC Made)
G08842810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
