Shift Lock (TMC Made): Notes

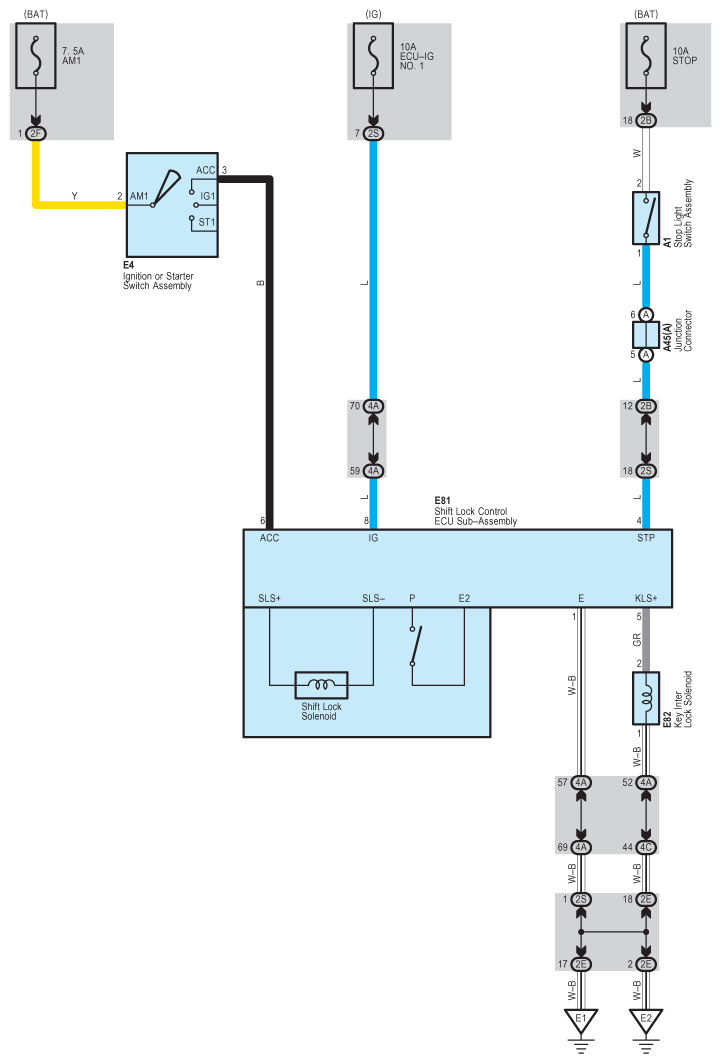

Fig 1: Shift Lock System Wiring Diagram (TMC Made)
G08842785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
