Crankshaft Position Sensor: Removal: Removal

  1. REMOVE GENERATOR ASSEMBLY
    1. Remove the generator. Refer to REMOVAL .
  2. SEPARATE COOLER COMPRESSOR ASSEMBLY  . Refer to REMOVAL - Step 18
  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.

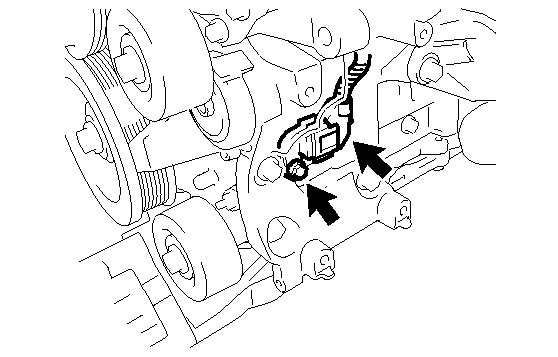

      Fig 1: Identifying Crankshaft Position Sensor & Bolt
      GTY173102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
