Camshaft Oil Control Valve: Inspection: Inspection
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 6.9 to 7.9 Ω If the result is not as specified, replace the oil control valve assembly.

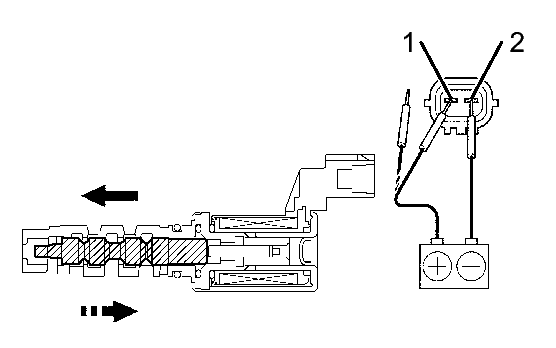

- Connect the positive (+) lead of the battery to terminal 1 and the negative (-) lead to terminal 2, and check the movement of the valve.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK
Tester Connection Condition Specified Condition 1 - 2 Battery positive (+) voltage is applied Valve moves in direction of left arrow shown in the illustration Battery positive (+) voltage is cut off Valve moves in direction of right arrow shown in the illustration If the result is not as specified, replace the oil control valve assembly.
If the valve cannot return properly because of foreign matter, a small pressure leak in the advanced direction may occur and a DTC may be output.
- Measure the resistance according to the value(s) in the table below.
