ABS, TRAC and VSC: Notes

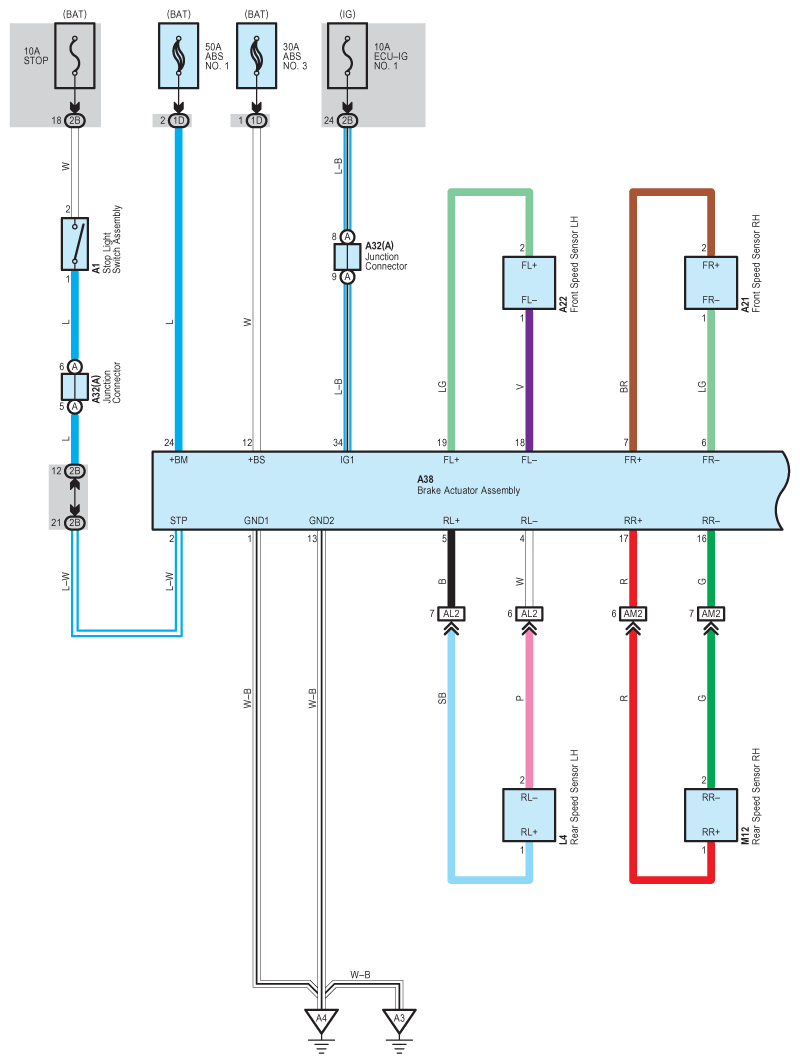

Fig 1: ABS, TRAC And VSC Wiring Diagram (1 Of 6)

G08798951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

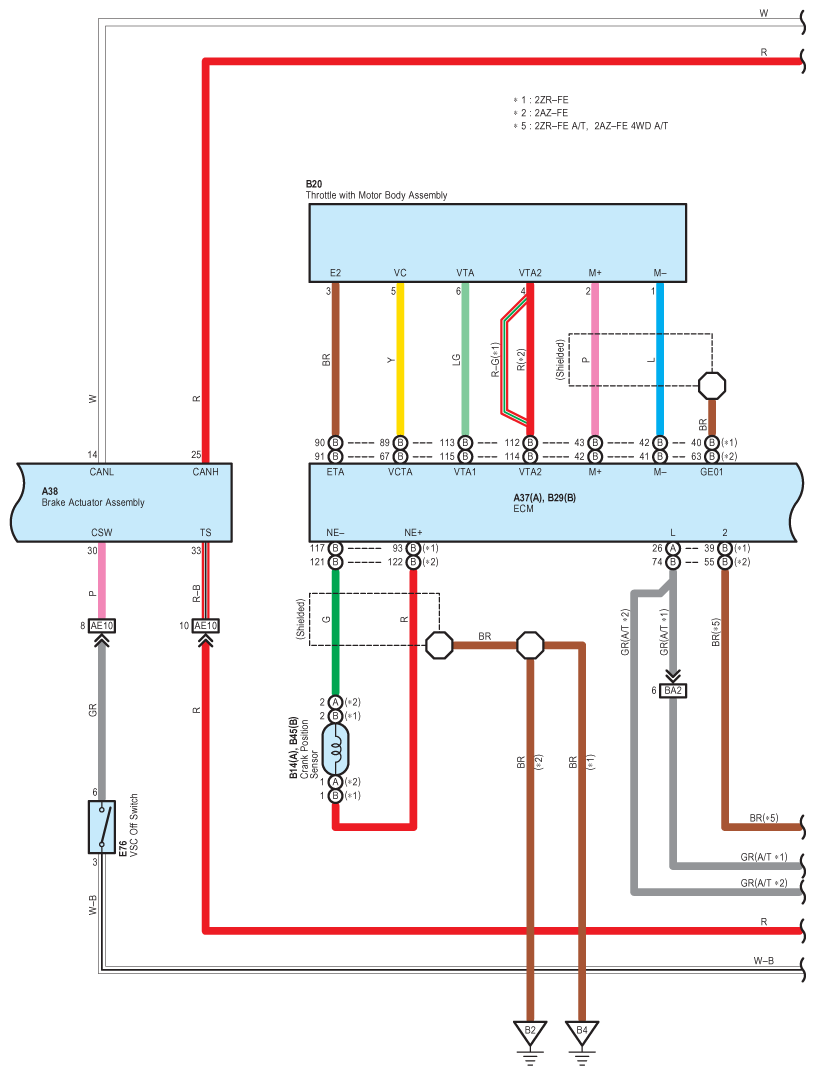

Fig 2: ABS, TRAC And VSC Wiring Diagram (2 Of 6)

G08798952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

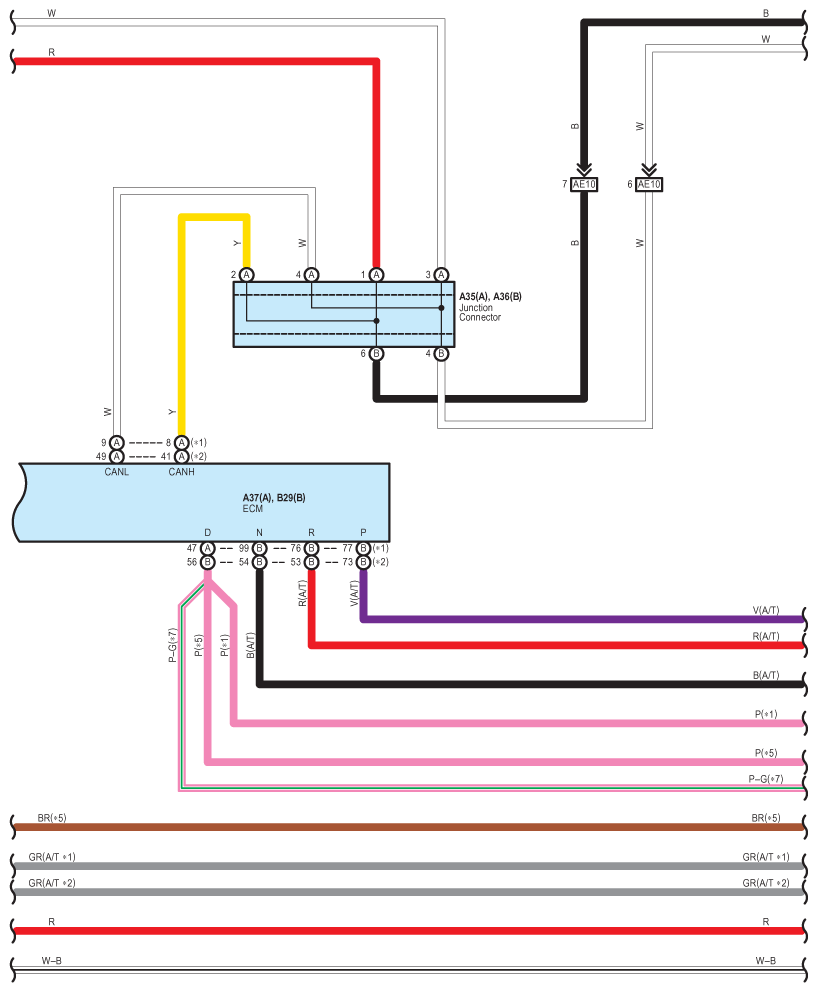

Fig 3: ABS, TRAC And VSC Wiring Diagram (3 Of 6)

G08798953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

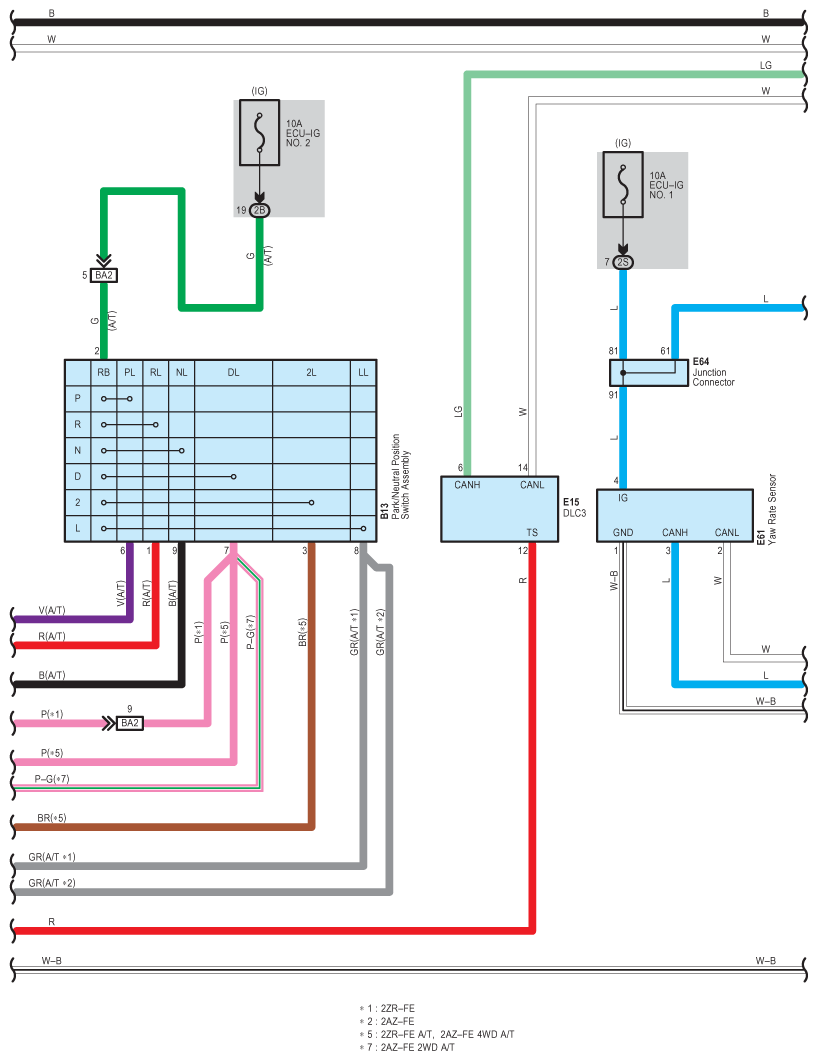

Fig 4: ABS, TRAC And VSC Wiring Diagram (4 Of 6)

G08798954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

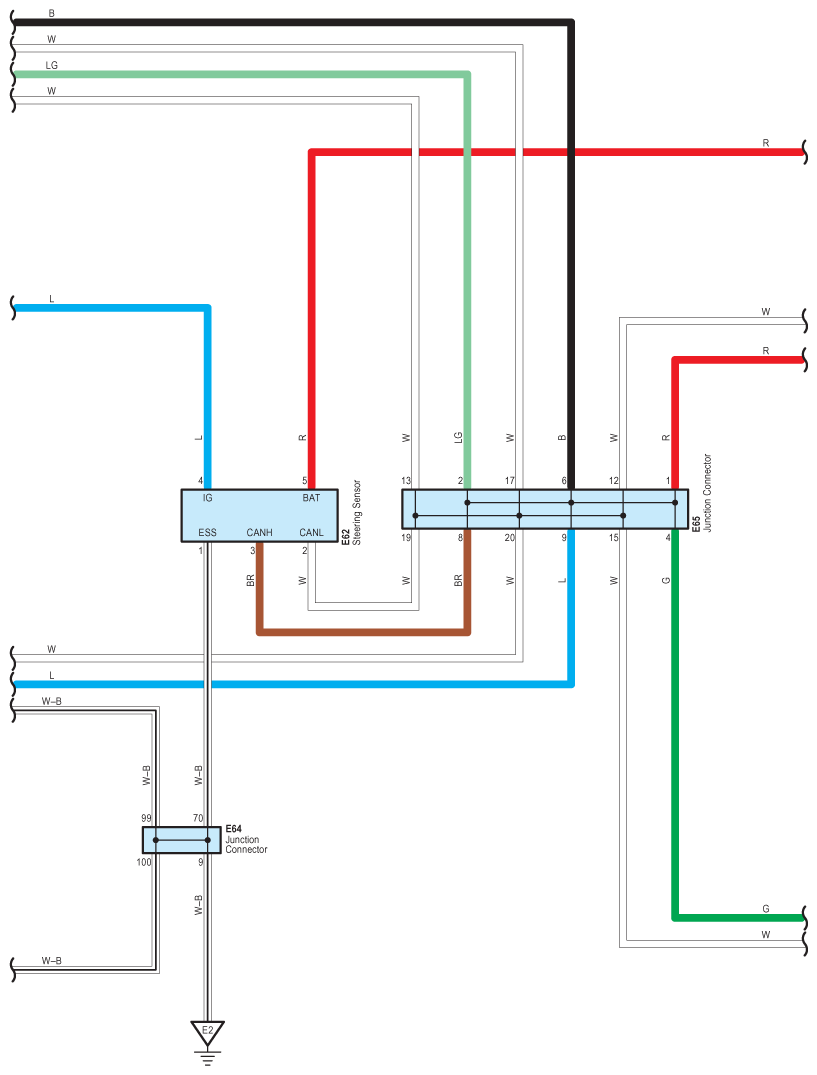

Fig 5: ABS, TRAC And VSC Wiring Diagram (5 Of 6)

G08798955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

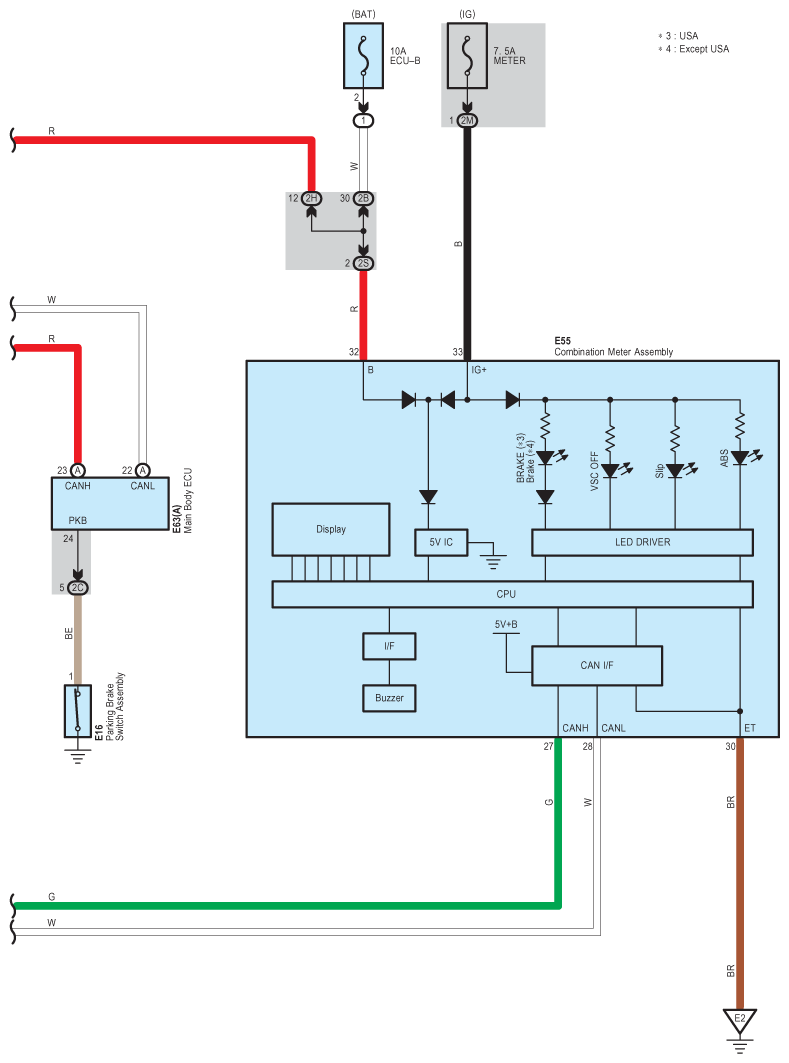

Fig 6: ABS, TRAC And VSC Wiring Diagram (6 Of 6)

G08798956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
