Air Conditioning: Notes — 2012 Toyota Matrix Base, Automatic Trans Service Manual ~ LEMON Manuals

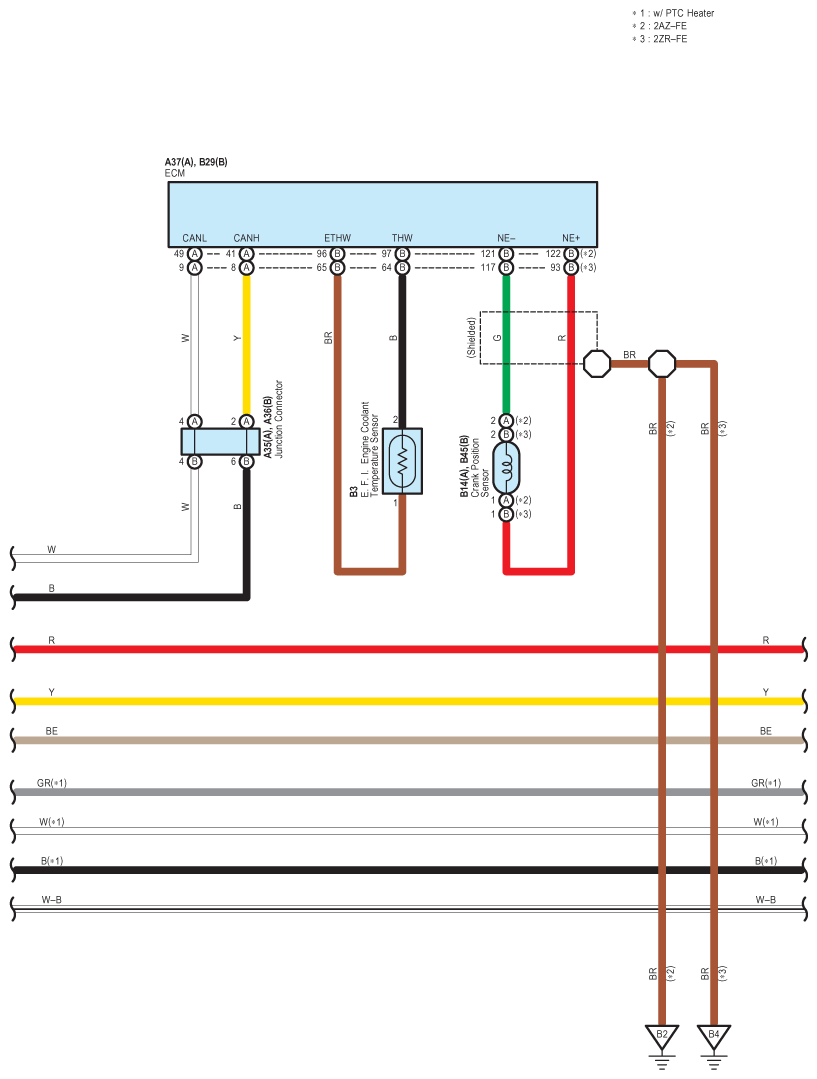

Fig 1: Air Conditioning Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

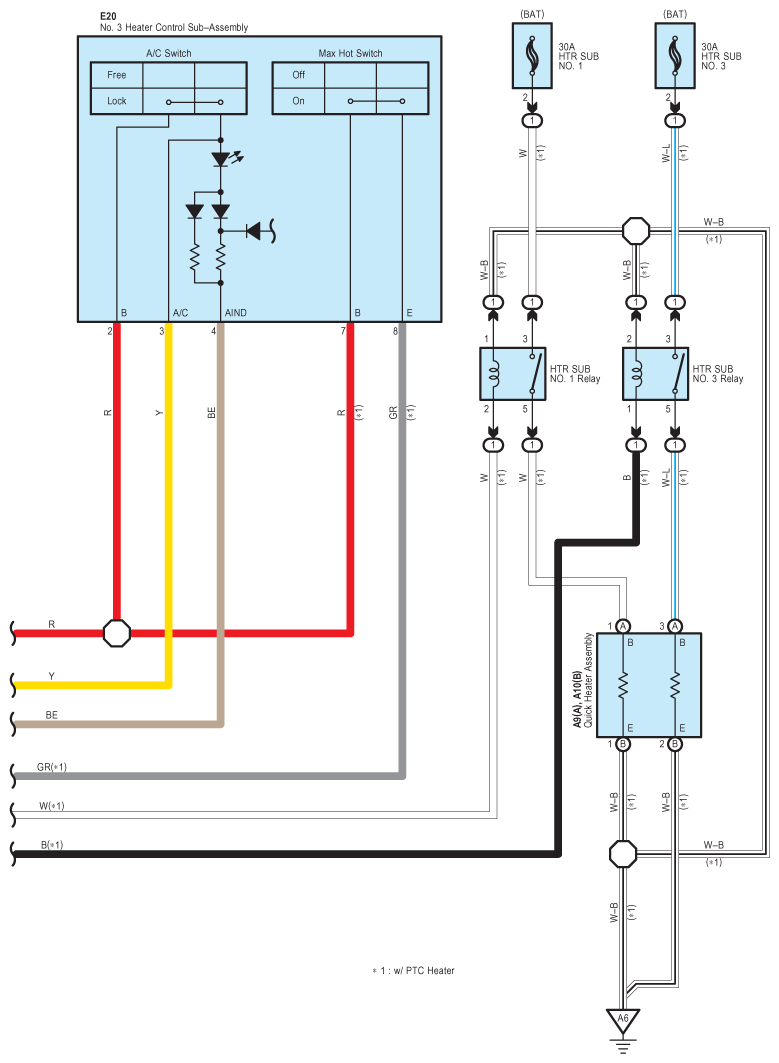

Fig 2: Air Conditioning Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

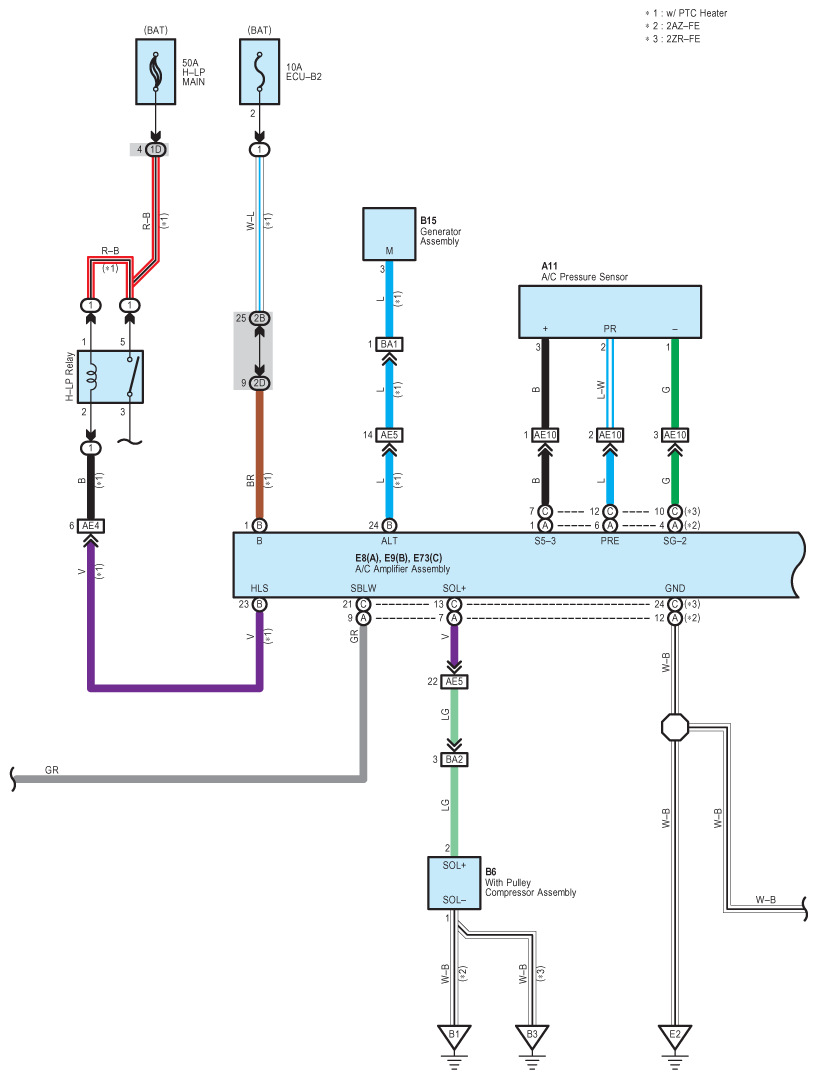

Fig 3: Air Conditioning Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

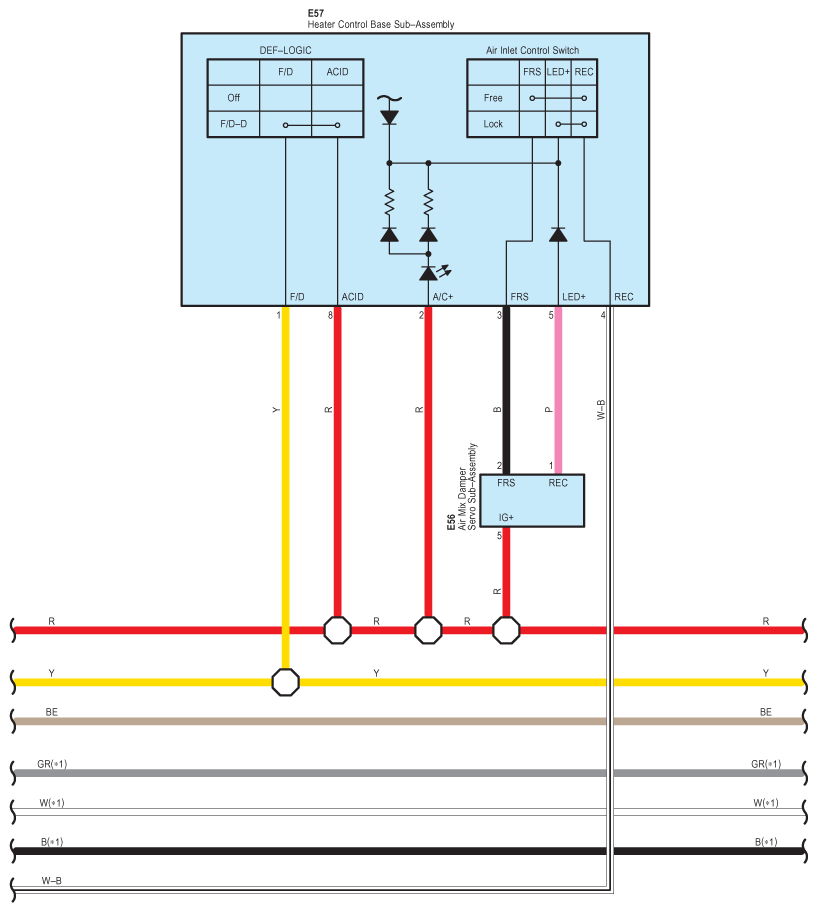

Fig 4: Air Conditioning Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

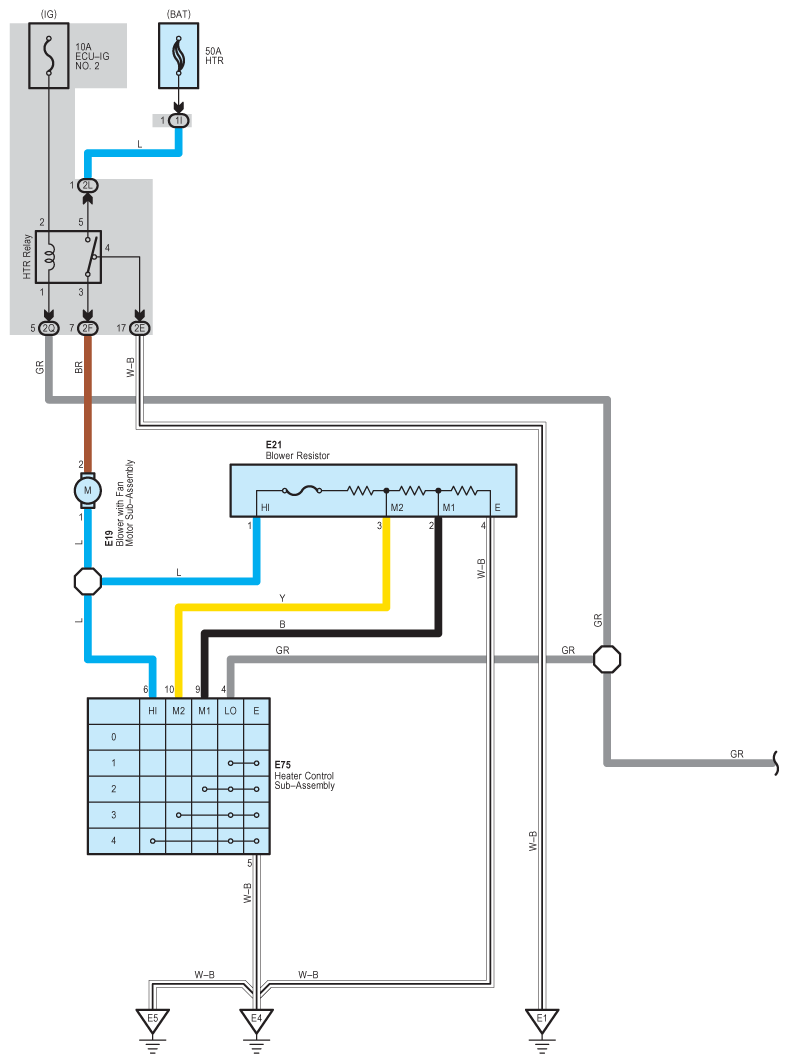

Fig 5: Air Conditioning Wiring Diagram (5 Of 6)

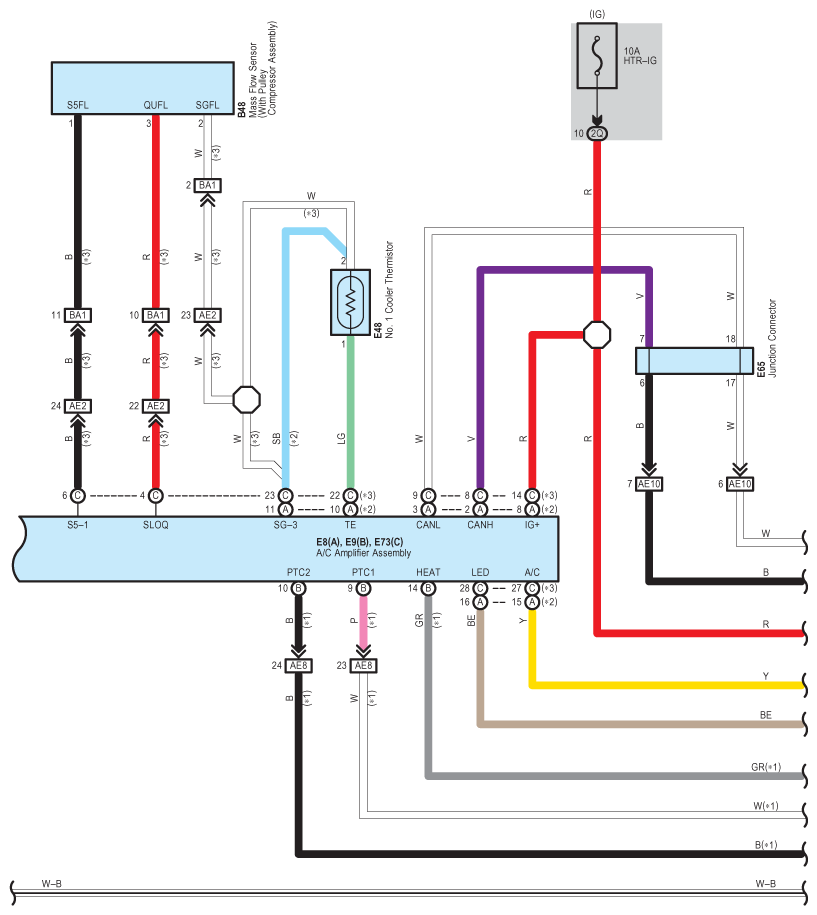

Fig 6: Air Conditioning Wiring Diagram (6 Of 6)
