OEM System Circuits: Charging: Notes

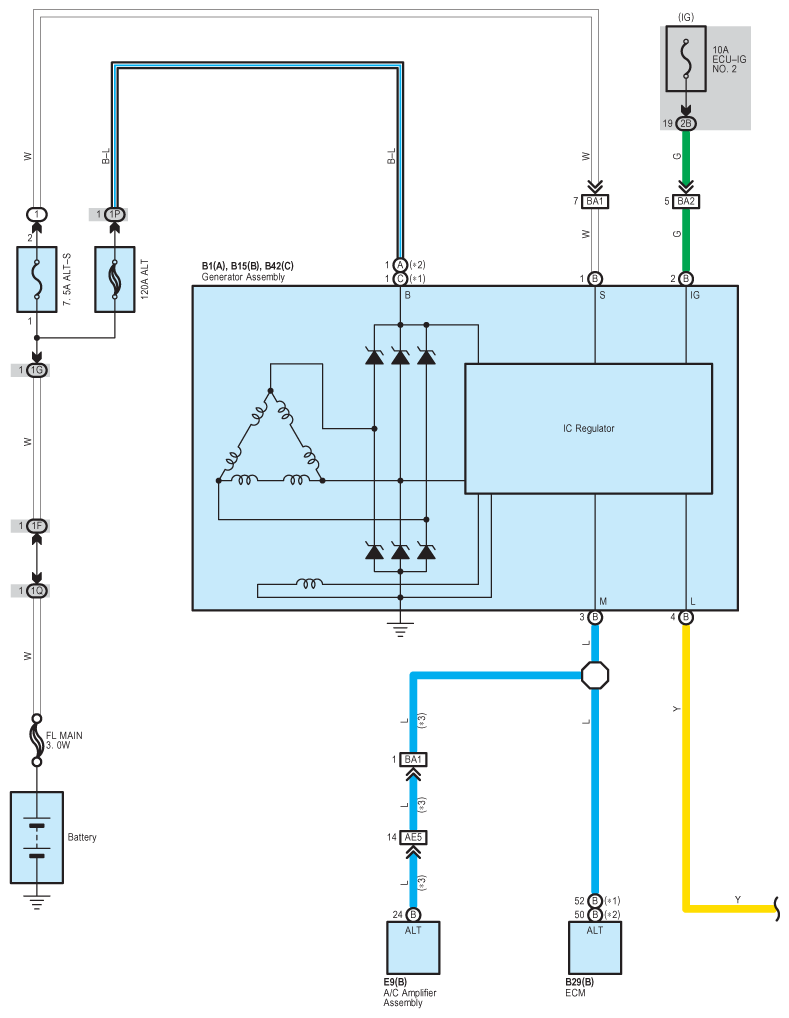

Fig 1: Charging System Wiring Diagram (1 Of 2)
G08798866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

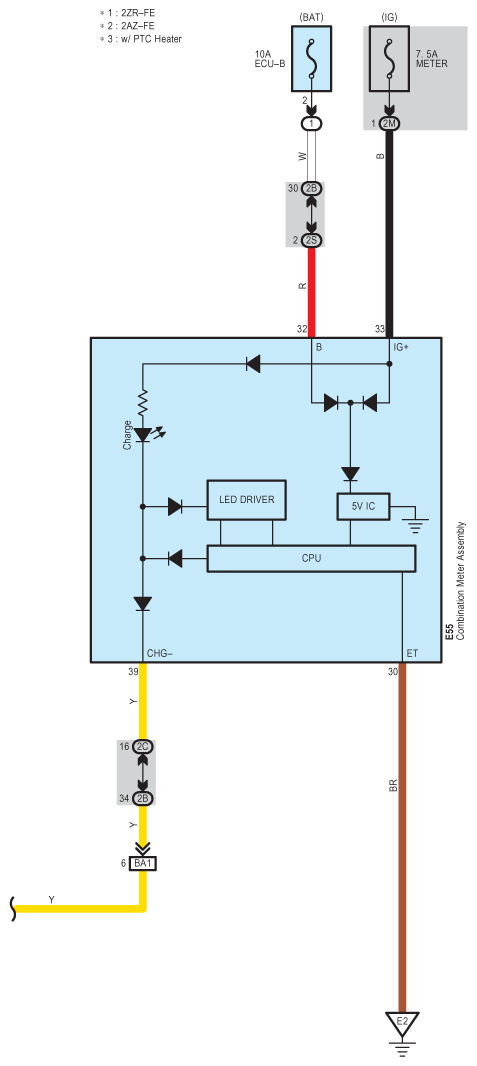

Fig 2: Charging System Wiring Diagram (2 Of 2)
G08798867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
