Cruise Control (2AZ-FE): Notes

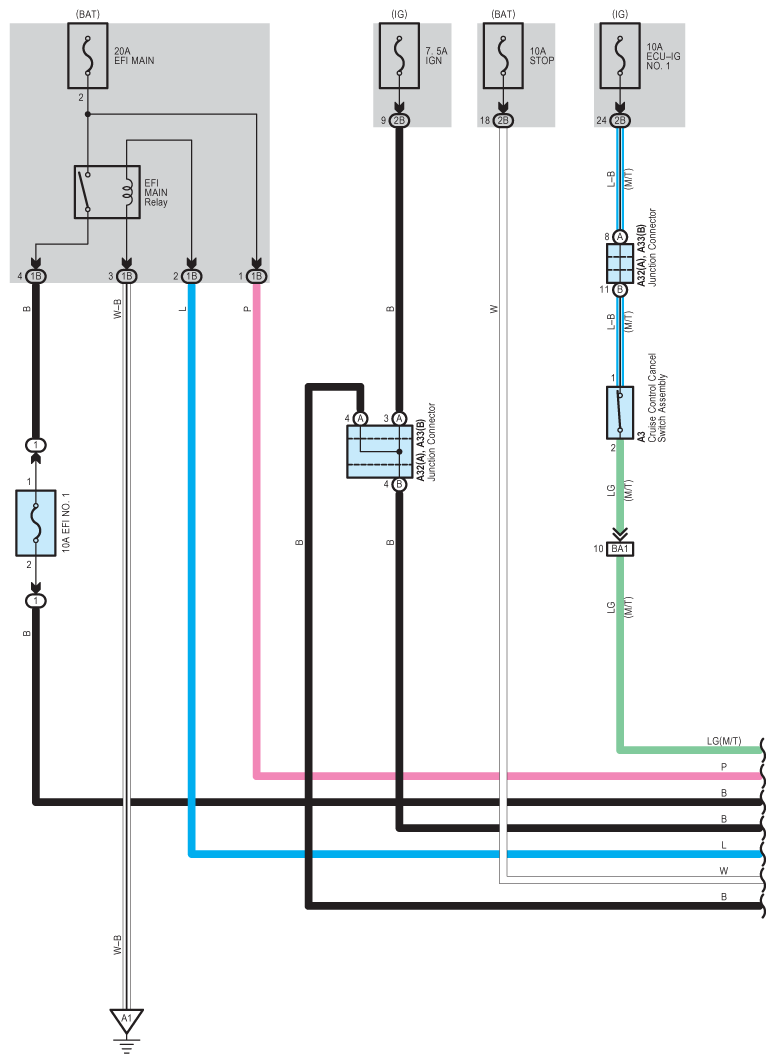

Fig 1: Cruise Control System Wiring Diagram (2AZ-FE; 1 Of 7)
G08798938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

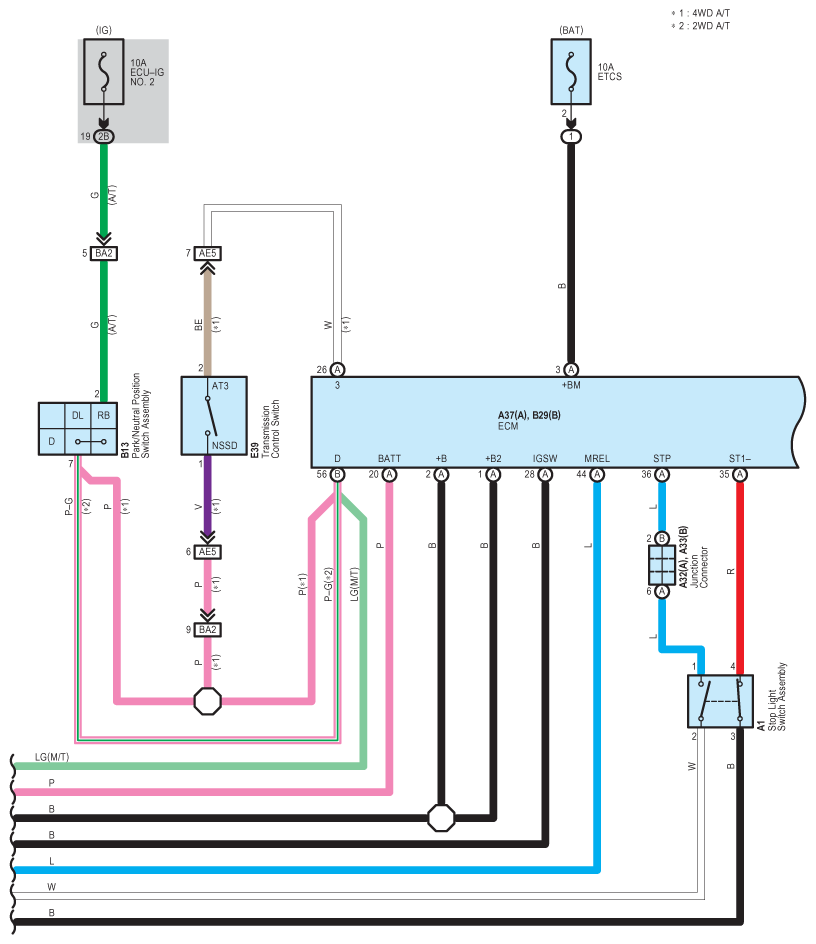

Fig 2: Cruise Control System Wiring Diagram (2AZ-FE; 2 Of 7)
G08798939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

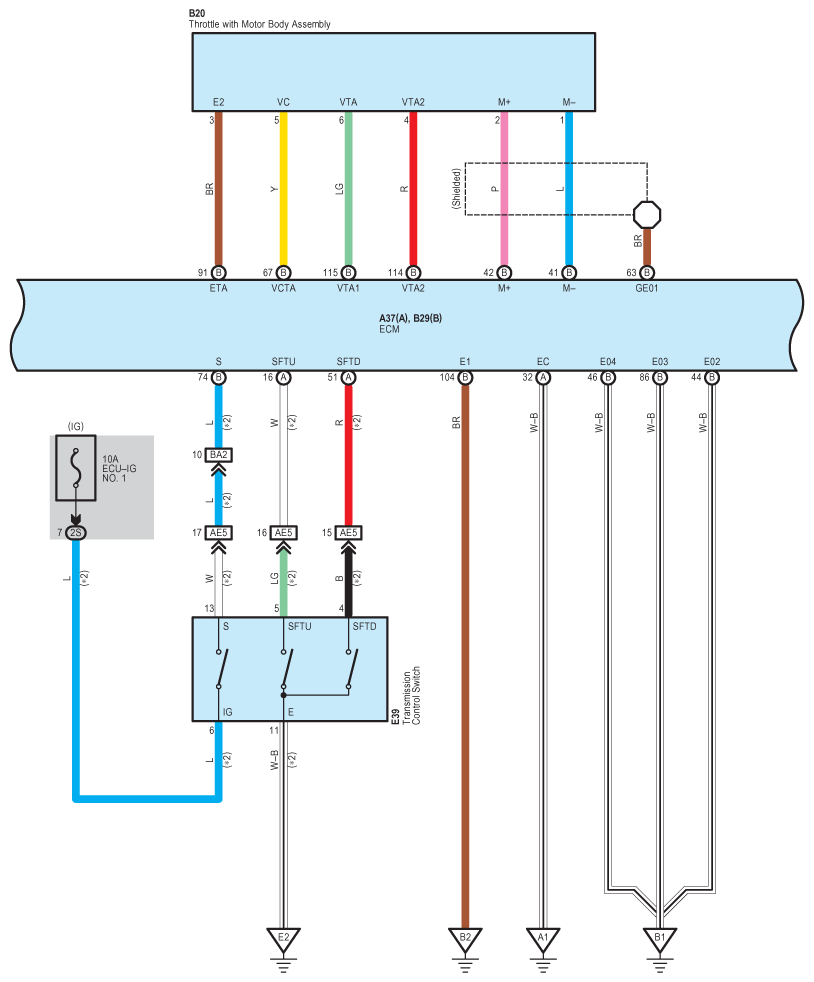

Fig 3: Cruise Control System Wiring Diagram (2AZ-FE; 3 Of 7)
G08798940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

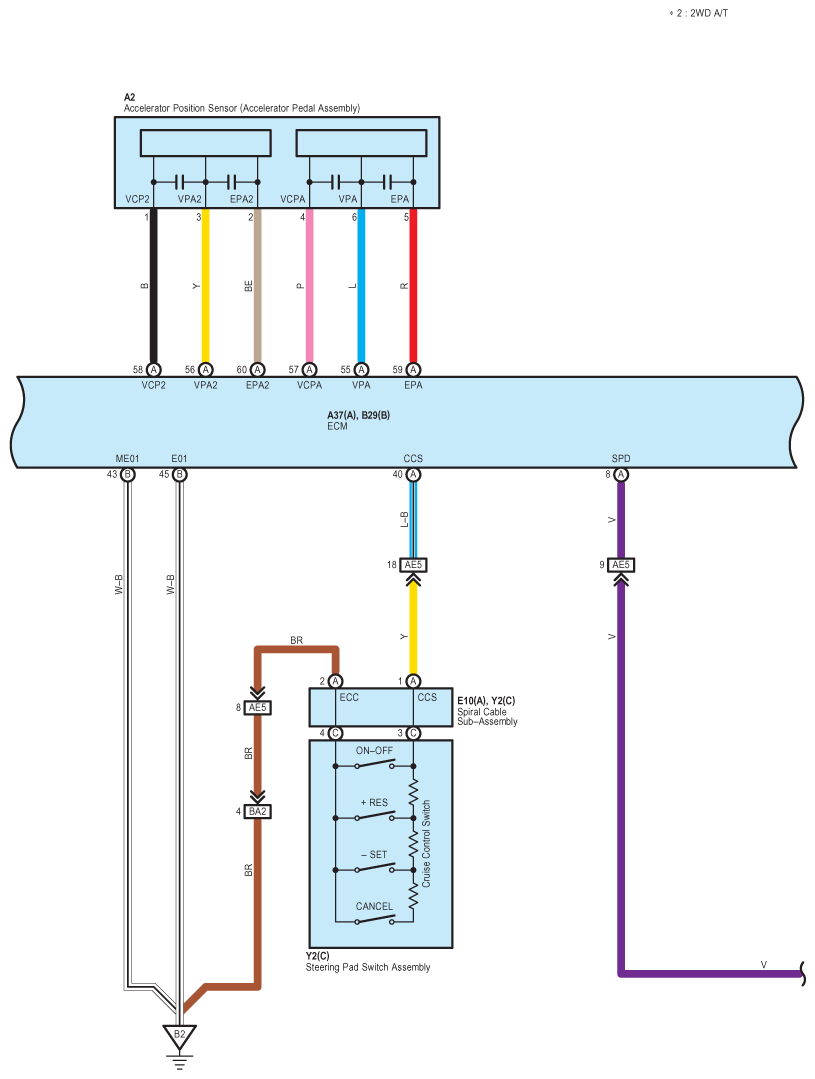

Fig 4: Cruise Control System Wiring Diagram (2AZ-FE; 4 Of 7)
G08798941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

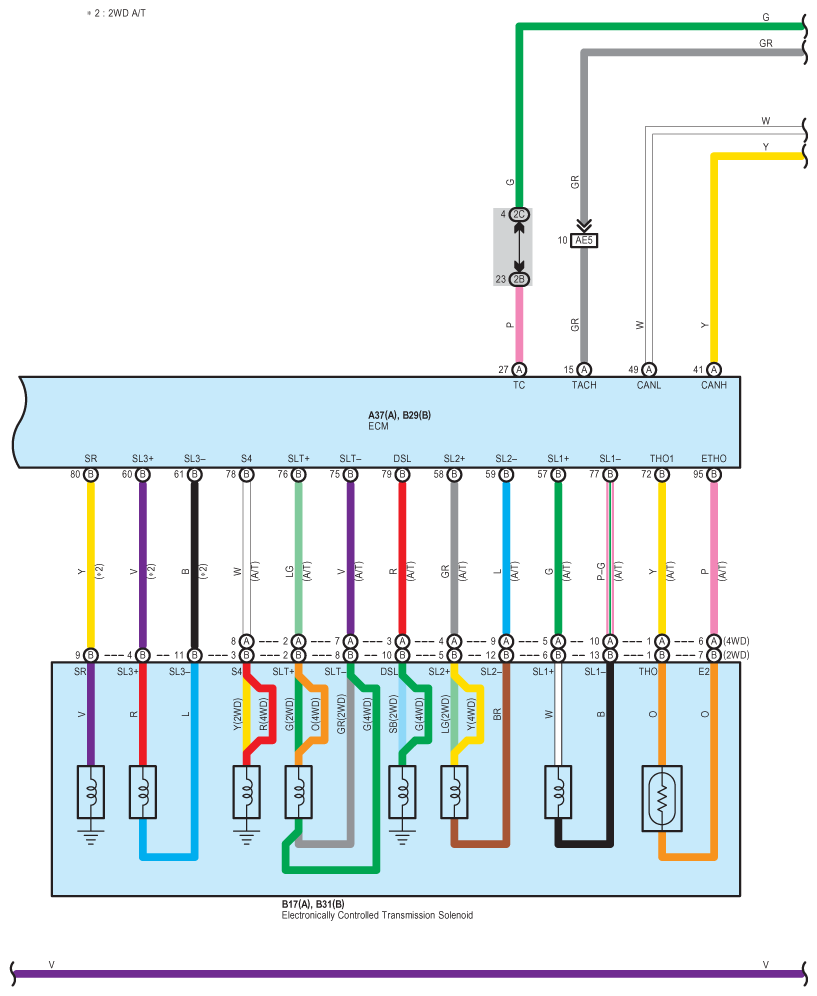

Fig 5: Cruise Control System Wiring Diagram (2AZ-FE; 5 Of 7)
G08798942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

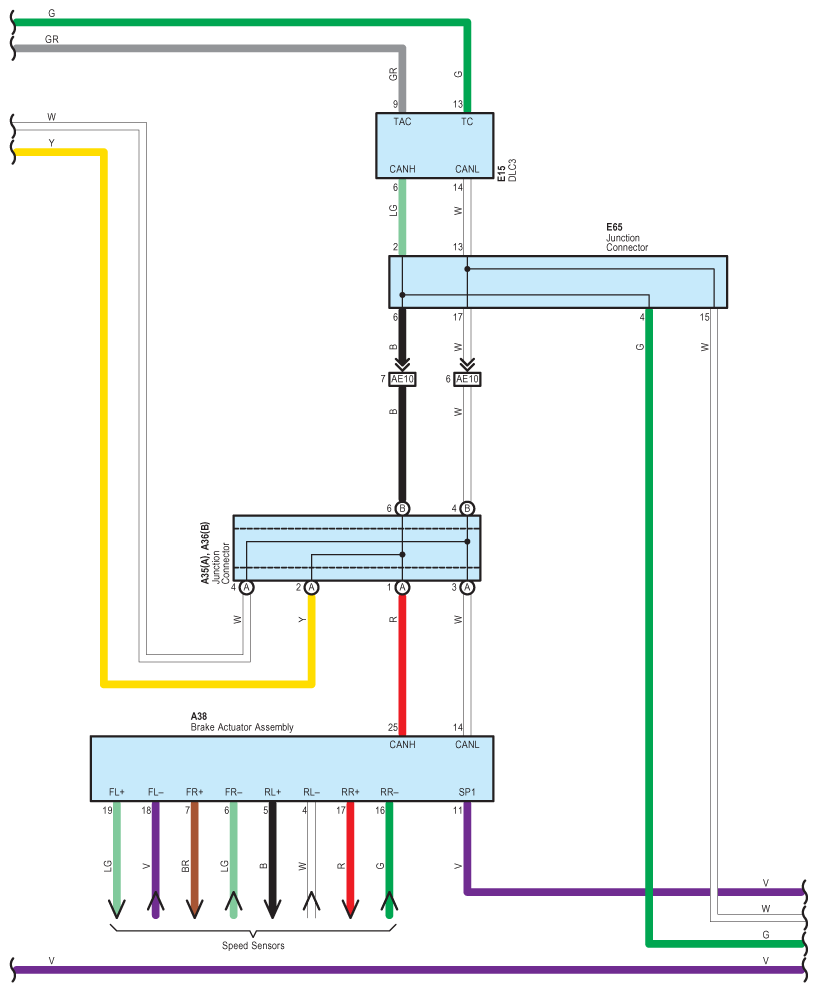

Fig 6: Cruise Control System Wiring Diagram (2AZ-FE; 6 Of 7)
G08798943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

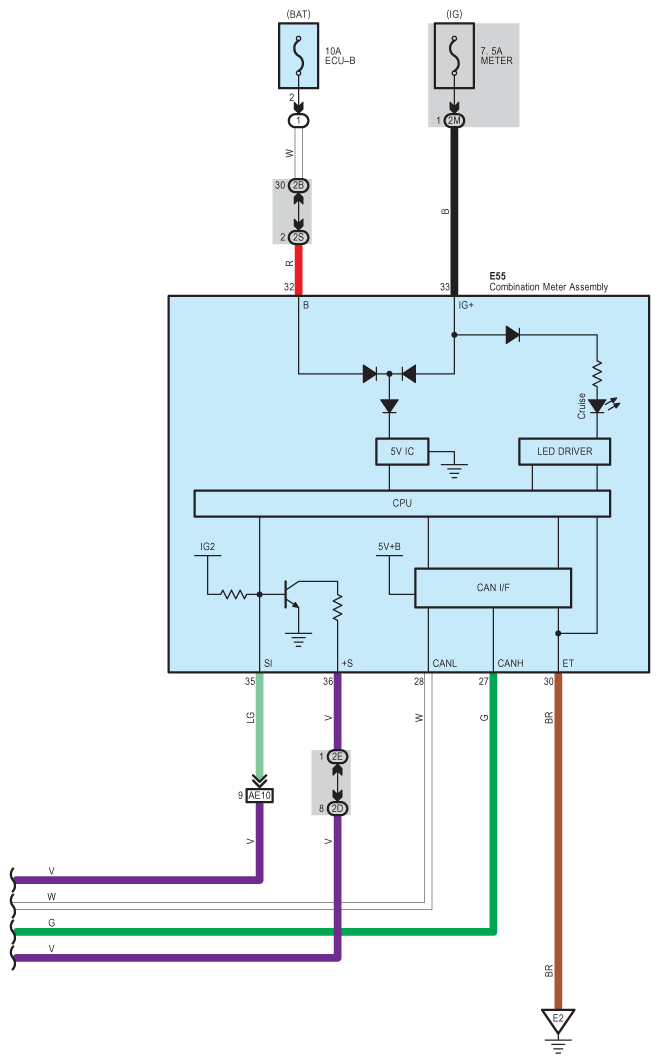

Fig 7: Cruise Control System Wiring Diagram (2AZ-FE; 7 Of 7)
G08798944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
