Door Lock Control: Notes

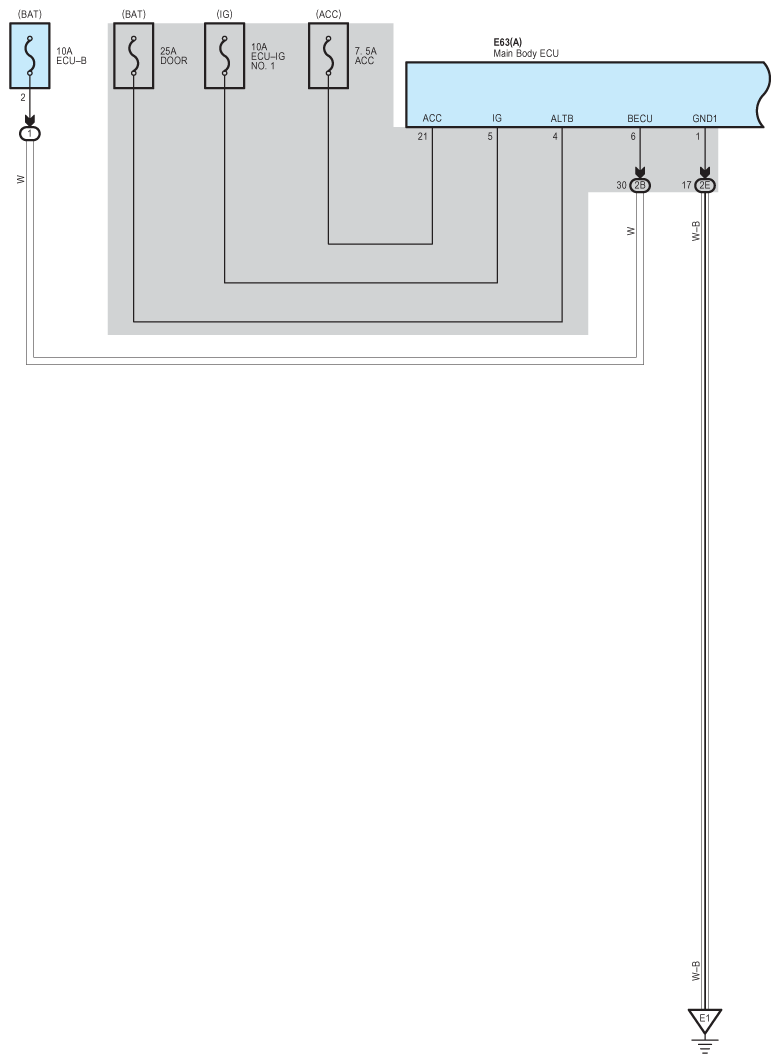

Fig 1: Door Lock Control System Wiring Diagram (1 Of 5)
G08798916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

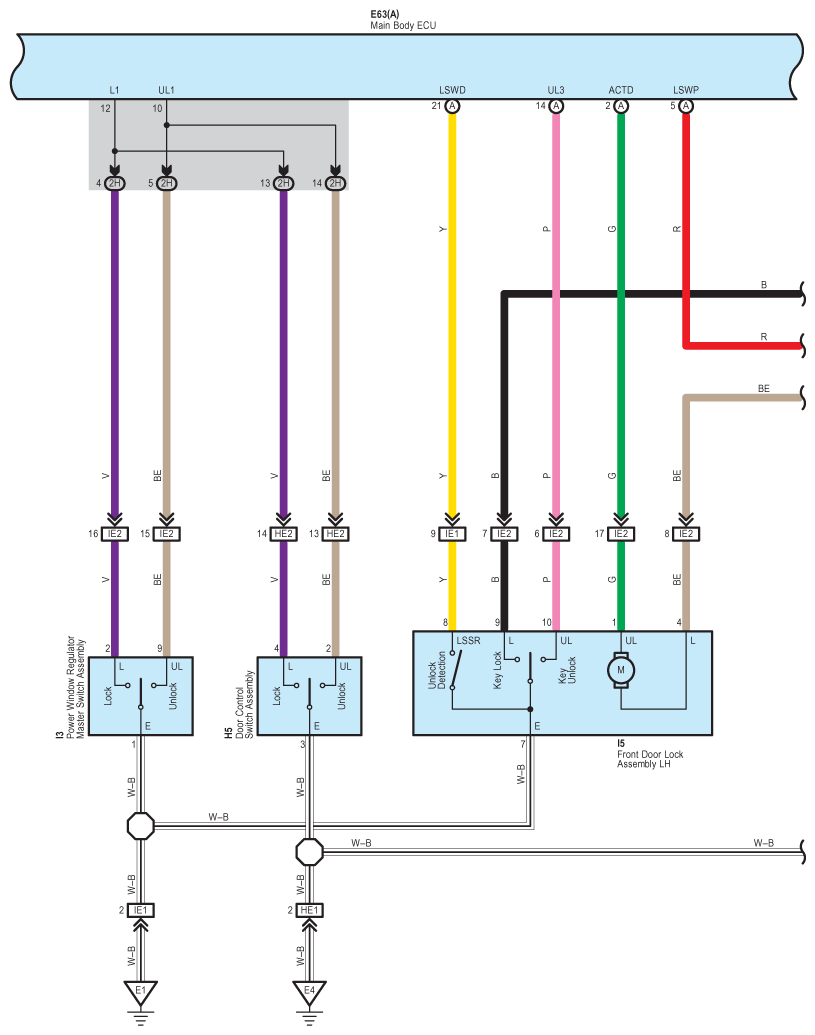

Fig 2: Door Lock Control System Wiring Diagram (2 Of 5)
G08798917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

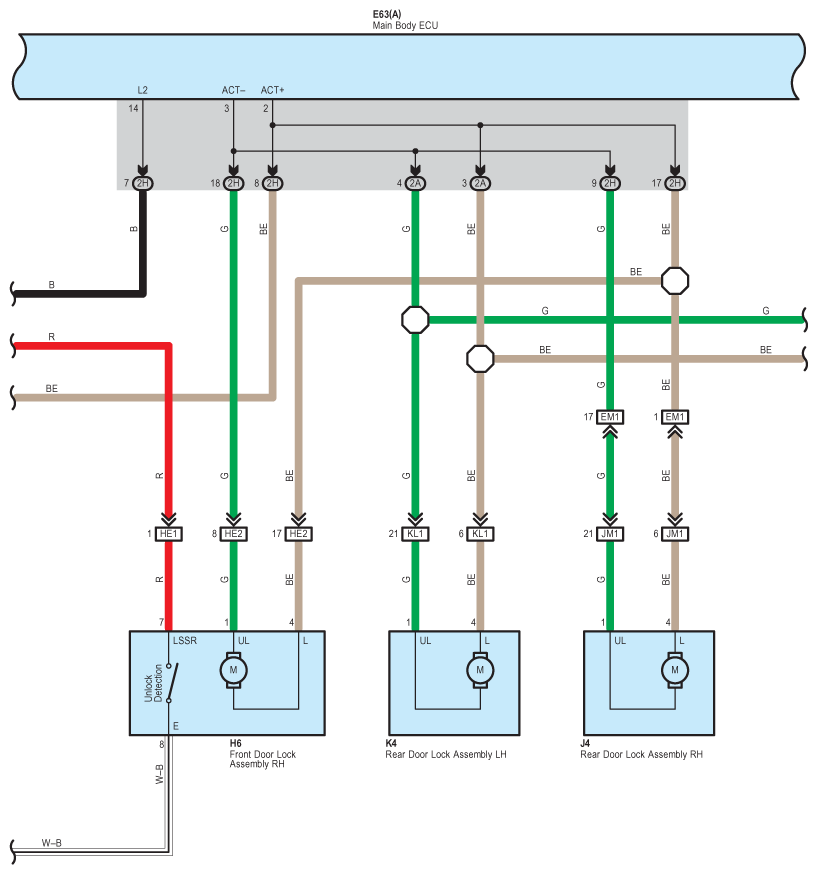

Fig 3: Door Lock Control System Wiring Diagram (3 Of 5)
G08798918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

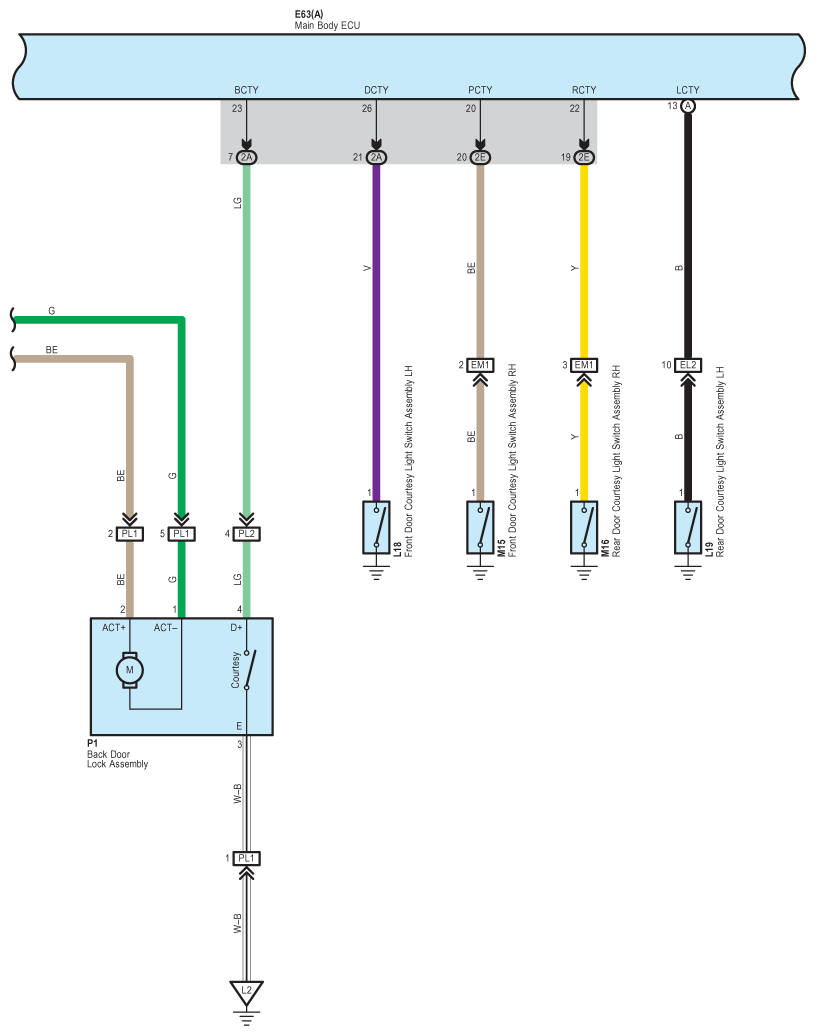

Fig 4: Door Lock Control System Wiring Diagram (4 Of 5)
G08798919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

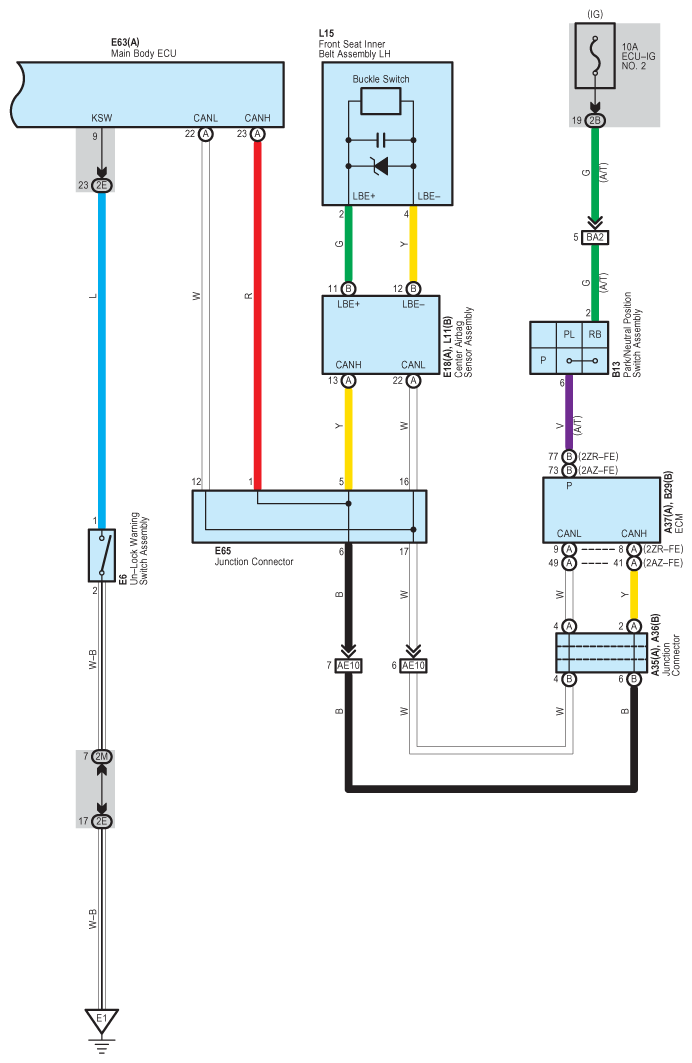

Fig 5: Door Lock Control System Wiring Diagram (5 Of 5)
G08798920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
