Engine Immobilizer System: Notes

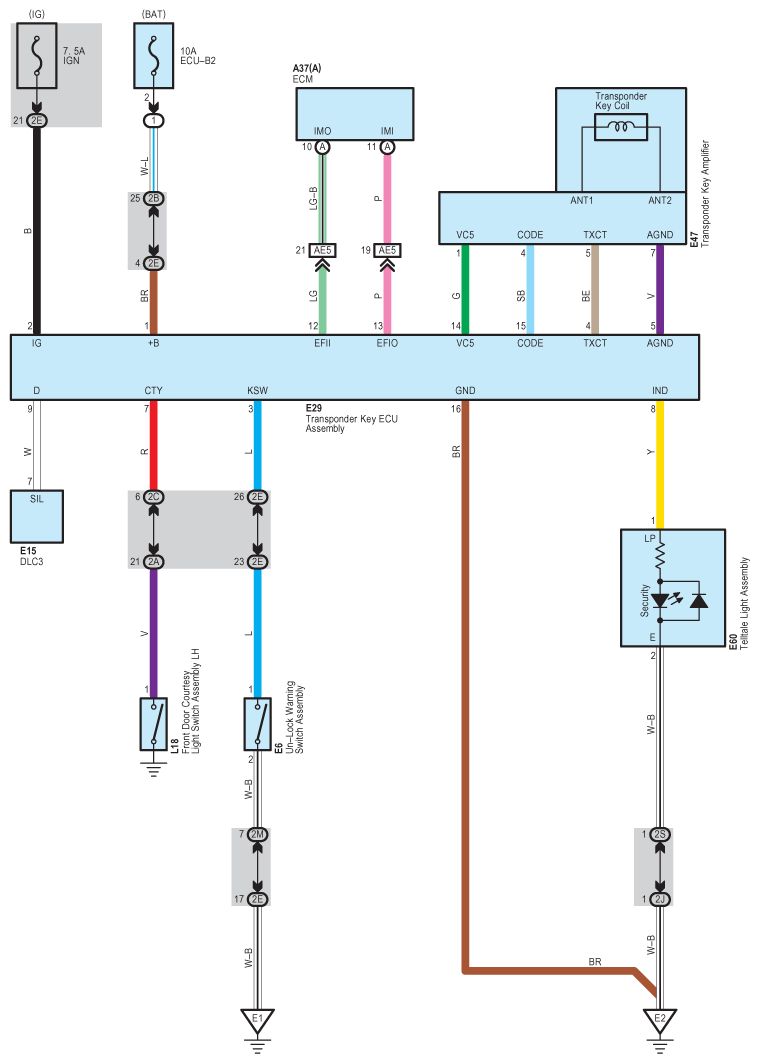

Fig 1: Engine Immobilizer System Wiring Diagram
G08798888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
