Light Reminder: Notes

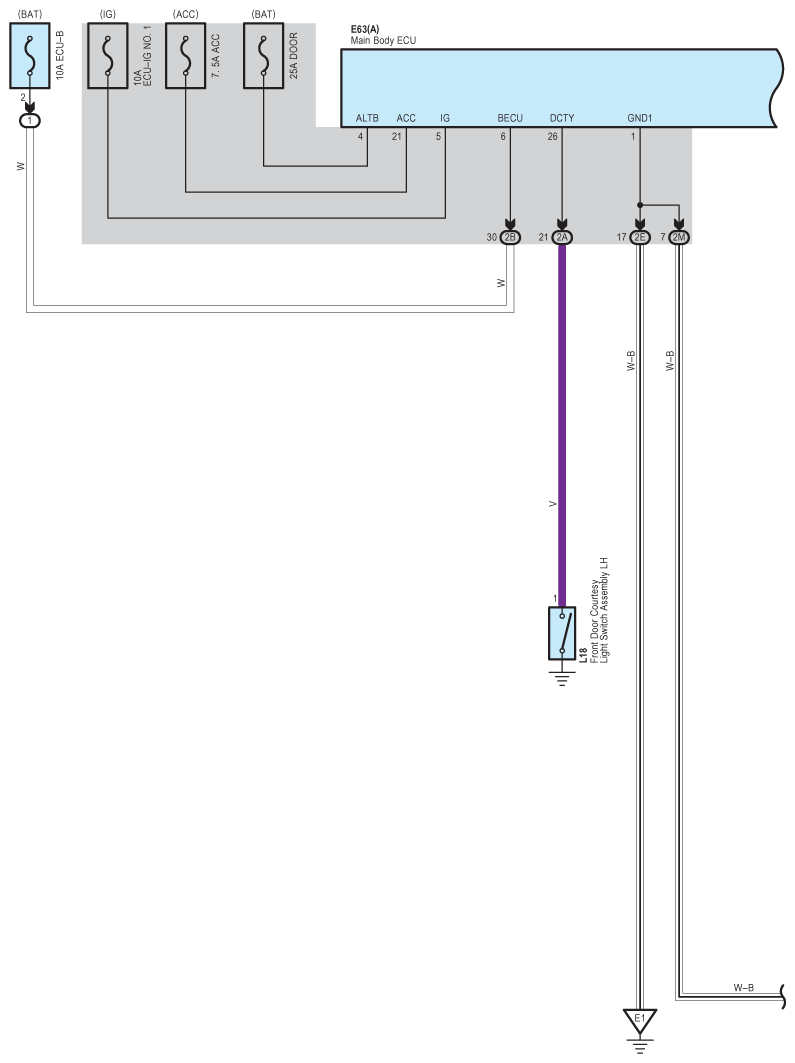

Fig 1: Light Reminder Wiring Diagram (1 Of 2)
G08798980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

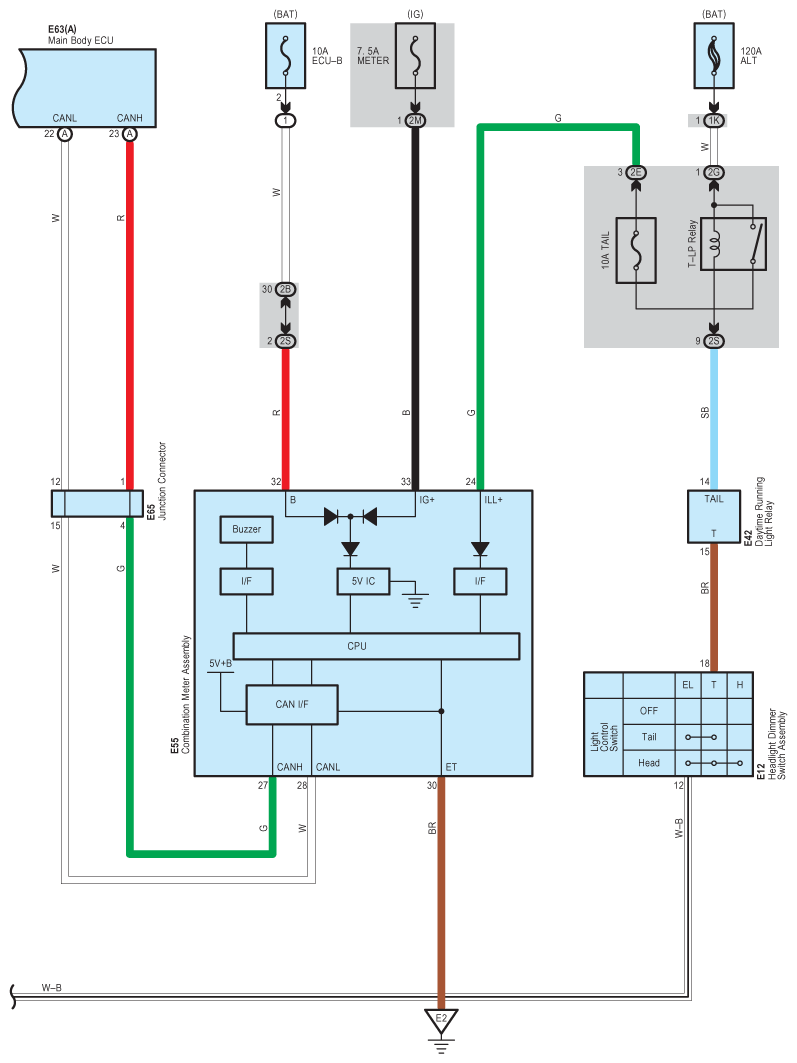

Fig 2: Light Reminder Wiring Diagram (2 Of 2)
G08798981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
