Power Outlet (115V): Notes

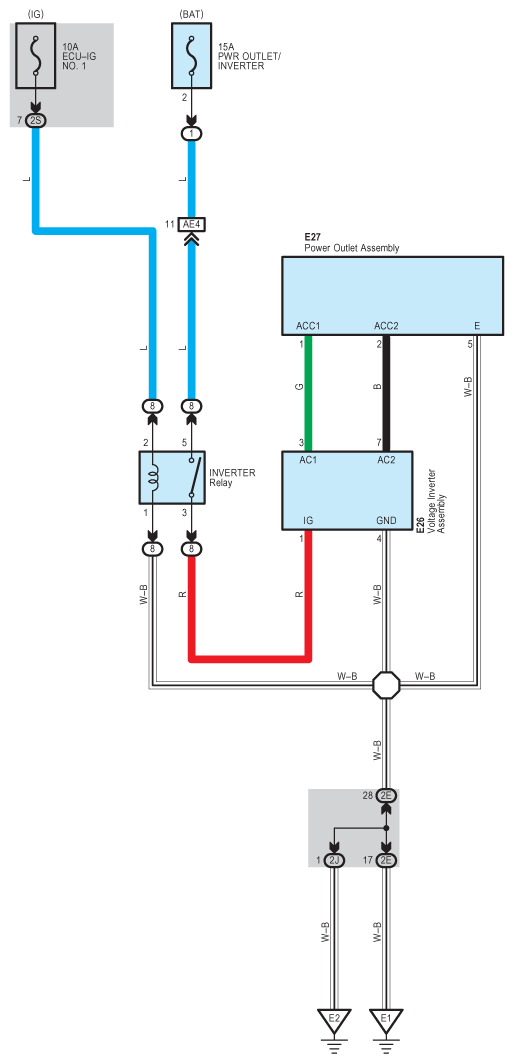

Fig 1: Power Outlet Wiring Diagram (115V)
G08798988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
