Sliding Roof: Notes

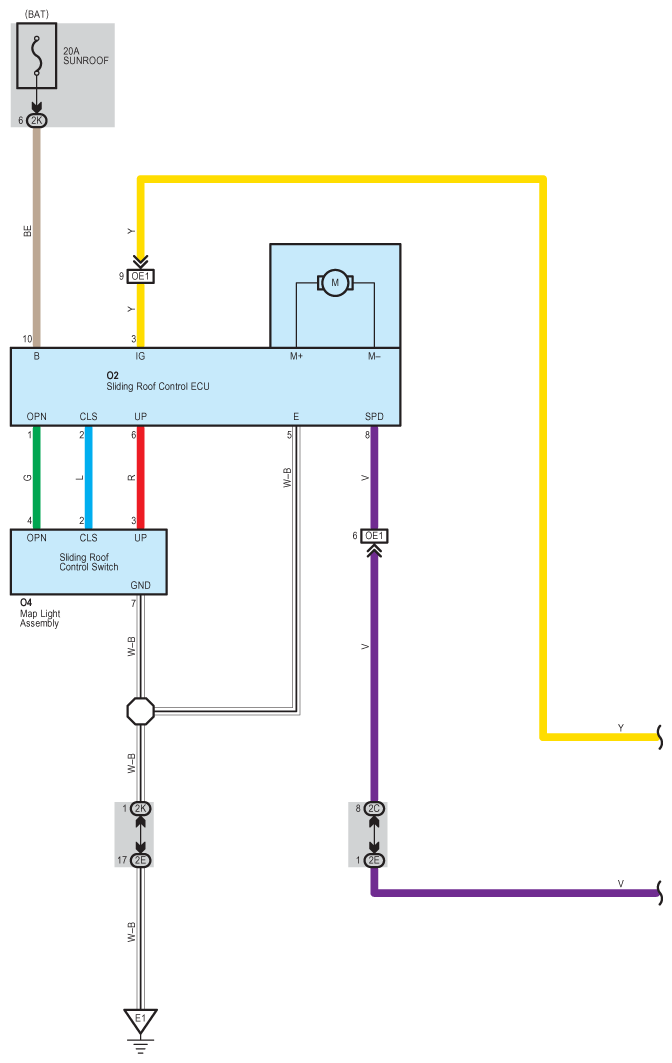

Fig 1: Sliding Roof Wiring Diagram (1 Of 4)
G08798973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

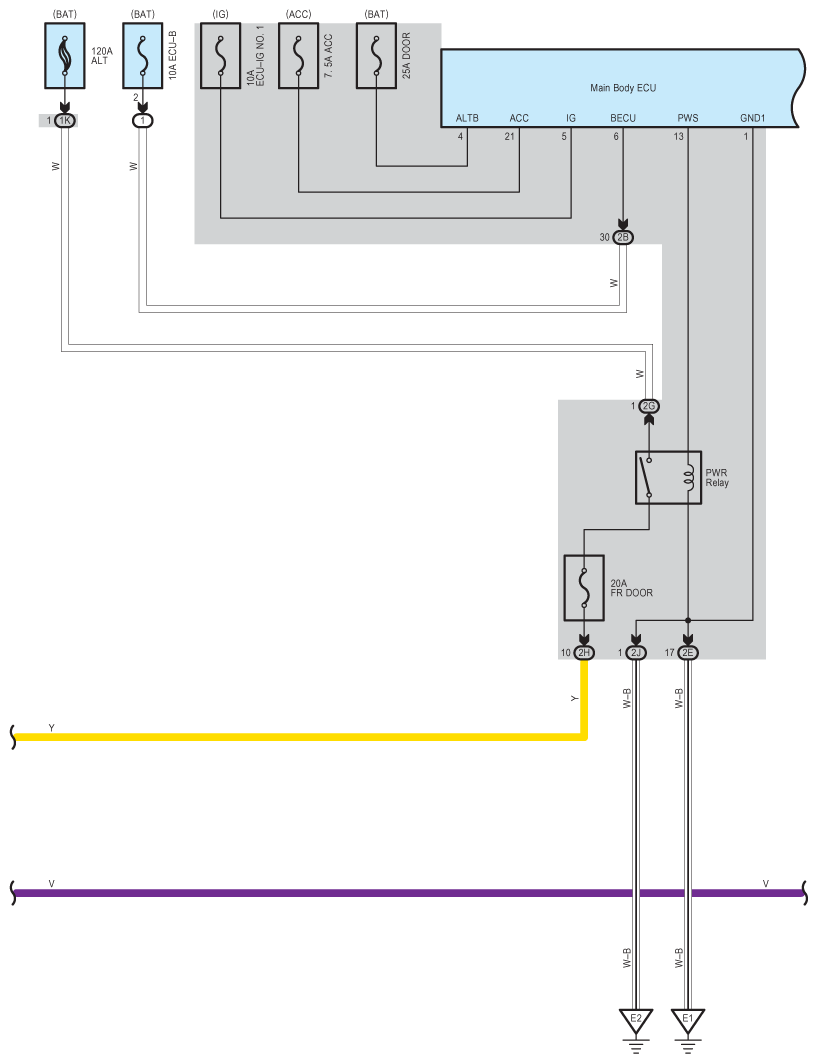

Fig 2: Sliding Roof Wiring Diagram (2 Of 4)
G08798974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

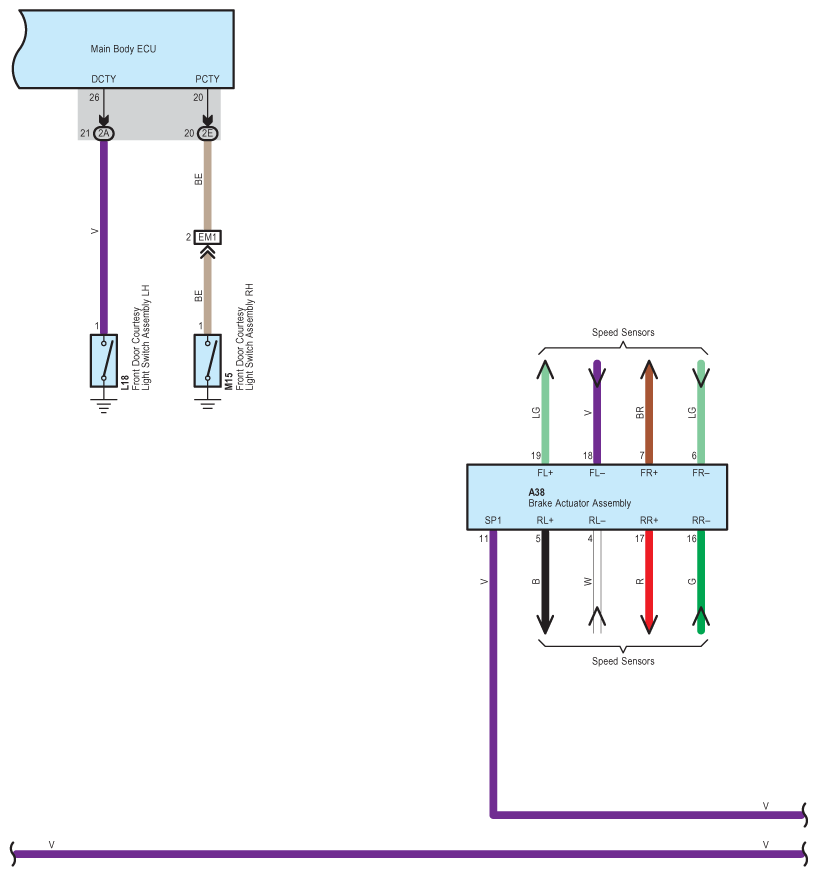

Fig 3: Sliding Roof Wiring Diagram (3 Of 4)
G08798975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

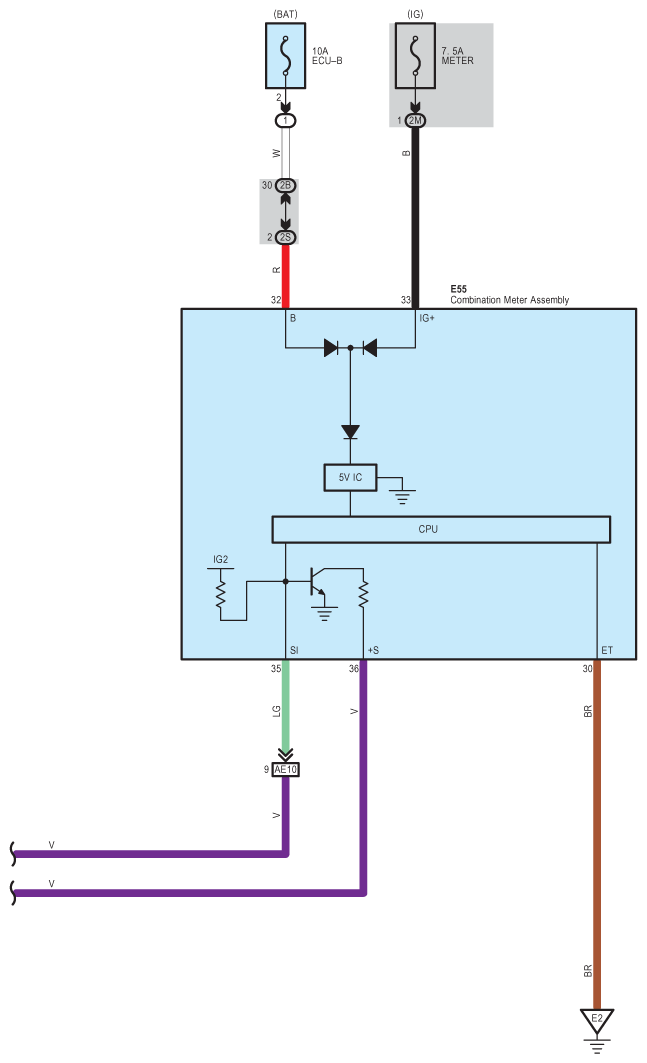

Fig 4: Sliding Roof Wiring Diagram (4 Of 4)
G08798976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
