2AR-FE 2.5L

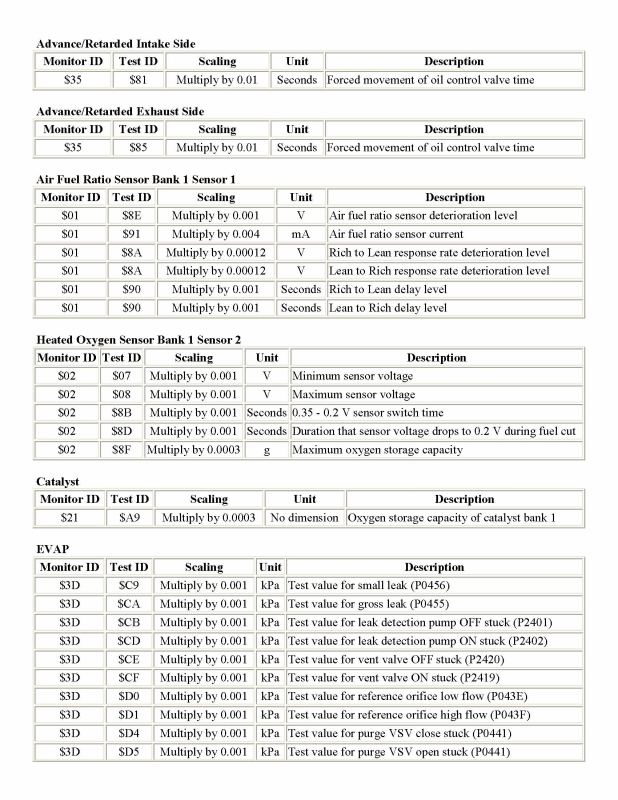

Fig 1: Mode 6 Data For Camry 4 Cyl. (1 Of 2)
G00526136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

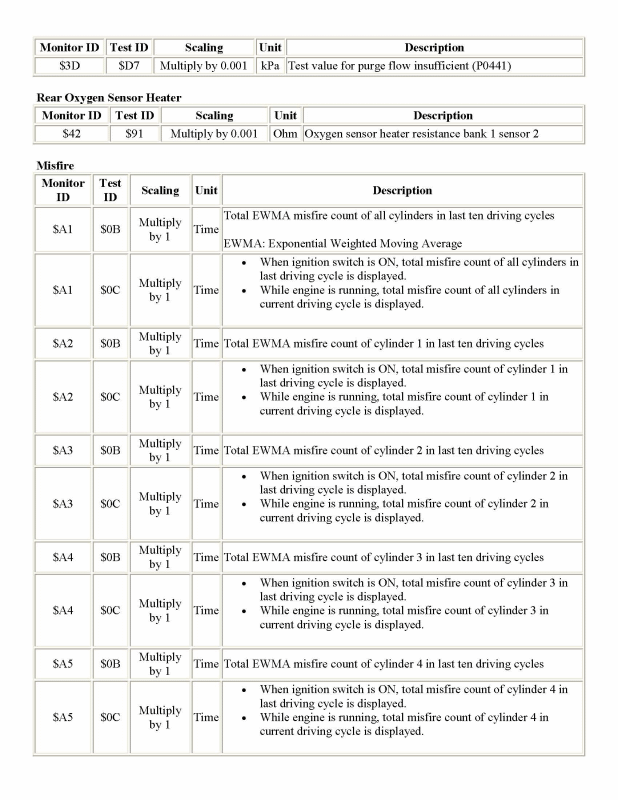

Fig 2: Mode 6 Data For Camry 4 Cyl. (2 Of 2)
G00526137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
