2AZ-FE 2.4L

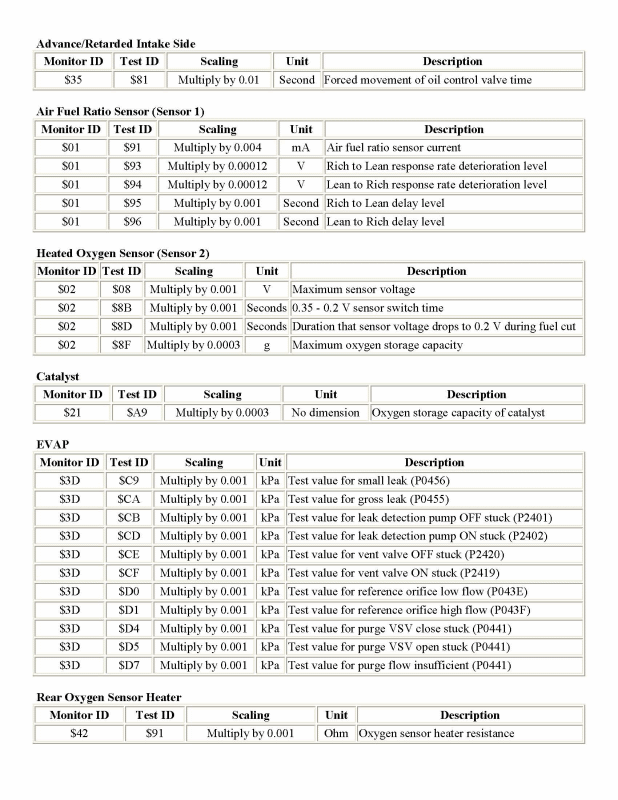

Fig 1: Mode 6 Data For Matrix 2.4L (1 Of 2)
G00526186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

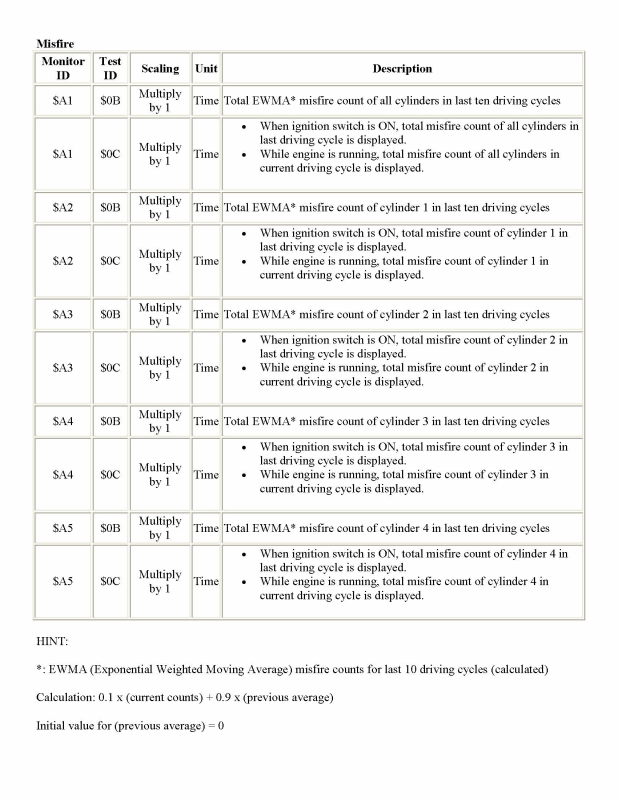

Fig 2: Mode 6 Data For Matrix 2.4L (2 Of 2)
G00526187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
