Mode 6 - TOYOTA
>>
Matrix
>>
2ZR-FE 1.8L
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
2ZR-FE 1.8L

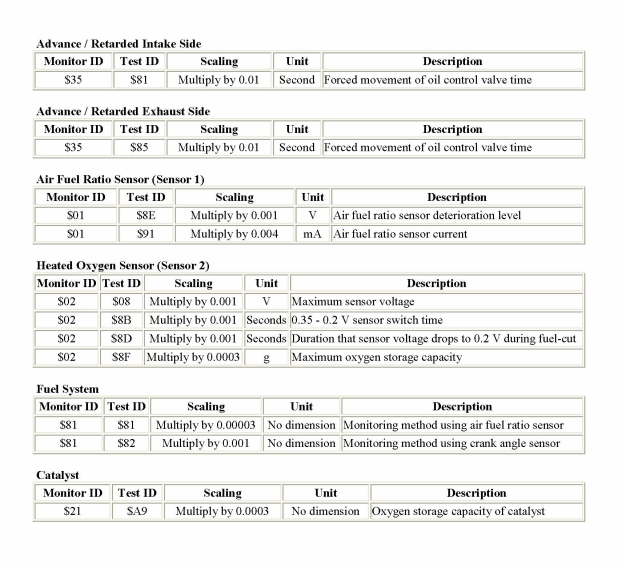

Fig 1: Mode 6 Data For Matrix 1.8L (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

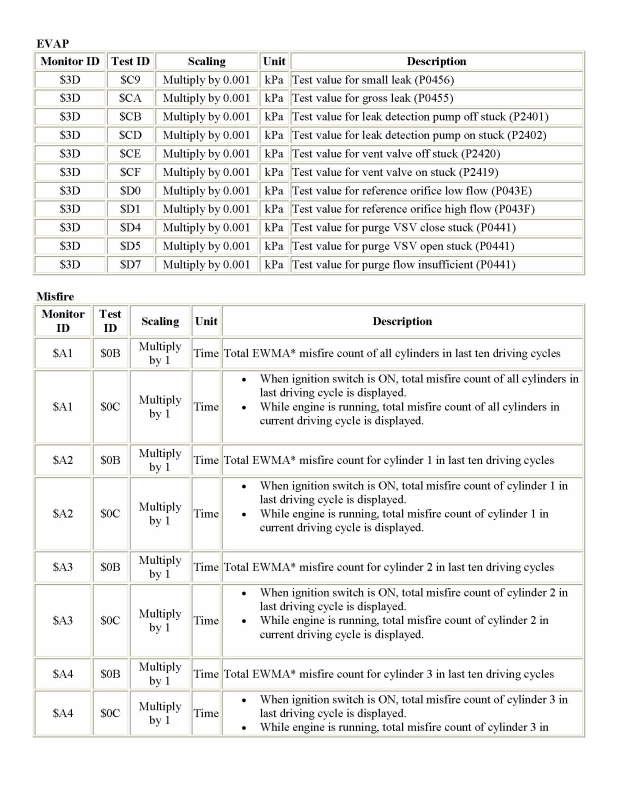

Fig 2: Mode 6 Data For Matrix 1.8L (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

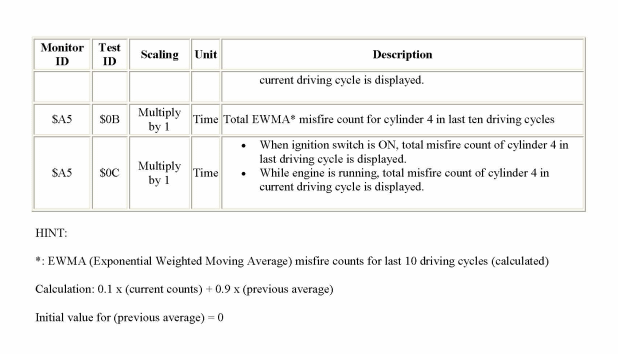

Fig 3: Mode 6 Data For Matrix 1.8L (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
