2AR-FE 2.5L

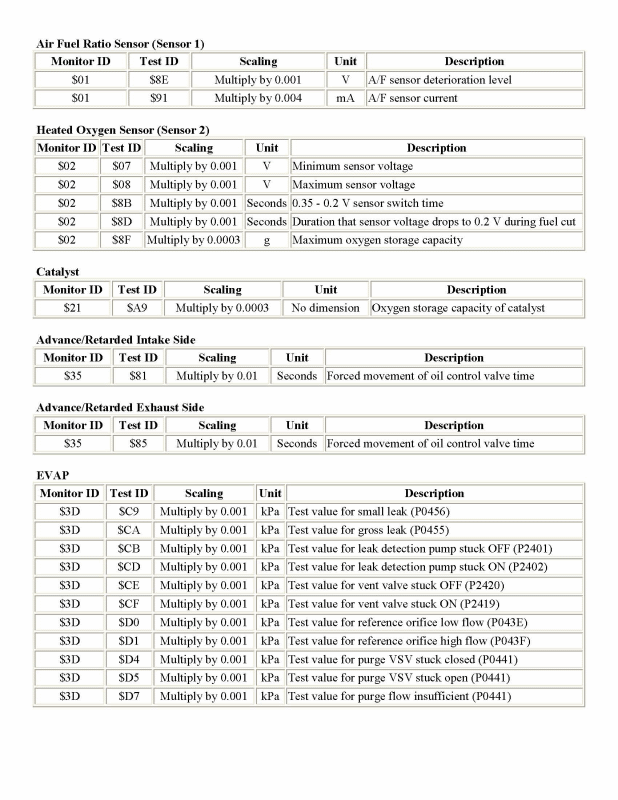

Fig 1: Mode 6 Data For RAV4 4 Cyl. (1 Of 2)
G00526084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

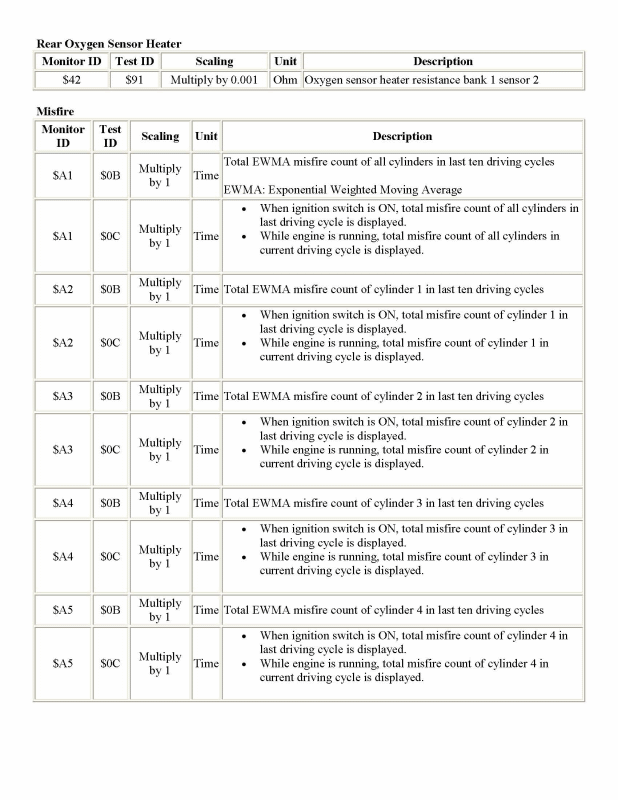

Fig 2: Mode 6 Data For RAV4 4 Cyl. (2 Of 2)
G00526085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
