Mode 6 - TOYOTA
>>
RAV4
>>
2GR-FE 3.5L
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
2GR-FE 3.5L

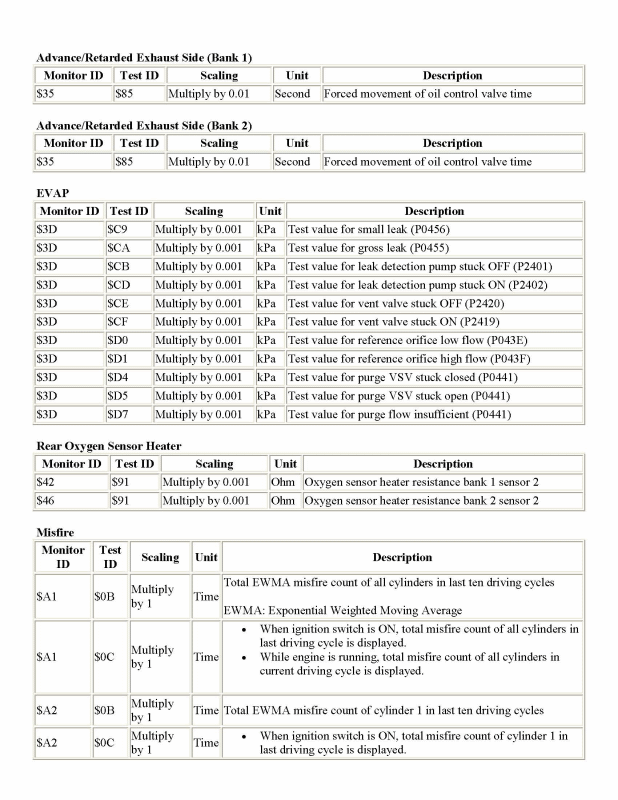

Fig 1: Mode 6 Data For RAV4 V6 (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

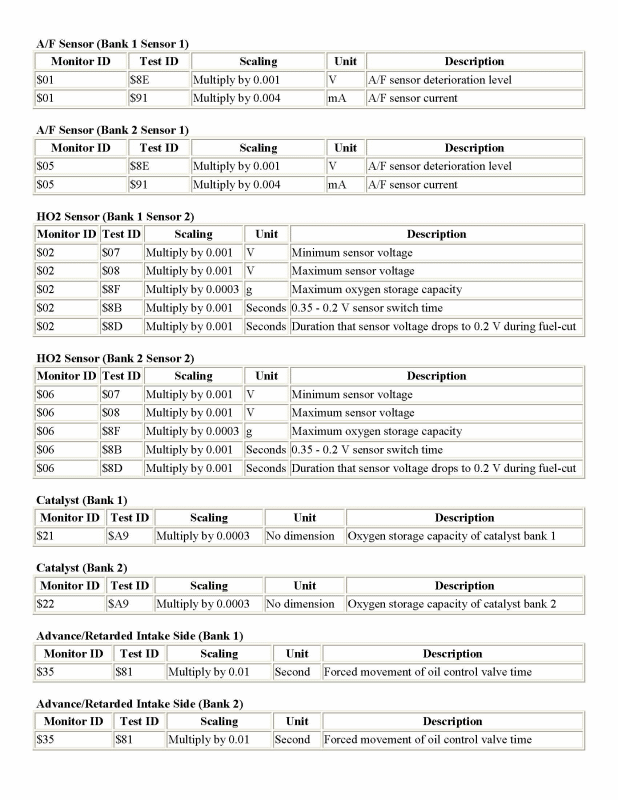

Fig 2: Mode 6 Data For RAV4 V6 (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

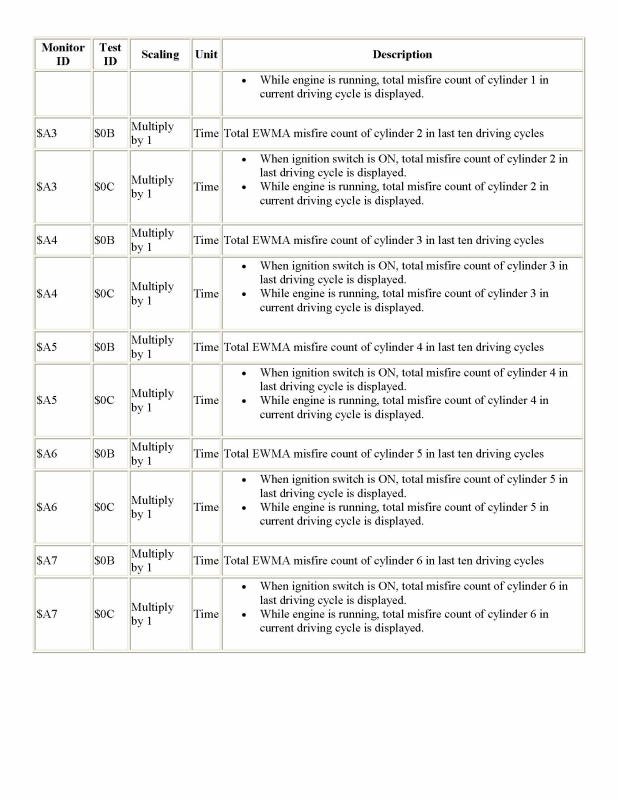

Fig 3: Mode 6 Data For RAV4 V6 (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
