2TR-FE 2.7L

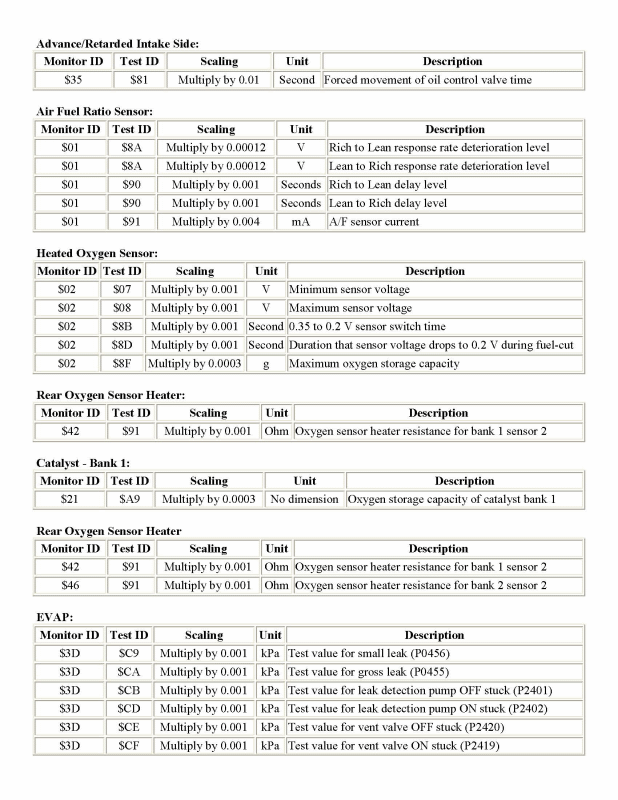

Fig 1: Mode 6 Data For Tacoma 4 Cyl. (1 Of 3)
G00526321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

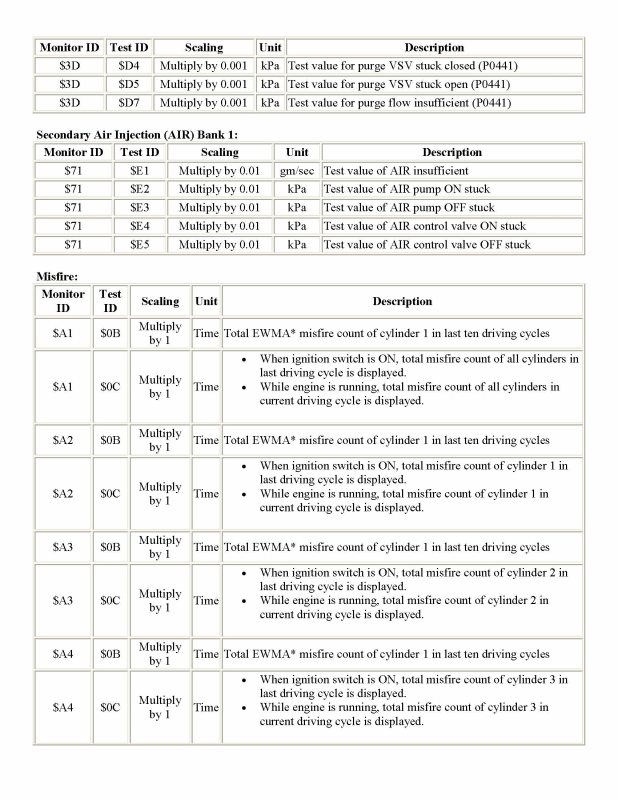

Fig 2: Mode 6 Data For Tacoma 4 Cyl. (2 Of 3)
G00526322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

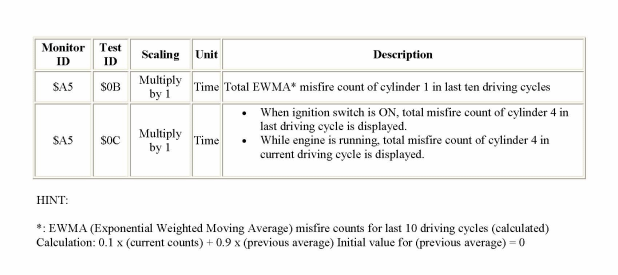

Fig 3: Mode 6 Data For Tacoma 4 Cyl. (3 Of 3)
G00526323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
