Accelerator Pedal: Removal: Removal

  1. REMOVE ACCELERATOR PEDAL ASSEMBLY
    1. Disconnect the accelerator pedal position sensor connector.

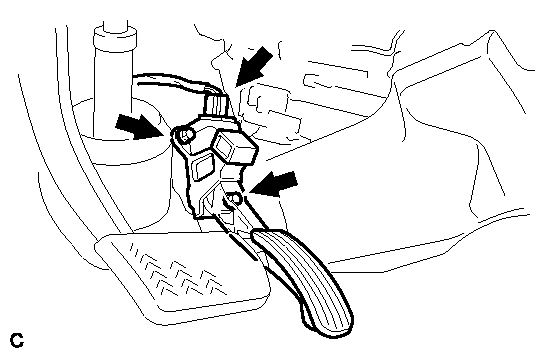

      Fig 1: Locating Accelerator Pedal Bolts
      GTY235752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and accelerator pedal.
