Vehicle Identification And Serial Numbers

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.

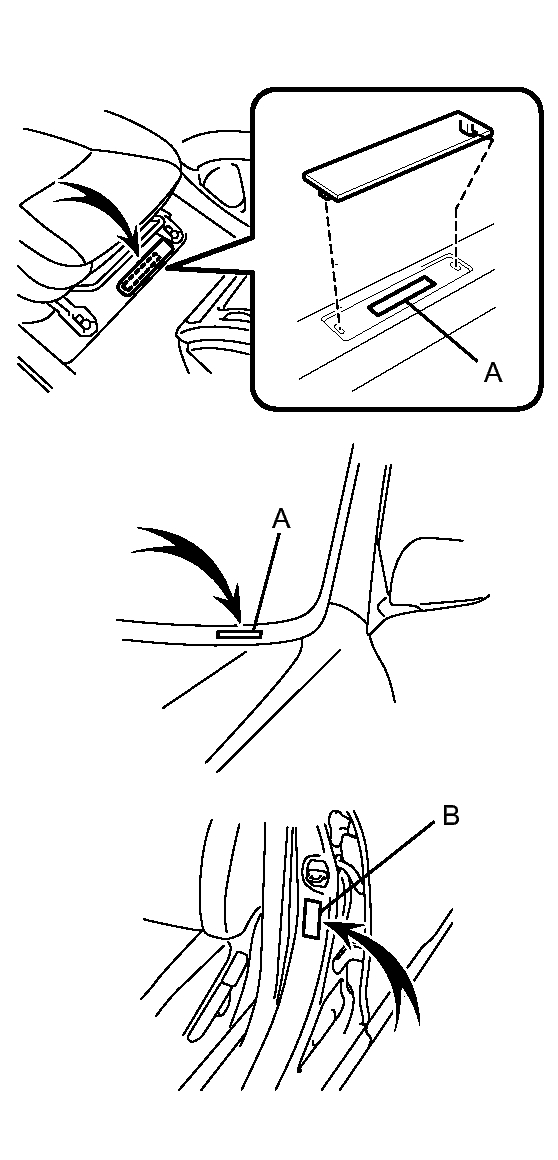

  Fig 1: Identifying Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Vehicle Identification Number

  B

  Certification Label
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

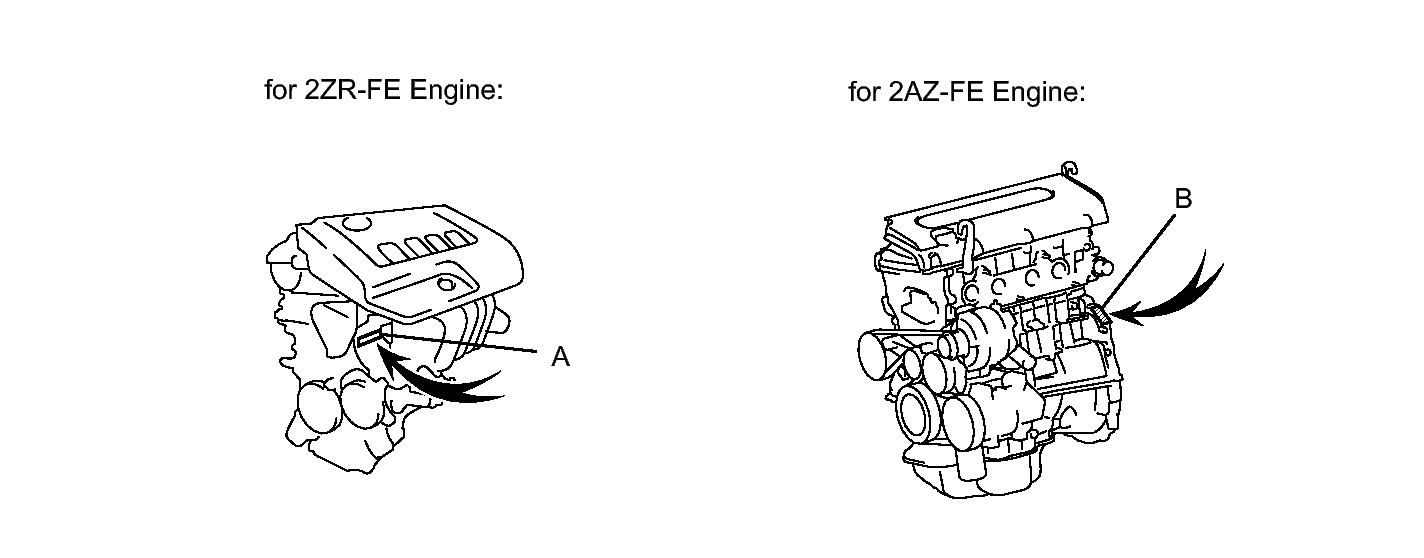

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  2ZR-FE Engine Serial Number

  B

  2AZ-FE Engine Serial Number
2. The transaxle serial number is stamped on the case as shown in the illustration.

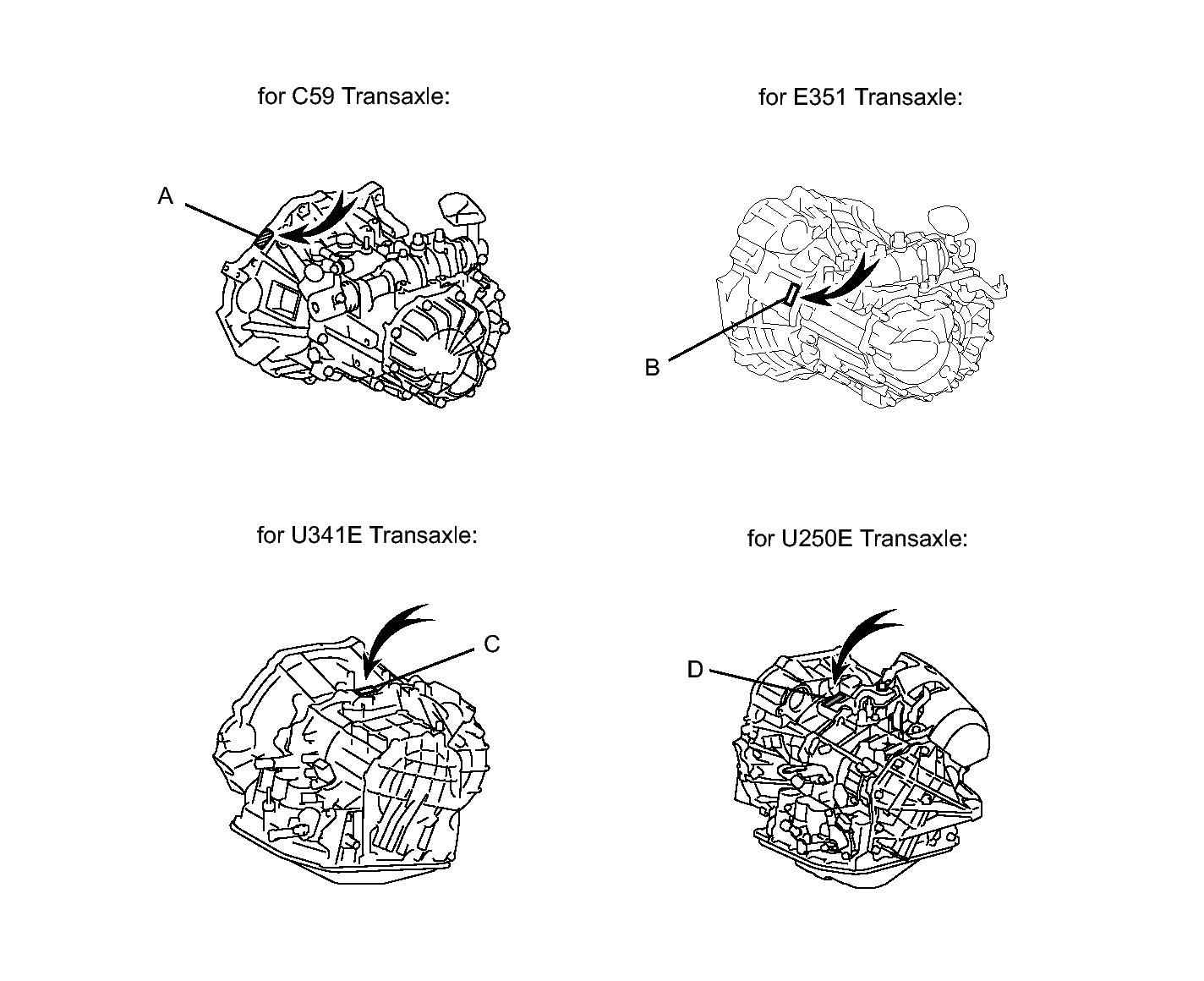

  Fig 3: Identifying Transaxle Serial Number Stamped On Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  C59 Transaxle Serial Number

  B

  E351 Transaxle Serial Number

  C

  U341E Transaxle Serial Number

  D

  U250E Transaxle Serial Number
