Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.

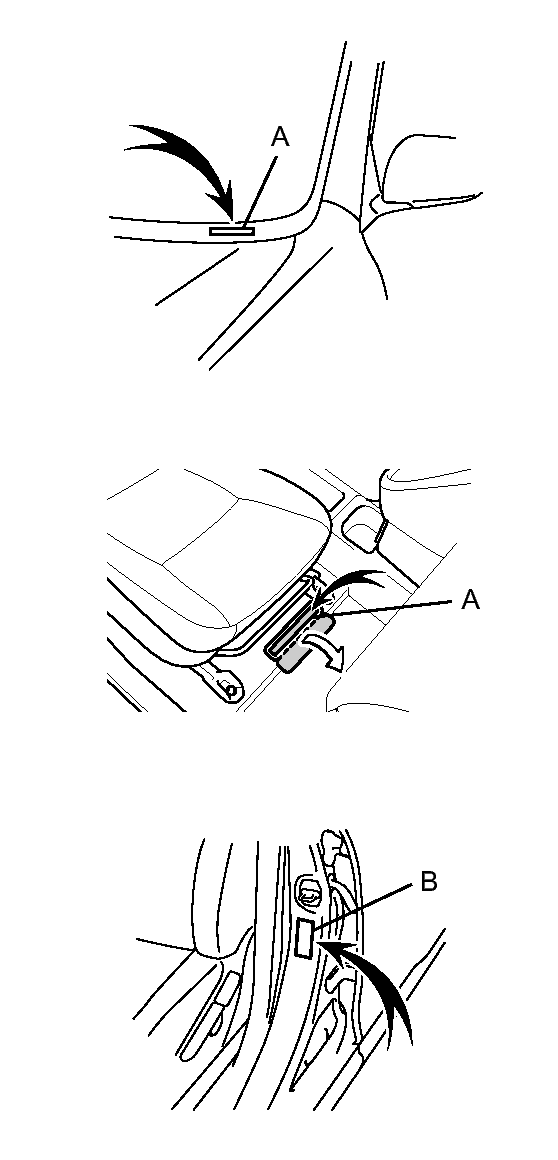

  Fig 1: Identifying Vehicle Identification Number And Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Vehicle Identification Number

  B

  Certification Label
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine as shown in the following illustration.

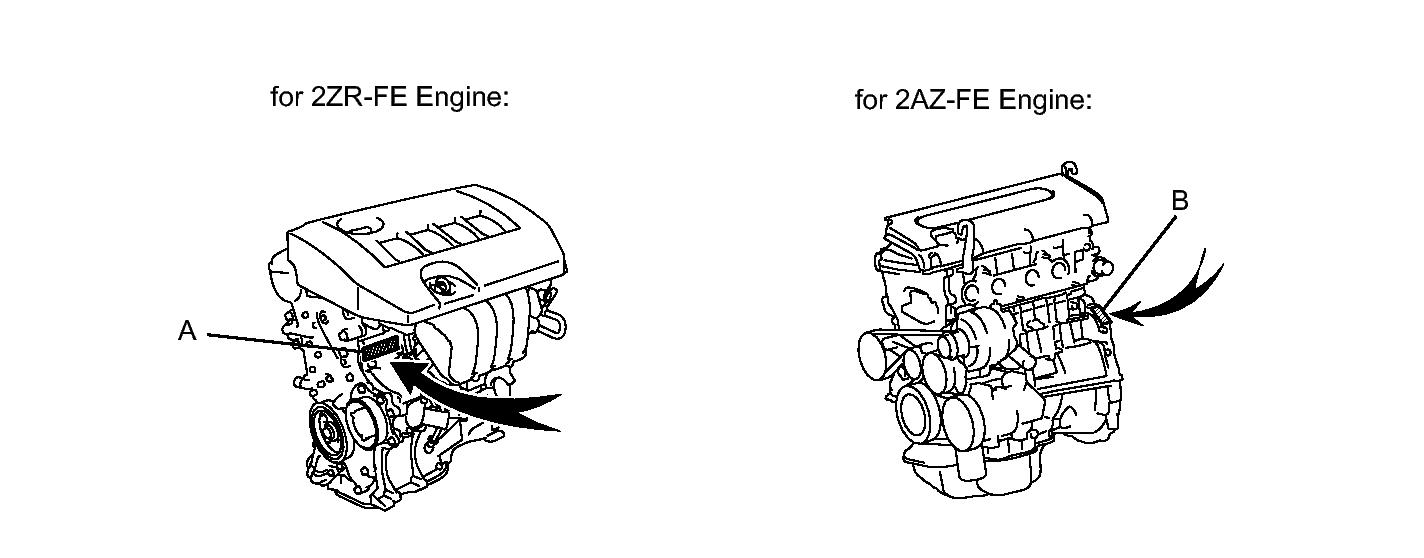

  Fig 2: Identifying Engine Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  2ZR-FE Engine Serial Number

  B

  2AZ-FE Engine Serial Number
2. The transaxle serial number is stamped on the case as shown in the illustration.

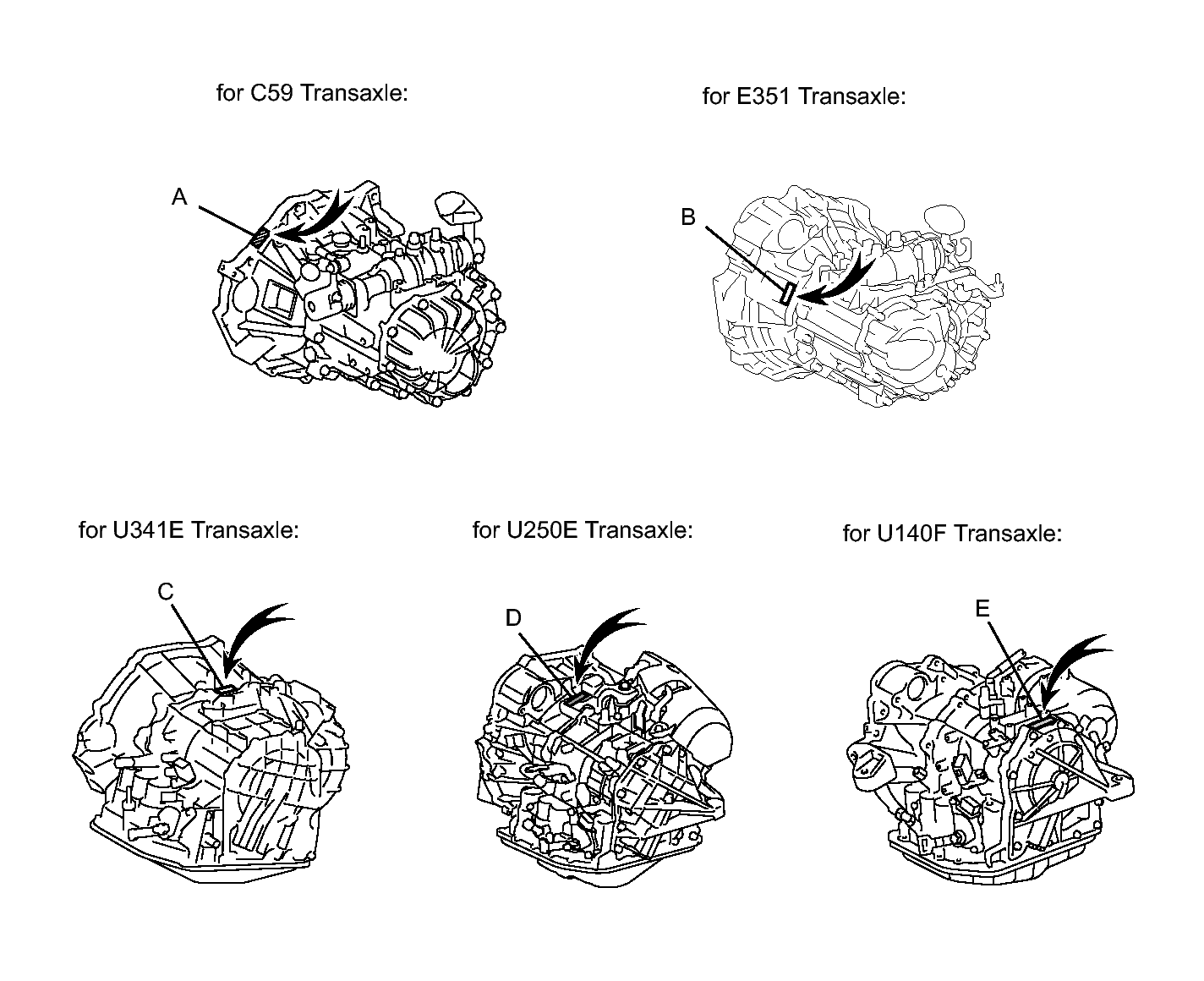

  Fig 3: Identifying Transmission Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  C59 Transaxle Serial Number

  B

  E351 Transaxle Serial Number

  C

  U341E Transaxle Serial Number

  D

  U250E Transaxle Serial Number

  E

  U140F Transaxle Serial Number
