GTS+ Ecu Flash Reprogramming Procedure (T-SB-0134-16 REV2)

GTS+ ECU FLASH REPROGRAMMING PROCEDURE

TECHNICAL SERVICE BULLETIN

APPLICABILITY

YEAR(S)	MODEL(S)	ADDITIONAL INFORMATION
2001 - 2023	4Runner, Highlander
2017 - 2020, 2022	86
2013 - 2022	Avalon HV
2001 - 2022	Avalon, Corolla, Prius, Sequoia, Tacoma
2007 - 2024	Avanza, Camry HV
2017 - 2022	C-HR, Prius Prime
2007 - 2024	Camry HV
2001 - 2024	Camry, RAV4
2001 - 2005	Celica, Echo
2008 - 2014	Corolla BR-Prod
2020 - 2022	Corolla HV, Supra
2019 - 2022	Corolla Hatchback
2007 - 2014	FJ Cruiser
2006 - 2024	Hiace
2006 - 2023	Highlander HV
2004 - 2024	Hilux
2001 - 2011, 2013 - 2021	Land Cruiser
2001 - 2006	MR2 Spyder
2003 - 2014	Matrix
2016 - 2021	Mirai
2012 - 2021	Prius C
2010, 2012 - 2015	Prius PHV
2012 - 2018	Prius V
2001 - 2003, 2012 - 2014	RAV4 EV
2016 - 2024	RAV4 HV
2022 - 2024	Raize
2001 - 2020	Sienna
2001 - 2010	Solara
2001 - 2021	Tundra
2009 - 2016	Venza
2016 - 2020	Yaris R
2016 - 2020	Yaris SD MEX-Prod
2004 - 2019, 2022 - 2023	Yaris
2017 - 2018	iA, iM

SUPERSESSION NOTICE

The information contained in this bulletin supersedes Service Bulletin Nos. T-SB-0134-16 and T-SB-0165-19.

• Applicability has been updated to include 2021 model year Land Cruiser, Mirai, Prius C, and Tundra; 2004 - 2024 model year; Hilux 2006 - 2024 model year Hiace; 2007 - 2024 model year Avanza; 2008 - 2014 model year Corolla Br-Prod; 2016 - 2020 model year Yaris R;

  2020 - 2022 model year Supra; 2021 - 2022 model year Avalon, Avalon HV, C-HR, Corolla, Corolla Hatchback, Corolla HV, Prius, Prius Prime, Sequoia, and Tacoma; 2021 - 2023 model year 4Runner, Highlander, and Highlander HV; 2021 - 2024 model year Camry, Camry HV, RAV4, and RAV4 HV; 2022 - 2024 model year Raize; and 2022 - 2023 model year Yaris vehicles.

• Applicability has been updated to remove 2012 model year Land Cruise; 2001 - 2002, 2015 - 2020 model year Matrix; 2001 - 2003 and 2020 model year Yaris; 2001 - 2005 model year Highlander HV; 2001 - 2006 model year Camry HV; 2001 - 2006 and 2015 - 2020 model year FJ Cruiser; 2001 - 2008 and 2017 - 2020 model year Venza; 2001 - 2009 and 2011, and 2016 - 2020 model year Prius PHV; 2001 - 2011 model year Prius C; 2001 - 2011 and 2019 - 2020 model year Prius V; 2001 - 2012 model year Avalon HV; 2001 - 2015 model year Mirai and RAV4 HV; 2001 - 2016 model year C-HR and Prius Prime; 2001 - 2016 and 2019 - 2020 model year iA and iM; 2001 - 2018 model year Corolla Hatchback; 2001 - 2019 model year Corolla HV; 2004 - 2011 and 2015 - 2020 model year RAV4 EV; 2006 - 2020 model year Celica and Echo; 2007 - 2020 model year MR2 Spyder; and 2011 - 2020 model year Solara vehicles.
• The Introduction, GTS+ Preparation, Process Overview, and Operation Procedure sections have been updated.
• The market indicator has been updated to include the Mexico market.

Service Bulletin Nos. T-SB-0134-16 and T-SB-0165-19 are obsolete and any printed versions should be discarded.

INTRODUCTION

Flash reprogramming allows the Electronic Control Unit (ECU) software to be updated without replacing the ECU. Flash calibration updates for specific vehicle models/ECUs are released as field-fix procedures described in individual Service Bulletins. This bulletin details the Global Techstream+ (GTS+) ECU flash reprogramming procedures and outlines use of the Technical Information System (TIS) and the Calibration Update Wizard+ (CUW+). Flash calibration updates can only be applied to the vehicle/ECU combination for which they are intended. ECUs have internal security that will not allow them to be programmed with another ECU's information.

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

PARTS INFORMATION

REQUIRED TOOLS & EQUIPMENT

REQUIRED EQUIPMENT	SUPPLIER	PART NUMBER	QTY
Techstream ADVI(1)	ADE	TSADVUNIT	1
Techstream 2.0		TS2UNIT
Techstream Lite		TSLITEPDLR01
Techstream Lite (Green Cable)		TSLP2DLR01
(1) Essential SST.

SPECIAL SERVICE TOOLS (SST)	PART NUMBER	QTY
DSS-5000 Battery Diagnostic Tool(1)	DSS-5000P T	1
DCA-8000 Battery Diagnostic Tool(1)	DCA-8000P T	1
(1) Essential SST.

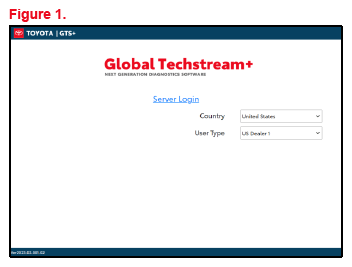

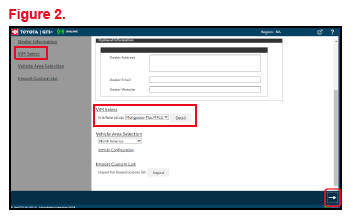

GTS+ PREPARATION

PROCESS OVERVIEW

1. Verify the vehicle's applicability for recalibration and locate the desired calibration file by performing the GTS+ Health Check function.
   NOTE:

   • GTS+ will automatically search TIS for the appropriate Service Bulletin using the current calibration ID from the vehicle if the PC is connected to the network (see figures below).
   • Calibration file links can be found embedded in the corresponding Service Bulletin.
2. Connect the DCA-8000 battery diagnostic tool using "Power Supply Mode" ONLY.

   The DCA-8000 battery diagnostic tool includes a power supply mode to help maintain battery voltage at 13.5V during ECU reprogramming.

   NOTE:

   • ECU damage may occur if the correct battery charger mode setting is NOT used.
   • Refer to Vehicle Reprogramming Tips for other approved chargers, located at TIS - Diagnostics - Reprogramming - Reference Documents.
   • The battery diagnostic tool MUST be used in Power Supply Mode to maintain battery voltage at 13.5V while flash reprogramming the vehicle.
   • For details on how to use the battery diagnostic tool, refer to the DCA-8000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics.
3. Locate the appropriate calibration ID and reprogram the vehicle ECU with GTS+.

   GTS+ uses the CUW+ application to open calibration files and facilitate the ECU flash reprogramming process.

4. Attach the Authorized Modifications Label.

   Modifications to ECU calibrations MUST be recorded and properly displayed on the vehicle using the Authorized Modifications Label.

OPERATION PROCEDURE

1. Verify the vehicle's applicability for recalibration and locate the desired calibration file.
   1. Connect GTS+ and establish a vehicle connection.

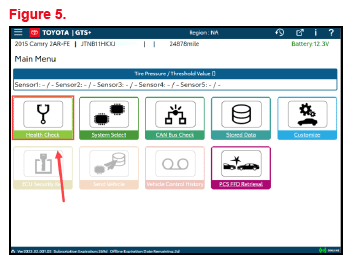

   2. Click the Health Check button on the Main Menu.

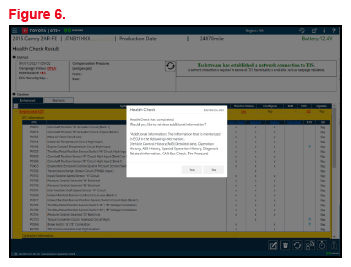

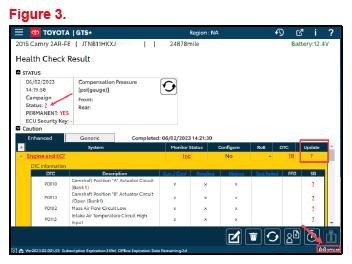

   3. A Health Check completed window opens.

      To continue, click either Yes or No.

      1. Click Yes to include additional information in the Health Check.
      2. Click No if additional information is NOT desired.

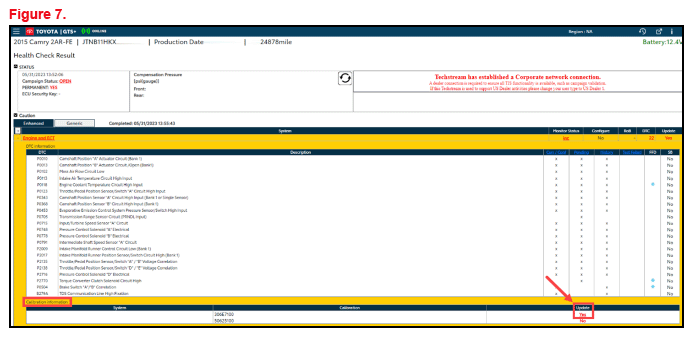

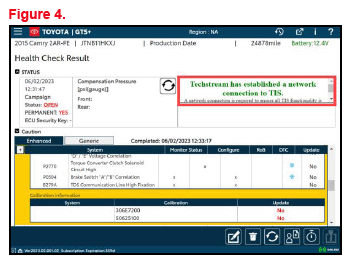

   4. Available calibration updates are indicated by a Yes in the Calibration Update column.

      Click the Yes link in the calibration information section to access the appropriate Service Bulletin on TIS.

      NOTE:

      • Note ANY DTCs stored in systems that will be flash reprogrammed.
      • Clicking the Yes link will automatically launch TIS and perform a calibration search.
   5. Login to TIS.

      HINT

      If already logged in, skip this step.

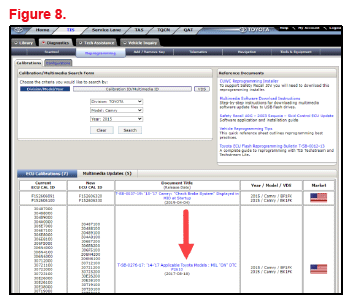

   6. To review the Service Bulletin and access the calibration file, click the Service Bulletin link in the Document Title column of the Calibration Search Result portlet.
      NOTE: ONLY Toyota certified technicians and other authorized users may access calibration files.
2. Connect the DCA-8000 battery diagnostic tool.
   NOTE: Refer to Vehicle Reprogramming Tips  for other approved chargers, located at TIS - Diagnostics - Reprogramming - Reference Documents.
   1. Connect the DCA-8000 battery diagnostic tool to the vehicle and turn it ON.
   2. Select Power Supply Mode.
      NOTE:

      • ECU damage may occur if the correct battery charger and mode setting are NOT used.
      • The battery diagnostic tool MUST be used in Power Supply Mode to maintain battery voltage at 13.5V while flash reprogramming the vehicle.
      • For details on how to use the battery diagnostic tool, refer to the DCA-8000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics.
3. Click the appropriate calibration ID and reprogram the vehicle's ECU with GTS+.

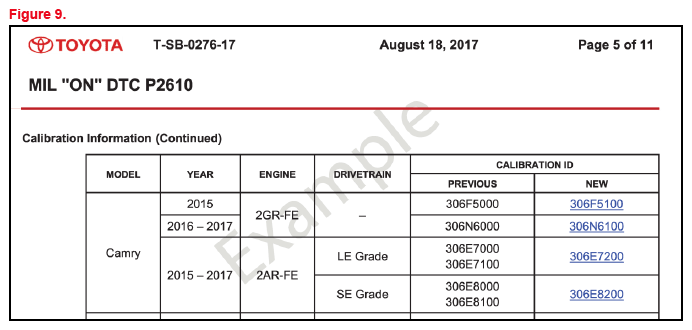

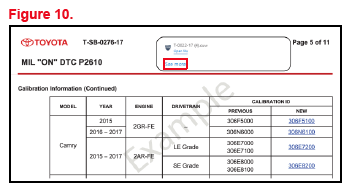

   1. AFTER reviewing the procedures outlined in the selected Service Bulletin, click the appropriate calibration ID link by matching the vehicle's current calibration ID to the Previous Calibration ID in the Calibration Identification Chart.
      NOTE:

      • Calibration files are embedded as live links in the Service Bulletin.
      • Some vehicles require special preparation. Review the selected Service Bulletin carefully.

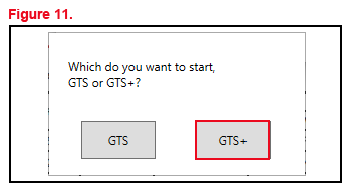

   2. Click Open to load the calibration file information. If prompted to choose GTS or GTS+, select GTS+.
      NOTE:

      • GTS+ downloads calibration files as needed to ensure the latest calibration file is used.
      • Do NOT save calibrations locally on the hard drive or other media for future use.
      NOTE: Errors during the flash reprogramming process can permanently damage the vehicle ECU. Minimize the risk by following the steps below.

      • Battery voltage MUST NOT FALL BELOW 12V during reprogramming. Confirm battery voltage is higher than 12V but be sure voltage DOES NOT RISE ABOVE 16.0V during reprogramming.
      • Turn OFF ALL vehicle accessories (audio system, A/C, interior lights, DRL, etc.).
      • Do NOT add to or significantly change the vehicle's electrical load while reprogramming.
      • Confirm the hood is open and ensure under-hood temperature does NOT exceed 158°F (70°C).
      • Confirm cable connections between the vehicle and Techstream are secure.
      • Do NOT disconnect or turn off Techstream or vehicle ignition during reprogramming.
      • Set the parking brake.
      • Complete ALL flash calibration updates provided for each ECU.
      • If the battery's State-Of-Charge (SOC) or capacity is in question, test with SST No. DSS-5000P T  (Battery Diagnostic Tool), and follow the DSS-5000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics.
      • The DCA-8000 battery diagnostic tool MUST be used in Power Supply Mode to maintain battery voltage at 13.5V while flash reprogramming the vehicle.

        For details on how to use the DCA-8000 battery diagnostic tool, refer to the DCA-8000 Instruction Manual  located at TIS - Diagnostics - Tools & Equipment - Battery Diagnostics.

   3. Click Next to start the calibration update process.

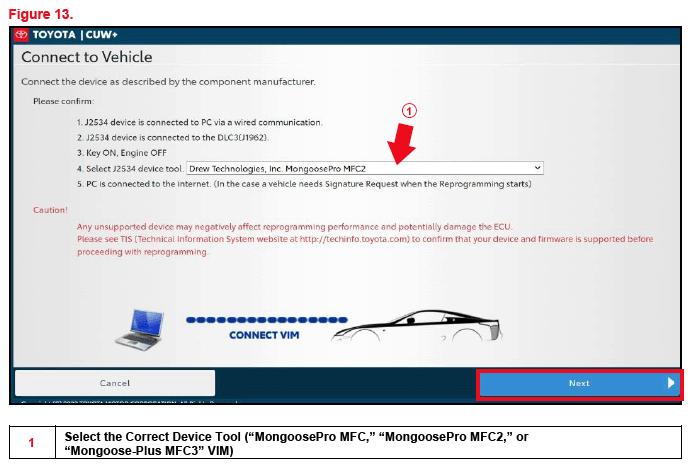

   4. Confirm the following:
      • The PC is connected to VIM.
      • The VIM is connected to DLC3 connector.
      • The Ignition is ON and the engine is OFF or READY-OFF (hybrid vehicles). Then, click Next.

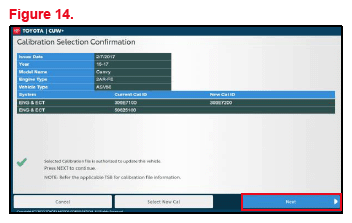

   5. Verify the correct current and NEW calibration information, then click Next.
      NOTE:

      • The total number of calibration IDs in the calibration file corresponds to the number of reprogrammable processors in the ECU.
      • The figure to the right shows an example of the update procedure for a two-processor ECU.

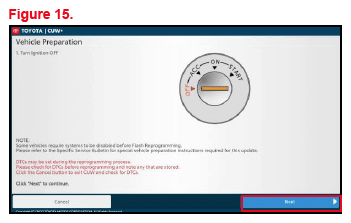

   6. Turn the ignition OFF, click Next, and wait at least 10 seconds before proceeding.
   7. Turn the Ignition ON (IG ON Ready-OFF for hybrid vehicles).

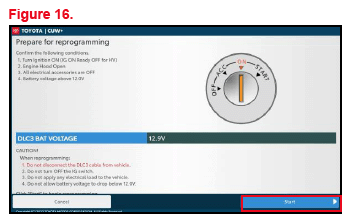

   8. Confirm the following:
      • The PC is connected to VIM.
      • The hood is open.
      • ALL accessories are OFF.
      • Battery voltage is above 12V.
      NOTE: Verify the vehicle is connected to a battery charger before continuing. If battery voltage falls below 12V, ECU damage may occur.

      Then, click Start.

      NOTE: If the key cycle is NOT done properly, reprogramming will fail, and an error message will appear prompting you to restart.
   9. Do NOT disturb the vehicle during flash reprogramming.
      NOTE:

      • ECU flash reprogramming may take 3 - 30 minutes per calibration file.
      • Reprogramming time will vary depending on model and ECU communication protocol. Vehicles using CAN communication protocol will reprogram much faster (2 - 7 minutes).
   10. Does the vehicle require only ONE calibration update?
       • YES  - Go to sub step P.
       • NO  - If the vehicle requires a SECOND calibration update, continue as follows:
         • For serial communication vehicles, continue to sub step K.
         • For CAN communication vehicles, go to sub step M.
   11. When Cal 1 completes the update process, turn the ignition OFF, click Next, and wait a MINIMUM of 10 seconds before proceeding.
   12. Turn the ignition to the ON position, then click Start.
       NOTE: If the key cycle is NOT done properly, reprogramming may fail, and an error message will appear prompting you to restart Cal 2.

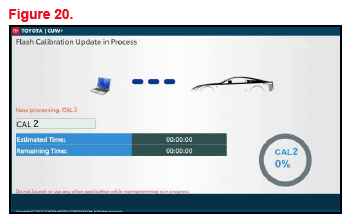

   13. Do NOT disturb the vehicle during flash reprogramming.

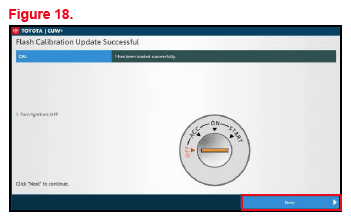

   14. Turn the ignition OFF, click Next, and wait a MINIMUM of 10 seconds before proceeding.
   15. Turn the ignition to the ON position, then click Next.

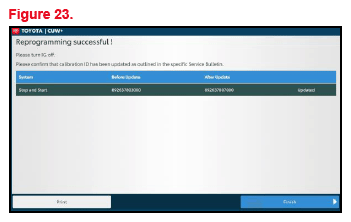

   16. Confirm calibrations were updated and click Finish.
       NOTE: On some models, DTCs may set as a result of reprogramming. If DTCs are present, clear codes and run the Health Check again. Troubleshoot ANY remaining current, pending, or history codes.
       Permanent codes will NOT be cleared using Techstream. Permanent codes do NOT illuminate the MIL and do NOT require troubleshooting. They will clear during normal driving once the Universal Trip Drive Pattern is performed.
4. Attach the Authorized Modifications Label.

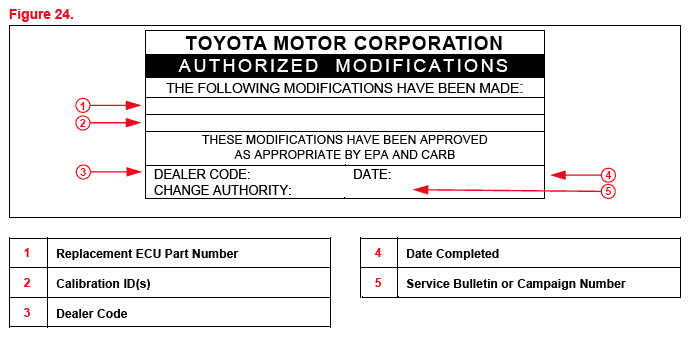

   1. Using a permanent marker or ballpoint pen, complete the Authorized Modifications Label and attach it to the vehicle. The Authorized Modifications Label is available through the MDC, P/N 00451-00001-LBL (USA) or 00451-00002-MEX (Mexico).
   2. Attach the Authorized Modifications Label under the hood in the location determined by the specific Service Bulletin or Campaign.
      NOTE: Wait 60 - 90 seconds for ink to set before handling.
