Parts Location: Illustration

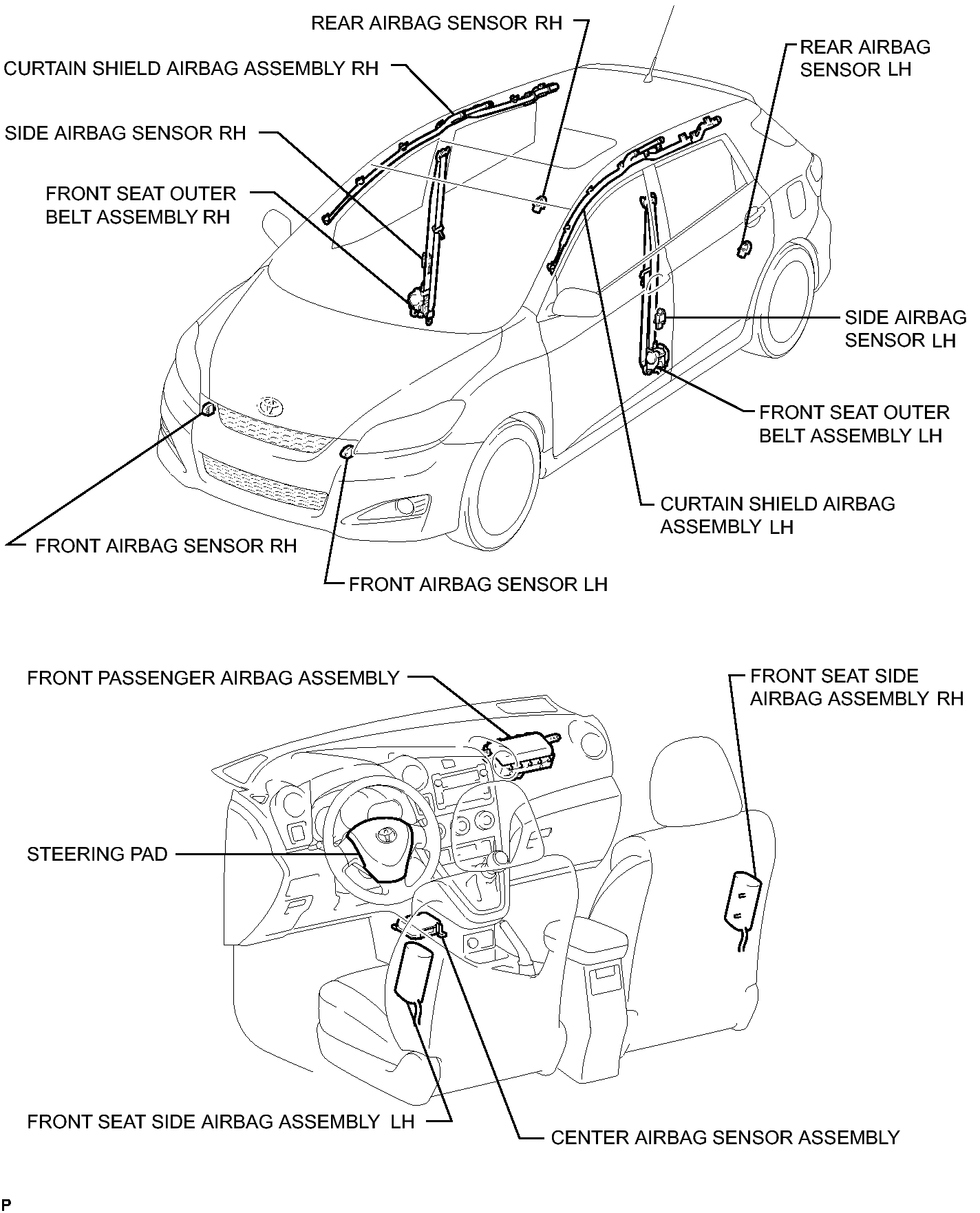

Fig 1: Identifying Airbag System Components Location (1 Of 2)
GTY292336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

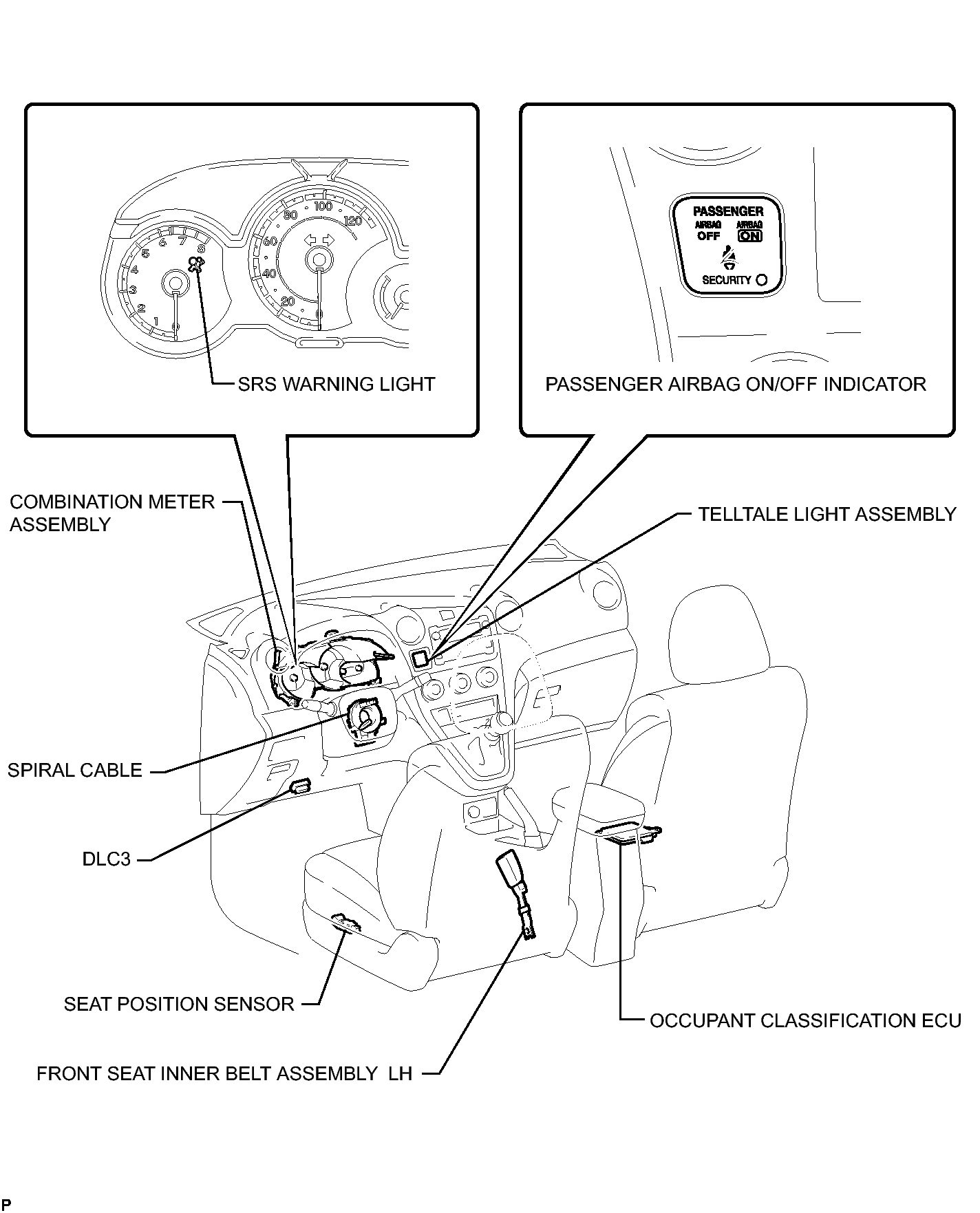

Fig 1: Identifying Airbag System Components Location (2 Of 2)
GTY245246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
