Front Airbag Sensor: Components: Illustration

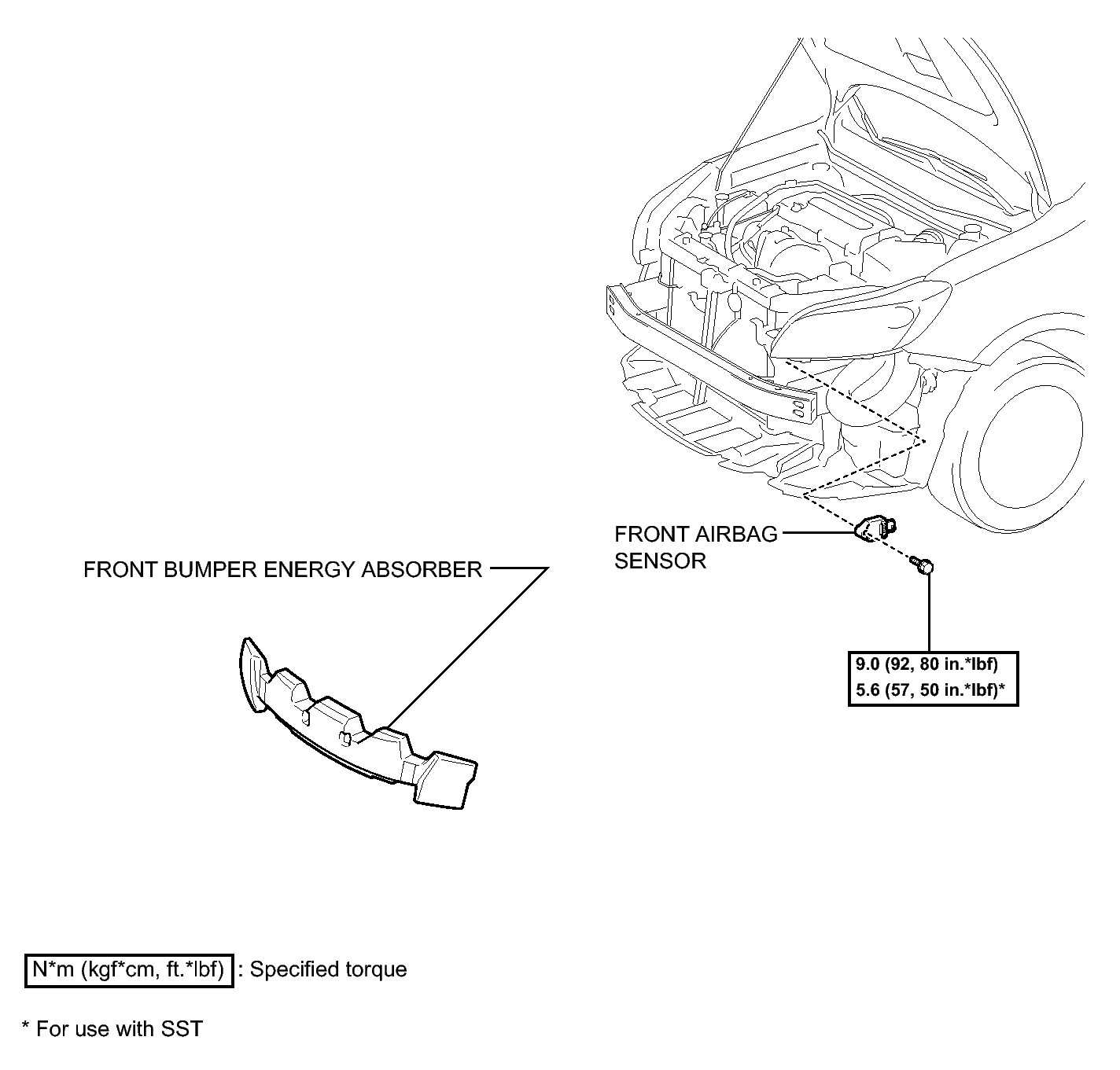

Fig 1: Identifying Front Airbag Sensor Replacement Components With Torque Specifications
GTY235407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
