Seat Position Sensor: Components: Illustration

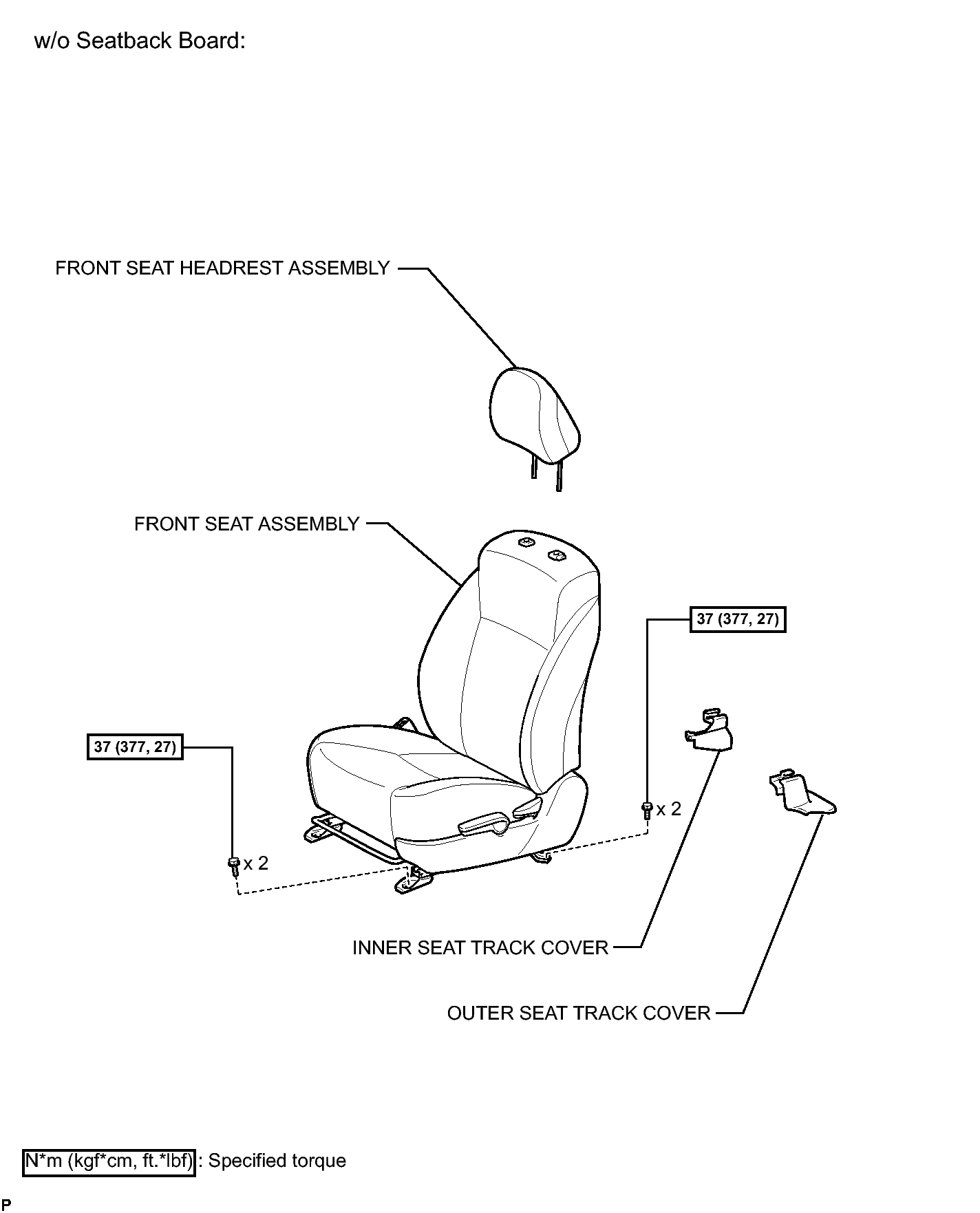

Fig 1: Identifying Seat Position Sensor Replacement Components With Torque Specifications (1 Of 4)
GTY234224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

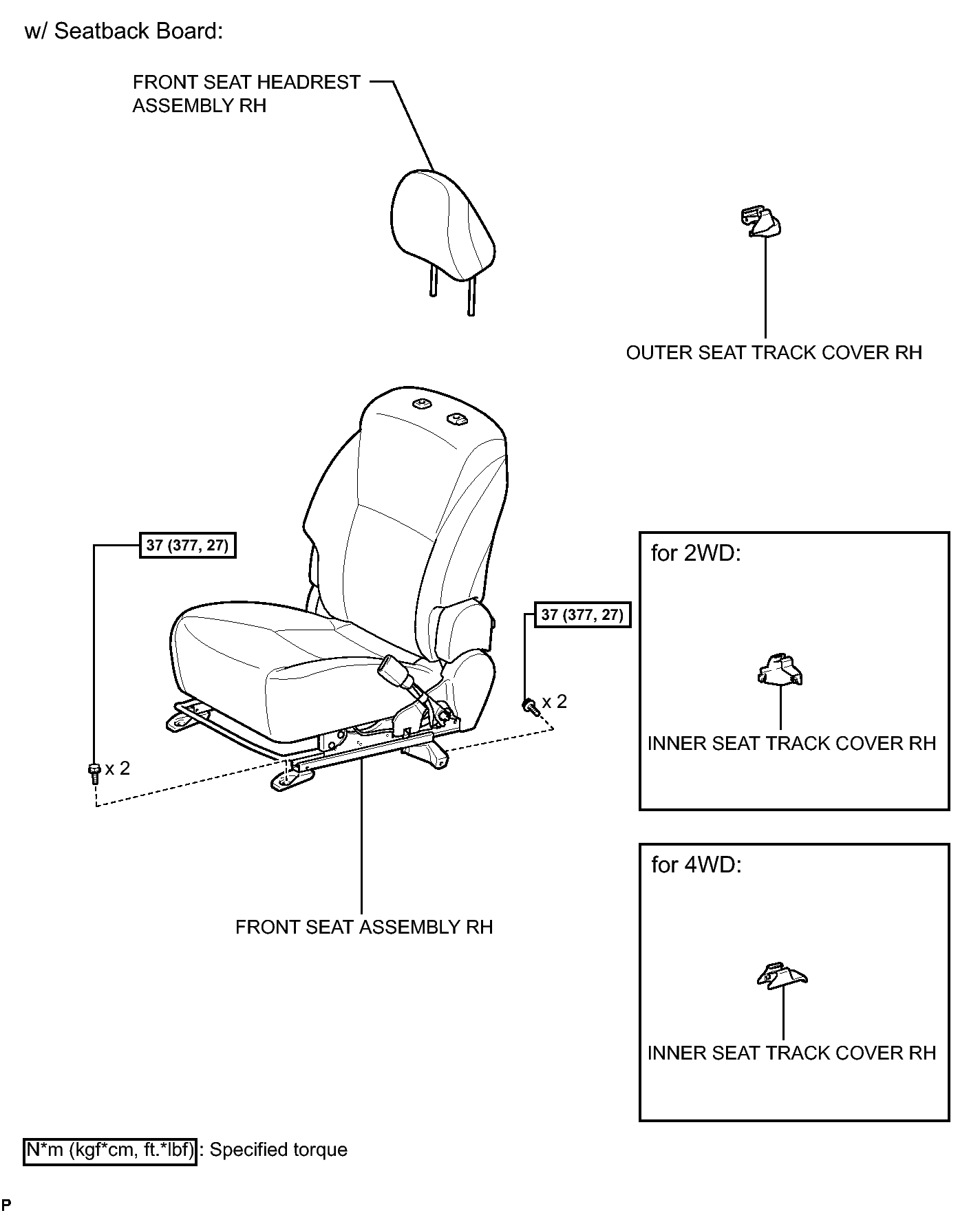

Fig 1: Identifying Seat Position Sensor Replacement Components With Torque Specifications (2 Of 4)
GTY218070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

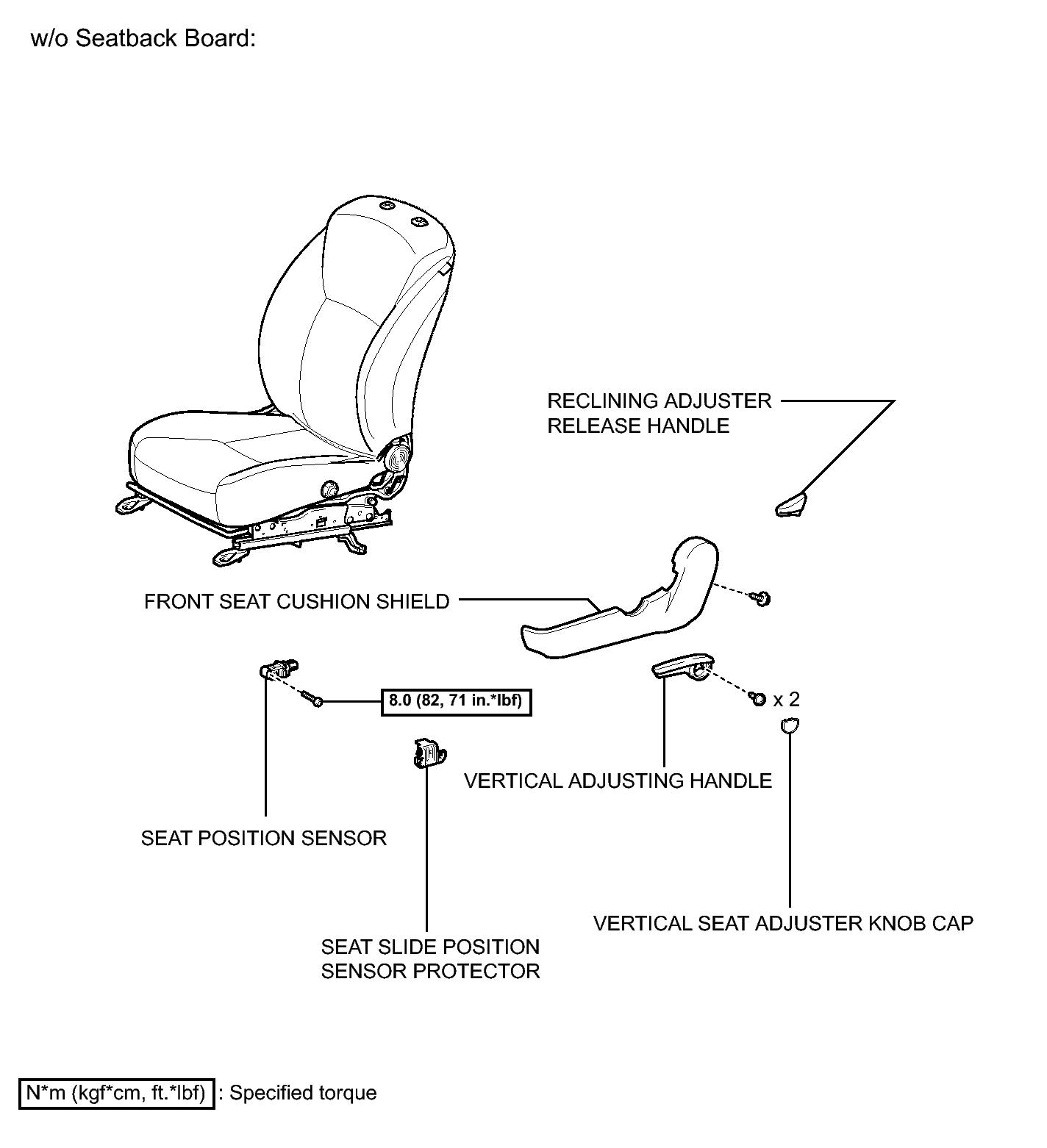

Fig 1: Identifying Seat Position Sensor Replacement Components With Torque Specifications (3 Of 4)
GTY211292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

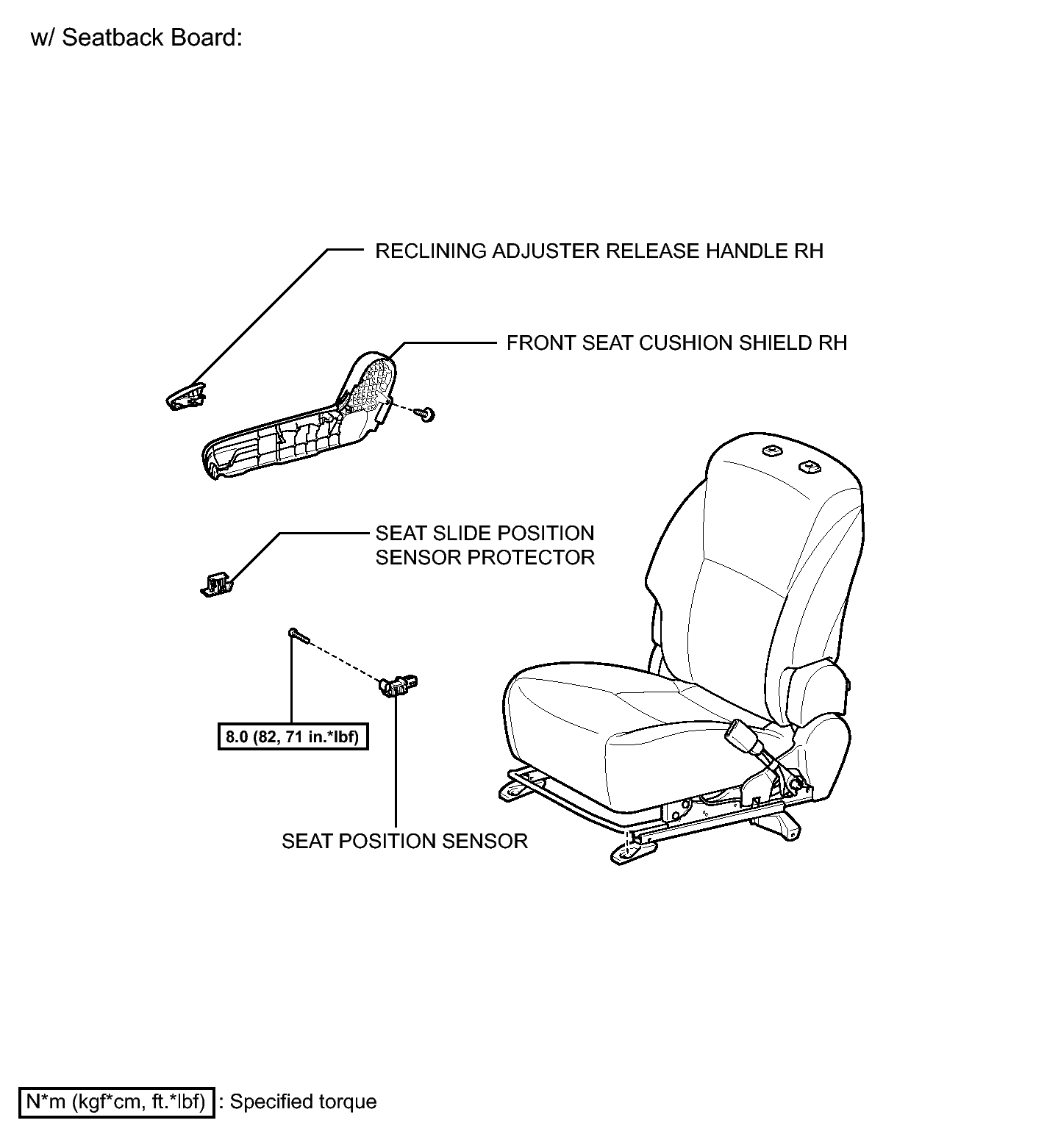

Fig 1: Identifying Seat Position Sensor Replacement Components With Torque Specifications (4 Of 4)
GTY229426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
