Steering Column Assembly: Inspection: Inspection

INSPECT STEERING LOCK OPERATION
1. Check that the steering lock mechanism is activated when the key is removed.

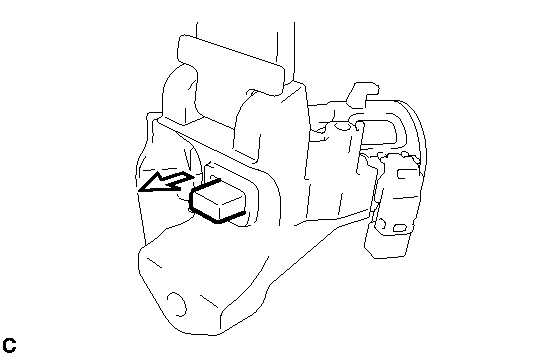

  Fig 1: Checking Steering Lock Mechanism (Key Removed)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the steering lock mechanism is deactivated when the key is inserted and turned to ACC.

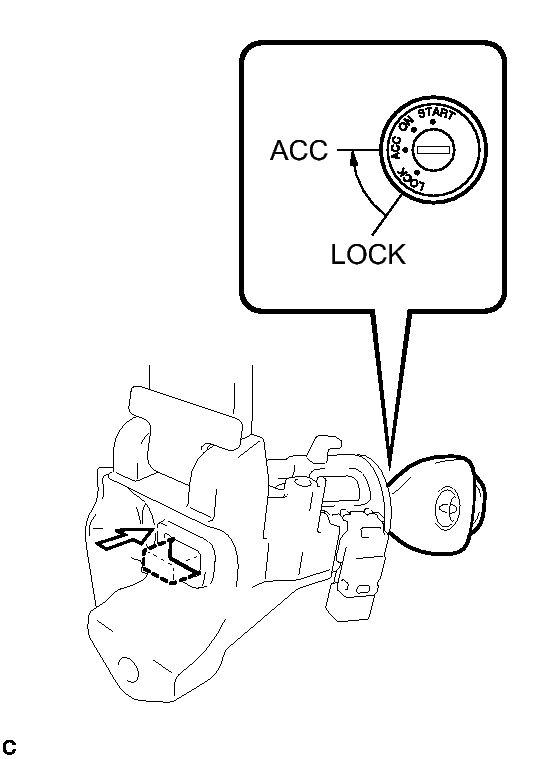

  Fig 2: Checking Steering Lock Mechanism
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If there is any abnormality, replace the ignition switch lock cylinder assembly or steering column upper with the switch bracket assembly.
