Parts Location: Illustration

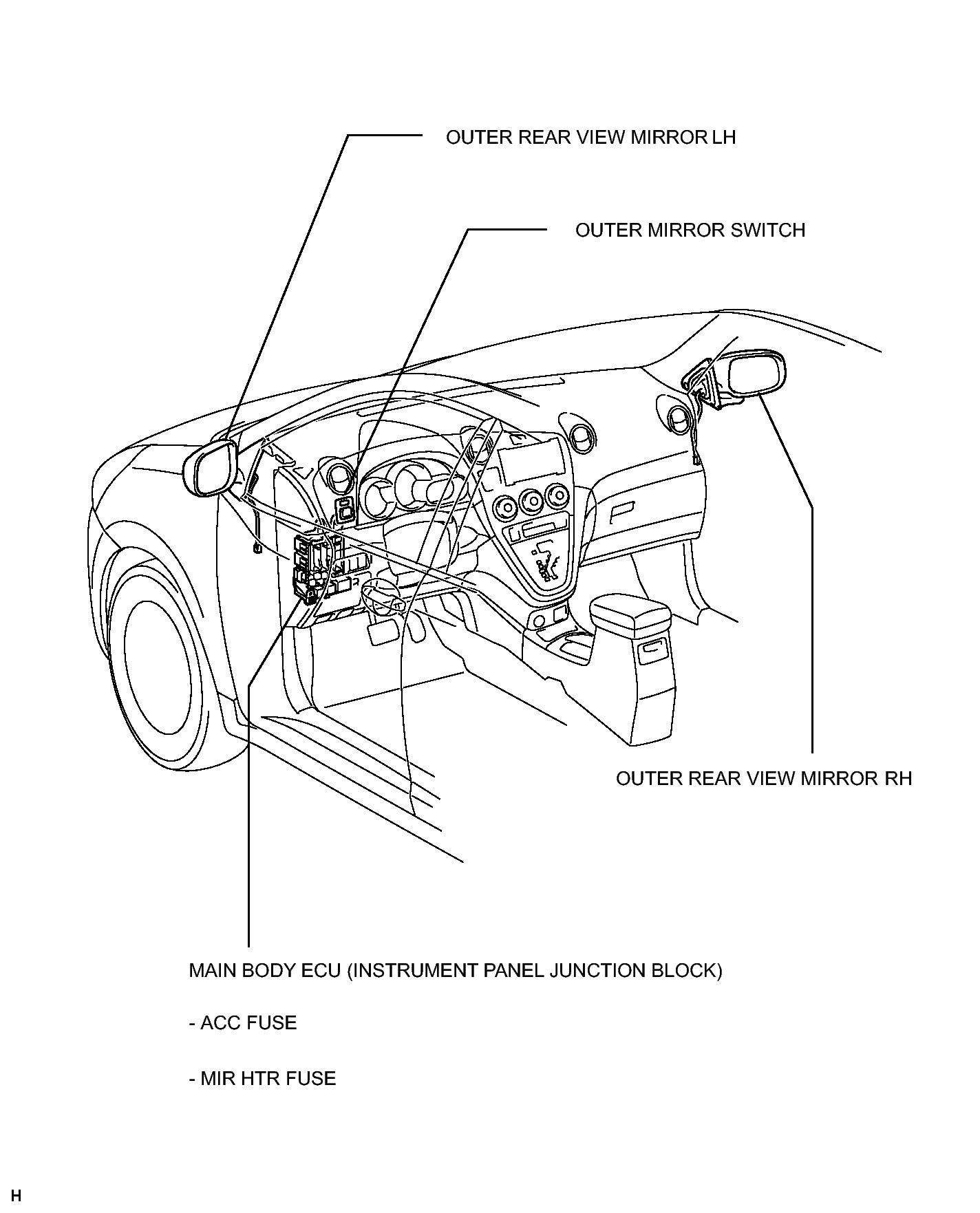

Fig 1: Identifying Power Mirror Control System Components Location
GTY233955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
