1GR-FE 4.0L

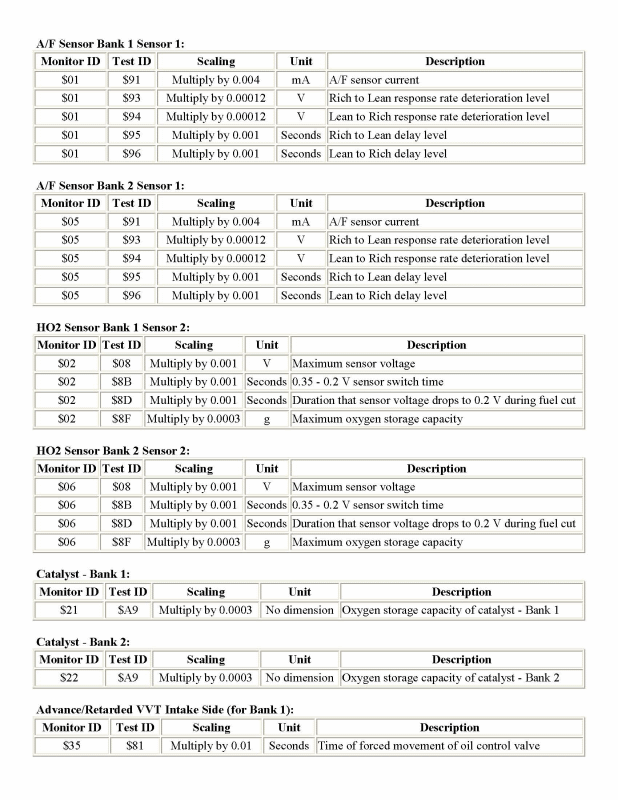

Fig 1: Mode 6 Data For Tundra V6 (1 Of 4)
G00526324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

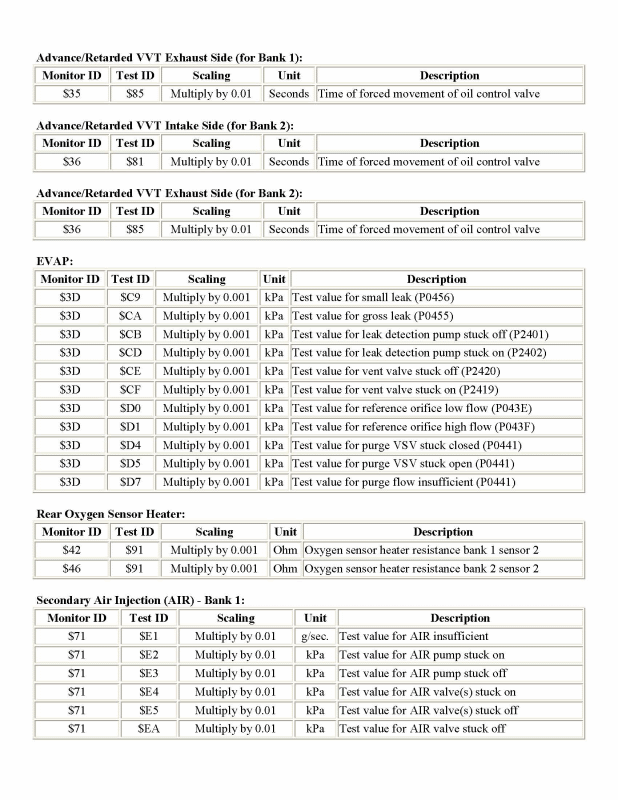

Fig 2: Mode 6 Data For Tundra V6 (2 Of 4)
G00526325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Mode 6 Data For Tundra V6 (3 Of 4)
G00526326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

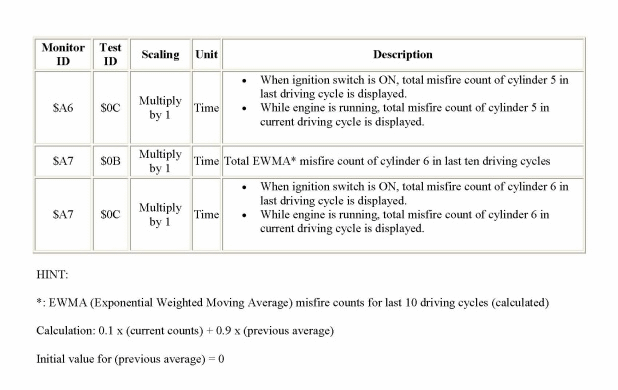

Fig 4: Mode 6 Data For Tundra V6 (4 Of 4)
G00526327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
